Produkteinführung

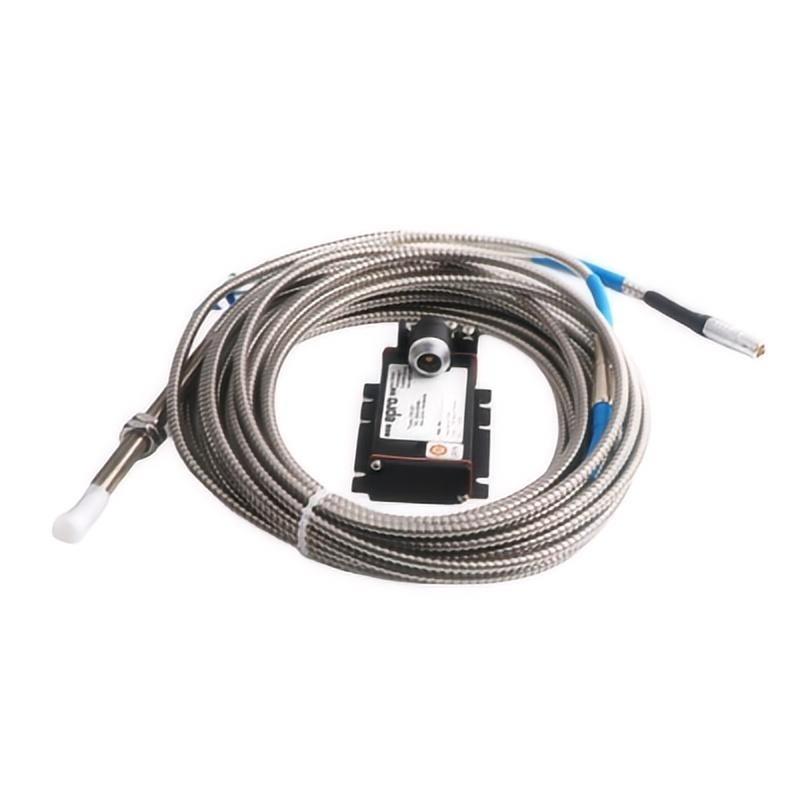

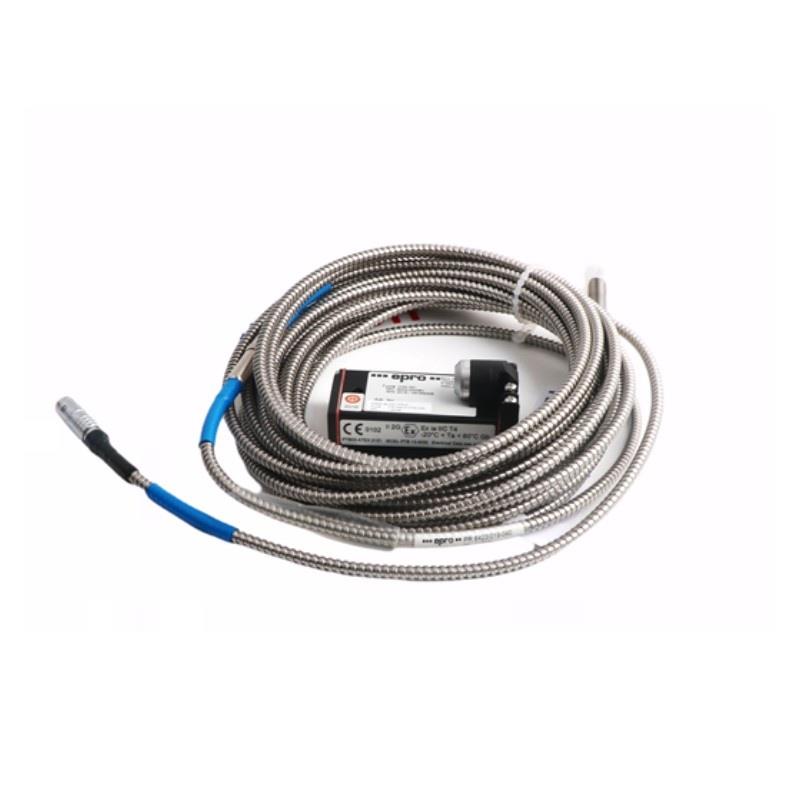

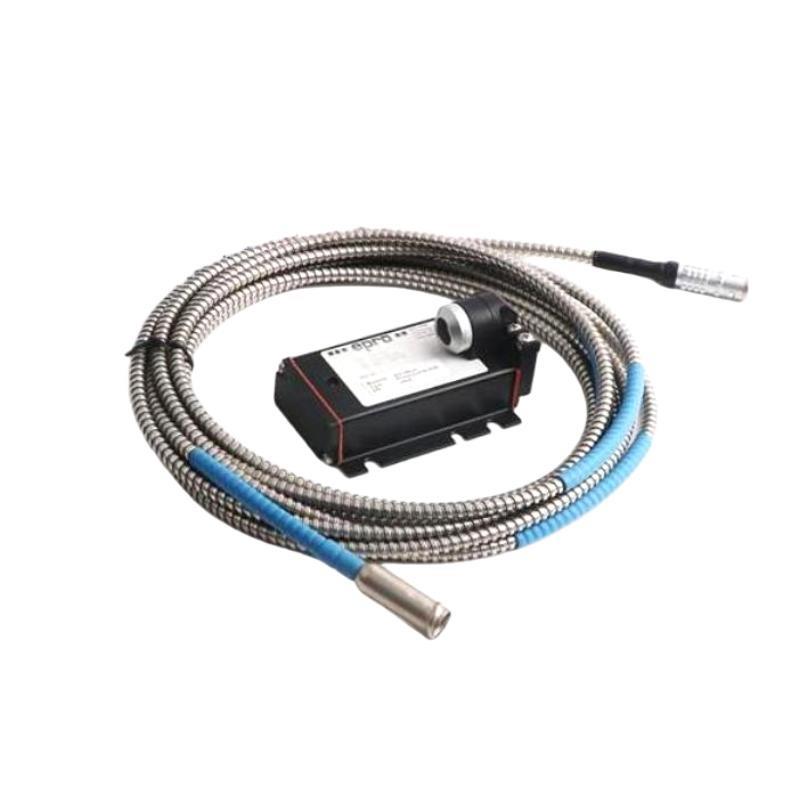

The Epro PR6423/011-110-CN is an 8 mm Eddy Current Sensor designed for high-precision measurement von displacement, vibration, and position in industrial and research applications. As a member von the PR6423 series, this sensor delivers robust performance, high reliability, and repeatable accuracy, making it suitable for demanding environments such as rotating machinery, turbines, pumps, motors, and gearboxes.
Utilizing non-contact eddy current technology, the PR6423/011-110-CN provides wear-free measurement, ensuring long-term stability and consistent performance. The stainless steel housing provides protection against mechanical stress and environmental factors, allowing installation in tight and harsh locations without compromising performance.
The sensor generates stable analog output signals, which can be integrated directly with industrial controllers, vibration monitoring systems, or data acquisition platforms. Its compact size, high accuracy, and reliability make it an ideal solution for predictive maintenance, condition monitoring, and experimental mechanical testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 8 mm |
| Gewicht | 0.1 kg |
| Measurement Range | 0–110 mm |
| Linearity | ±0.5% F.S. |
| Operating Temperature | -40°C to +125°C |
| Output Signal | Analog voltage / current |
| Housing Material | Stainless Steel |
| Connector Type | CN |
| Frequency Response | Up to 10 kHz |
| Power Supply | 24 VDC nominal |
Applications
The PR6423/011-110-CN sensor is applied in various industrial and research scenarios requiring precise measurement and monitoring:
-
Rotating Machinery Monitoring: Detecting shaft vibration, rotor displacement, and misalignment.
-
Turbines and Generators: Measuring rotor and shaft movement to prevent operational failures.
-
Pumps and Compressors: Monitoring axial and radial displacement for optimized performance.
-
Motors and Gearboxes: Detecting imbalance, wear, and bearing degradation.
-
Research and Development: Laboratory testing von mechanical systems, vibration analysis, and component verification.
-
Zustand-Based Maintenance Systems: Integration into predictive maintenance frameworks for real-time monitoring von equipment health.
Advantages
The PR6423/011-110-CN sensor vonfers multiple benefits:
-
High Precision: Ensures accurate measurements with minimal deviation.
-
Compact Design: 8 mm sensor head allows installation in tight spaces.
-
Non-Kontakt Operation: Prevents wear and reduces maintenance requirements.
-
Robust Construction: Stainless steel housing resists corrosion and mechanical stress.
-
Wide Operating Temperature Range: Operates reliably from -40°C to +125°C.
-
High-Frequency Response: Captures rapid vibration and transient events efficiently.
-
Versatile Output: Analog voltage or current outputs compatible with industrial systems.
-
Long-Term Stability: Maintains accuracy over extended operational periods.
FAQ
-
What is the maximum measurement range von the PR6423/011-110-CN?
The sensor can measure displacements up to 110 mm with consistent linearity. -
Can this sensor operate under extreme temperatures?
Yes, it functions reliably from -40°C to +125°C. -
What type von output signals does the sensor provide?
It provides analog voltage or current outputs suitable for integration with industrial control systems. -
How precise is the PR6423/011-110-CN?
It maintains linearity within ±0.5% von the full-scale measurement range. -
Is the sensor suitable for vibration monitoring?
Yes, the frequency response up to 10 kHz allows accurate detection von high-speed vibrations. -
What materials are used for the sensor housing?
The housing is stainless steel, vonfering mechanical durability and corrosion resistance. -
Can the sensor detect both axial and radial displacement?
Yes, the eddy current principle enables measurement in both directions. -
Is the sensor compatible with automated monitoring systems?
Yes, its analog outputs allow integration into industrial control and predictive maintenance platforms. -
Does the sensor require calibration before use?
Factory calibration ensures accuracy, but field calibration is recommended for critical applications. -
What connector type does this sensor use?
It uses a CN connector for secure and reliable electrical connection.
Recommended Related Modells (Same Series or Similar)
| Modell | Sensor Head Diameter | Measurement Range | Gewicht |
|---|---|---|---|
| PR6423/005-010-CN | 5 mm | 10 mm | 0.08 kg |
| PR6423/010-020-CN | 10 mm | 20 mm | 0.12 kg |
| PR6423/012-025-CN | 12 mm | 25 mm | 0.13 kg |
| PR6423/015-030-CN | 15 mm | 30 mm | 0.15 kg |
| PR6423/017-030-CN | 8 mm | 30 mm | 0.10 kg |
| PR6423/01M-010 | 8 mm | 10 mm | 0.10 kg |
Popular Modells from Epro (Same Marke)
| Modell | Sensor Head Diameter | Measurement Range | Gewicht |
|---|---|---|---|
| PR6424/014-040 | 14 mm | 40 mm | 0.17 kg |
| PR6424/022-050 | 22 mm | 50 mm | 0.22 kg |
| PR6425/010-030 | 10 mm | 30 mm | 0.14 kg |
| PR6425/018-035 | 18 mm | 35 mm | 0.19 kg |
| PR6426/012-025 | 12 mm | 25 mm | 0.13 kg |
| PR6426/020-040 | 20 mm | 40 mm | 0.21 kg |
