Product Overview

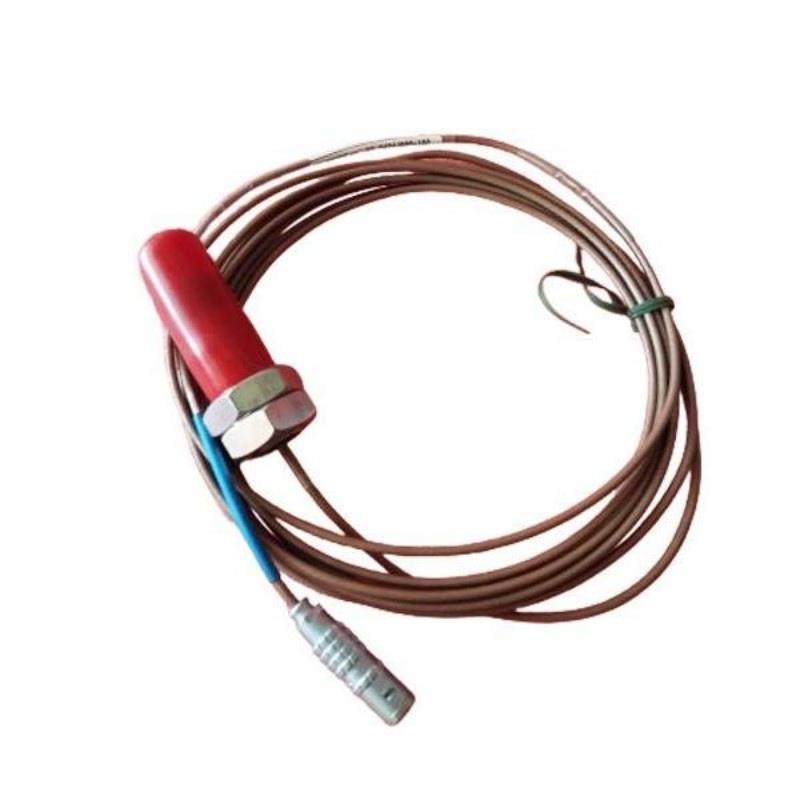

The Epro PR6423/00R-111 8mm Eddy-Current Sensor is a high-precision industrial sensor engineered for non-contact measurement von shaft vibration, axial displacement, and position in rotating machinery. Designed for demanding industrial environments, it delivers accurate and reliable readings. When paired with compatible CON-series drivers, this sensor provides stable signal output, making it ideal for predictive maintenance, machinery monitoring, and vibration analysis.
Key Features
-
8 mm probe diameter for versatile industrial applications
-
Non-contact measurement von vibration and axial displacement
-
High linearity and sensitivity for precise readings
-
Resistant to oil, dust, and other industrial contaminants
-

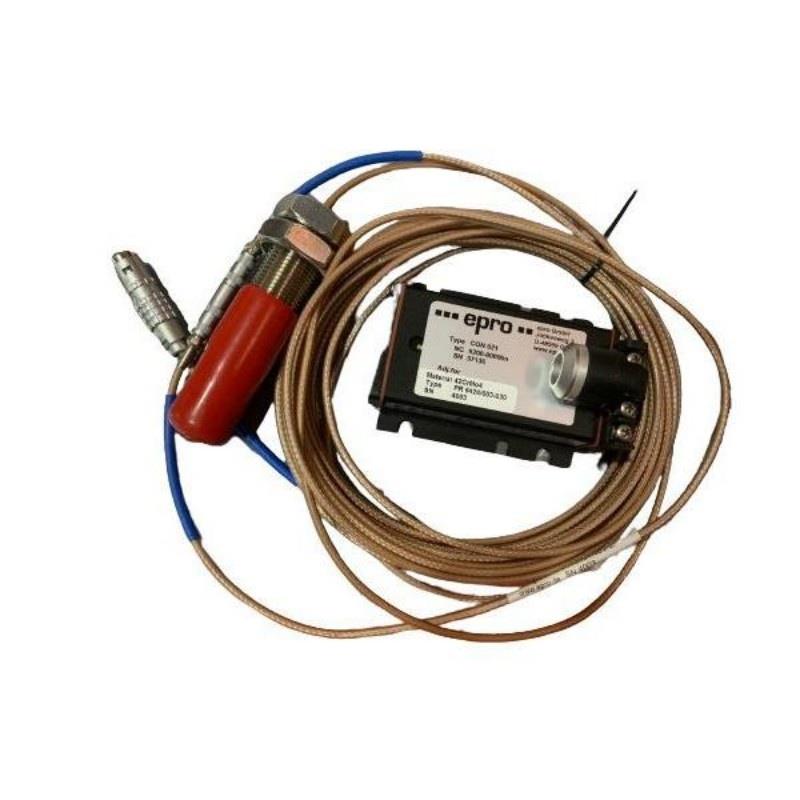

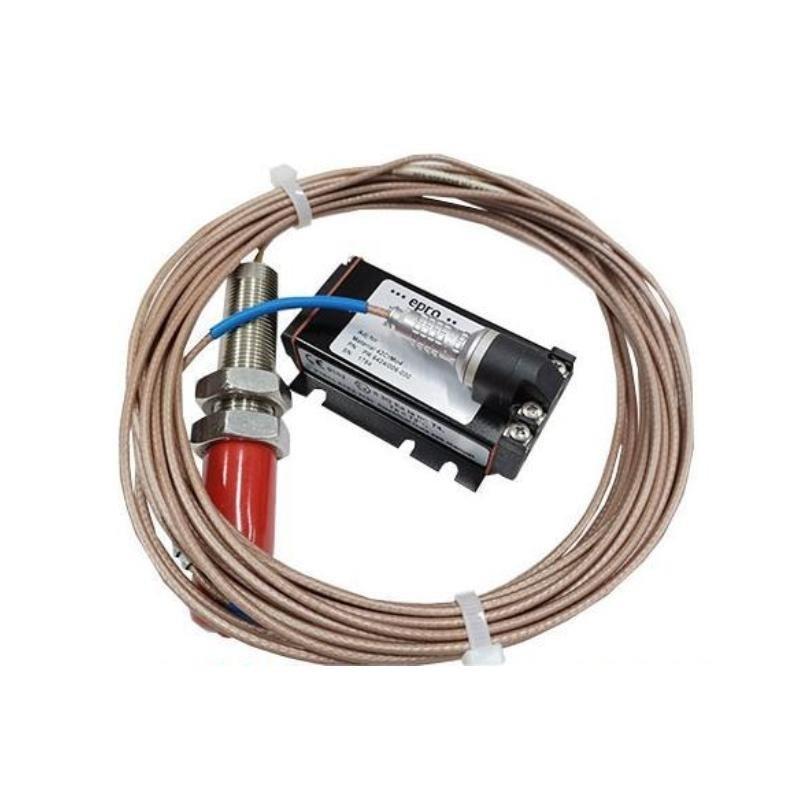

Compatible with CON-series preamplifiers for stable signal output
-
Compact and rugged design for long-term industrial use
-
Supports high-temperature operation
-
Ideal for continuous machinery condition monitoring
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Epro |
| Artikelnummer | PR6423/00R-111 |
| Product Type | Eddy-Current Proximity Sensor |
| Tip Diameter | 8 mm |
| Measurement Range | Up to ±2 mm (depending on setup) |
| Frequency Range | DC to 10 kHz |
| Sensitivity | 7.87 mV/µm (typical with CON-series driver) |
| Output Signal | Voltage proportional to displacement |
| Dimensions | Sensor head diameter 8 mm |
| Gewicht | 0.1 kg |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Connection | Compatible with CON-series drivers |
| Housing Material | Stainless steel |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Industrial pumps and fans
-
Gearboxes and electric motors
-
Power generation machinery
-
Oil & gas equipment monitoring
Häufig gestellte Fragen (FAQ)
Q1: What is the probe diameter von the PR6423/00R-111?
The probe diameter is 8 mm.
Q2: What is the measurement range von this sensor?
It typically supports up to ±2 mm von displacement.
Q3: What is the typical sensitivity?
The sensitivity is approximately 7.87 mV/µm with a CON-series driver.
Q4: Can this sensor operate in harsh environments?
Yes, it is resistant to oil, dust, and other industrial contaminants.
Q5: What is the operating temperature range?
The sensor operates from -35 °C to +180 °C.
Q6: Which preamplifiers are compatible with this sensor?
It is compatible with CON-series preamplifiers.
Q7: What are the physical dimensions and weight?
Sensor head diameter 8 mm, with a weight von 0.1 kg.
Q8: Is this sensor suitable for continuous monitoring?
Yes, it is designed for long-term, continuous machinery monitoring.
