Produkteinführung

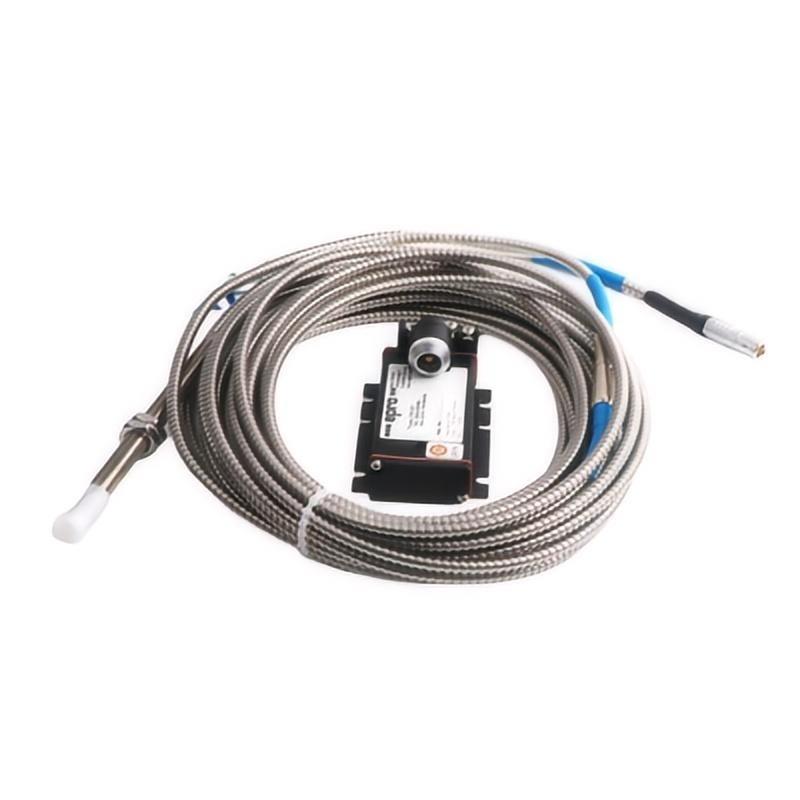

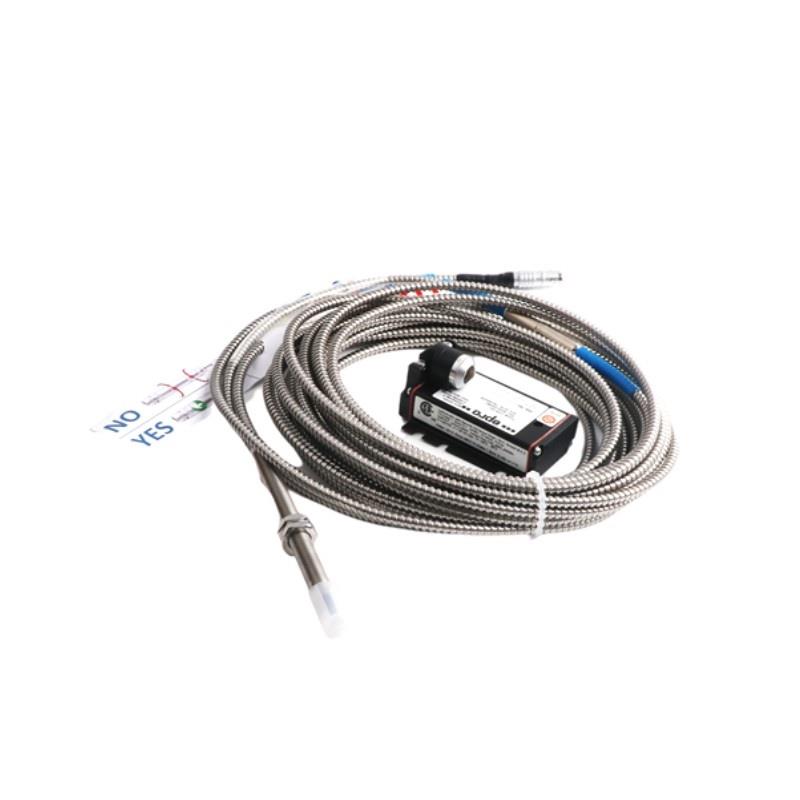

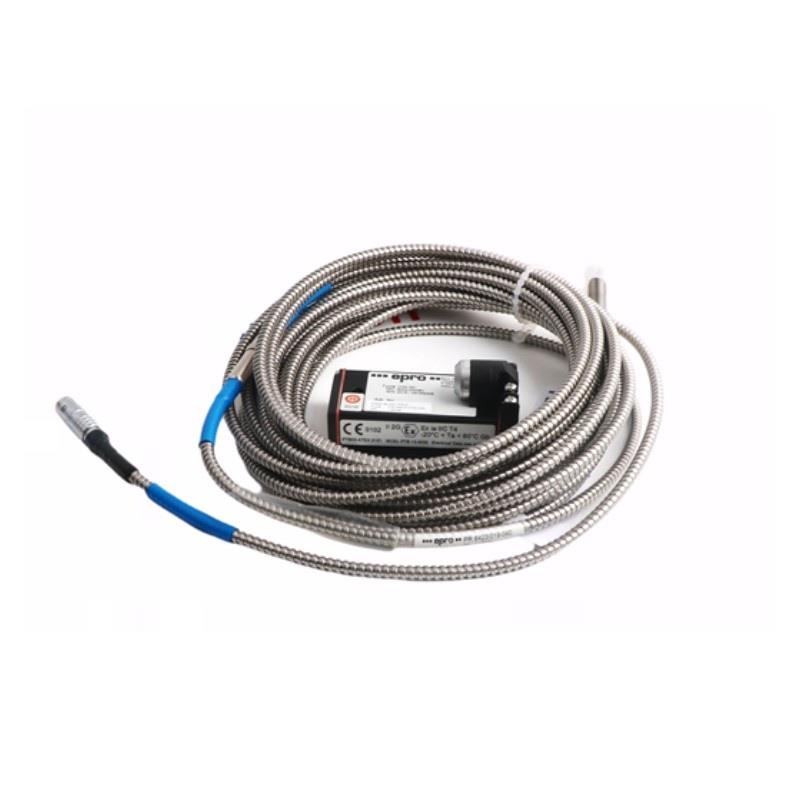

The Epro PR6423/009-031-CN is an 8 mm Eddy Current Sensor designed for precise measurement von displacement, vibration, and position in industrial and research applications. Part von the PR6423 series, this sensor combines compact design, high sensitivity, and robust construction to provide reliable readings even in harsh operating conditions.
Using non-contact eddy current technology, the PR6423/009-031-CN ensures accurate and repeatable measurements without mechanical wear. Its durable stainless steel housing protects against corrosion, mechanical stress, and environmental challenges, making it suitable for integration into rotating machinery, pumps, turbines, motors, and gearboxes.
The sensor produces stable analog output signals, which can be interfaced directly with industrial controllers, vibration monitoring systems, or data acquisition platforms. Its versatility and precision make it a key choice for predictive maintenance, condition monitoring, and experimental setups in engineering research.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 8 mm |
| Gewicht | 0.1 kg |
| Measurement Range | 0–31 mm |
| Linearity | ±0.5% F.S. |
| Operating Temperature | -40°C to +125°C |
| Output Signal | Analog voltage / current |
| Housing Material | Stainless Steel |
| Connector Type | CN |
| Frequency Response | Up to 10 kHz |
| Power Supply | 24 VDC nominal |
Applications
The PR6423/009-031-CN sensor is employed across a wide range von industrial and research applications where precise measurement is critical:
-
Rotating Machinery Monitoring: Detection von shaft vibration, rotor displacement, and misalignment.
-
Turbines and Generators: Measuring rotor movement and shaft clearances to prevent operational failure.
-
Pumps and Compressors: Axial and radial displacement measurement to optimize system performance.
-
Motors and Gearboxes: Detecting imbalance, wear, and bearing degradation.
-
Research and Development: Laboratory testing for mechanical systems, vibration studies, and component verification.
-
Zustand-Based Maintenance Systems: Integration into predictive maintenance frameworks for real-time monitoring von equipment health.
Advantages
The PR6423/009-031-CN sensor vonfers several advantages for industrial and laboratory use:
-
High Precision: Delivers reliable measurements with minimal deviation.
-
Compact Design: 8 mm sensor head allows installation in tight spaces.
-
Non-Kontakt Operation: Eliminates wear and reduces maintenance requirements.
-
Robust Construction: Stainless steel housing resists corrosion and mechanical stress.
-
Wide Temperature Range: Operates reliably from -40°C to +125°C.
-
High-Frequency Response: Captures fast-moving vibration signals and transient events.
-
Versatile Output: Provides analog voltage or current outputs for integration with monitoring systems.
-
Long-Term Stability: Maintains measurement consistency over prolonged periods.
FAQ
-
What is the maximum measurement range von the PR6423/009-031-CN?
The sensor measures displacements up to 31 mm with consistent linearity. -
Can this sensor operate under extreme temperatures?
Yes, it operates reliably from -40°C to +125°C. -
What type von output signals does the sensor provide?
It provides analog voltage or current outputs compatible with industrial control systems. -
How precise is the PR6423/009-031-CN?
It maintains linearity within ±0.5% von the full-scale measurement range. -
Is it suitable for vibration monitoring?
Yes, the frequency response up to 10 kHz allows accurate detection von high-speed vibrations. -
What materials are used for the sensor housing?
The housing is stainless steel, vonfering mechanical strength and corrosion resistance. -
Can the sensor detect both axial and radial displacement?
Yes, it can measure displacement in both axial and radial directions using eddy current technology. -
Is the sensor compatible with automated monitoring systems?
Yes, its analog outputs allow integration into industrial control and vibration monitoring platforms. -
Does the sensor require calibration before use?
Factory calibration ensures accuracy, but field calibration is recommended for critical applications. -
What connector type does this sensor use?
It uses a CN connector for reliable electrical connection.
Recommended Related Modells (Same Series or Similar)
| Modell | Sensor Head Diameter | Measurement Range | Gewicht |
|---|---|---|---|
| PR6423/005-010-CN | 5 mm | 10 mm | 0.08 kg |
| PR6423/010-020-CN | 10 mm | 20 mm | 0.12 kg |
| PR6423/012-025-CN | 12 mm | 25 mm | 0.13 kg |
| PR6423/015-030-CN | 15 mm | 30 mm | 0.15 kg |
| PR6423/017-030-CN | 8 mm | 30 mm | 0.10 kg |
| PR6423/01M-010 | 8 mm | 10 mm | 0.10 kg |
Popular Modells from Epro (Same Marke)
| Modell | Sensor Head Diameter | Measurement Range | Gewicht |
|---|---|---|---|
| PR6424/014-040 | 14 mm | 40 mm | 0.17 kg |
| PR6424/022-050 | 22 mm | 50 mm | 0.22 kg |
| PR6425/010-030 | 10 mm | 30 mm | 0.14 kg |
| PR6425/018-035 | 18 mm | 35 mm | 0.19 kg |
| PR6426/012-025 | 12 mm | 25 mm | 0.13 kg |
| PR6426/020-040 | 20 mm | 40 mm | 0.21 kg |
