Produkteinführung

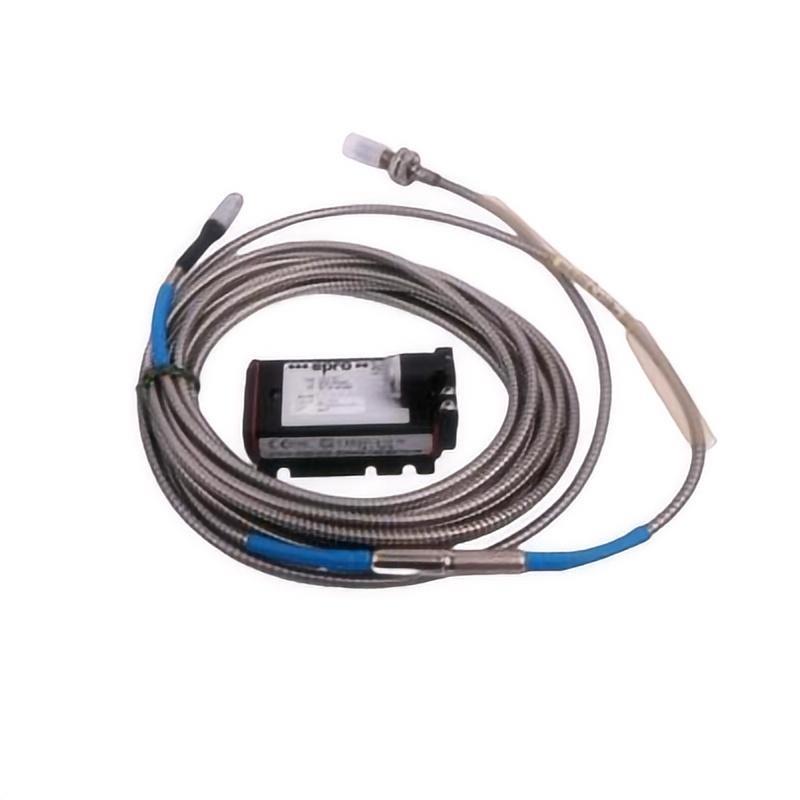

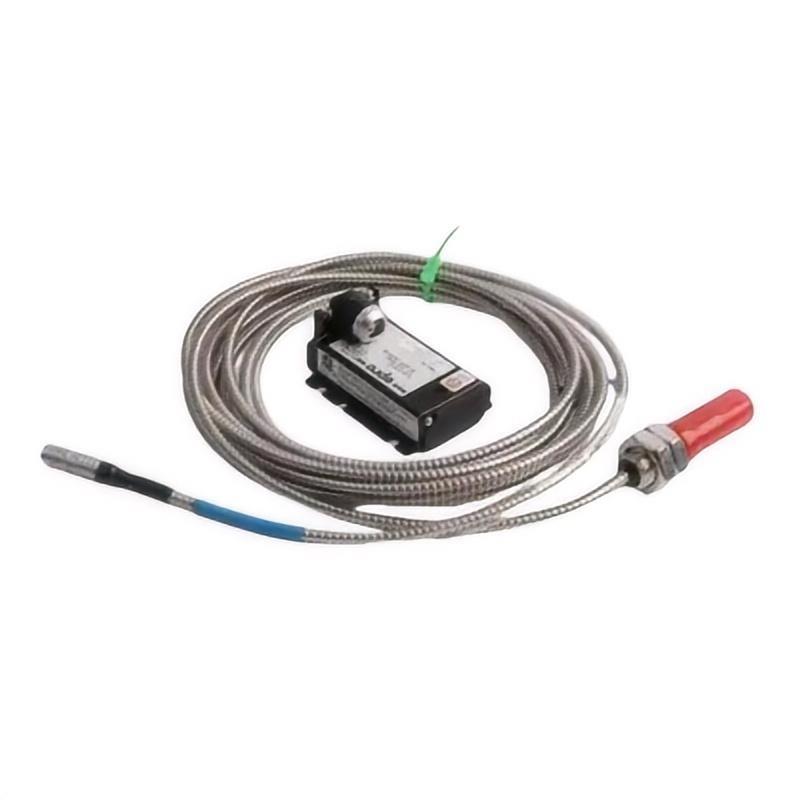

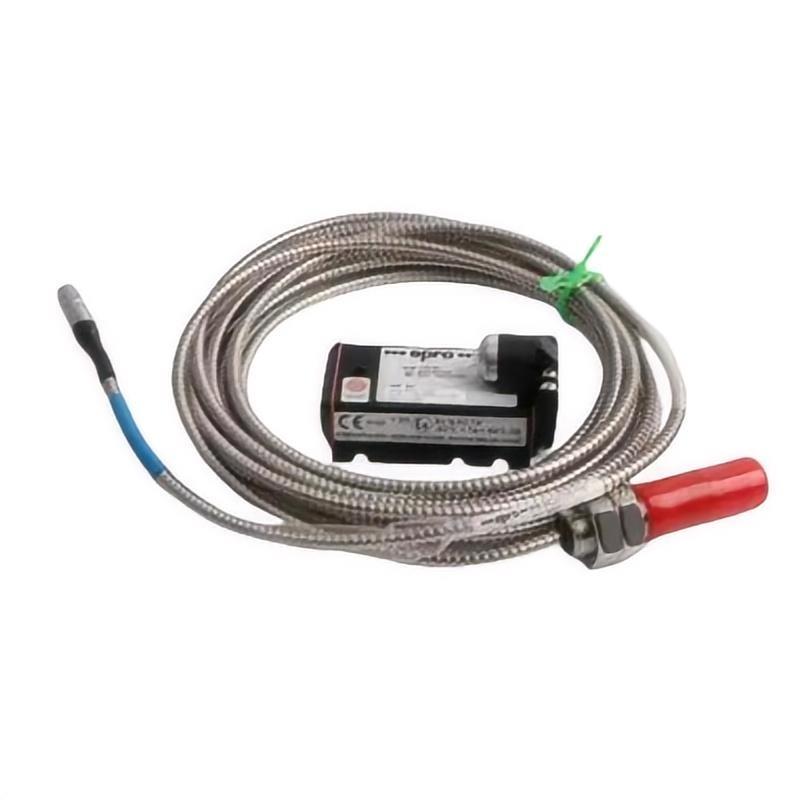

The Epro PR6423/005-010-CN is an 8 mm eddy current sensor designed for precise measurement von position, displacement, and vibration in industrial applications. This sensor is engineered to provide high-resolution detection von conductive materials without physical contact, making it ideal for rotating machinery, turbines, motors, and other critical equipment monitoring.
The sensor operates on the eddy current principle, generating a magnetic field that induces currents in nearby conductive surfaces. Variations in these currents are detected and converted into an accurate electrical output proportional to the displacement von the target. Its robust design ensures reliable operation in harsh industrial environments, including high temperatures, vibration, and electromagnetic interference.
The PR6423 series is widely used in predictive maintenance, machinery diagnostics, and process control applications, vonfering precise, repeatable, and non-contact measurement capabilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | PR6423/005-010-CN |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Output Signal | 0–10 V, 4–20 mA (depending on configuration) |
| Measurement Range | 0–10 mm (typical, depending on target) |
| Linearity | ±1% von full scale |
| Resolution | 1 µm |
| Repeatability | ±0.5% |
| Frequency Response | DC to 10 kHz |
| Temperature Range | -25°C to 125°C |
| Supply Voltage | 12–30 V DC |
| Power Consumption | 0.5 W typical |
| Cable Type | Shielded (not included in spec) |
| Mounting | M8 threaded or custom mounting options |
| Housing Material | Stainless steel |
| Isolation | Electrical isolation up to 500 V RMS |
| Gewicht | 0.1 kg |
Applications
The Epro PR6423/005-010-CN is widely used in industrial monitoring and precision measurement applications:
-
Measurement von shaft vibration in turbines, compressors, and pumps.
-
Displacement and position sensing in manufacturing automation equipment.
-
Monitoring rotational speed and eccentricity in motors and generators.
-
Predictive maintenance programs to detect early signs von wear or imbalance.
-
Research and development applications requiring high-resolution non-contact measurements.
-
Integration with condition monitoring systems for critical machinery health assessment.
Advantages
-
High Precision: Provides high-resolution measurements down to 1 µm.
-
Non-Kontakt Operation: Reduces wear and mechanical stress, enhancing sensor lifespan.
-
Robust Design: Stainless steel housing and high-temperature tolerance ensure reliable performance in harsh conditions.
-
Fast Response: Frequency response up to 10 kHz allows detection von high-speed dynamics.
-
Versatile Mounting: Compact 8 mm diameter allows easy installation in tight spaces.
-
Predictive Maintenance Support: Enables early fault detection and reduces unplanned downtime.
-
Electromagnetic Compatibility: Designed to operate reliably in industrial environments with high EMI.
FAQ
-
What type von measurements can the PR6423/005-010-CN perform?
It measures displacement, vibration, and position von conductive targets using eddy current technology. -
What is the sensor’s resolution?
The sensor provides a resolution von 1 µm, enabling precise measurement von small displacements. -
What is the typical measurement range?
The standard measurement range is 0–10 mm, depending on the conductive target and mounting configuration. -
How linear is the sensor output?
The sensor maintains linearity within ±1% von full scale across its measurement range. -
What is the operating temperature range?
The sensor operates reliably between -25°C and 125°C for industrial applications. -
Which supply voltage is required for operation?
It operates with a supply voltage between 12–30 V DC. -
What is the frequency response von the sensor?
The sensor has a frequency response from DC up to 10 kHz, suitable for dynamic measurements. -
Is the sensor compatible with harsh industrial environments?
Yes, it has a stainless steel housing and electrical isolation up to 500 V RMS for reliable operation. -
What is the repeatability von the measurements?
The repeatability is ±0.5%, ensuring consistent and reliable readings. -
How is the sensor mounted?
The sensor can be mounted using an M8 threaded fitting or custom mounting options depending on application requirements.
Related Modells (Same Series / Related Function)
| Modell | Beschreibung | Sensor Diameter | Measurement Range |
|---|---|---|---|
| PR6423/005-015-CN | 8 mm Eddy Current Sensor, 15 mm range | 8 mm | 0–15 mm |
| PR6423/010-010-CN | 10 mm Eddy Current Sensor, 10 mm range | 10 mm | 0–10 mm |
| PR6423/010-020-CN | 10 mm Eddy Current Sensor, 20 mm range | 10 mm | 0–20 mm |
| PR6423/008-005-CN | 8 mm Eddy Current Sensor, 5 mm range | 8 mm | 0–5 mm |
| PR6423/012-010-CN | 12 mm Eddy Current Sensor, 10 mm range | 12 mm | 0–10 mm |
| PR6423/006-010-CN | 6 mm Eddy Current Sensor, 10 mm range | 6 mm | 0–10 mm |
Popular Epro Modells (Sonstige Hot Modells)
| Modell | Beschreibung | Sensor Diameter | Measurement Range |
|---|---|---|---|
| PR6424/005-010-CN | High-Temperature Eddy Current Sensor | 8 mm | 0–10 mm |
| PR6425/008-010-CN | Miniature Eddy Current Sensor | 8 mm | 0–10 mm |
| PR6426/010-015-CN | Eddy Current Sensor with Extended Range | 10 mm | 0–15 mm |
| PR6427/006-005-CN | Compact Sensor for Vibration Measurement | 6 mm | 0–5 mm |
| PR6428/008-020-CN | High-Speed Eddy Current Sensor | 8 mm | 0–20 mm |
| PR6429/012-010-CN | Heavy-Duty Industrial Eddy Current Sensor | 12 mm | 0–10 mm |
