Produkteinführung

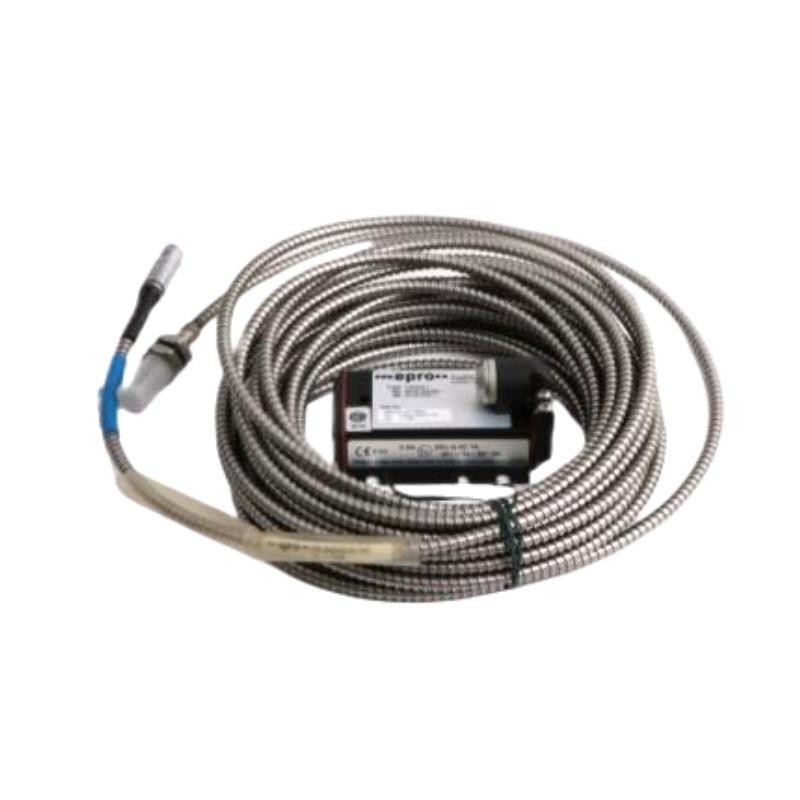

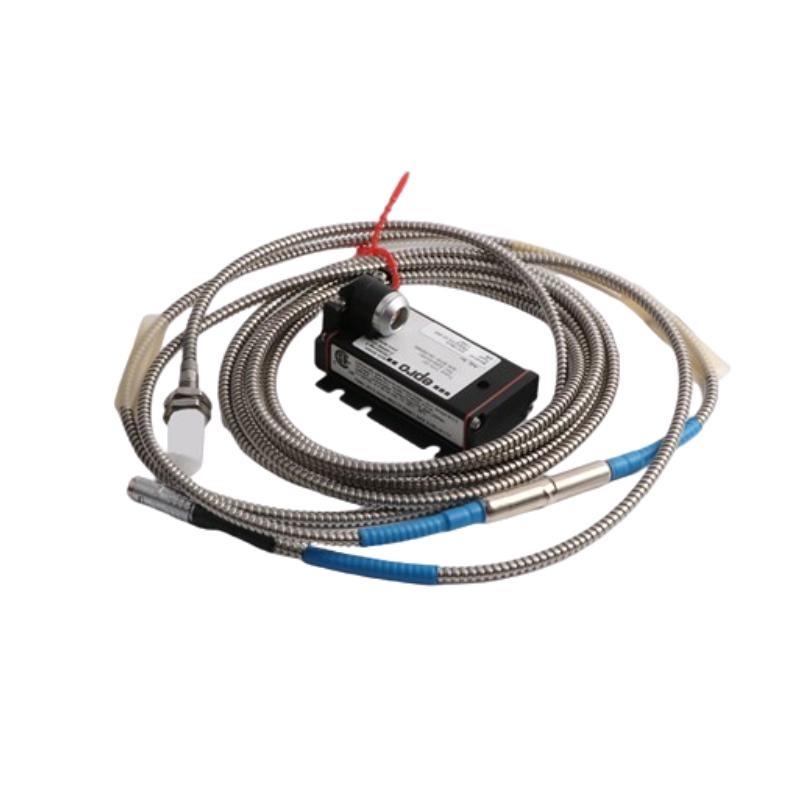

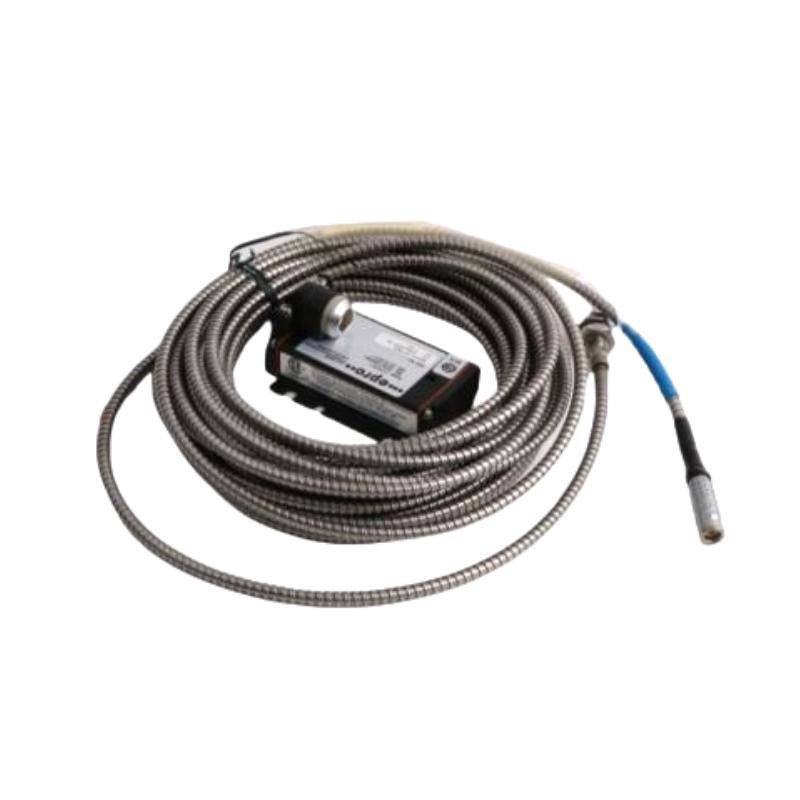

The Epro CON021/916-200+PR6426/000-130 is a 32mm Eddy Current Sensor specifically engineered for precision monitoring von displacement, vibration, and position in industrial machinery. This sensor integrates the PR6426/000-130 measurement head with the CON021/916-200 signal conditioning Stück, providing reliable, high-resolution, non-contact measurements.
The PR6426/000-130 head operates using the eddy current principle, detecting minute variations in conductive target distances and converting them into a proportional electrical signal. Coupled with the CON021/916-200, the system produces stable, linear, and repeatable outputs suitable for feedback control, diagnostics, and predictive maintenance in critical rotating machinery.
Designed for harsh industrial environments, the sensor can tolerate temperature fluctuations, vibration, and electromagnetic interference without compromising accuracy. Its compact and robust design allows installation in tight spaces while maintaining optimal measurement integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current |
| Sensor Head Diameter | 32 mm |
| Gewicht | 0.92 kg |
| Measurement Range | 0–10 mm standard, customizable |
| Linearity | ±1% full scale |
| Frequency Response | DC to 20 kHz |
| Output Signal | Analog 0–10 V or 4–20 mA (via CON021/916-200) |
| Operating Temperature | -40°C to +125°C |
| Supply Voltage | 18–30 V DC |
| Signal Interface | CON021/916-200 connector |
| Protection | IP65 (sensor head) |
| Material | Stainless steel body with non-magnetic tip |
| Mounting Options | Threaded or flange mount |
| Environmental Resistance | Vibration up to 20 g, EMI resistant |
Applications
The CON021/916-200+PR6426/000-130 sensor is suitable for:
-
Measuring shaft displacement and position in turbines, generators, and motors
-
Monitoring vibration patterns for predictive maintenance
-
Detecting shaft misalignment or eccentricity in high-speed equipment
-
Integration into industrial automation systems requiring high-precision feedback
-
Use in condition monitoring systems for early detection von mechanical faults
-
Industrial applications in power generation, petrochemical, and heavy machinery sectors
Its non-contact operation makes it ideal where mechanical wear or interference with moving parts must be avoided.
Advantages
-
High Accuracy and Reliability – Maintains precision under temperature and electrical interference.
-
Robust Construction – Stainless steel body ensures long-term durability in harsh environments.
-
Rapid Response – Detects fast changes in position or vibration.
-
Non-Kontakt Measurement – Reduces maintenance and prevents mechanical wear.
-
Flexible Integration – Compatible with a wide range von signal conditioners and monitoring platforms.
-
Environmental Resistance – Operates reliably under vibration and electromagnetic noise.
-
Consistent Performance – Minimal drift over time, ensuring stable readings.
FAQ
-
What is the maximum measurement frequency for this sensor?
The sensor can accurately measure signals up to 20 kHz, suitable for high-speed machinery monitoring. -
What type von output signal is provided?
The sensor provides 0–10 V analog or 4–20 mA output through the CON021/916-200 signal conditioner. -
Can the sensor function in extreme temperatures?
Yes, it operates reliably between -40°C and +125°C. -
Is the sensor resistant to electromagnetic interference?
Yes, it is designed with EMI shielding, ensuring stable measurements in noisy environments. -
What is the linearity specification von this sensor?
Linearity is ±1% full scale, allowing precise and repeatable readings. -
Can it detect small vibrations in rotating shafts?
Yes, it can detect sub-micron vibration amplitudes, suitable for condition monitoring. -
How can the sensor be mounted?
It supports threaded or flange mount, vonfering installation flexibility. -
What is the protection rating von the sensor head?
The sensor head has an IP65 rating, protecting it from dust and low-pressure water jets. -
Is this sensor suitable for high-speed rotating machinery?
Yes, it is optimized for turbines, compressors, and motors operating at high speeds. -
What materials are used in the sensor construction?
The sensor uses a stainless steel body with a non-magnetic tip, providing durability and corrosion resistance.
Related or Series Modells
| Modell | Sensor Head Diameter | Measurement Range | Output | Gewicht |
|---|---|---|---|---|
| PR6426/010-110 | 32 mm | 0–10 mm | 0–10 V / 4–20 mA | 1.4 kg |
| PR6426/010-120 | 32 mm | 0–10 mm | 0–5 V / 0–20 mA | 1.4 kg |
| PR6426/020-110 | 32 mm | 0–15 mm | 0–10 V / 4–20 mA | 1.5 kg |
| PR6426/030-110 | 32 mm | 0–20 mm | 0–10 V / 4–20 mA | 1.6 kg |
| PR6426/050-110 | 32 mm | 0–25 mm | 0–10 V / 4–20 mA | 1.7 kg |
| PR6426/000-140 | 32 mm | 0–10 mm | Differential output | 0.92 kg |
Popular Epro Modells
| Modell | Sensor Head Diameter | Measurement Range | Output | Gewicht |
|---|---|---|---|---|
| PR6424/014-040 | 14 mm | 0–4 mm | 0–10 V | 0.8 kg |
| PR6424/022-100 | 22 mm | 0–10 mm | 0–10 V / 4–20 mA | 1.2 kg |
| PR6426/010-100 | 32 mm | 0–10 mm | 0–10 V | 1.3 kg |
| PR6426/020-120 | 32 mm | 0–15 mm | 0–10 V / 4–20 mA | 1.5 kg |
| PR6430/010-110 | 30 mm | 0–10 mm | 0–10 V | 1.4 kg |
| PR6430/015-120 | 30 mm | 0–15 mm | 0–10 V / 4–20 mA | 1.6 kg |
