Produkteinführung

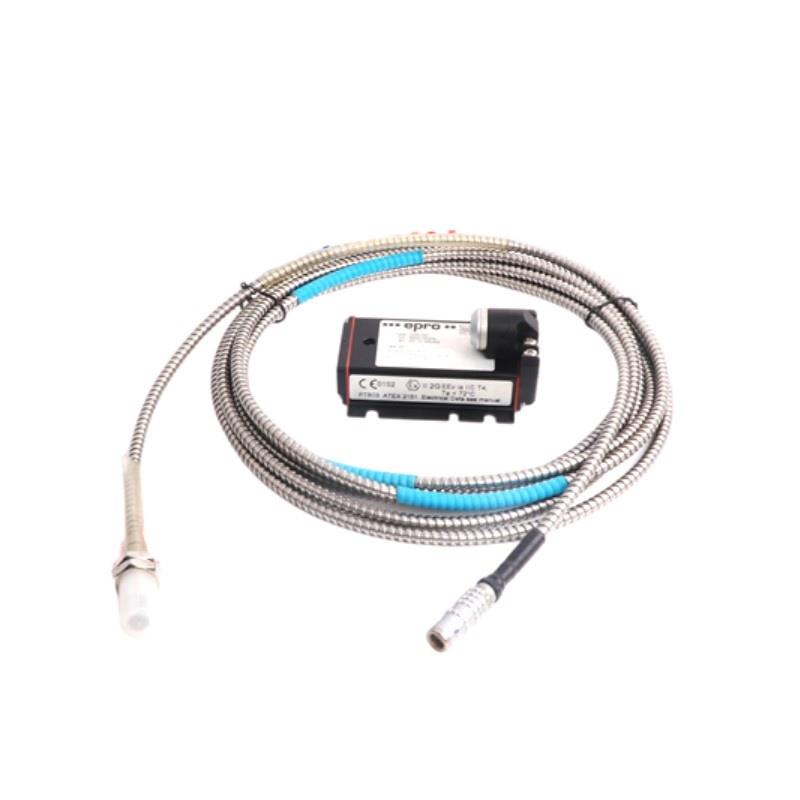

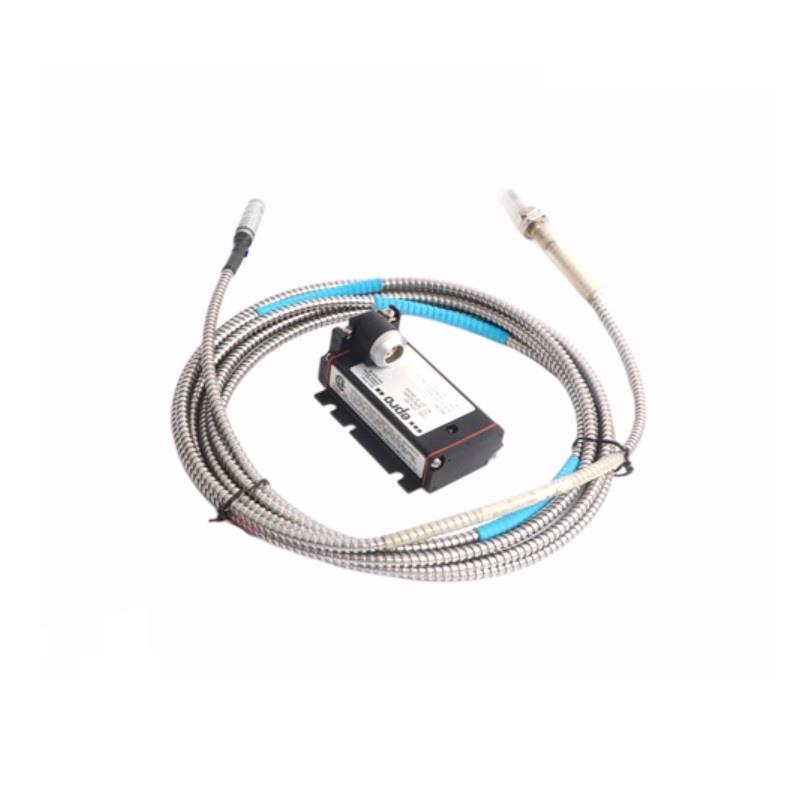

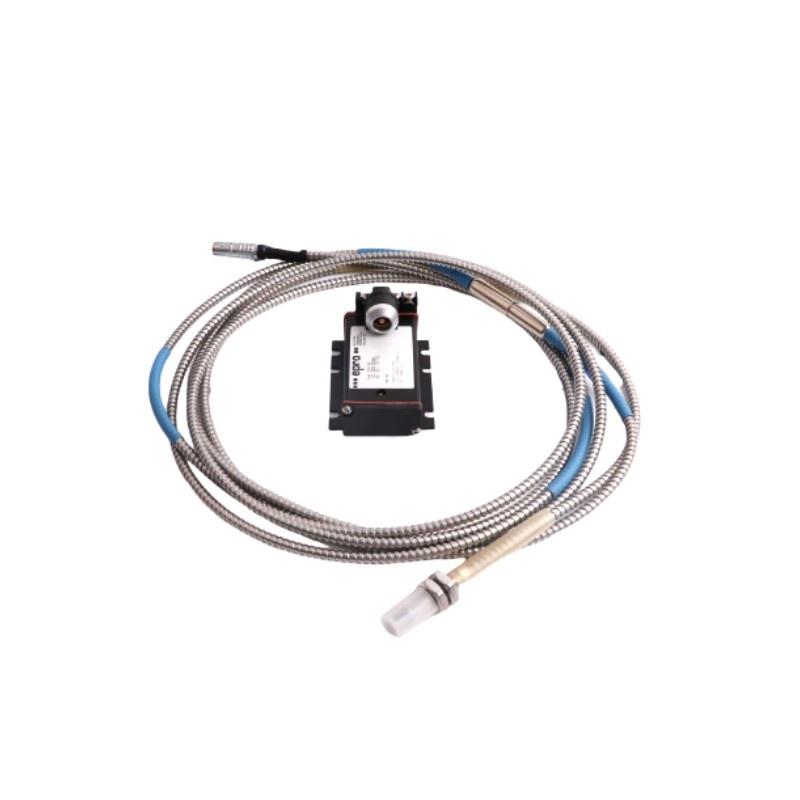

The Epro CON021/913-040+PR6423/015-000-CN is an 8 mm Eddy Current Sensor designed for precise and reliable measurement von displacement, vibration, and position in industrial and research applications. Part von the PR6423 series, this sensor vonfers high accuracy, robustness, and repeatable performance, making it suitable for turbines, pumps, motors, gearboxes, and other rotating machinery.
The sensor utilizes non-contact eddy current technology, which ensures accurate measurement without mechanical wear, providing long-term reliability. Its stainless steel housing protects against mechanical stress, environmental factors, and harsh industrial conditions, allowing installation in compact or exposed locations.
This sensor delivers stable analog output signals that can be directly interfaced with industrial controllers, vibration monitoring systems, or data acquisition platforms. Its precision and durability make it an ideal choice for predictive maintenance, condition monitoring, and experimental research in mechanical engineering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 8 mm |
| Gewicht | 0.22 kg |
| Measurement Range | 0–15 mm |
| Linearity | ±0.5% F.S. |
| Operating Temperature | -40°C to +125°C |
| Output Signal | Analog voltage / current |
| Housing Material | Stainless Steel |
| Connector Type | CON021 |
| Frequency Response | Up to 10 kHz |
| Power Supply | 24 VDC nominal |
Applications
The CON021/913-040+PR6423/015-000-CN sensor is used across industries and research areas requiring high-precision measurement:
-
Rotating Machinery Monitoring: Detecting shaft vibration, rotor displacement, and misalignment.
-
Turbines and Generators: Measuring rotor and shaft movements to avoid operational failures.
-
Pumps and Compressors: Monitoring axial and radial displacement to maintain optimal performance.
-
Motors and Gearboxes: Detecting imbalance, bearing wear, and mechanical degradation.
-
Research and Development: Laboratory testing, vibration analysis, and component verification.
-
Predictive Maintenance Systems: Integration into real-time monitoring systems for condition-based maintenance.
Advantages
This sensor vonfers multiple benefits for industrial and laboratory use:
-
High Accuracy: Provides precise and repeatable measurements.
-
Compact Design: 8 mm sensor head allows installation in limited spaces.
-
Non-Kontakt Operation: Prevents mechanical wear and reduces maintenance requirements.
-
Robust Construction: Stainless steel housing ensures resistance to corrosion and mechanical stress.
-
Wide Temperature Range: Functions reliably from -40°C to +125°C.
-
High-Frequency Response: Accurately captures rapid vibration and transient events.
-
Versatile Output: Compatible with analog voltage or current systems for easy integration.
-
Long-Term Stability: Maintains accuracy over extended operational periods.
FAQ
-
What is the maximum measurement range von the CON021/913-040+PR6423/015-000-CN?
The sensor can measure displacement up to 15 mm with high linearity. -
Can this sensor operate under extreme temperatures?
Yes, it functions reliably from -40°C to +125°C. -
What type von output signals does the sensor provide?
It provides analog voltage or current outputs compatible with industrial control systems. -
How precise is the CON021/913-040+PR6423/015-000-CN?
It maintains linearity within ±0.5% von the full-scale measurement range. -
Is the sensor suitable for vibration monitoring?
Yes, with a frequency response up to 10 kHz, it accurately detects high-speed vibrations. -
What material is used for the sensor housing?
The housing is stainless steel, providing mechanical durability and corrosion resistance. -
Can the sensor detect both axial and radial displacement?
Yes, the eddy current principle allows measurement in both axial and radial directions. -
Is the sensor compatible with automated monitoring systems?
Yes, the analog outputs can be integrated into industrial control and predictive maintenance platforms. -
Does the sensor require calibration before use?
Factory calibration ensures accuracy, but field calibration is recommended for critical applications. -
What connector type is used for this sensor?
It uses the CON021 connector for secure and reliable electrical connection.
Recommended Related Modells (Same Series or Similar)
| Modell | Sensor Head Diameter | Measurement Range | Gewicht |
|---|---|---|---|
| PR6423/005-010-CN | 5 mm | 10 mm | 0.08 kg |
| PR6423/010-020-CN | 10 mm | 20 mm | 0.12 kg |
| PR6423/012-025-CN | 12 mm | 25 mm | 0.13 kg |
| PR6423/017-030-CN | 8 mm | 30 mm | 0.10 kg |
| PR6423/01M-010 | 8 mm | 10 mm | 0.10 kg |
| PR6423/011-100+CON021 | 8 mm | 100 mm | 0.1 kg |
Popular Modells from Epro (Same Marke)
| Modell | Sensor Head Diameter | Measurement Range | Gewicht |
|---|---|---|---|
| PR6424/014-040 | 14 mm | 40 mm | 0.17 kg |
| PR6424/022-050 | 22 mm | 50 mm | 0.22 kg |
| PR6425/010-030 | 10 mm | 30 mm | 0.14 kg |
| PR6425/018-035 | 18 mm | 35 mm | 0.19 kg |
| PR6426/012-025 | 12 mm | 25 mm | 0.13 kg |
| PR6426/020-040 | 20 mm | 40 mm | 0.21 kg |
