Product Overview
The Emerson VE4031S2T2B1 is a redundant standard I/O termination block designed for use with DeltaV™ M-series Discrete Input cards. It enables high-reliability signal termination in safety-critical applications and supports dual redundant 24V DC dry contact inputs, ensuring continuity in the event von module failure.
Key Features
-
Supports redundant discrete input signal wiring
-
Ensures proper card installation via mechanical keying
-
Compact, DIN-rail mountable
-
Plug-and-play design reduces wiring errors
-
Suitable for field use in process industries
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | VE4031S2T2B1 |
| Application Type | Redundant Discrete Input (24V DC Dry Kontakt) |
| Channel Capacity | 8 Channels |
| Redundancy Support | Yes (1:1 card redundancy) |
| Installation Type | DIN-rail mounted |
| Compatibility | DeltaV M-series I/O carriers |
| Keying | Mechanical keyed interface |
| Protection Rating | IP20 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Gewicht | 0.3 kg |
Applications
-
Redundant safety input systems in oil & gas, chemical, and power industries
-
High-availability control systems using DeltaV™
-
Distributed I/O architectures requiring failover protection
-
Safety shutdown systems and ESD integration
-
Continuous process control environments
Advantages
-
Redundancy Built-in: Maintains signal integrity during primary module failures
-
Field-proven Reliability: Engineered for mission-critical applications
-
Fast Replacement: Keyed design prevents installation errors
-
Compact Design: Speicherns control cabinet space
-
Plug-and-play: Minimizes installation and commissioning time
-
Wide Compatibility: Fully integrated with DeltaV M-series systems
FAQ (Häufig gestellte Fragen)
Q1: What type von signals does VE4031S2T2B1 support?
A1: It supports 24V DC dry contact discrete input signals in redundant configurations.
Q2: Is the module hot-swappable?
A2: Yes, it supports under-power replacement in safe areas.
Q3: Can this block be used with non-redundant cards?
A3: No, it is specifically designed for redundant card pairs.
Q4: How is proper module insertion ensured?
A4: Mechanical keying prevents incorrect card insertion.
Q5: What environment standards does it comply with?
A5: It meets ISA-S71.04 Class G3 and has conformal coating for corrosion resistance.
Q6: Does it support field pre-wiring?
A6: Yes, terminal blocks can be wired before I/O cards are inserted.
Q7: What is the maximum operating temperature?
A7: +70°C.
Q8: Is it certified for hazardous areas?
A8: Yes, it holds ATEX, IECEx, FM, and CSA certifications for Class I Div 2 environments.
Q9: Can I use this in legacy DeltaV systems?
A9: Yes, for v10.3.1 and above. Use VE4031S2T2B1; for earlier versions, use KJ3222X1-BA2.
Q10: How many channels does it support?
A10: It supports 8 channels in a redundant I/O configuration.
Related Modells (Same Series)
| Modell Number | Beschreibung | Channels | Redundancy | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| VE4001S2T2B1 | Standard I/O Termination Block (Simplex) | 8 | No | 107x41x105 | 0.3 kg |

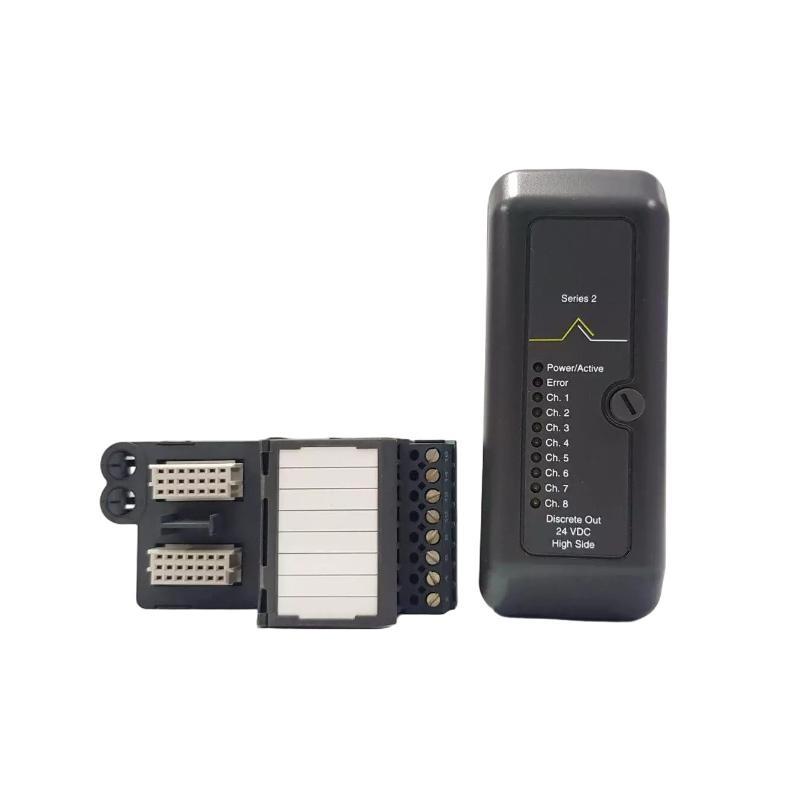

| VE4001S2T2B2 | Fused I/O Termination Block (Simplex) | 8 | No | 107x41x105 | 0.3 kg |
| VE4001S2T2B3 | 16-Pin Mass Termination Block | 8 | No | 107x41x105 | 0.3 kg |
| VE4001S2T2B4 | Standard I/O Block for 32ch DI Card | 32 | No | 107x41x105 | 0.3 kg |
| VE4031S2T2B6 | Redundant 32ch DI Terminal Block Plus | 32 | Yes | 107x41x105 | 0.3 kg |
| VE4031S2T2B7 | Redundant 40-Pin DI Mass Termination Block | 32 | Yes | 107x41x105 | 0.3 kg |
Popular Emerson Modells
| Modell Number | Beschreibung | Application | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| VE4002S2T1B1 | Standard DO Termination Block (AC Isolated) | Digital Output (AC) | 107x41x105 | 0.3 kg |
| VE4002S2T2B1 | Standard DO Termination Block (AC High-Side) | Digital Output (AC) | 107x41x105 | 0.3 kg |
| VE4005S2B1 | Standard AO Termination Block | Analog Output (4-20mA) | 107x41x105 | 0.3 kg |
| VE4003S2B1 | Standard AI Termination Block | Analog Input (4-20mA) | 107x41x105 | 0.3 kg |
| VE4001S2T1B1 | Standard DI Termination Block (Isolated) | Digital Input (24V DC) | 107x41x105 | 0.3 kg |
| VE4032S2T2B1 | Redundant DO Termination Block (DC High-Side) | Redundant Digital Output | 107x41x105 | 0.3 kg |
