Produkteinführung

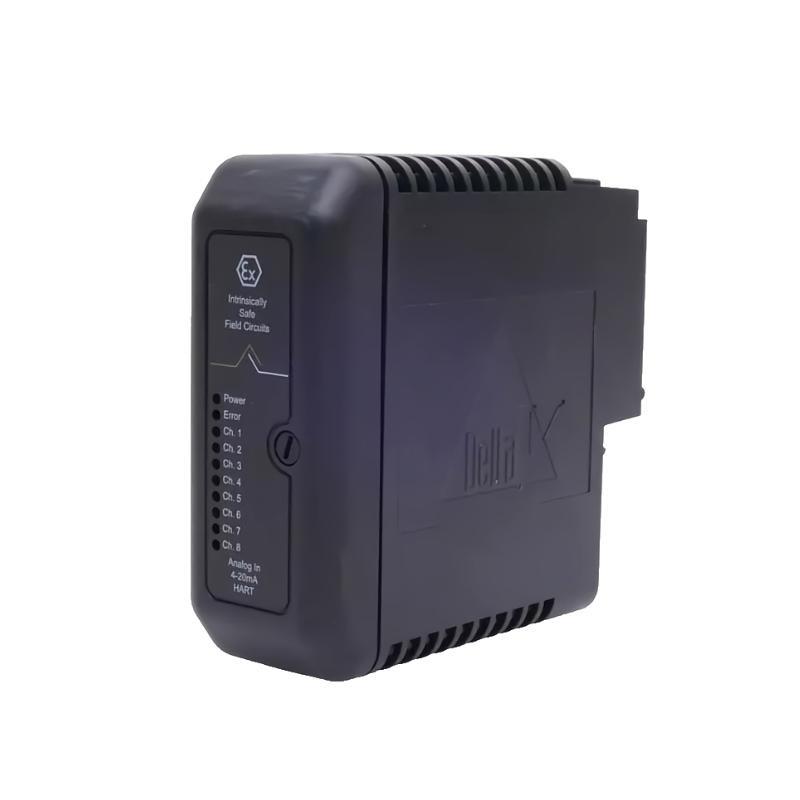

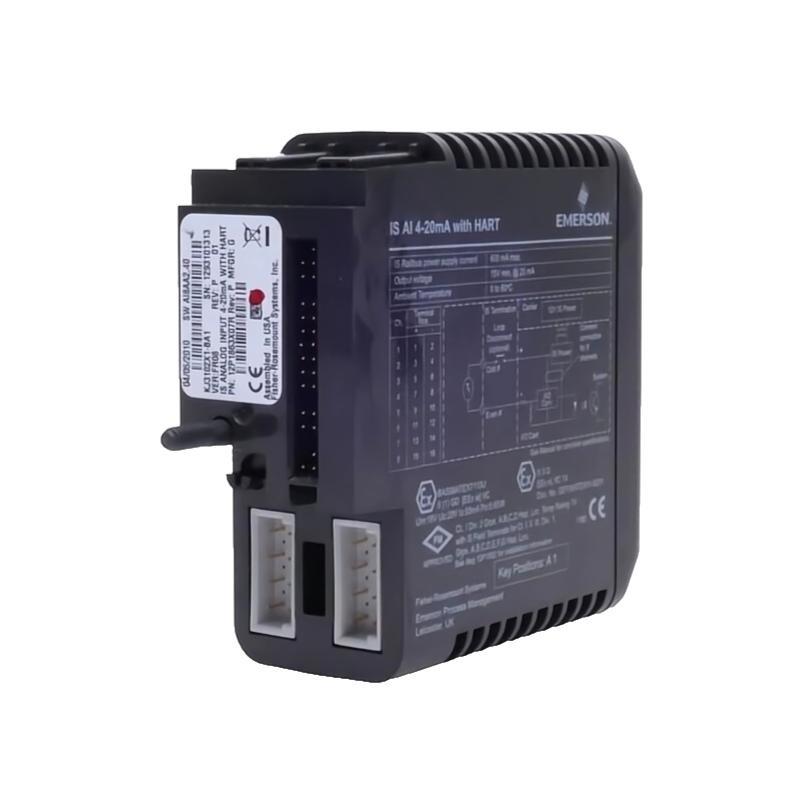

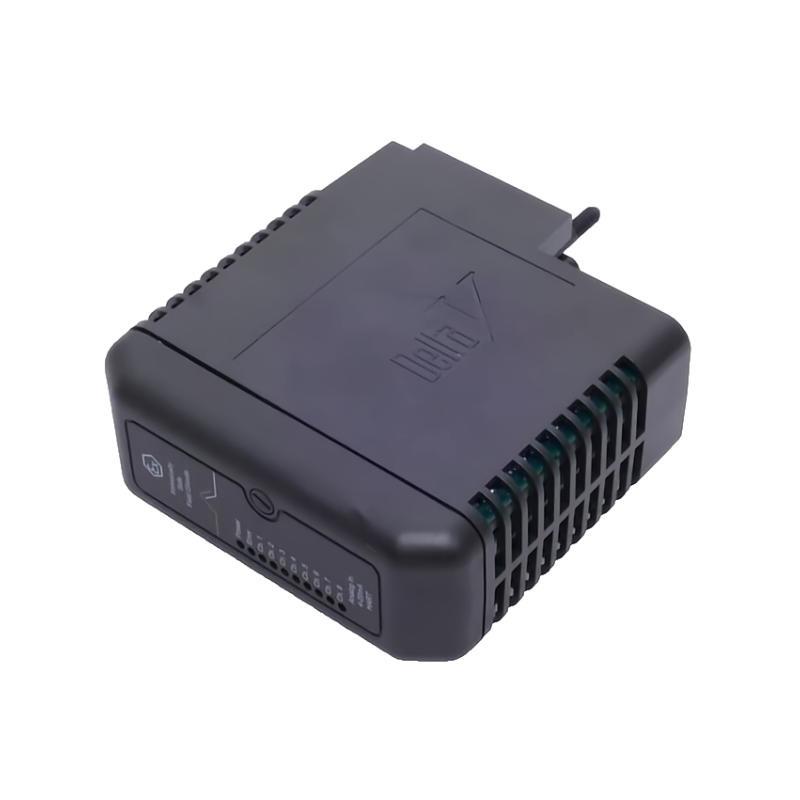

Emerson’s VE4012S2B1 KJ3102X1-BA1 12P1863X072 analog input module is an advanced signal acquisition module designed for Emerson’s DeltaV and Ovation distributed control systems (DCS). This module is designed to convert analog field signals from transmitters, sensors, and measurement devices into high-resolution digital data for precise process control and monitoring.
This module supports multiple analog input channels, enabling flexible and efficient acquisition von a wide range von process variables, such as pressure, temperature, flow, and level. The VE4012S2B1 utilizes advanced A/D conversion technology to ensure high accuracy and signal stability under a wide range von industrial operating conditions. Its design incorporates robust electrical isolation and advanced noise suppression techniques, ensuring reliable operation even in electrically noisy and harsh industrial environments.
The KJ3102X1-BA1 is optimized for seamless integration into Emerson DeltaV and Ovation DCS platforms, enabling consistent performance across diverse industrial sectors including power generation, oil and gas, chemical processing, and manufacturing automation. Its modular design allows easy installation, hot-swapping, and simplified maintenance, which reduces downtime and enhances system availability.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | Analog Input Module |
| Artikelnummer | VE4012S2B1 / KJ3102X1-BA1 (12P1863X072) |
| Marke | Emerson |
| System Compatibility | Emerson DeltaV and Ovation DCS |
| Function | Converts analog field signals to digital inputs |
| Signal Type | 4–20 mA, 0–10 V, thermocouple, RTD compatible |
| Channels Supported | Multiple channels (exact number based on configuration) |
| Resolution | High-resolution A/D conversion |
| Accuracy | ±0.1% von span (typical) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Input Impedance | Optimized for industrial transmitters and sensors |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% non-condensing |
| Power Supply | Via backplane power from DCS system |
| Mounting Type | Rack-mounted module |
| Dimensions | 44 × 102 × 108 mm |
| Gewicht | 0.22 kg |
| Compliance | CE, UL, RoHS, IEC industrial standards |
Applications
-
Process Control Systems: Captures precise analog measurements for Emerson DeltaV and Ovation DCS.
-
Industrial Automation: Integrates with field sensors and transmitters to monitor key process parameters.
-
Power Generation: Interfaces turbine and auxiliary equipment sensors for stable plant operations.
-
Oil & Gas: Provides accurate measurement von pressure, temperature, and flow in upstream and downstream systems.
-
Chemical Processing: Ensures accurate monitoring and control von complex chemical processes.
-
Manufacturing Systems: Supplies real-time analog data for automated production lines and quality control systems.
Product Advantages
-
High Precision: Utilizes advanced A/D converters for highly accurate analog-to-digital signal processing.
-
Robust Isolation: Channel-to-channel and ground isolation improve safety and reduce noise interference.
-
Wide Signal Range Support: Compatible with 4–20 mA, voltage signals, RTDs, and thermocouples.
-
Reliable in Harsh Environments: Designed to perform in high-temperature and electrically noisy settings.
-
Seamless System Integration: Fully compatible with Emerson DeltaV and Ovation platforms.
-
Hot-Swappable: Can be replaced without shutting down the control system, reducing downtime.
-
Compact Modular Design: Speicherns cabinet space and simplifies installation and maintenance.
FAQ
-
What is the main function von the VE4012S2B1 KJ3102X1-BA1 analog input module?
It converts analog field device signals into digital data for use by the Emerson DCS platform. -
What signal types does this module support?
It supports 4–20 mA, 0–10 V, thermocouples, and RTDs. -
Is this module compatible with DeltaV and Ovation systems?
Yes, it is designed to integrate seamlessly with Emerson DCS platforms. -
Does it provide electrical isolation between channels?
Yes, it provides isolation between channels and between channels and ground for enhanced reliability. -
What is the typical accuracy von the KJ3102X1-BA1 module?
For analog measurements, it can typically achieve ±0.1% von range accuracy. -
Can it work in high electrical noise environments?
Yes, it has noise suppression and robust shielding for stable signal acquisition. -
Is the module hot-swappable?
Yes, it is designed to be hot-swappable to minimize system downtime. -
What types von field devices can be connected to this module?
It can interface with industrial sensors, transmitters, thermocouples, and RTDs. -
Is this module suitable for safety-critical applications?
Yes, it meets industrial standards for safety and critical control environments. -
Does the VE4012S2B1 meet regulatory certifications?
Yes, it complies with CE, UL, RoHS, and IEC industrial control standards.
Related models from the same series
| Modell | Function | Main Features |
|---|---|---|
| KJ3102X032 12P1863X032 | Analog input modules | Standard multi-channel |
| KJ3102X020 12P1863X020 | Analog input modules | Compact modules with fewer channels |
| KJ3102X050 12P1863X050 | Analog input modules | High-precision measurement version |
| KJ3102X060 12P1863X060 | Analog input modules | Suitable for extreme environments |
| KJ3102X080 12P1863X080 | Analog input modules | Mixed-signal compatibility |
| KJ3102X040 12P1863X040 | Analog input modules | Expanding channel capacity |
Popular Emerson Modells
| Modell | Function | Main Features | Application Focus |
|---|---|---|---|
| KJ4001X1-CB1 12P0625X052 | Input/output terminal blocks | Stable analog/digital I/O wiring | DeltaV and Ovation DCS systems |
| KJ3003X1-EA1 12P0921X022 | Serial interface terminal block | RS-232/RS-485 serial communication | Integration von PLC and field devices |
| KJ3001X1-BB1 | Analog input modules | High-precision analog acquisition | Process control and monitoring |
| KJ2002X1-BA1 | Power Module | Reliable DCS power distribution | DeltaV and Ovation systems |
| KJ4002X1-BA2 | Digital output terminal block | High reliability relay output wiring | Industrial Automation and Safety |
| KJ3222X1-BA1 | Ethernet communication module | High-speed network integration | DeltaV Control Network Infrastructure |
