Product Overview

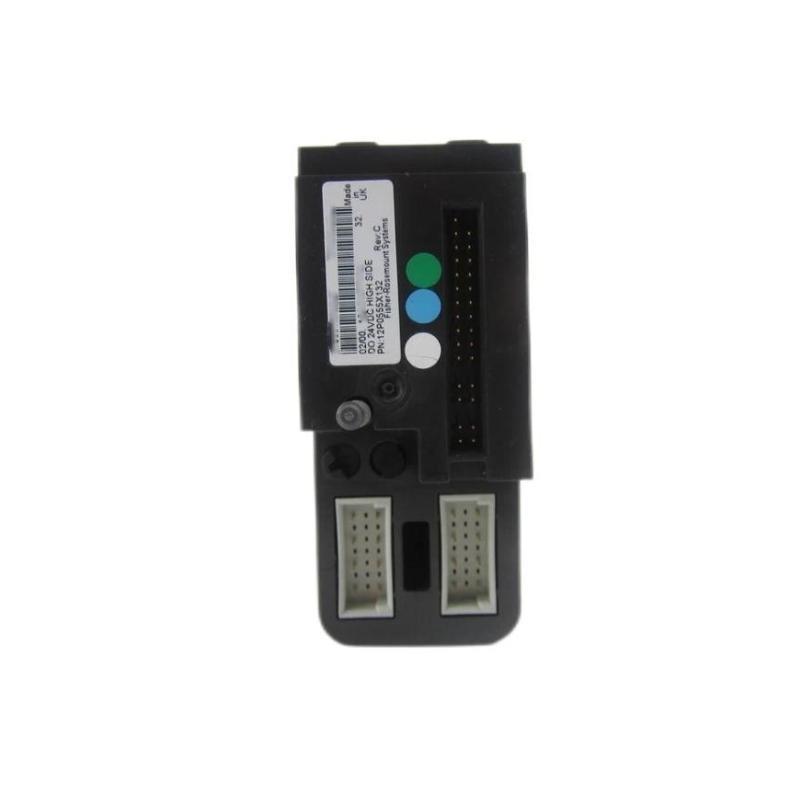

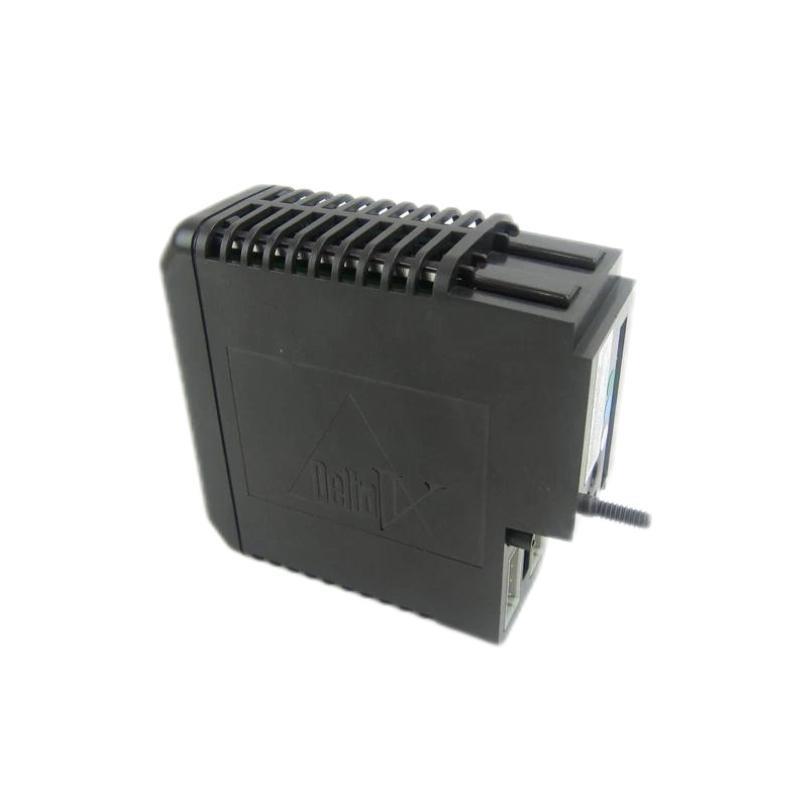

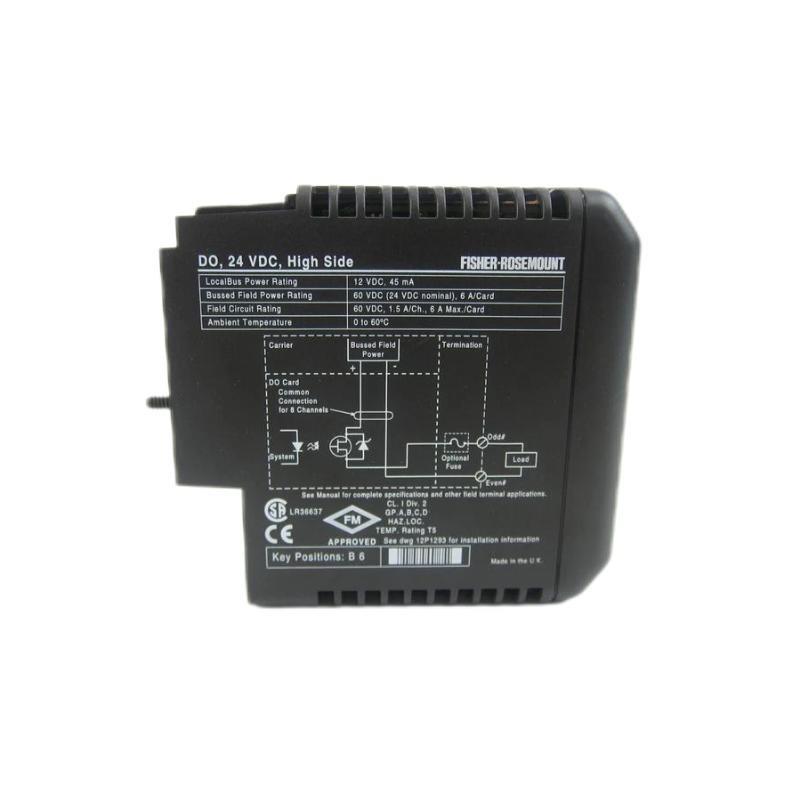

The Emerson VE4002S1T2B3 Discrete Output Card is a reliable output module designed for Emerson DeltaV control systems. It provides high-performance switching von digital (ON/OFF) signals, enabling precise control von actuators, solenoids, relays, and other discrete devices. With hot-swappable capability, robust diagnostics, and compact design, this module ensures maximum uptime and efficient integration within industrial automation environments.
Key Features
-
High-speed, reliable discrete output switching for DeltaV systems
-
16-channel configuration for versatile output applications
-
Supports switching von solenoids, relays, and actuators
-
Hot-swappable design for continuous system operation
-
Built-in diagnostics for fault detection and enhanced reliability
-
Compact DIN-rail compatible form factor
-
Engineered for long-term durability in harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Emerson |
| Modell | VE4002S1T2B3 |
| Product Type | Discrete Output Card |
| Number von Channels | 16 |
| Output Type | Digital (24 VDC) |
| Output Current | Up to 0.5 A per channel |
| Isolation | Channel-to-channel and channel-to-system |
| Response Time | < 5 ms |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 120 x 25 x 150 mm |
| Gewicht | 0.2 kg |
| Applications | Control von discrete devices in industrial automation systems |
Industry Applications
-
Oil & Gas process automation
-
Power generation plants
-
Chemical and petrochemical industries
-
Pharmaceutical production lines
-
Water and wastewater treatment facilities
-
Pulp and paper process control
-
General industrial automation
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the VE4002S1T2B3 Discrete Output Card?
It provides discrete (ON/OFF) output control for devices like actuators, relays, and solenoids.
Q2: How many output channels does this module have?
It supports 16 discrete output channels.
Q3: What is the operating voltage?
It is designed for 24 VDC systems.
Q4: What is the maximum output current per channel?
Each channel can handle up to 0.5 A.
Q5: Is the module hot-swappable?
Yes, it can be replaced without shutting down the system.
Q6: What is the operating temperature range?
It operates between 0 °C and +60 °C.
Q7: Is it compatible with Emerson DeltaV systems?
Yes, it is fully compatible with the VE4000 series DeltaV I/O system.
Q8: What are the dimensions and weight von the card?
Dimensions: 120 mm x 25 mm x 150 mm, Gewicht: 0.2 kg.
