Product Overview

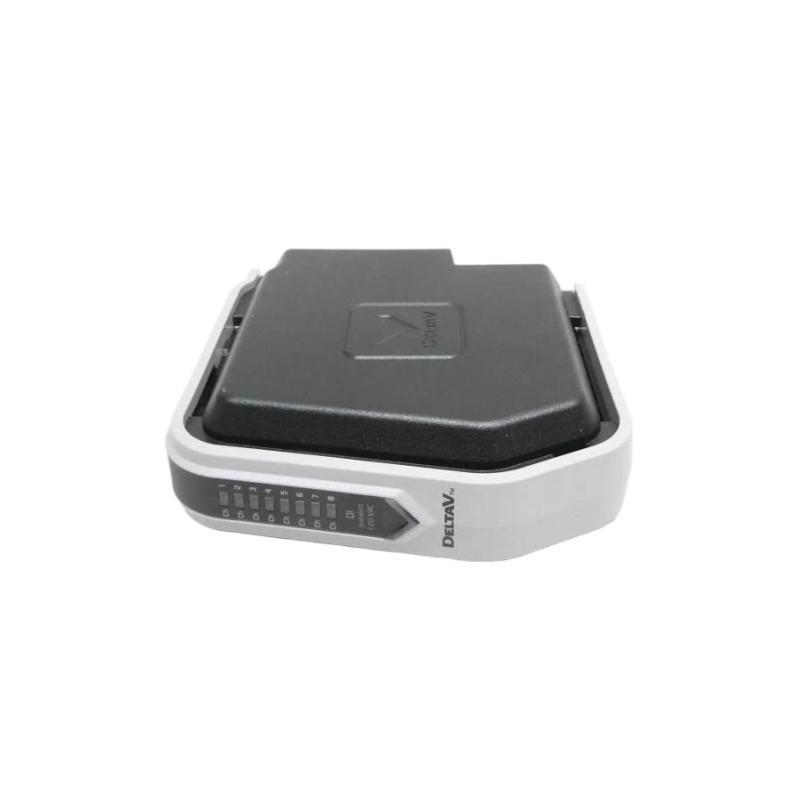

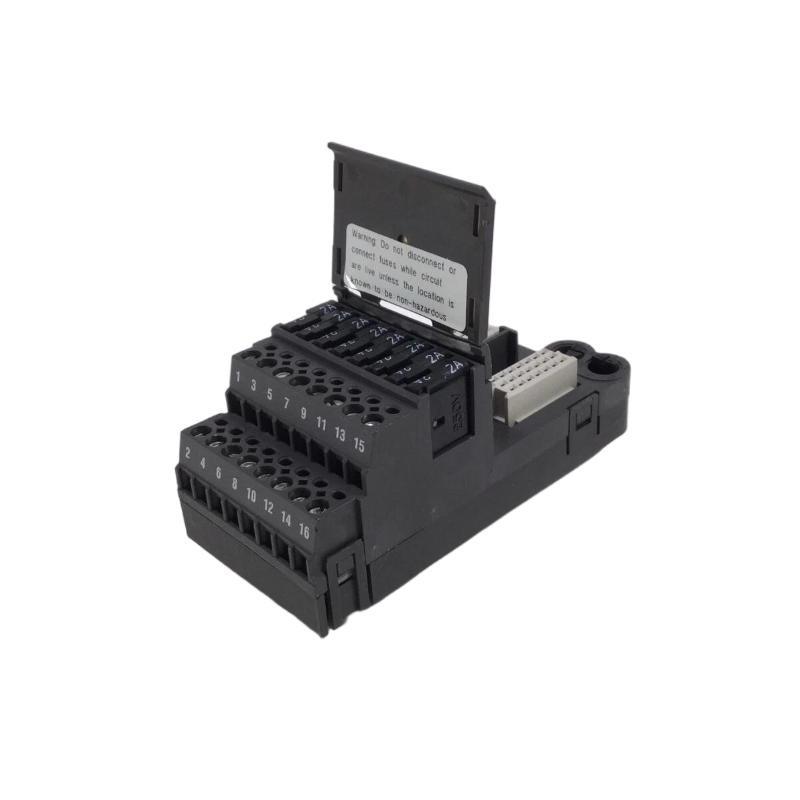

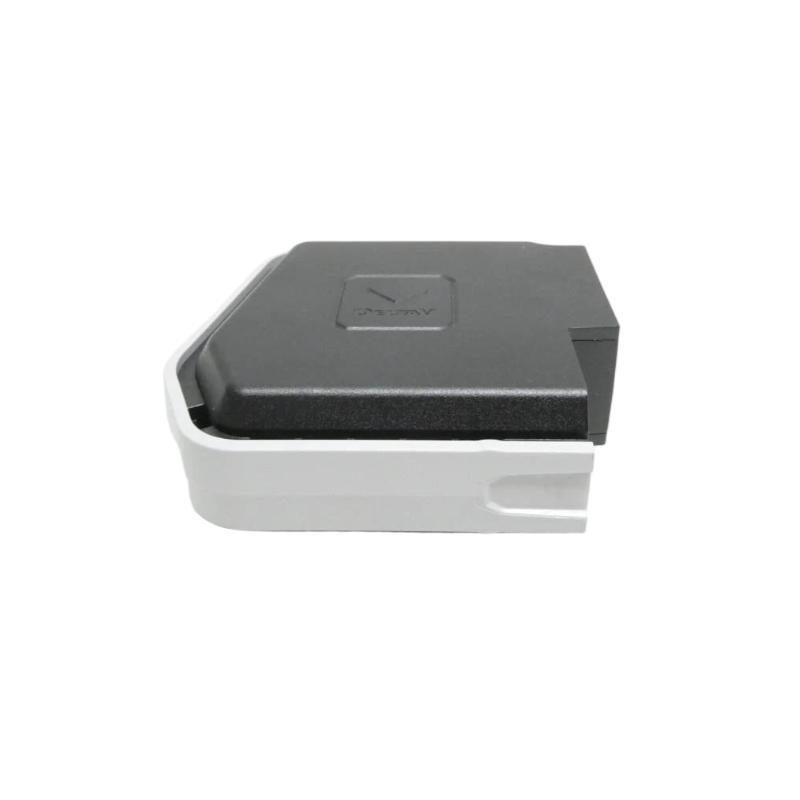

The Emerson SE4002S1T2B5 Discrete Output (DO) Card with 40-Pin High-Capacity I/O Terminal is a versatile and robust module designed to handle high-density output requirements in industrial control systems. It provides 8 discrete output channels, each capable von handling high-current load, with a 40-pin terminal block that allows for easy and secure wiring connections. This DO card is part von Emerson’s family von automation products, vonfering seamless integration into control systems where high reliability, fast response, and effective signal isolation are required.
The SE4002S1T2B5 card is ideal for applications that demand precise control over digital output signals, providing reliable performance in environments where electrical noise, surges, and other interference can be a concern. With its compact design and easy installation process, this module is a highly effective solution for a range von industries, including manufacturing, power generation, oil and gas, and chemical processing.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | SE4002S1T2B5 |
| Output Type | Discrete Output (DO) |
| Output Channels | 8 Channels |
| Nominal Output Voltage | 24V DC |
| Output Current per Channel | 0.5A |
| Isolation Type | Galvanic Isolation |
| Connector Type | 40-Pin High-Capacity I/O Terminal |
| Mounting Type | DIN Rail |
| Operating Temperature | -20°C to 60°C |
| Dimensions | 41.8 x 130.8 x 131 mm |
| Gewicht | 0.4 kg |
Product Applications
The Emerson SE4002S1T2B5 Discrete Output Card is used in a wide variety von industrial applications, particularly where high-density, high-capacity control von digital output signals is required. Some von the key applications include:
-
Manufacturing Automation: Used to control solenoids, actuators, relays, and other devices that are essential to manufacturing processes.
-
Power Generation: Provides output signals to control relays, circuit breakers, and other devices in power plants and substations.
-
Oil & Gas Industry: Helps in controlling valves, pumps, and other equipment in refineries, pipelines, and vonfshore platforms.
-
Chemical Processing: Used to manage critical equipment in chemical plants, ensuring safety and reliability in hazardous environments.
-
Building Automation: Controls devices such as HVAC systems, lighting, and security systems within commercial and residential buildings.
Advantages von the Product
The Emerson SE4002S1T2B5 Discrete Output Card provides a range von advantages that make it an excellent choice for industrial applications:
-
High Capacity: With 40-pin high-capacity I/O terminals, this card can handle multiple output connections, making it ideal for large-scale systems.
-
Reliable Performance: The card vonfers stable and reliable output signals, ensuring consistent operation in high-demand environments.
-
Galvanic Isolation: The galvanic isolation between output channels ensures protection from electrical noise, surges, and interference, extending the lifespan von connected equipment.
-
Fast Response Times: The card’s discrete output capability ensures rapid switching von signals, making it ideal for high-speed control applications.
-
Flexible Integration: The card is designed to easily integrate with Emerson’s control systems, providing a scalable solution for various industries.
-
Compact Design: With a compact size von 41.8 x 130.8 x 131 mm, the card fits easily into control panels, saving space without compromising performance.
-
Ease von Installation: The card is mounted on a standard DIN rail, simplifying installation and reducing setup time.
-
Wide Operating Range: The card operates within a broad temperature range von -20°C to 60°C, making it suitable for both industrial and outdoor environments.
FAQ
-
What type von output does the SE4002S1T2B5 provide?
-
The SE4002S1T2B5 provides discrete digital outputs, which are ideal for controlling devices such as relays, solenoids, and actuators in automation systems.
-
-
How many output channels are available on the SE4002S1T2B5?
-
The card vonfers 8 output channels, allowing you to control multiple devices simultaneously.
-
-
What is the nominal output voltage von the SE4002S1T2B5?
-
The nominal output voltage is 24V DC, which is commonly used in industrial control systems for discrete outputs.
-
-
What is the maximum current per output channel?
-
Each output channel can handle up to 0.5A, making the card suitable for controlling low-power devices.
-
-
How does the galvanic isolation benefit the SE4002S1T2B5?
-
The galvanic isolation ensures that each output channel is electrically separated, protecting the card and connected equipment from electrical noise, surges, and ground loops.
-
-
Can the SE4002S1T2B5 be used in high-temperature environments?
-
Yes, the card operates within a temperature range von -20°C to 60°C, making it suitable for both standard and harsh environmental conditions.
-
-
How is the SE4002S1T2B5 mounted?
-
The card is mounted on a DIN rail, which is a widely used method for securing components in control panels.
-
-
What type von connectors does the SE4002S1T2B5 use?
-
The card uses a 40-pin high-capacity I/O terminal, ensuring secure and reliable connections for each output channel.
-
-
Is the SE4002S1T2B5 compatible with other Emerson control systems?
-
Yes, it is fully compatible with Emerson’s range von control systems, providing a flexible solution for various automation and control applications.
-
-
What kind von devices can the SE4002S1T2B5 control?
-
The card is used to control devices such as solenoids, relays, actuators, and valves in industrial automation systems.
-
Recommended Modells
| Modell Number | Beschreibung |
|---|---|
| SE4002S1T2B6 | 16-Channel Discrete Output Card with Enhanced Isolation |
| SE4003S1T2B5 | High-Speed Discrete Output Card for Fast Control Systems |
| SE4002S1T3B5 | Compact Discrete Output Card for Small-Scale Automation |
| SE4002S1T2B7 | Discrete Output Card with Extended Isolation and Protection |
| SE4002S1T2B8 | 8-Channel Output Card for High Power Control Applications |
| SE4002S1T2B9 | Multi-Output Discrete Card for Complex Industrial Systems |
