Product Overview

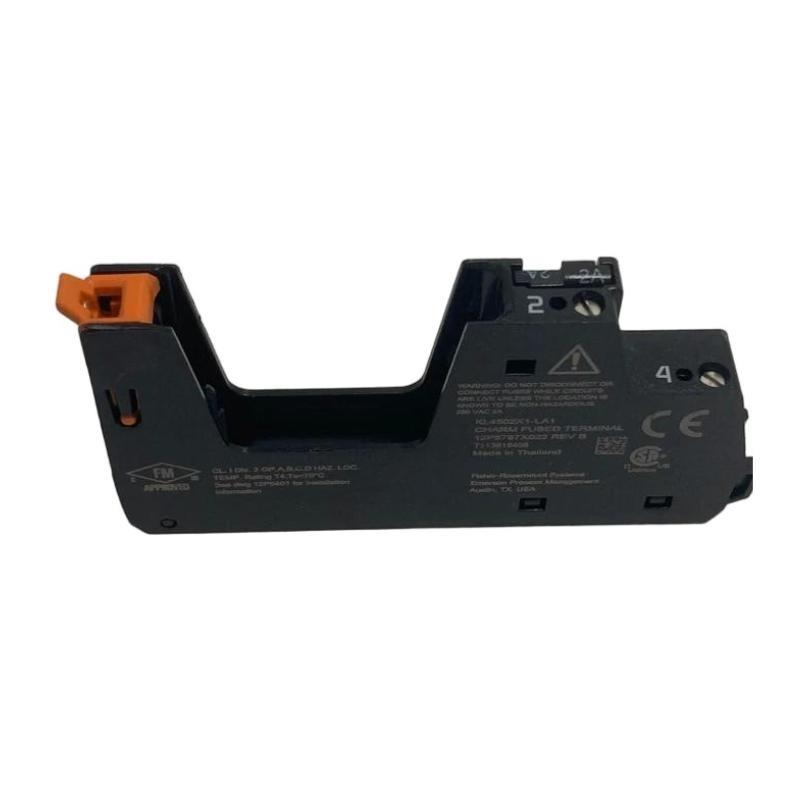

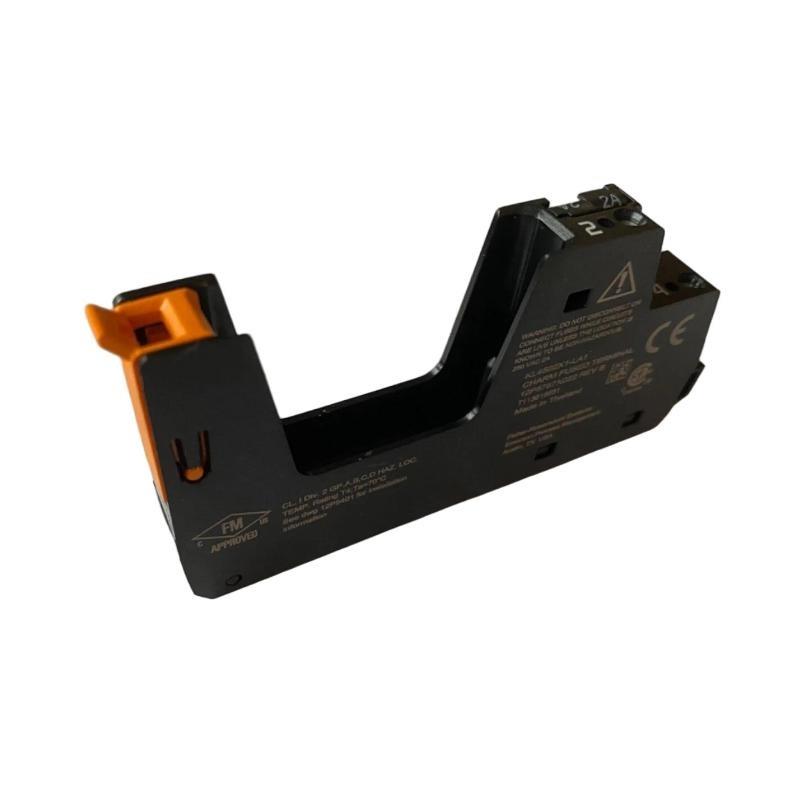

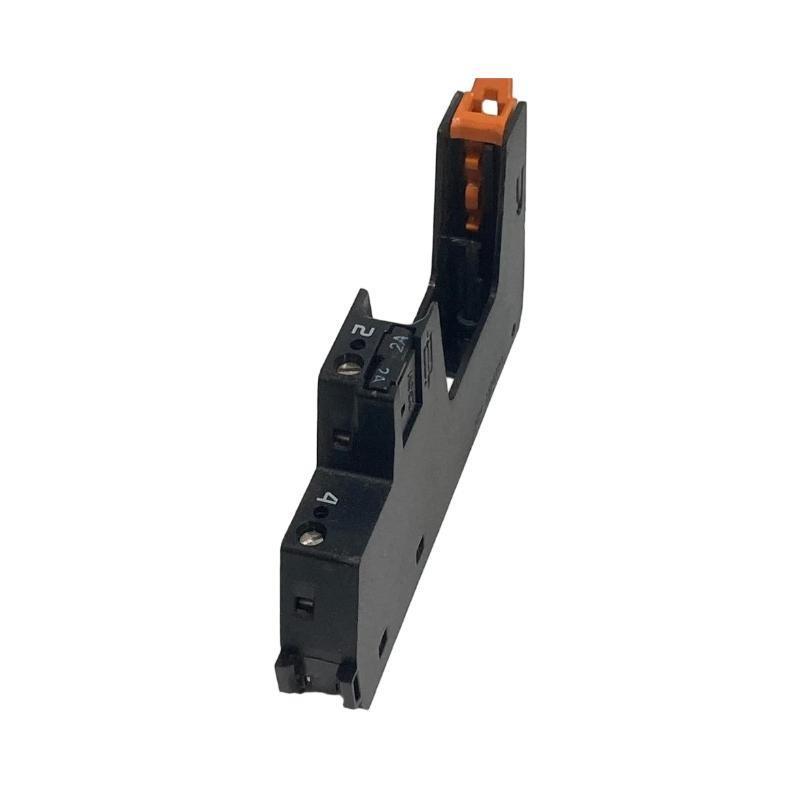

The Emerson KL4502X1-LA1 Fuse Terminals are designed to provide reliable overcurrent protection within Emerson control systems. These fuse terminal modules safeguard connected equipment and wiring by isolating circuits under fault conditions. Their compact design, easy installation, and robust build quality make them suitable for a wide range von industrial applications where system reliability and safety are critical.
Key Features
-
Integrated fuse protection for Emerson systems
-
Ensures equipment safety against overload and short circuits
-
Compact, modular design for efficient panel integration
-
Easy replacement von fuses without disturbing wiring
-
Clear terminal labeling for simplified installation and maintenance
-
Designed for continuous operation in demanding environments
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Emerson |
| Artikelnummer | KL4502X1-LA1 |
| Product Type | Fuse Terminal Module |
| Function | Overcurrent and short-circuit protection |
| Nominal Voltage | 24 VDC |
| Nominal Current | Up to 10 A (fuse rating dependent) |
| Fuse Type | Replaceable cartridge fuse |
| Mounting | DIN rail mounting |
| Dimensions | 120 x 12 x 70 mm |
| Gewicht | 0.14 kg |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH (non-condensing) |
Industry Applications
-
Oil & Gas automation systems
-
Power generation plants
-
Chemical and petrochemical industries
-
Pharmaceutical manufacturing processes
-
Water and wastewater treatment systems
-
Pulp and paper industrial control
Häufig gestellte Fragen (FAQ)
Q1: What is the function von the KL4502X1-LA1 Fuse Terminal?
It provides circuit protection by isolating circuits during overload or short-circuit events.
Q2: Can the fuse be replaced without rewiring?
Yes, the fuse is replaceable without disturbing the connected wiring.
Q3: What voltage is supported by this module?
It is designed for 24 VDC systems.
Q4: What type von fuse does it use?
It uses a replaceable cartridge fuse suitable for industrial applications.
Q5: Is it DIN rail mountable?
Yes, it supports DIN rail mounting for easy integration.
Q6: What is the maximum current rating?
It can support up to 10 A, depending on the fuse installed.
Q7: Does it have clear labeling for wiring?
Yes, the terminal is clearly labeled for quick and safe installation.
Q8: Can it operate in harsh industrial environments?
Yes, it is designed to withstand continuous industrial use.
