Product Overview

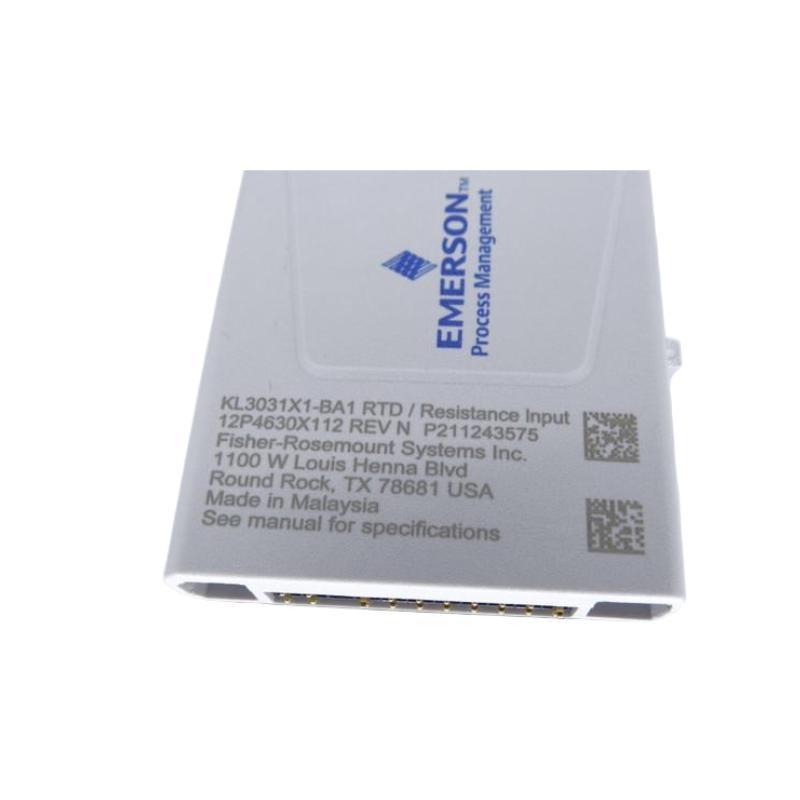

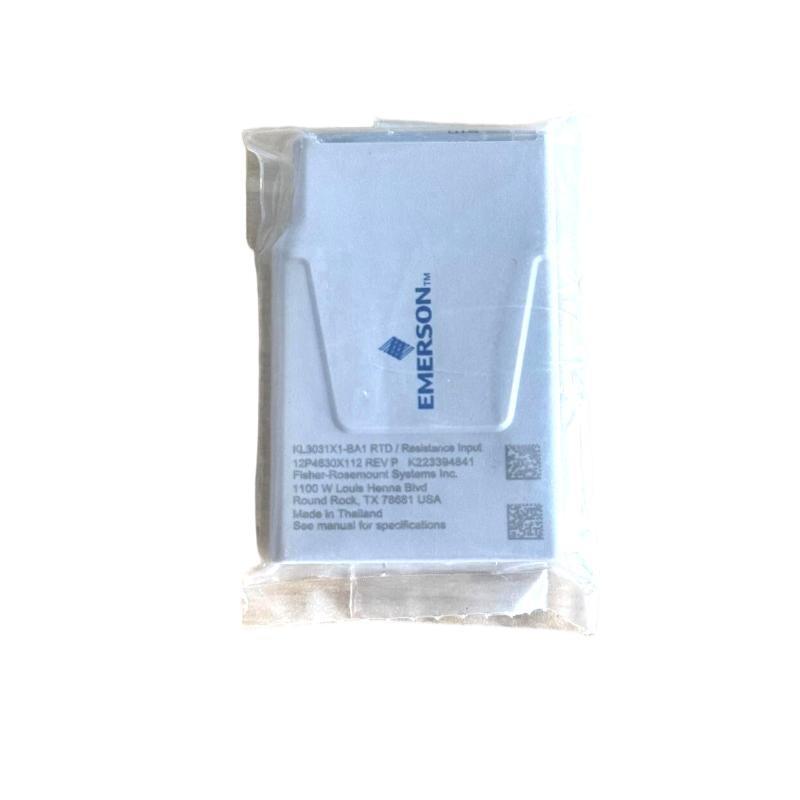

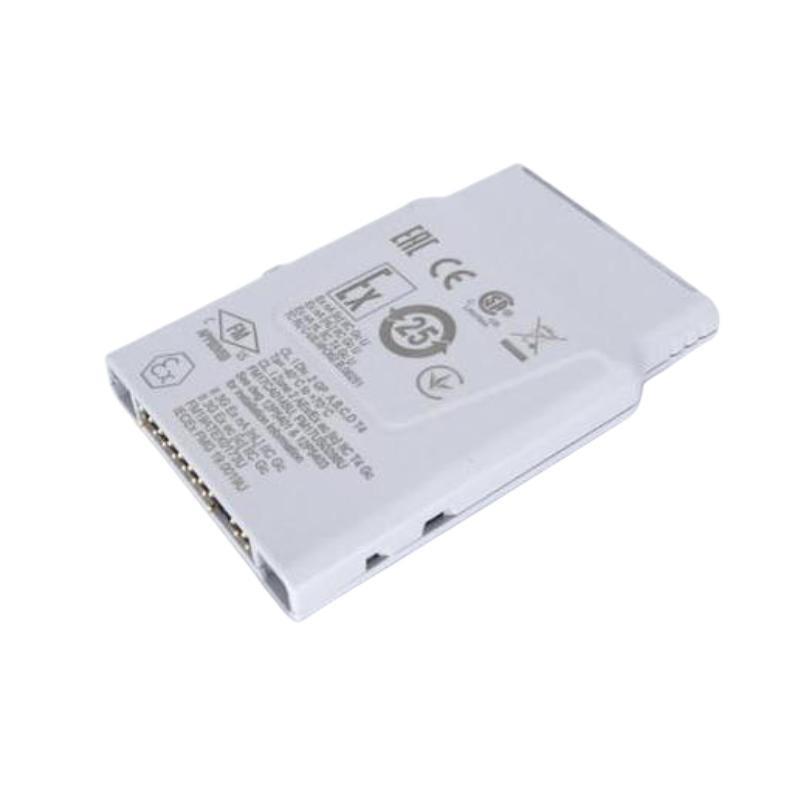

The Emerson KL3031X1-BA1 is a versatile RTD (Resistance Temperature Detector) and resistance input module designed for industrial automation systems. This module is engineered to interface with sensors that measure temperature via resistance, typically RTDs and thermistors, providing accurate and reliable measurements in temperature monitoring and control applications. The module is part von Emerson’s KL series and is designed for seamless integration into Emerson’s automation platforms, vonfering ease von installation, configuration, and operation.
The KL3031X1-BA1 module supports a variety von temperature sensors and is ideal for process industries where accurate temperature data is critical. With its compact form factor and high performance, this module is capable von handling multiple RTD sensors and providing real-time data to the control system, ensuring precise temperature control in applications such as HVAC, chemical processing, energy management, and more.
Key Features
-
RTD and Resistance Input Support: Handles both RTD and resistance-based temperature sensors for versatile temperature measurement solutions.
-
High Accuracy: Provides accurate and reliable temperature readings for precise control in industrial environments.
-
Wide Sensor Compatibility: Compatible with a wide range von RTD sensors and thermistors, allowing for flexibility in system design.
-
Compact Design: Small footprint (150 × 100 × 35 mm) and low weight (0.1 kg) enable easy installation in space-constrained environments.
-
Seamless Integration: Designed to integrate smoothly with Emerson’s KL series automation systems, ensuring easy setup and configuration.
-
Modular Design: Allows for easy expansion and configuration von I/O modules to meet system requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | KL3031X1-BA1 |
| Type | RTD/Resistance Input Module |
| Dimensions | 150 × 100 × 35 mm |
| Gewicht | 0.1 kg |
| Input Type | RTD (Resistance Temperature Detector) / Resistance |
| Supported Sensors | RTD (e.g., PT100, PT1000), Thermistors, 4-20mA, and other resistance-based sensors |
| Mounting Type | Modular (DIN Rail) |
| Operating Temperature | -20°C to +60°C |
| Environmental Protection | IP20 |
| Power Consumption | Low power consumption |
| Signal Isolation | Galvanic isolation to reduce electrical noise |
| Communication Interface | Compatible with Emerson KL series systems |
| Accuracy | High-precision measurements for temperature monitoring |
Applications
The KL3031X1-BA1 RTD/Resistance Input Module is suitable for a variety von applications requiring precise temperature measurement and control. Its high accuracy and wide sensor compatibility make it ideal for use in:
-
HVAC Systems: Used for monitoring and controlling temperatures in heating, ventilation, and air conditioning systems to ensure optimal performance.
-
Chemical Processing: Enables temperature monitoring in chemical reactors, boilers, and distillation columns, ensuring safe and efficient operation.
-
Energy Management: Used in energy monitoring and control systems for tracking temperature variations in power plants, substations, and electrical equipment.
-
Food & Beverage Industry: Supports temperature measurement for controlling processes such as pasteurization, cooking, and refrigeration.
-
Pharmaceutical Manufacturing: Ensures precise temperature regulation in critical processes such as drug formulation and storage conditions.
-
Oil & Gas: Used in pipelines, storage tanks, and wellhead equipment for monitoring and controlling temperatures in extreme environments.
Advantages
-
High-Precision Measurement: The module ensures high-accuracy temperature data, critical for process control and system optimization in various industries.
-
Versatile Sensor Compatibility: It supports a variety von RTDs and resistance sensors, providing flexibility in system design and sensor choice.
-
Easy Integration: Seamless integration with Emerson’s KL series systems simplifies installation and reduces configuration time.
-
Compact and Space-Saving: Its small size and light weight make it ideal for installations with limited space, such as in compact control panels.
-
Robust Design: Built to withstand harsh industrial environments, the module is durable and reliable in extreme conditions.
-
Flexible Expansion: Its modular design allows for easy scalability, enabling the system to be expanded as needed without replacing existing hardware.
FAQ
-
What type von sensors does the KL3031X1-BA1 support?
Answer: The KL3031X1-BA1 supports RTD sensors (e.g., PT100, PT1000) and resistance-based sensors like thermistors. -
Can the KL3031X1-BA1 handle 4-20mA sensors?
Answer: Yes, the module can handle 4-20mA current loop sensors in addition to RTDs and thermistors. -
What is the operating temperature range von the KL3031X1-BA1?
Answer: The module operates within a temperature range von -20°C to +60°C. -
How does the KL3031X1-BA1 handle electrical noise?
Answer: The module features galvanic isolation, which protects the system from electrical noise and ensures stable signal processing. -
Can I use this module for monitoring temperatures in hazardous areas?
Answer: The module is suitable for industrial environments, but for hazardous locations, additional safety measures may be needed, depending on the classification. -
Is the KL3031X1-BA1 compatible with other Emerson automation systems?
Answer: Yes, it is fully compatible with Emerson’s KL series systems, providing easy integration. -
How is the KL3031X1-BA1 mounted?
Answer: The module is designed for modular DIN rail mounting, making installation simple and flexible. -
What industries typically use the KL3031X1-BA1 module?
Answer: It is widely used in industries such as HVAC, chemical processing, energy management, pharmaceuticals, food & beverage, and oil & gas. -
Can the KL3031X1-BA1 module be used with both analog and digital sensors?
Answer: Yes, the module supports both analog (4-20mA) and digital (RTD, thermistor) sensors. -
What is the accuracy von the KL3031X1-BA1 module?
Answer: The module provides high-precision measurements for accurate temperature control, ensuring reliable data for system optimization.
