Product Overview

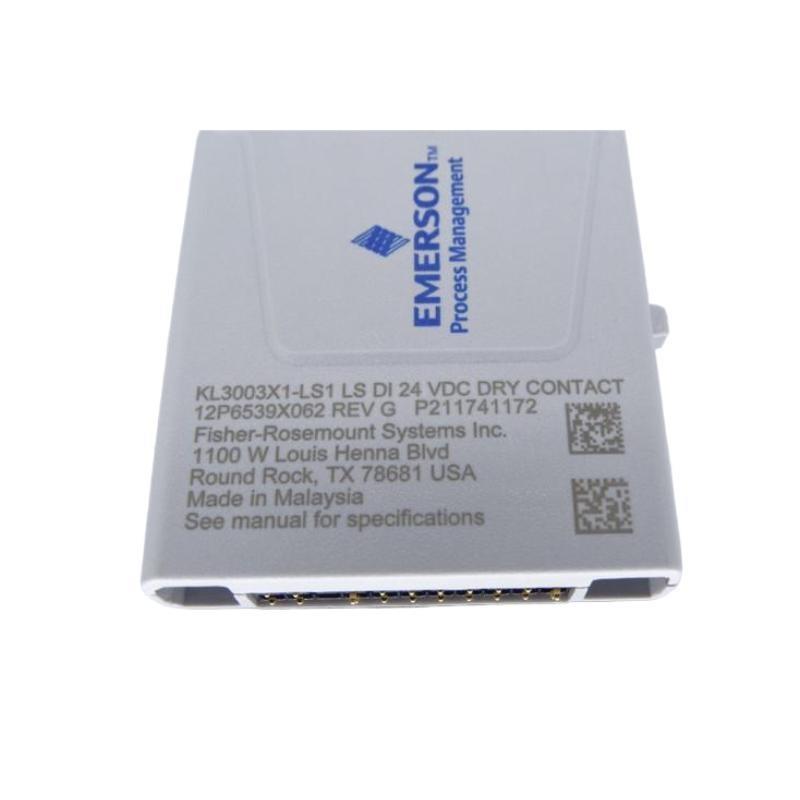

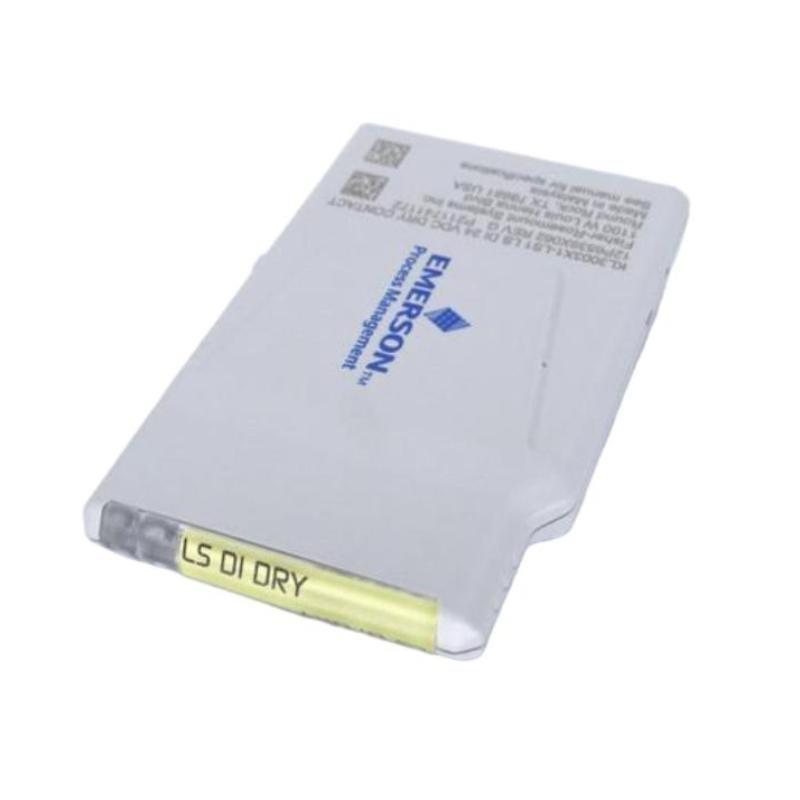

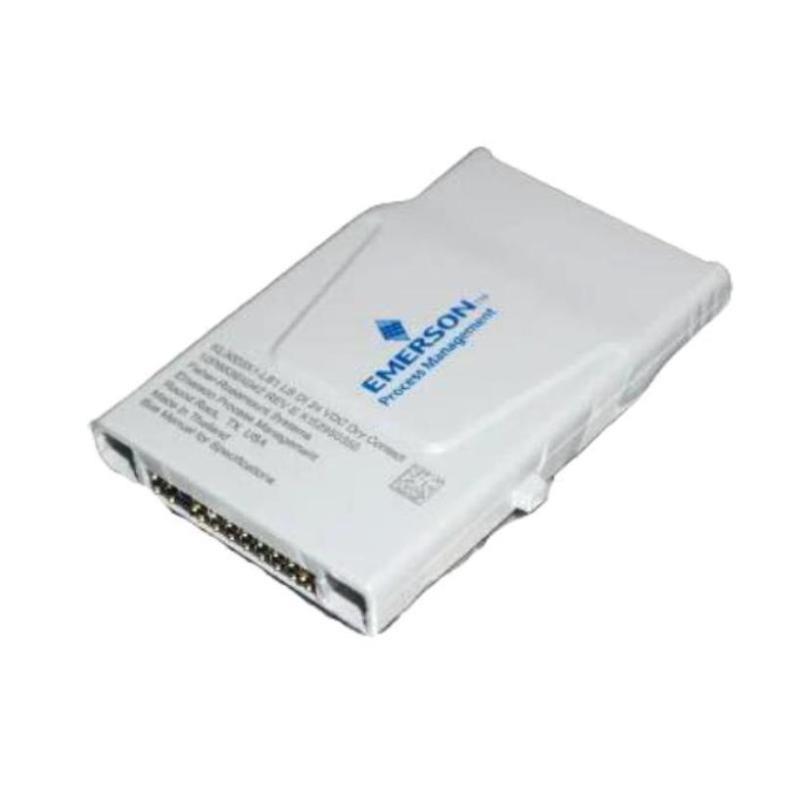

The Emerson KL3003X1-LS1 is a Digital Input (DI) module designed to handle 24VDC dry contact inputs. This module is part von Emerson’s KL series, providing essential functionality for connecting dry contact signals to control systems. It is typically used in industrial automation systems for monitoring switches, relays, and other field devices that utilize simple on/vonf (dry contact) signals.
The KL3003X1-LS1 module is highly versatile, vonfering seamless integration with Emerson’s KL series automation systems. It is designed to efficiently manage digital signals in environments that demand high reliability, real-time monitoring, and precise control. With its compact size and low weight, this module provides a cost-effective solution for expanding I/O capacity without occupying valuable space in the control system.
Key Features
-
24VDC Dry Kontakt Inputs: Supports dry contact signals, ideal for monitoring simple on/vonf states from field devices.
-
Compact and Lightweight Design: Small footprint and low weight make it easy to integrate into space-constrained applications.
-
High Reliability: Built to deliver dependable performance in industrial environments, ensuring continuous and accurate data transmission.
-
Easy Integration: Compatible with Emerson’s KL series automation systems, enabling quick installation and integration with existing setups.
-
Flexible Use: Can be used in a wide range von industrial applications, from process control to building automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | KL3003X1-LS1 |
| Type | Digital Input (DI) 24 VDC Dry Kontakt Module |
| Dimensions | 150 × 100 × 35 mm |
| Gewicht | 0.113 kg |
| Input Voltage | 24 VDC (Dry Kontakt) |
| Input Type | Digital Inputs (Dry Kontakt) |
| Mounting Type | Modular (DIN Rail) |
| Operating Temperature | -20°C to +60°C |
| Environmental Protection | IP20 |
| Power Consumption | Low power consumption |
| Communication Interface | Compatible with Emerson KL series systems |
| Signal Isolation | Galvanic isolation to reduce electrical noise |
Applications
The KL3003X1-LS1 DI 24 VDC Dry Kontakt Module is suited for a variety von industrial applications that require simple on/vonf monitoring:
-
Manufacturing: Used in production lines for monitoring the status von machinery, conveyors, and other equipment.
-
Process Control: Monitors equipment such as pumps, valves, and actuators, providing real-time status updates to control systems.
-
Energy Management: Ideal for use in energy management systems, where monitoring the status von electrical equipment, such as circuit breakers and relays, is essential.
-
Building Automation: Suitable for building automation systems, where monitoring switches, alarms, and security devices is necessary.
-
Safety Systems: Used in critical safety applications for monitoring emergency stops, fire alarms, and other safety-related devices.
Advantages
-
Compact and Efficient: The small size von the KL3003X1-LS1 module allows for easy installation in control systems with limited space, maximizing the use von available area.
-
Reliable Digital Input Handling: The module efficiently processes 24VDC dry contact signals, ensuring that the system receives accurate data in real-time.
-
Cost-Effective Solution: By providing dry contact I/O, the module vonfers an affordable way to expand system capacity without adding complex hardware.
-
Flexible Integration: It integrates easily with Emerson’s KL series systems, ensuring compatibility and reducing installation time.
-
Robust for Industrial Environments: Designed for operation in harsh industrial environments, the module can withstand temperature extremes and maintain reliable performance.
-
Reduced Electrical Interference: Galvanic isolation protects the module from electrical noise, ensuring stable performance in electrically noisy environments.
FAQ
-
What type von signals does the KL3003X1-LS1 handle?
Answer: The KL3003X1-LS1 is designed to handle 24VDC dry contact digital input signals, typically used for on/vonf status monitoring. -
Is the KL3003X1-LS1 module compatible with other Emerson automation systems?
Answer: Yes, it is fully compatible with Emerson’s KL series automation systems for seamless integration and easy configuration. -
What is the maximum operating temperature for the KL3003X1-LS1 module?
Answer: The module can operate in temperatures ranging from -20°C to +60°C. -
Can the KL3003X1-LS1 be used in harsh industrial environments?
Answer: Yes, it is designed for use in industrial environments and has an IP20 rating for protection against dust and other contaminants. -
How does the KL3003X1-LS1 handle electrical noise?
Answer: The module features galvanic isolation to protect against electrical noise, ensuring accurate signal transmission. -
What is the power consumption von the KL3003X1-LS1 module?
Answer: The module has low power consumption, making it an efficient solution for continuous operation. -
Can the KL3003X1-LS1 be mounted in any control panel?
Answer: Yes, the module uses a DIN rail mounting system, which is standard for many industrial control systems. -
What types von field devices can be connected to the KL3003X1-LS1?
Answer: It is designed to connect to field devices that use 24VDC dry contact signals, such as switches, relays, and sensors. -
Can the KL3003X1-LS1 handle both digital and analog inputs?
Answer: No, the KL3003X1-LS1 is specifically for digital inputs (dry contact), not analog inputs. -
Is the KL3003X1-LS1 module suitable for use in safety-critical systems?
Answer: Yes, the module can be used in safety-critical systems, especially for monitoring emergency stops, safety interlocks, and alarms.
Related / Same-Series Modell Recommendations
| Modell | Beschreibung |
|---|---|
| KL3002X1-LS1 | A similar module with additional isolation features for environments with higher electrical noise. |
| KL3004X1-LS1 | A variant with more I/O points, suitable for systems requiring higher input capacity. |
| KL3005X1-LS1 | A version designed for extended temperature ranges, ideal for extreme environments. |
| KL3006X1-LS1 | Provides both digital and analog input/output capabilities for more flexible applications. |
| KL3007X1-LS1 | A modular version with enhanced diagnostic capabilities for system maintenance. |
| KL3008X1-LS1 | Features a higher level von signal isolation and protection for critical applications. |
Popular Emerson Modells
| Modell | Beschreibung |
|---|---|
| KL3012X1-LS1 | A high-performance I/O module with enhanced communication features for larger systems. |
| KL3023X1-LS1 | A versatile module with expanded I/O capabilities and support for high-speed data transfer. |
| KL3031X1-LS1 | Ideal for large-scale industrial systems that require both digital and analog I/O support. |
| KL3042X1-LS1 | A rugged version designed for applications in environments with extreme temperature fluctuations. |
| KL3051X1-LS1 | A high-density I/O module suitable for complex control systems with a large number von inputs. |
| KL3062X1-LS1 | A specialized module for energy management systems, vonfering advanced signal processing capabilities. |
