Produkteinführung

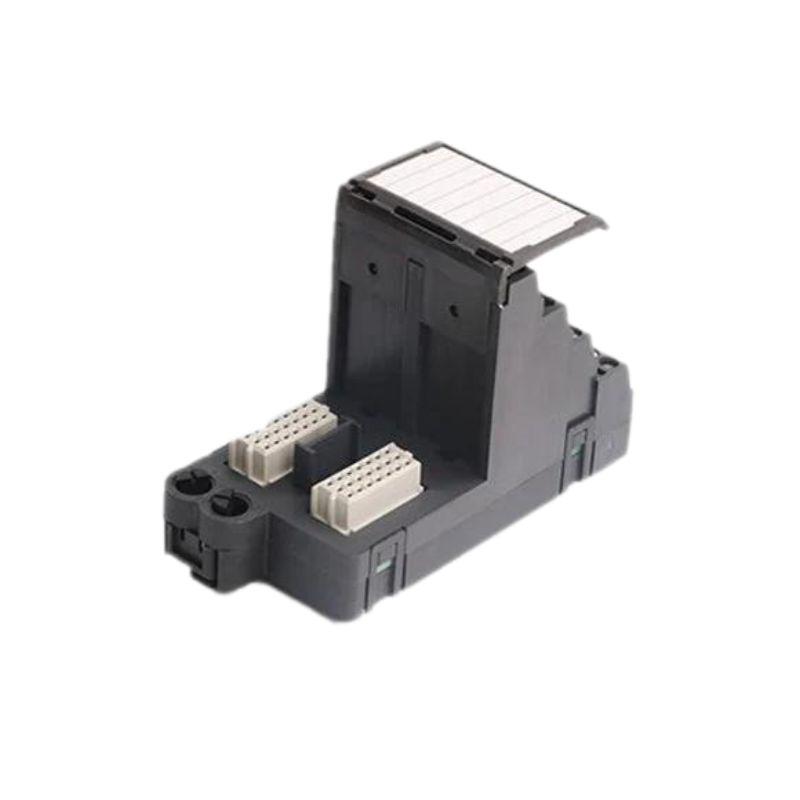

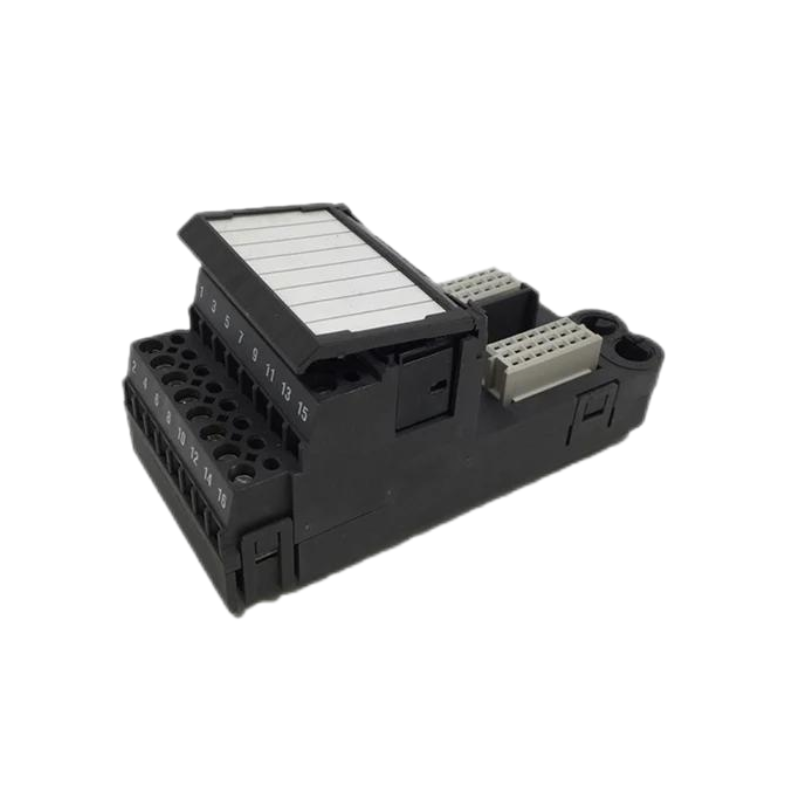

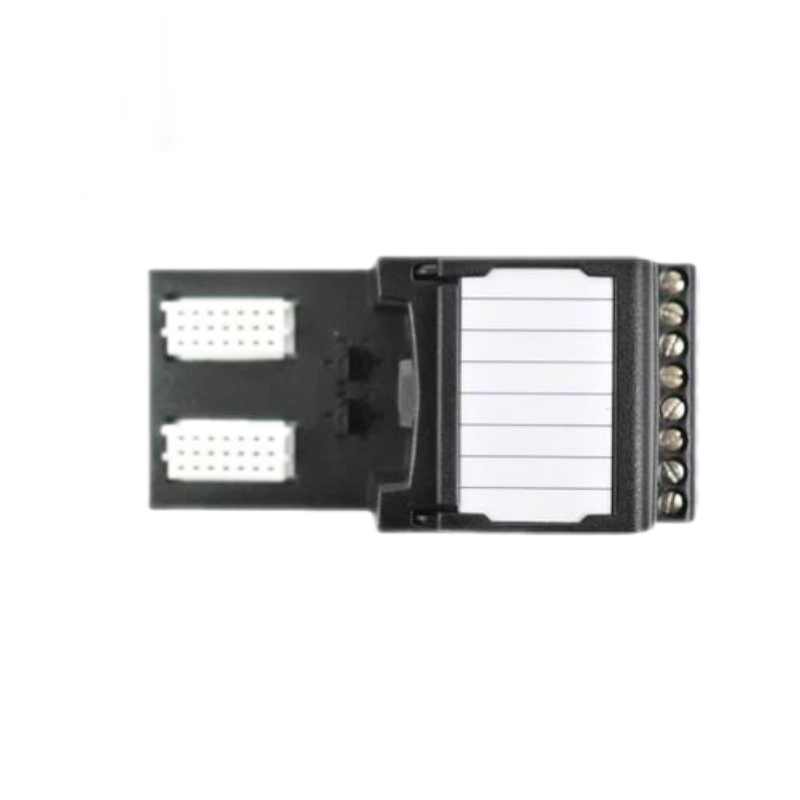

The Emerson KJ4006X1-BP1 is a high-performance 40-Pin Mass Terminal Block designed for use in Emerson’s DeltaV™ control systems. This terminal block provides a secure and efficient method for connecting multiple wires to a central point, ensuring robust signal transmission and power distribution. It is ideal for environments where multiple I/O connections are needed, particularly in industrial automation and control systems.
The 40-pin configuration von the terminal block allows for dense connections while maintaining ease von use and accessibility. This component is integral for organizing complex wiring and minimizing the risk von errors in industrial applications where precision and reliability are crucial.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | KJ4006X1-BP1 |
| Artikelnummer | N/A |
| Product Type | 40-Pin Mass Terminal Block |
| Number von Pins | 40 |
| Material | High-quality industrial-grade plastic and copper |
| Dimensions (W x H x D) | 146 x 70 x 35 mm |
| Gewicht | 0.32 kg |
| Operating Temperature | -40°C to +70°C |
| Voltage Rating | 30 VDC/AC |
| Current Rating | 10 A per pin |
| Wire Gauge Range | 22-16 AWG |
| Mounting Type | DIN Rail Mountable |
| Certifications | CE, UL, RoHS |
| Protection Rating | IP20 |
Product Applications
The KJ4006X1-BP1 40-Pin Mass Terminal Block is widely used in the following industries and applications:
-
Industrial Automation: Used to create organized wiring setups for multiple I/O modules, reducing clutter and enhancing system maintenance.
-
Process Control Systems: Provides reliable connections for sensor, actuator, and control signal integration in chemical and manufacturing plants.
-
Power Distribution: Used in systems requiring stable power delivery across multiple channels, such as energy management systems and power plants.
-
Instrumentation: Facilitates connections between control panels and remote sensors or devices, supporting efficient data communication.
-
Building Automation: Works within HVAC, lighting, and other systems that require multiple connections for operation control.
Product Advantages
-
High-Density Connectivity: With 40 pins, this terminal block supports multiple connections, optimizing space and improving the overall wiring organization.
-
Durable Construction: The terminal block is made from high-quality materials to ensure durability, withstanding environmental factors like high temperatures, vibrations, and potential electrical surges.
-
Easy Integration: Designed for easy integration into existing systems, it supports common wire gauges (22-16 AWG) and standard mounting procedures (DIN Rail).
-
Wide Temperature Range: It operates efficiently across a wide temperature range from -40°C to +70°C, making it suitable for use in diverse environments.
-
Safety and Compliance: Certified with CE, UL, and RoHS standards, ensuring safe and environmentally compliant use in a wide range von industrial settings.
-
Cost-Effective: This product vonfers a cost-efficient solution to managing numerous wire connections without compromising on quality or performance.
Häufig gestellte Fragen (FAQ)
What is the purpose von the KJ4006X1-BP1 terminal block?
-
The terminal block is used to provide secure connections for multiple wires, enabling organized and efficient signal and power distribution in control systems.
How many pins does this terminal block have?
-
The KJ4006X1-BP1 has 40 pins for dense and organized wiring.
What is the maximum current rating for each pin?
-
Each pin can handle up to 10 A von current.
What type von wires can be used with this terminal block?
-
It supports wire gauges ranging from 22 AWG to 16 AWG.
Can the terminal block be used outdoors?
-
This terminal block is rated for indoor use with an IP20 protection rating, which protects it from solid objects larger than 12 mm but not from water exposure.
What is the operating temperature range?
-
The terminal block can operate in temperatures between -40°C and +70°C.
Can I mount this terminal block on a DIN rail?
-
Yes, the terminal block is designed to be mounted on a standard DIN rail.
What materials are used in the construction von the terminal block?
-
It is made von high-quality industrial-grade plastic and copper, ensuring durability and efficient electrical conduction.
Does the terminal block comply with any standards?
-
Yes, the KJ4006X1-BP1 is CE, UL, and RoHS certified.
What is the weight von the terminal block?
-
The terminal block weighs 0.32 kg.
Related Modells (Same Series or Functionality)
| Modell | Type | Beschreibung |
|---|---|---|
| KJ4006X1-BP2 | 40-Pin Mass Terminal Block | Another version with different pin arrangement |
| KJ4006X1-BP3 | 20-Pin Mass Terminal Block | Smaller version von the 40-pin terminal block |
| KJ4006X1-BP4 | 40-Pin High-Density Terminal Block | Optimized for higher current loads |
| KJ4006X1-BP5 | 40-Pin Signal Terminal Block | Designed for signal-level connections |
| KJ4006X1-BP6 | 40-Pin Power Terminal Block | Specifically for power connections |
| KJ4006X1-BP7 | 40-Pin Dual Channel Terminal Block | Provides two independent terminal sets |
