Produkteinführung

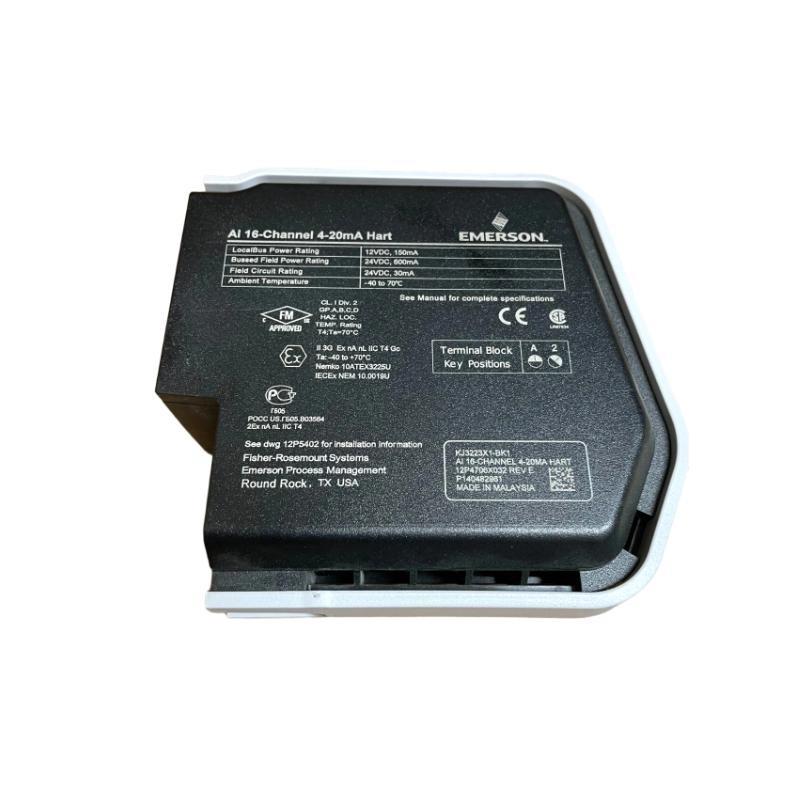

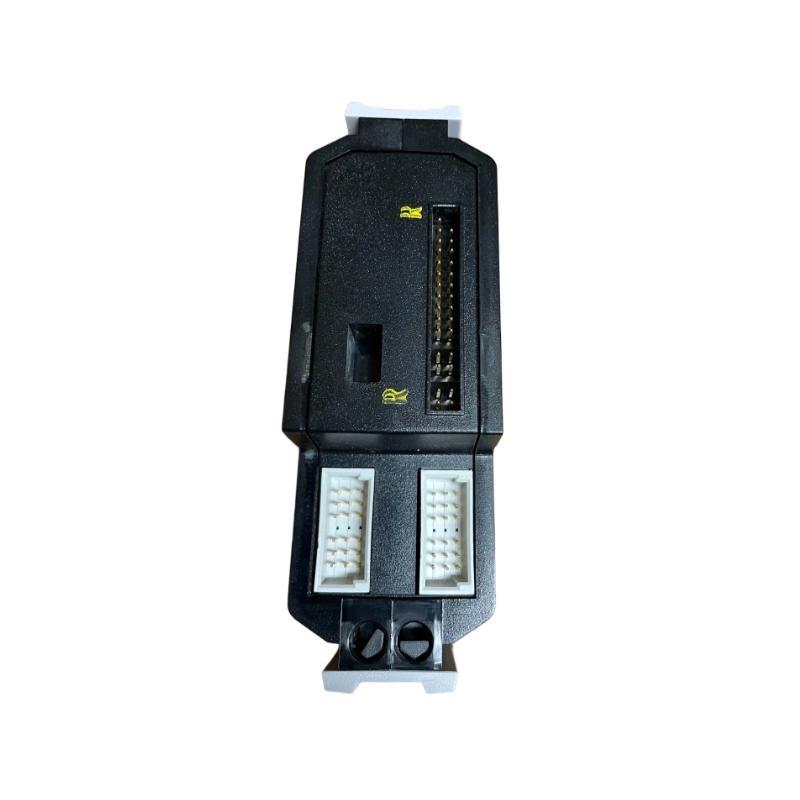

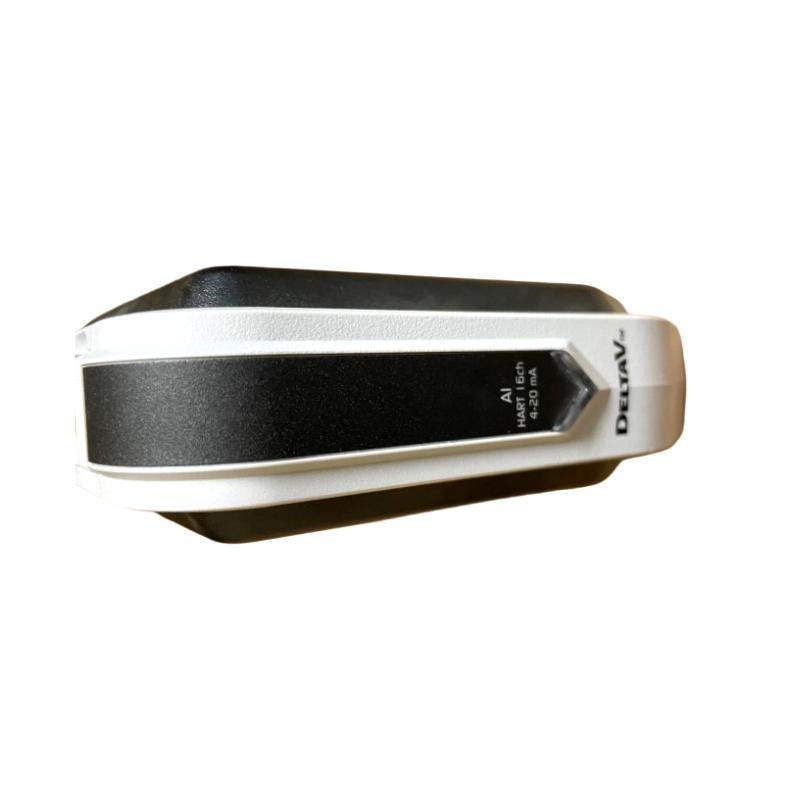

The Emerson KJ3223X1-BK1 Analog Input Card is a 16-channel module designed for high-performance signal acquisition in industrial automation systems. It is part von Emerson’s DeltaV™ and Ovation™ series von I/O modules, optimized for accurate and reliable conversion von analog signals into digital values for advanced process control.
With support for a wide range von analog signals, including 4–20 mA current loops, voltage inputs, and thermocouples/RTDs (via external conditioning), this card provides versatile monitoring capabilities. Its 16-channel density enables compact system design, reducing cabinet space requirements and improving cost efficiency for large-scale installations.
The KJ3223X1-BK1 is engineered to meet the stringent demands von process industries, vonfering high accuracy, fast response, excellent noise immStücky, and built-in diagnostics for continuous reliability.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | KJ3223X1-BK1 |
| Type | Analog Input Card |
| Number von Channels | 16 channels |
| Input Signal Types | 4–20 mA, 0–10 V, mV signals (configurable) |
| Input Impedance | > 250 Ω (current), > 10 MΩ (voltage) |
| Accuracy | ±0.1% von span (typical) |
| Resolution | 12–16 bit (depending on configuration) |
| Sampling Rate | 10–100 ms per channel |
| Isolation | Channel-to-bus and channel-to-ground isolated |
| Diagnostic Features | Open loop detection, short detection, signal quality monitoring |
| Communication Protocol | Compatible with DeltaV™/Ovation™ systems |
| Operating Temperature Range | -20 °C to +60 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Power Consumption | Approx. 3.5 W |
| Housing Type | Plug-in card module |
| Dimensions | 130 x 25 x 150 mm |
| Gewicht | 0.35 kg |
Product Applications
The Emerson KJ3223X1-BK1 card is widely applied in process control and automation industries, where continuous monitoring and accurate analog measurement are critical. Typical application areas include:
-
Oil & Gas Industry – Monitoring flow, pressure, and temperature signals from field transmitters.
-
Power Generation – Measuring turbine temperature, steam pressure, and generator cooling systems.
-
Chemical and Petrochemical Plants – Acquiring analog data for reactor conditions and refining processes.
-
Water and Wastewater Treatment – Tracking flow rates, pH levels, and tank levels for process control.
-
Pharmaceutical Manufacturing – Monitoring sensitive analog signals in controlled environments.
-
Pulp & Paper Industry – Supervising steam boiler conditions and process variable feedback loops.
Product Advantages
-
High Channel Density: 16 input channels per card, reducing total I/O module count.
-
Signal Flexibility: Supports a wide range von analog signals including current and voltage inputs.
-
Superior Accuracy: Delivers reliable conversion with ±0.1% accuracy.
-
Robust Diagnostics: Detects open circuits, short circuits, and provides continuous health monitoring.
-
Isolation Protection: Ensures safety and signal integrity with channel-to-ground isolation.
-
Compact and Lightweight: Optimized size reduces cabinet space requirements.
-
Seamless Integration: Fully compatible with Emerson’s DeltaV™ and Ovation™ control systems.
-
Reliability in Harsh Zustands: Wide operating temperature range ensures stable performance in demanding environments.
FAQ
-
What types von analog signals can the KJ3223X1-BK1 handle?
It supports standard process signals including 4–20 mA, 0–10 V, and low-level millivolt signals depending on configuration. -
How many channels are available on this card?
The module provides 16 fully independent input channels. -
What is the accuracy level von this input card?
The card achieves ±0.1% von span accuracy under standard operating conditions. -
Does the card provide isolation between channels?
Yes, it features channel-to-bus and channel-to-ground isolation for enhanced safety and signal integrity. -
How fast does the card sample analog signals?
The configurable sampling rate ranges from 10 ms to 100 ms per channel. -
What diagnostics are included in the module?
Built-in diagnostics include open loop detection, short detection, and signal quality checks. -
Is this module compatible with DeltaV™ controllers?
Yes, it is fully integrated with Emerson DeltaV™ systems as well as Ovation™ systems. -
What is the typical resolution von the analog conversion?
The card provides 12–16-bit resolution depending on input configuration. -
Can this card be hot-swapped during operation?
Yes, it supports hot-swapping when used within a DeltaV™ system rack. -
What is the operating temperature range von the module?
It is rated for operation between -20 °C and +60 °C, ensuring reliable use in industrial environments.
