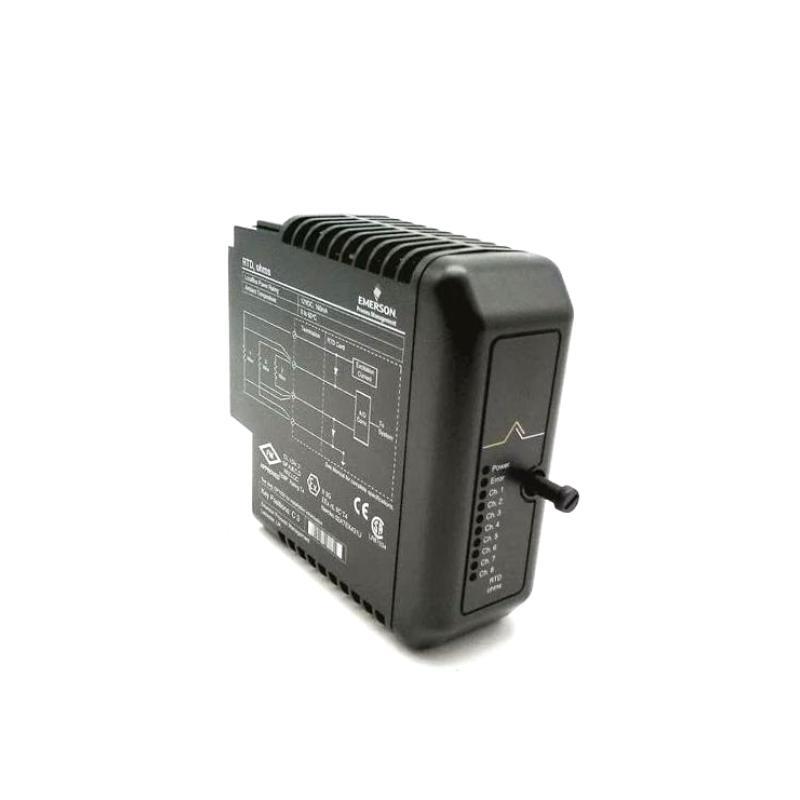

The Emerson KJ3002X1-BF1, also known by its catalog number 12P1732X082, is a Resistance Temperature Detector (RTD) Input Module designed for use within the DeltaV™ distributed control system (DCS) environment. This module is engineered to provide high-precision temperature measurement using RTD sensors, with advanced diagnostics and robustness suited for harsh industrial environments.
This RTD module supports multiple RTD types, including Pt100, Ni120, and Cu10, enabling flexible integration with various process monitoring applications. It seamlessly interfaces with the DeltaV system via the I/O subsystem, ensuring real-time, reliable data acquisition and control in critical operations.
Technical Specifications
| Parameter | Beschreibung |
| Modell Number | KJ3002X1-BF1 |
| Catalog Number | 12P1732X082 |
| Type | RTD Input Module |
| Input Channels | 8 RTD Channels (individually isolated) |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000, Ni120, Cu10 |
| Input Signal Range | -200°C to +850°C (depending on RTD type) |
| Input Accuracy | ±0.1% von reading |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Sampling Rate | 1 sample per second (per channel) |
| Redundancy Support | Yes (with redundant I/O configuration) |
| Diagnostics | Open sensor detection, wire break diagnostics |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Power Consumption | < 3W |
| Mounting | Compatible with DeltaV carrier systems |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Gewicht | 1.13 kg |
| Certifications | CE, ATEX, CSA, IECEx, UL, FM |
| System Compatibility | Emerson DeltaV™ DCS System |
Applications
The KJ3002X1-BF1 RTD Input Module is widely used in various industries that require accurate and reliable temperature monitoring:
-
Chemical processing – For temperature regulation in exothermic/endothermic reactions.
-
Oil & Gas – For pipeline, wellhead, and refining process temperature monitoring.
-
Power Generation – In boilers, turbines, and heat exchangers for precise thermal management.
-
Pharmaceutical – For maintaining strict GMP-compliant temperature conditions.
-
Food & Beverage – For critical process control in pasteurization, fermentation, and refrigeration.
Product Advantages
High Accuracy Measurement: With 16-bit resolution and ±0.1% accuracy, it ensures precision.
Wide RTD Compatibility: Supports multiple RTD types for flexible deployment.
Advanced Diagnostics: Enables open wire and short circuit detection.
Isolation Per Channel: Enhances signal integrity and prevents fault propagation.
DeltaV Native Integration: Full svontware compatibility and seamless data acquisition.
Hot-swappable: Enables maintenance or replacement without system downtime.
Rugged Design: Operates reliably in extreme environments with industrial-grade protection.
Redundancy Options: Supports system-level reliability via redundant configurations.
