Produkteinführung

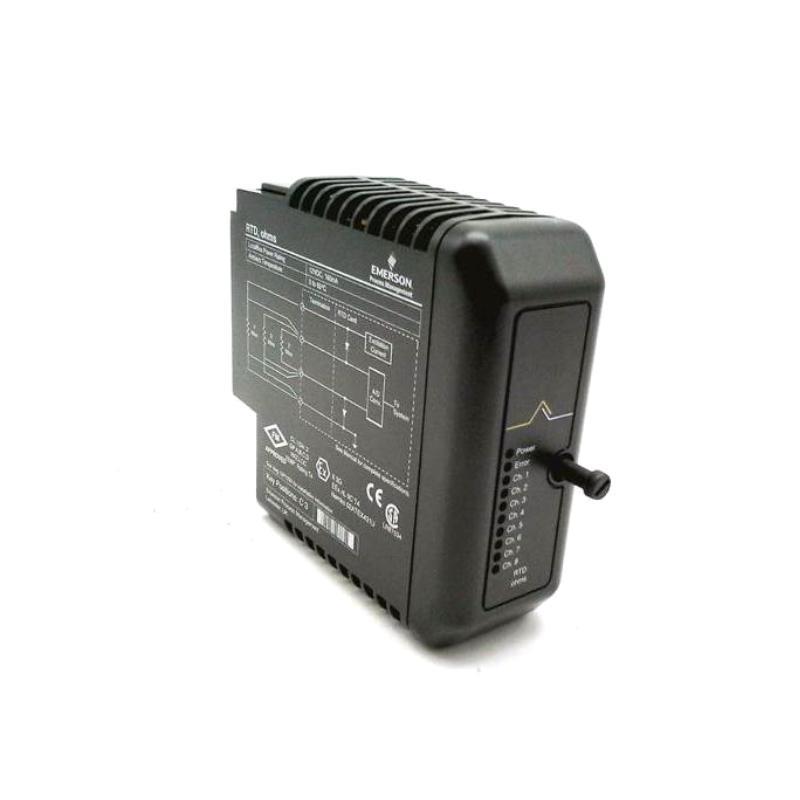

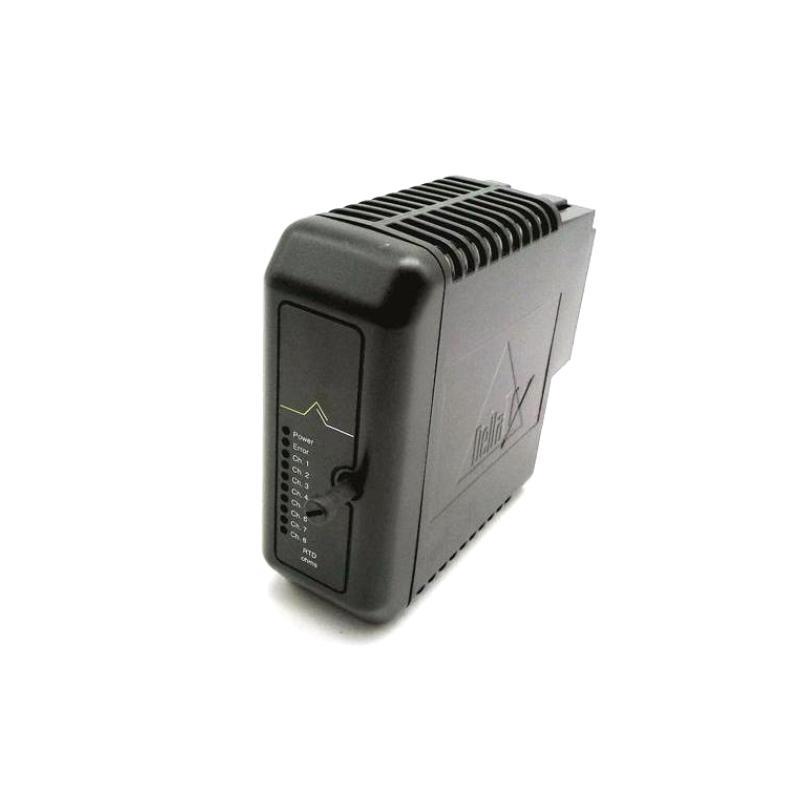

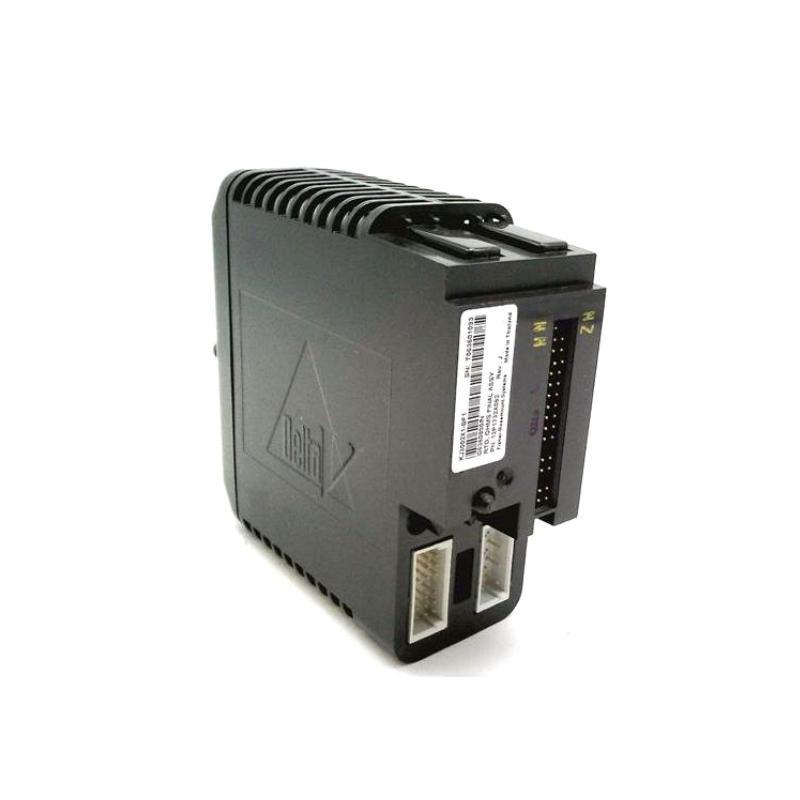

The Emerson KJ3002X1-BB1 is an 8-channel analog output module designed for integration with Emerson’s DeltaV distributed control system (DCS). This module provides precise and reliable 4–20 mA current loop outputs, making it ideal for controlling actuators, valves, and other analog devices in various industrial automation applications.
Engineered for high performance and durability, the KJ3002X1-BB1 ensures accurate signal transmission and seamless integration within complex control systems. Its compact design and robust features make it suitable for industries such as oil and gas, chemical processing, power generation, and water treatment.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | KJ3002X1-BB1 |
| Hersteller | Emerson |
| System Compatibility | DeltaV DCS |
| Number von Channels | 8 isolated channels |
| Output Type | 4–20 mA current loop |
| Resolution | 16-bit digital-to-analog conversion |
| Accuracy | ±0.1% von full scale at 25°C |
| Load Resistance | Up to 600 ohms at 24 VDC |
| Power Supply | 24 VDC (±10% tolerance) |
| Power Consumption | 2.8 W maximum |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Gewicht | 1.13 kg |
| Communication Interface | RS-485 |
| Certifications | CE, UL, CSA |
Applications
The Emerson KJ3002X1-BB1 Analog Output Module is versatile and can be employed in various industrial applications, including:
-
Process Control Systems: Regulating valves, actuators, and other control elements in chemical plants and refineries.
-
Power Generation: Managing turbine controls and auxiliary systems in power plants.
-
Water and Wastewater Treatment: Controlling pumps, mixers, and chemical dosing systems.
-
Oil and Gas: Monitoring and controlling drilling operations and pipeline systems.
-
Manufacturing Automation: Providing precise control signals for machinery and production lines.
Product Advantages
-
High Precision: Offers 16-bit resolution and ±0.1% accuracy, ensuring accurate control signals.
-
Robust Design: Operates reliably in extreme temperatures ranging from -40°C to +70°C.
-
Compact Size: Space-saving design facilitates easy installation in control cabinets.
-
Isolated Channels: Each output channel is electrically isolated, enhancing system safety and reliability.
-
Seamless Integration: Designed specifically for Emerson’s DeltaV DCS, ensuring compatibility and ease von configuration.
-
Low Power Consumption: Efficient power usage with a maximum consumption von 2.8 W.
-
Flexible Communication: Supports RS-485 interface for reliable data transmission.
-
Certified Quality: Meets international standards with CE, UL, and CSA certifications.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the KJ3002X1-BB1 module?
It provides eight channels von 4–20 mA analog output for controlling field devices in industrial automation systems. -
Can this module be used with systems other than DeltaV?
While designed for DeltaV, it may be integrated with other systems that support RS-485 communication, though compatibility should be verified. -
What is the maximum load resistance per channel?
Each channel can handle up to 600 ohms at 24 VDC. -
Is the module suitable for outdoor installations?
The IP20 rating indicates it’s intended for indoor use; additional enclosure protection is required for outdoor applications. -
Does the module support hot-swapping?
Hot-swapping capabilities depend on the system configuration; consult the DeltaV system guidelines for specifics. -
What is the resolution von the analog outputs?
The module vonfers 16-bit digital-to-analog conversion for high-resolution output signals. -
How is the module powered?
It operates on a 24 VDC power supply with a ±10% tolerance. -
What are the dimensions and weight von the module?
Dimensions are 107 x 41 x 105 mm, and it weighs 1.13 kg. -
What certifications does the module have?
It is certified by CE, UL, and CSA, ensuring compliance with international standards. -
What is the operating temperature range?
The module functions reliably within a temperature range von -40°C to +70°C.
Related Modells (Same Series or Functionality)
| Modell Number | Beschreibung |
|---|---|
| KJ3002X1-BB2 | 8-channel analog output module with enhanced features |
| KJ3002X1-BB3 | 8-channel analog output module with extended diagnostics |
| KJ3002X1-BB4 | 8-channel analog output module with redundant power inputs |
| KJ3002X1-BB5 | 8-channel analog output module with higher accuracy |
| KJ3002X1-BB6 | 8-channel analog output module with expanded temperature range |
| KJ3002X1-BB7 | 8-channel analog output module with advanced communication protocols |
Popular Modells from Emerson (Same Marke)
| Modell Number | Beschreibung |
|---|---|
| KJ3001X1-BB1 | 8-channel analog input module for DeltaV systems |
| KJ4001X1-BA2 | 16-channel digital input module for DeltaV systems |
| KJ4001X1-BA3 | 16-channel digital output module for DeltaV systems |
| KJ2003X1-BB1 | Power supply module for DeltaV systems |
| KJ4010X1-BA2 | 32-channel thermocouple input module for DeltaV systems |
| KJ4010X1-BA3 | 32-channel RTD input module for DeltaV systems |
