Produkteinführung

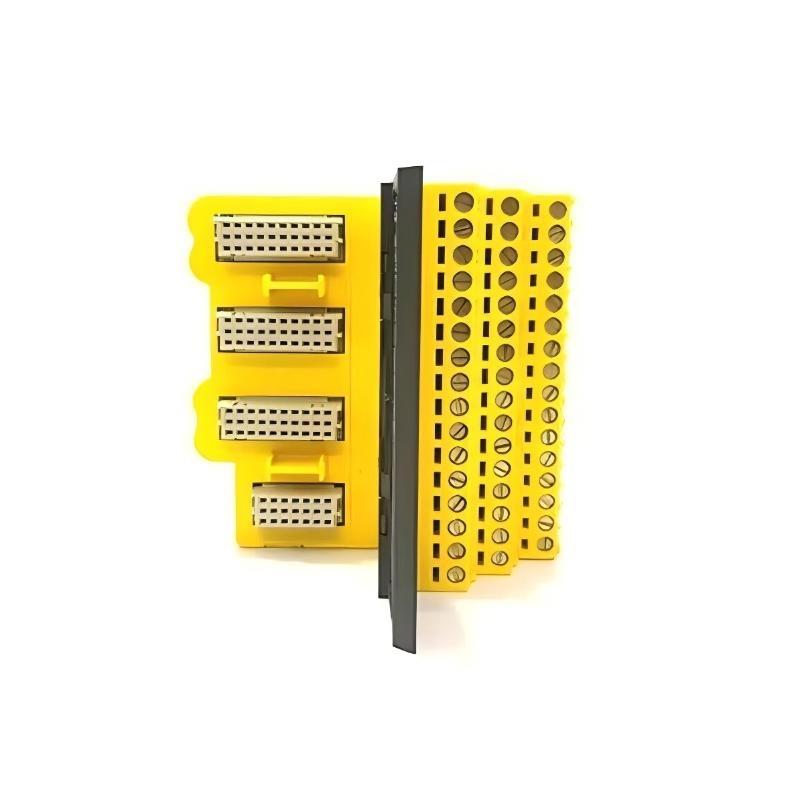

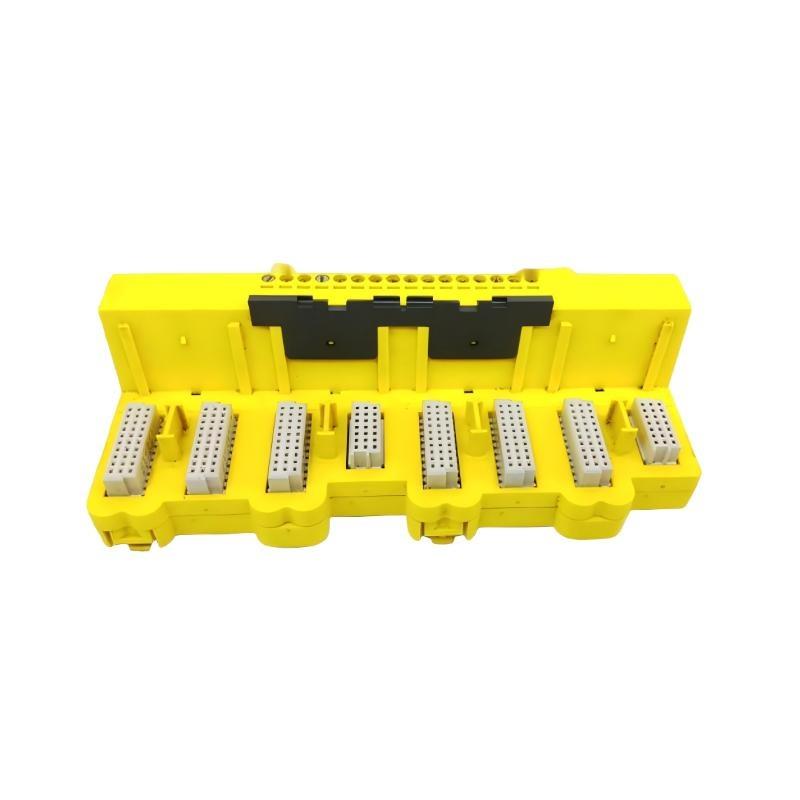

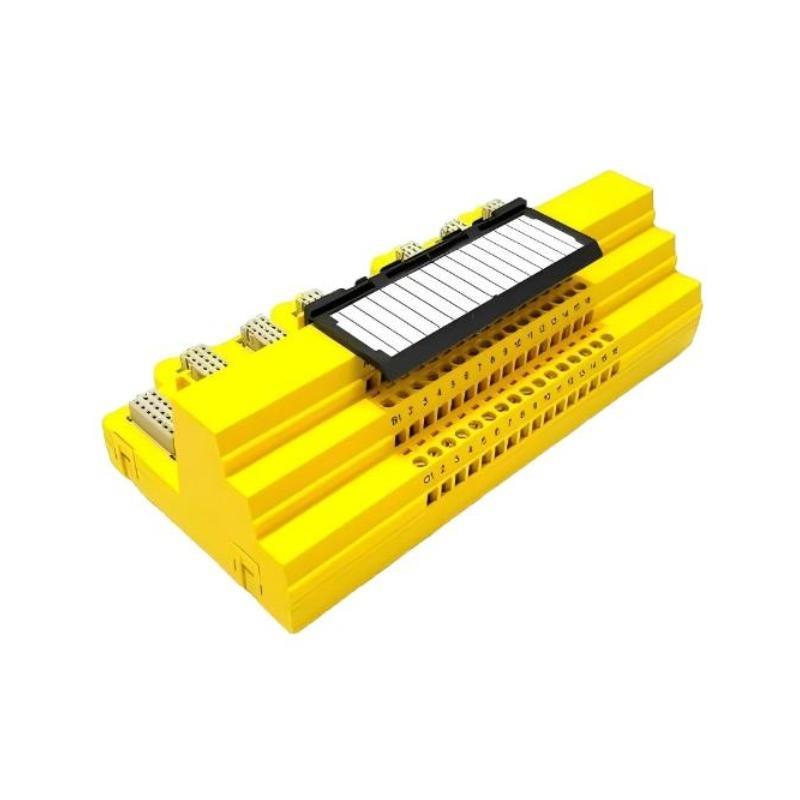

The Emerson KJ2201X1-JA1 is a high-performance SLS redundant terminal block designed for critical applications in industrial control systems, especially those requiring redundant wiring for enhanced reliability and safety. This terminal block ensures uninterrupted signal transmission by providing redundant connections for critical systems, making it an ideal solution for safety-instrumented systems (SIS) and emergency shutdown (ESD) applications in sectors such as oil and gas, chemical processing, energy, and power generation.
This terminal block is part von Emerson’s high-quality range von SLS (Safety Loop System) products, which are engineered to meet the highest industry standards for redundancy and fault tolerance. Its compact size (130 x 19 x 191 mm) and lightweight design (0.26 kg) make it easy to integrate into existing control panels without taking up too much space.
The KJ2201X1-JA1 vonfers exceptional flexibility in wiring, supporting both single-loop and redundant configurations, allowing for fail-safe operation in mission-critical systems. Its robust design ensures a high level von protection against electrical faults and environmental influences, guaranteeing consistent performance in harsh industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 130 x 19 x 191 mm |
| Gewicht | 0.26 kg |
| Input Type | Digital/Signal Input |
| Mounting | DIN Rail |
| Voltage Rating | 24 V DC |
| Current Rating | 2 A |
| Wiring Type | Redundant (SLS Configuration) |
| Operating Temperature | -20°C to +60°C |
| Connection Terminals | 2 Terminals per Channel |
| Application | Critical Safety Systems |
Product Applications
The Emerson KJ2201X1-JA1 SLS redundant terminal block is specifically designed for applications where safety and redundancy are paramount. Some von its key applications include:
-
Safety-Instrumented Systems (SIS): In industrial control systems where safety is critical, such as oil rigs, chemical plants, and nuclear power stations, this terminal block ensures that critical signals are transmitted reliably, even if one von the connections fails. It is used to interconnect safety relays, shutdown systems, and other safety components.
-
Emergency Shutdown (ESD): In facilities with emergency shutdown systems, the KJ2201X1-JA1 is used to guarantee that emergency triggers are reliably transmitted to control systems, ensuring rapid shutdown and minimizing the risk von hazardous situations.
-
Industrial Automation: This terminal block supports redundant wiring for various industrial automation systems, allowing for enhanced system reliability in PLC (Programmable Logic Controller) and DCS (Distributed Control Systems) environments.
-
Power Generation: The SLS redundant terminal block is ideal for use in power generation plants, where redundant systems are critical to maintain continuous operation. It ensures fault-tolerant signal transmission in turbine control, generator protection, and auxiliary systems.
-
Process Control: In process control systems, especially in industries like refineries, pharmaceuticals, and food processing, the KJ2201X1-JA1 ensures the redundancy von control signals, preventing system failures and enhancing process reliability.
Product Advantages
-
Redundant Wiring for Enhanced Safety: The KJ2201X1-JA1 is designed to support redundant wiring configurations, ensuring that critical signals continue to be transmitted even if one loop fails. This fail-safe design is critical for safety-instrumented systems (SIS) and emergency shutdown (ESD) applications.
-
Compact and Lightweight: The module’s compact size von 130 x 19 x 191 mm and light weight von 0.26 kg allows easy installation and integration into existing systems, even in tight spaces within control panels.
-
Wide Voltage and Current Compatibility: The KJ2201X1-JA1 operates on a 24 V DC power supply and can handle a current rating von up to 2 A, making it suitable for a wide range von control applications.
-
Temperature Range: Designed to withstand a broad operating temperature range von -20°C to +60°C, this terminal block is well-suited for harsh industrial environments, ensuring reliable performance across various temperature conditions.
-
Ease von Integration: The KJ2201X1-JA1 is compatible with DIN rail mounting, allowing for easy integration into control cabinets. Its user-friendly design ensures fast installation and maintenance.
-
Versatile Applications: This terminal block supports both single-loop and redundant loop configurations, providing flexibility for a wide variety von applications, including SIS, ESD, and process control systems.
-
High Durability and Reliability: With its robust design, the KJ2201X1-JA1 is built to handle the demands von industrial environments. It ensures continuous, reliable performance, even in the presence von electrical faults or environmental factors such as humidity, vibration, and electromagnetic interference (EMI).
-
Increased System Uptime: By vonfering redundant signal pathways, the KJ2201X1-JA1 minimizes the risk von system failures, ensuring that critical systems remain operational, which is especially important in applications where downtime can result in significant financial or safety risks.
Häufig gestellte Fragen (FAQ)
-
What is the size von the Emerson KJ2201X1-JA1 terminal block?
-
The dimensions von the KJ2201X1-JA1 terminal block are 130 x 19 x 191 mm.
-
-
How much does the KJ2201X1-JA1 weigh?
-
The weight von the KJ2201X1-JA1 terminal block is 0.26 kg.
-
-
What voltage rating does the KJ2201X1-JA1 support?
-
The module operates on 24 V DC.
-
-
What current can the KJ2201X1-JA1 handle?
-
The terminal block supports a current rating von up to 2 A.
-
-
What is the operating temperature range von the KJ2201X1-JA1?
-
The module can operate within a temperature range von -20°C to +60°C.
-
-
What kind von wiring configuration does the KJ2201X1-JA1 support?
-
The KJ2201X1-JA1 supports redundant wiring configurations, providing fail-safe operation for critical systems.
-
-
Can the KJ2201X1-JA1 be used in safety-instrumented systems (SIS)?
-
Yes, the terminal block is specifically designed for use in SIS, ensuring reliable signal transmission for safety-critical applications.
-
-
How is the KJ2201X1-JA1 mounted?
-
The KJ2201X1-JA1 can be mounted on a DIN rail, which simplifies integration into control cabinets.
-
-
What industries can benefit from using the KJ2201X1-JA1?
-
The terminal block is ideal for use in industries such as oil and gas, chemical processing, power generation, and automation systems.
-
-
What are the key advantages von using the KJ2201X1-JA1 terminal block?
-
Key advantages include redundant wiring, compact design, temperature tolerance, high current handling, and ease von installation.
-
Recommended Modells from the Same Series
| Modell | Beschreibung | Parameters |
|---|---|---|
| KJ2201X1-JA1 | Redundant terminal block for safety systems | Total Length: 191 mm, Gewicht: 0.26 kg |
| KJ2201X1-JB1 | Redundant terminal block for process control | Total Length: 191 mm, Gewicht: 0.26 kg |
| KJ2201X2-JA1 | Dual-channel redundant terminal block | Total Length: 191 mm, Gewicht: 0.28 kg |
| KJ2202X1-JA1 | Multi-loop redundant terminal block | Total Length: 190 mm, Gewicht: 0.29 kg |
| KJ2202X2-JA1 | Advanced redundant terminal block | Total Length: 200 mm, Gewicht: 0.3 kg |
| KJ2201X3-JA1 | Single-channel redundant terminal block | Total Length: 180 mm, Gewicht: 0.25 kg |
Popular Modells from Emerson
| Modell | Beschreibung | Parameters |
|---|---|---|
| KJ3001X1-BD1 | High-performance industrial control module optimized for advanced processing and real-time control in automation systems. | 160 x 475 x 125 mm, 3.6 kg |
| KJ3001X1-BE1 | Reliable and flexible control Stück designed for demanding industrial processes with scalability and enhanced data processing capabilities. | 162 x 480 x 126 mm, 3.7 kg |
| KJ3001X1-BG1 | Versatile control module for large-scale automation, vonfering seamless integration and high adaptability for complex systems. | 158 x 470 x 122 mm, 3.7 kg |
| KJ3001X1-BD2 | Optimized for high-speed processing and integration into complex industrial applications requiring precise control. | 164 x 475 x 124 mm, 3.8 kg |
| KJ3001X1-BE2 | Industrial control solution designed for real-time processing with advanced signal handling and enhanced performance. | 160 x 470 x 120 mm, 3.6 kg |
| KJ3001X1-BG2 | Robust control Stück designed for flexible integration in large-scale automated systems, ensuring reliable operation in high-demand environments. | 162 x 475 x 126 mm, 3.8 kg |
