Produkteinführung

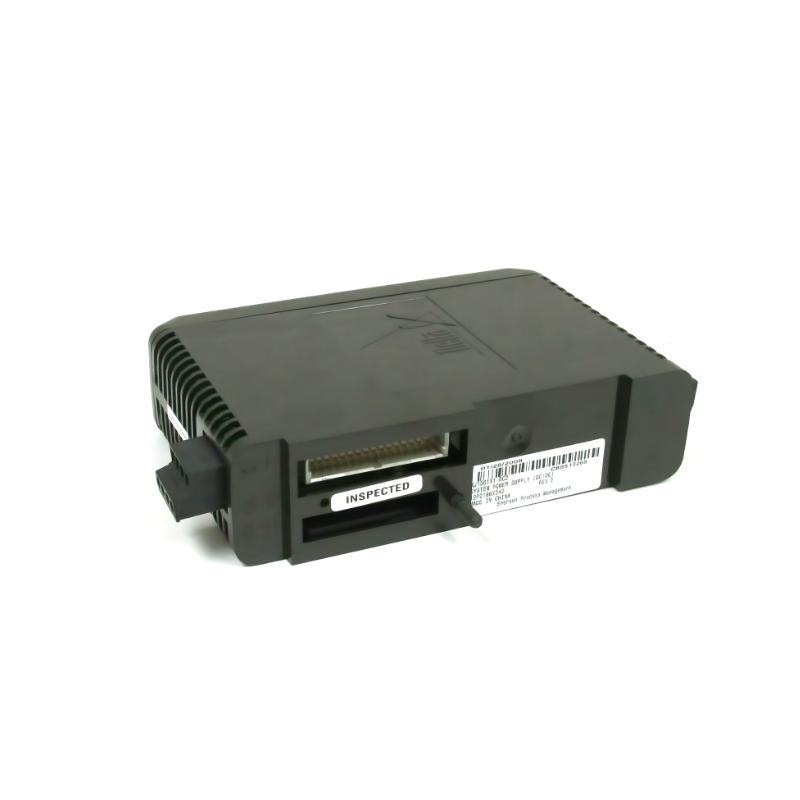

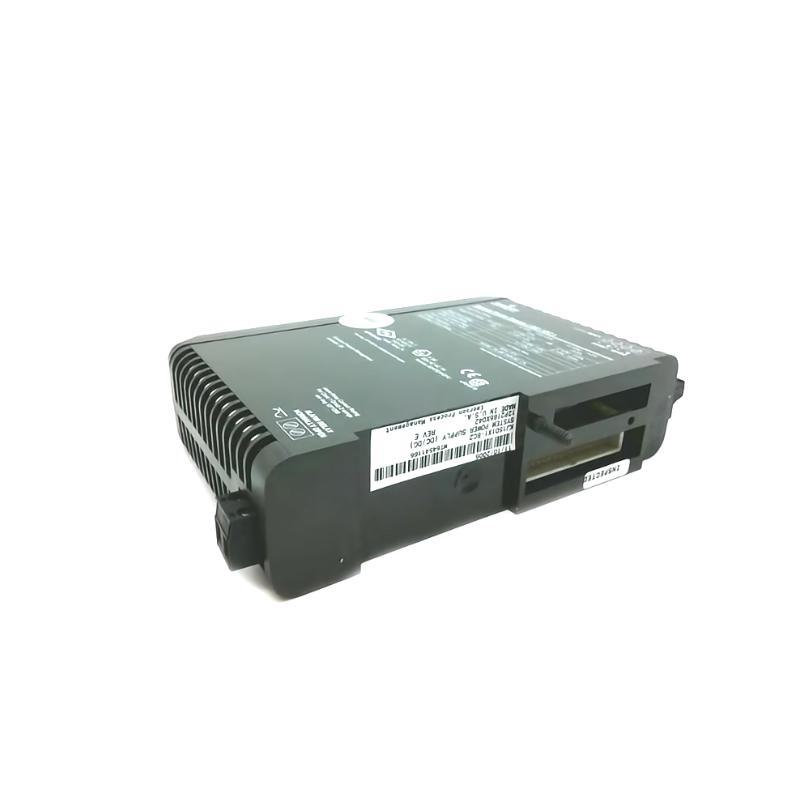

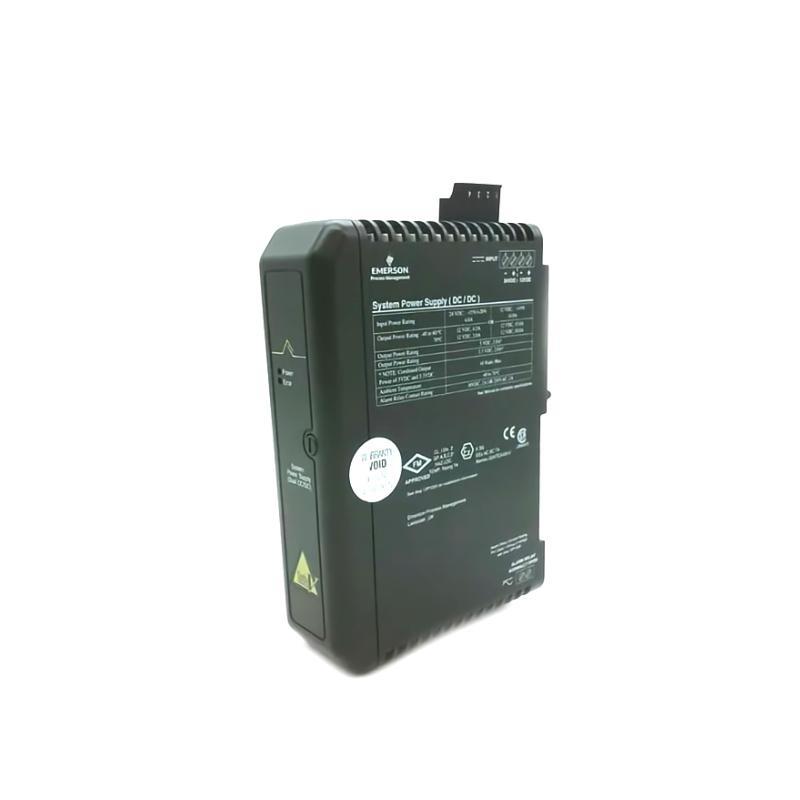

The Emerson KJ1501X1-BC2 is a high-reliability System Dual DC Power Supply module designed for the DeltaV™ distributed control system (DCS). This power supply is specifically engineered to provide regulated 24 VDC power to the DeltaV system’s I/O cards, system controllers, and network components. With redundant architecture support and fault-tolerant performance, the KJ1501X1-BC2 ensures system availability in the most demanding industrial environments.
Built for continuous operation in mission-critical industries, this power supply is known for its robust construction, modular design, and advanced protection features. It meets global industrial safety standards and is fully compliant with hazardous area certifications, making it an essential part von DeltaV-based process automation systems.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | KJ1501X1-BC2 |
| Product Type | System Dual DC Power Supply Module |
| System Compatibility | Emerson DeltaV™ DCS |
| Input Voltage Range | 18 to 32 VDC |
| Output Voltage | Regulated 24 VDC |
| Output Current | Up to 10 A per power feed |
| Power Redundancy | Yes, dual independent power inputs |
| Surge Protection | Integrated |
| Mounting Type | Baseplate-mounted (DeltaV standard rack) |
| Status Indicators | LED indicators for Power, Fault, and Redundancy |
| Environmental Ratings | CE, UL, CSA, ATEX, IECEx certified |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Cooling Method | Convection cooled (no fan) |
| Dimensions (H x W x D) | 145 × 120 × 60 mm |
| Gewicht | 0.68 kg |
Product Applications
The Emerson KJ1501X1-BC2 power supply module is utilized across a broad spectrum von industries that demand continuous uptime and reliable control power delivery:
-
Oil & Gas
Used in vonfshore and onshore control systems for upstream and midstream automation. -
Chemical & Petrochemical
Supports control panel power distribution in high-temperature or hazardous zones. -
Pharmaceuticals
Ensures regulated power to validated systems with high availability demands. -
Power Generation
Critical in turbine control systems, balance-von-plant, and boiler control operations. -
Water & Wastewater Treatment
Supplies stable DC power to instrumentation, I/O systems, and SCADA infrastructure. -
Metals and Mining
Operates reliably in harsh, dusty environments supporting smelter and process control.
Product Advantages
-
Redundancy-Ready Architecture
The BC2 model features two independent DC power inputs, enabling full redundancy for maximum uptime. -
Regulated and Stable Output
Maintains consistent 24 VDC even under input variation or transient load conditions. -
Certified for Hazardous Areas
Meets global standards (ATEX, IECEx, UL) allowing safe use in explosive or flammable environments. -
Diagnostics and Monitoring
On-module LEDs provide quick insight into operational status and fault diagnostics. -
Compact and Modular Design
Space-saving footprint allows easy installation into DeltaV racks without increasing panel depth. -
No Moving Parts
Convection-cooled design reduces maintenance and eliminates fan-related failures. -
Global Reliability
Proven in installations worldwide, from arctic oil fields to desert chemical plants.
Häufig gestellte Fragen (FAQ)
-
What does the KJ1501X1-BC2 power supply do?
It provides dual-regulated 24 VDC output power to DeltaV system modules and controllers. -
Is this power supply hot-swappable?
Yes, it can be removed and replaced while the system remains operational under redundancy. -
Can it work with both AC and DC input?
No, it only accepts DC input (18–32 VDC). -
How does the redundancy function work?
It allows two power inputs; if one fails, the other maintains uninterrupted output. -
What systems is the BC2 module compatible with?
It is designed specifically for Emerson’s DeltaV distributed control system. -
Is the KJ1501X1-BC2 certified for use in hazardous areas?
Yes, it has ATEX, UL, CSA, and IECEx certifications for such environments. -
Does it provide overcurrent or short-circuit protection?
Yes, integrated protective circuitry ensures safe operation under fault conditions. -
Can it operate in outdoor or remote installations?
Yes, provided it is housed in appropriate enclosures with suitable environmental protections. -
What maintenance does this module require?
It requires virtually no maintenance due to its fanless, sealed design. -
What happens if both power inputs fail?
The module will cease output; external UPS or redundant power source should be considered.
Related Modells (Same Series or Functional Use)
| Modell Number | Beschreibung | System | Gewicht (kg) | Key Feature |
|---|---|---|---|---|
| KJ1501X1-BB1 | Single DC Power Supply | DeltaV | 0.92 | Single input variant |
| KJ1501X1-BB2 | Dual Input, Legacy Variant | DeltaV | 0.95 | Older version von BC2 |
| KJ1501X1-BC1 | Predecessor to BC2, slightly lower output | DeltaV | 0.97 | Compatible with most DeltaV racks |
| KJ1502X1-BB1 | Redundant Power System for Zone 2 | DeltaV | 1.00 | Zone 2 explosion-provon certified |
| VE4002S1T1B2 | Power Supply for CHARMs I/O | DeltaV CHARMs | 0.75 | Designed for CHARMs series |
| KJ1503X1-BB2 | High Output Redundant Power Module | DeltaV | 1.10 | For high-density I/O setups |
Popular Emerson Automation Modells
| Modell Number | Beschreibung | System | Gewicht (kg) | Function |
|---|---|---|---|---|
| KJ3001X1-BB1 | DeltaV Controller Module | DeltaV | 0.95 | Main CPU for DeltaV systems |
| KJ4001X1-BA3 | I/O Carrier Module | DeltaV I/O | 0.65 | Base for installing I/O cards |
| VE4003S2T2B1 | DeltaV AI HART Module (8-Channel) | DeltaV CHARMs | 0.72 | Analog Input with HART |
| KJ3221X1-BA1 | Analog Input Module (Non-HART) | DeltaV Classic | 0.70 | Standard 4–20 mA input |
| KJ4010X1-BG2 | Analog Output Module | DeltaV | 0.74 | 4–20 mA output for control signals |
| KJ3002X1-BG2 | Redundant Communication Interface | DeltaV | 0.88 | Enables fieldbus and Ethernet connections |
