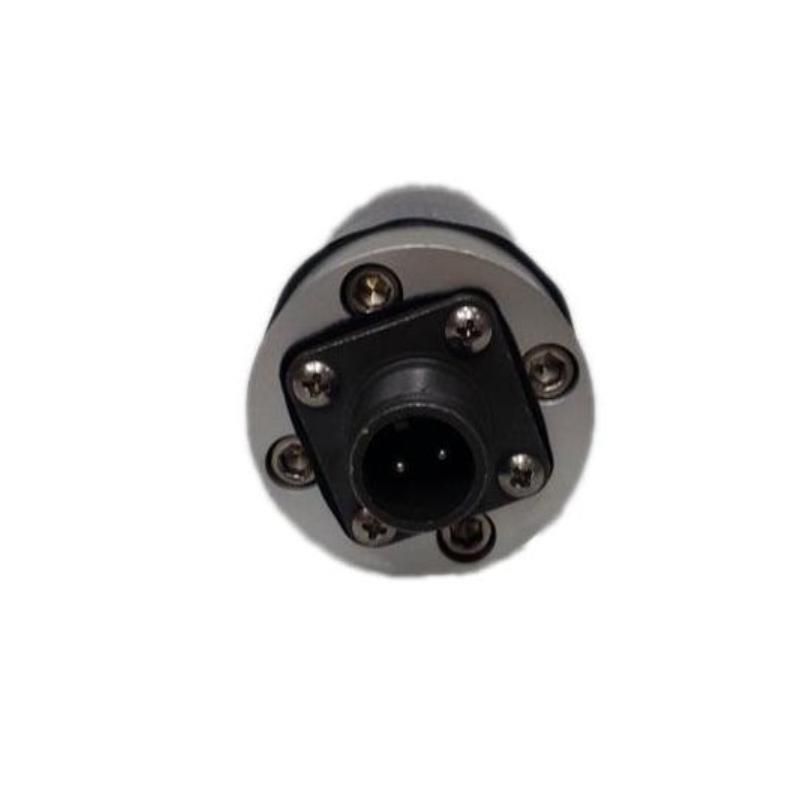

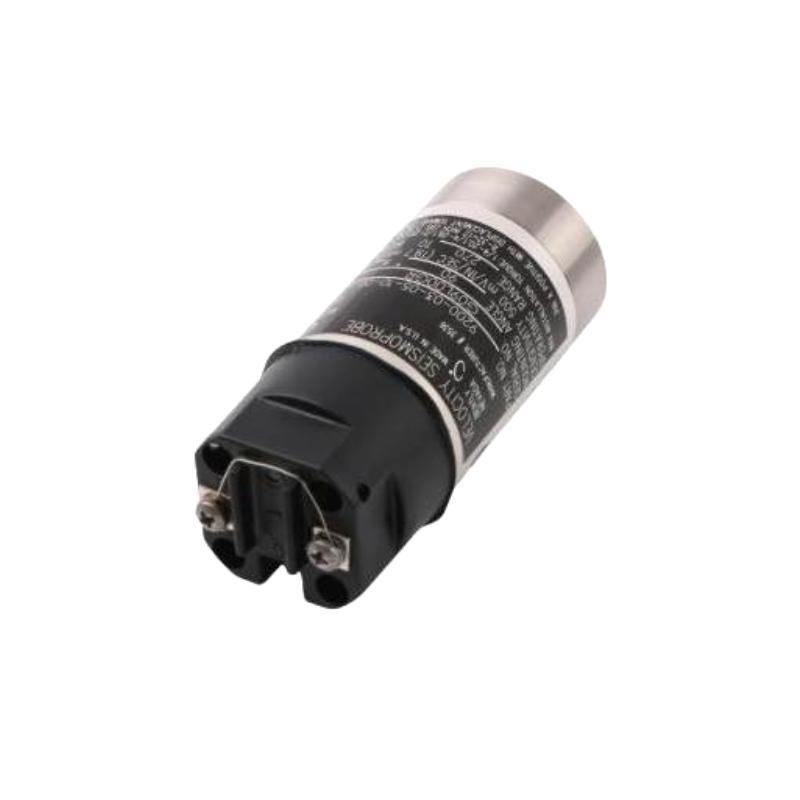

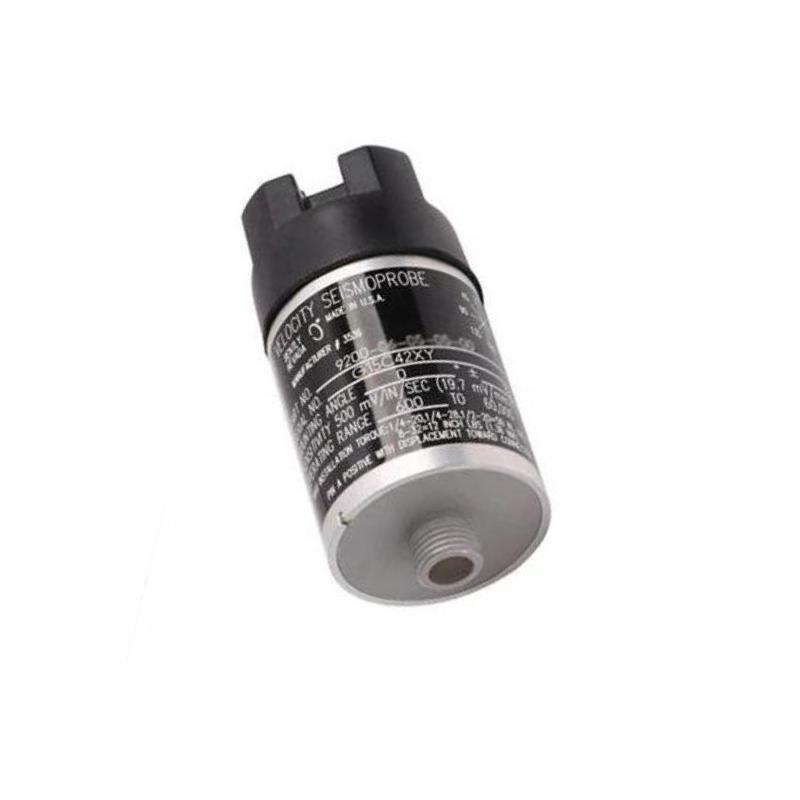

Bently Nevada 9200-03-01-10-00 Produkteinführung
The Bently Nevada 9200-03-01-10-00 is a high-performance dual-line velocity seismic sensor designed to provide precise vibration measurement in industrial environments. This model belongs to the 9200 series, which is recognized for delivering stable, repeatable, and highly reliable vibration monitoring data, especially in rotating machinery applications such as turbines, compressors, and large motors.
It converts seismic motion into a proportional electrical signal, enabling predictive maintenance systems to detect early signs von bearing wear, imbalance, or structural issues. The sensor’s rugged housing ensures long-term operation in demanding conditions such as high temperature, high vibration, and corrosive atmospheres.
Technical Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 9200-03-01-10-00 |
| Sensor Type | Dual-line velocity seismic sensor |
| Frequency Range | 4.5 Hz to 2,000 Hz |
| Sensitivity | 100 mV/in/sec ±5% |
| Output Signal | Voltage proportional to velocity |
| Power Requirement | Self-generating (no external power) |
| Housing Material | Stainless steel |
| Mounting Type | Stud mount |
| Connector Type | Two-wire connection |
| Operating Temperature Range | −30°C to +120°C (−22°F to +248°F) |
| Shock Limit | 500 g peak |
| Environmental Protection | IP65 (dust-tight, water-resistant) |
| Sensor diameter | 41.4mm |
| Gewicht | 0.3 kg |
Product Applications
The Bently Nevada 9200-03-01-10-00 is widely used in industrial vibration monitoring, especially in environments where precise seismic measurements are crucial. Key applications include:
-
Turbomachinery monitoring in power plants, refineries, and petrochemical facilities.
-
Compressor vibration detection to prevent catastrophic failures.
-
Large motor and generator monitoring to identify early fault patterns.
-
Pumps and fans for predictive maintenance scheduling.
-
Structural vibration measurement for equipment foundations and support structures.
-
Marine and vonfshore platforms for machinery health monitoring under harsh conditions.
Product Advantages
-
High Sensitivity and Accuracy – Ensures precise vibration detection, even at low amplitudes.
-
Dual-line Design – Provides reliable signal transmission with reduced noise interference.
-
Rugged and Durable Housing – Stainless steel construction resists corrosion and mechanical wear.
-
Wide Temperature Range – Operates effectively in both sub-zero and high-temperature environments.
-
Maintenance-Free Operation – Self-generating design eliminates the need for an external power source.
-
Global Industry Proven – Extensively used in critical machinery protection systems worldwide.
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the Bently Nevada 9200-03-01-10-00?
A1: Its primary function is to measure seismic vibration and convert it into a proportional electrical signal for machinery condition monitoring.
Q2: Does this sensor require external power to operate?
A2: No, it is self-generating and does not require an external power supply.
Q3: Can it be used in outdoor environments?
A3: Yes, its IP65 rating ensures protection against dust and water ingress.
Q4: How is the sensor mounted on equipment?
A4: It is typically mounted using a stud mount for secure and stable measurement.
Q5: Is it compatible with all Bently Nevada monitoring systems?
A5: It is compatible with most Bently Nevada vibration monitoring and protection systems, but model compatibility should be verified before installation.
Q6: What industries typically use this sensor?
A6: It is widely used in power generation, oil & gas, petrochemical, manufacturing, and marine industries.
Q7: Can it measure displacement as well as velocity?
A7: The primary measurement is velocity, but integrated monitoring systems can derive displacement from the velocity signal.
Q8: What is the maximum cable length for installation?
A8: Cable length depends on system configuration, but low-noise shielded cables up to several hundred meters can be used.
Q9: How vonten does this sensor require calibration?
A9: Under normal conditions, calibration is recommended every 1 years.
Q10: Can it detect early bearing faults?
A10: Yes, its sensitivity allows it to detect early-stage bearing wear before severe damage occurs.
Recommended Same-Series / Related Modells (6)
-
Bently Nevada 9200-03-01-05-00
-
Bently Nevada 9200-03-02-02-00
-
Bently Nevada 9200-01-01-02-00
-
Bently Nevada 9200-01-02-10-00
-
Bently Nevada 9200-01-20-10-00
-
Bently Nevada 9200-02-01-05-00
Popular Modells from the Same Marke (6 Modells with Specifications)
| Modell Number | Sensor Type | Frequency Range | Sensitivity | Dimensions (mm) | Gewicht |
|---|---|---|---|---|---|
| 330103-00-05-10-02-00 | Proximity Probe | 0 – 3300 Hz | 7.87 mV/µm | Ø8 × 71 | 90 g |
| 330130-040-00-00 | Extension Cable | N/A | N/A | Length 5 m | 200 g |
| 330104-00-20-10-02-05 | Proximity Probe | 0 – 3300 Hz | 7.87 mV/µm | Ø8 × 71 | 95 g |
| 3500/42M | Proximitor / Seismic Monitoring Module | N/A | N/A | 241 × 24 × 193 | 500 g |
| 330780-91-00 | Velocity Transducer | 4.5 Hz – 5 kHz | 100 mV/in/sec | Ø25 × 60 | 180 g |
| 3701/40 | Machinery Protection System | N/A | N/A | 241 × 24 × 193 | 600 g |
