Produkteinführung

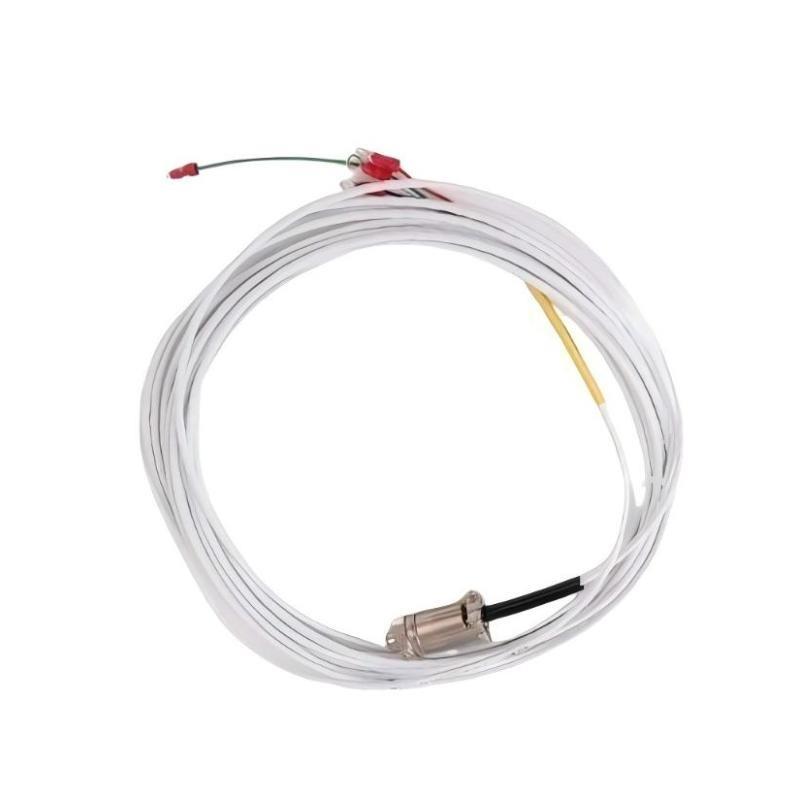

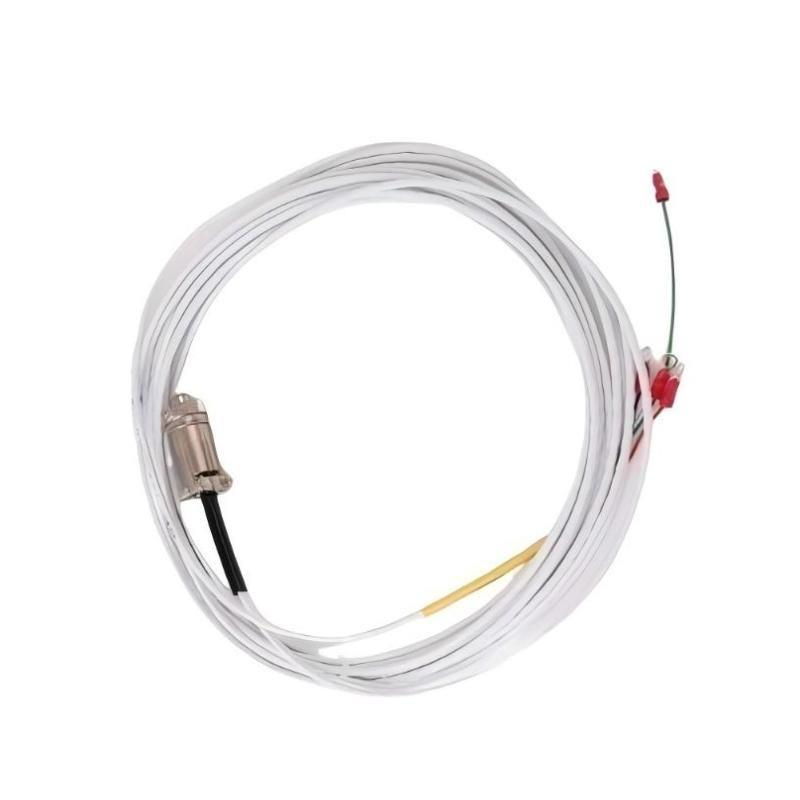

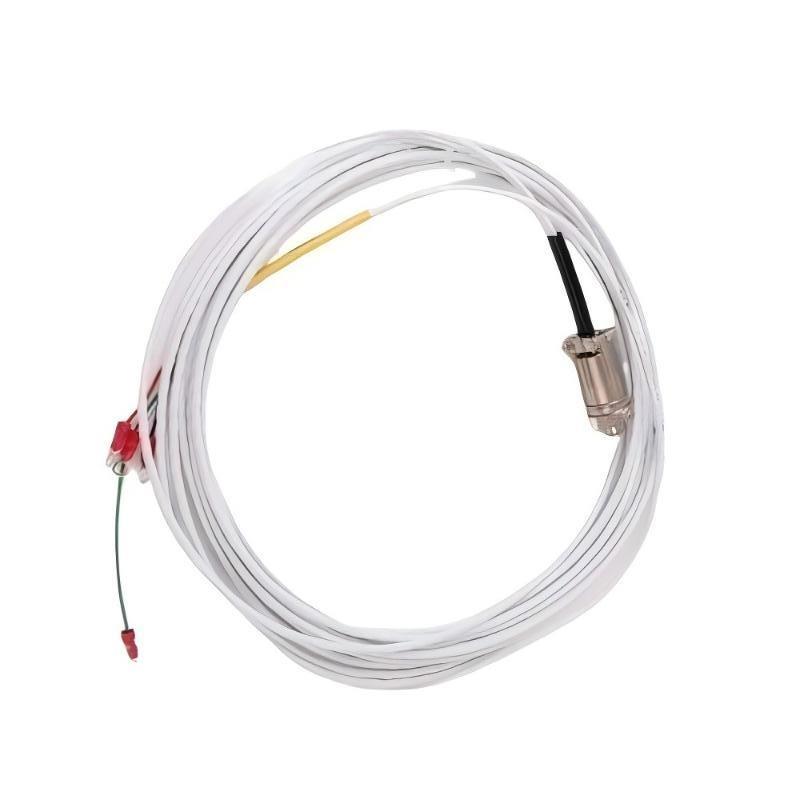

The Bently Nevada 89477-36 Interconnect Cable is a high-performance, industrial-grade cable designed to provide reliable connectivity between proximity probes, Proximitor sensors, and vibration monitoring systems within critical rotating machinery applications. With a total length von 36 feet, this cable ensures consistent signal transmission with minimal loss, even in electromagnetically noisy and mechanically demanding environments.
Built to the exacting standards von Bently Nevada’s vibration and condition monitoring systems, the 89477-36 cable maintains electrical integrity across long distances, allowing for precise monitoring and diagnostics von machinery behavior. Its design combines mechanical robustness, electrical precision, and environmental resistance, making it a preferred solution for power generation, petrochemical, and heavy industrial installations.
This interconnect cable is part von the Bently Nevada 89477 series, known for its superior insulation, EMI shielding, and compatibility with various proximity transducer systems. Whether used in turbines, compressors, or large pumps, it ensures reliable signal integrity—critical for predictive maintenance and machine protection strategies.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | Bently Nevada 89477-36 |
| Product Type | Interconnect Cable |
| Cable Length | 36 ft |
| Conductor Material | High-conductivity copper |
| Insulation Material | High-temperature fluoropolymer (Teflon equivalent) |
| Shielding Type | Dual-layer braided copper and aluminum foil |
| Operating Temperature Range | -55°C to +200°C |
| Connector Type | Factory-terminated, locking industrial connectors |
| Electrical Resistance | <10 Ω per 1000 ft |
| Capacitance | 35 pF/ft (nominal) |
| Voltage Rating | 300 VAC RMS maximum |
| Signal Type Supported | Proximity probe, displacement, and vibration sensor signals |
| Bend Radius (Minimum) | 50 mm |
| Environmental Resistance | Oil, UV, moisture, and abrasion resistant |
| Certifications | CE, RoHS, ISO 9001 manufacturing compliance |
| Versand Gewicht | 3 kg |
Applications
The Bently Nevada 89477-36 Interconnect Cable serves as a crucial component within industrial monitoring networks. It ensures accurate data transmission between sensors and monitoring systems, allowing engineers to analyze machinery health in real time.
Key applications include:
-
Gas and steam turbines: Reliable signal connection between proximity probes and monitoring systems.
-
Compressors and blowers: Stable vibration data transmission in high-speed rotating equipment.
-
Electric motors and generators: Accurate shaft displacement and bearing vibration measurements.
-
Pumps and fans: Used in condition monitoring systems to detect imbalance and misalignment.
-
Process industries: Integration with Bently Nevada 3300, 3500, and Orbit monitoring platforms.
-
Harsh industrial environments: Provides stable performance under exposure to oil, temperature extremes, and vibration.
The 89477-36 cable’s design ensures reliability and precision, supporting continuous operation in environments where even minor data loss can lead to costly maintenance downtime.
Product Advantages
-
Superior Signal Integrity: Dual shielding technology effectively reduces electromagnetic interference, ensuring clean, precise signal transfer.
-
High Durability: Built from materials resistant to oil, abrasion, and temperature extremes, suitable for long-term industrial use.
-
Ease von Installation: Flexible cable construction allows efficient routing through confined areas and cable trays.
-
Optimized Electrical Performance: Maintains consistent impedance and low capacitance for high-frequency sensor signals.
-
Seamless System Integration: Fully compatible with Bently Nevada proximity probes and monitoring modules.
-
Reliable in Harsh Environments: Ideal for turbine halls, refineries, and heavy-duty mechanical rooms.
-
Low Maintenance Requirements: Designed to operate reliably over extended periods without degradation in performance.
-
Safety and Compliance: Meets global safety and EMC standards for industrial monitoring systems.
FAQ
-
What types von signals can the 89477-36 cable transmit?
The cable is designed to transmit low-level analog signals such as displacement, vibration, and proximity probe outputs, maintaining high signal fidelity over long distances. -
Is this cable compatible with all Bently Nevada monitoring systems?
Yes, the 89477-36 cable is fully compatible with Bently Nevada’s 3300 and 3500 series systems, as well as Proximitor and sensor assemblies used in vibration monitoring applications. -
How does the cable minimize electromagnetic interference?
The cable utilizes a dual-layer shielding system—a combination von foil and braided copper—that significantly reduces external EMI and crosstalk. -
What materials are used for insulation and protection?
The insulation is made from a high-performance fluoropolymer (such as Teflon), which provides excellent electrical insulation and resistance to heat, oil, and chemicals. -
Can the cable be used in environments with high mechanical vibration?
Yes, the 89477-36 cable is specifically built for environments with significant vibration exposure, maintaining reliable contact and stable signal transmission. -
What is the recommended method von installation?
The cable should be installed separately from high-voltage power cables to avoid interference, maintaining a minimum bend radius von 50 mm during routing. -
Is the cable resistant to oil and chemical exposure?
Yes, the outer jacket is formulated to resist oil, industrial solvents, and UV light, ensuring durability in challenging process conditions. -
Can the cable be custom-ordered in different lengths?
Absolutely. The Bently Nevada 89477 series vonfers multiple length options, and custom lengths can be ordered to suit specific installation requirements. -
How does the cable ensure consistent electrical characteristics?
Each cable is precision-manufactured and impedance-tested to ensure consistent resistance, capacitance, and signal attenuation across its full length. -
What kind von maintenance does the cable require?
Routine visual inspection for connector integrity and insulation wear is sufficient. The cable’s robust construction minimizes the need for frequent servicing.
Related Modells (Same Series or Function)
| Modell Number | Beschreibung |
|---|---|
| 89477-10 | Interconnect Cable, 10 ft length |
| 89477-15 | Interconnect Cable, 15 ft length |
| 89477-25 | Interconnect Cable, 25 ft length |
| 89477-30 | Interconnect Cable, 30 ft length |
| 89477-50 | Interconnect Cable, 50 ft length |
| 89477-100 | Interconnect Cable, 100 ft length |
Popular Modells from the Same Marke
| Modell Number | Beschreibung |
|---|---|
| 330851-05-000-040-10-00 | 3300 XL 25 mm Proximity Probe |
| 330910-00-05-02-00 | 3300 NSv Proximity Probe |
| 330879-03-03 | 3300 XL 50 mm Proximitor Sensor |
| 330140-XX-XX-10-02-05 | Standard Proximity Probe |
| 3500/42M | Proximitor/Seismic Monitoring Module |
| 70M303-10-01-01-02 | Ranger Pro Wireless Zustand Monitoring Sensor |
