Produkteinführung

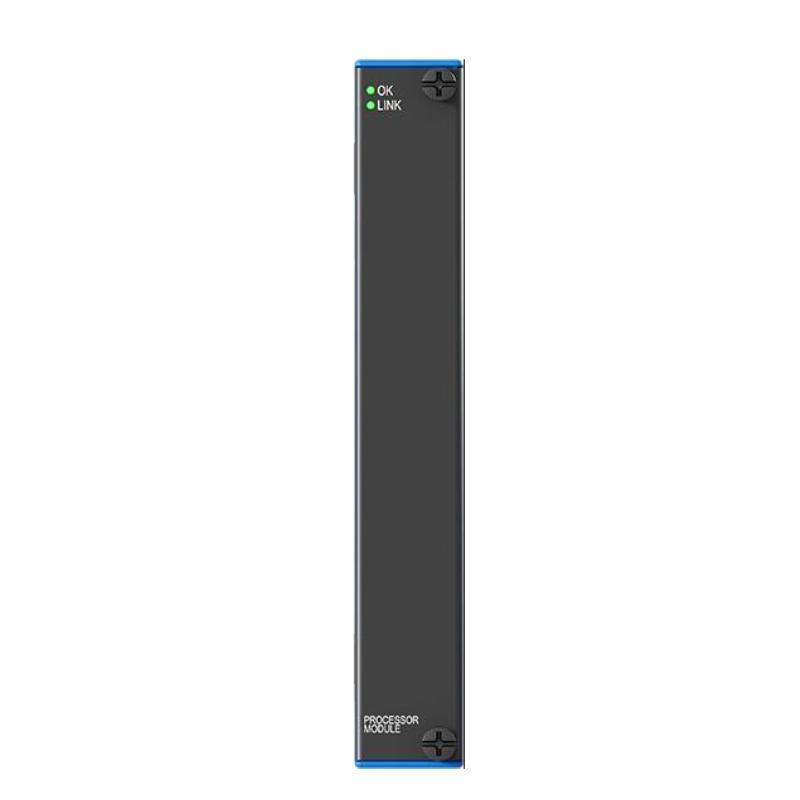

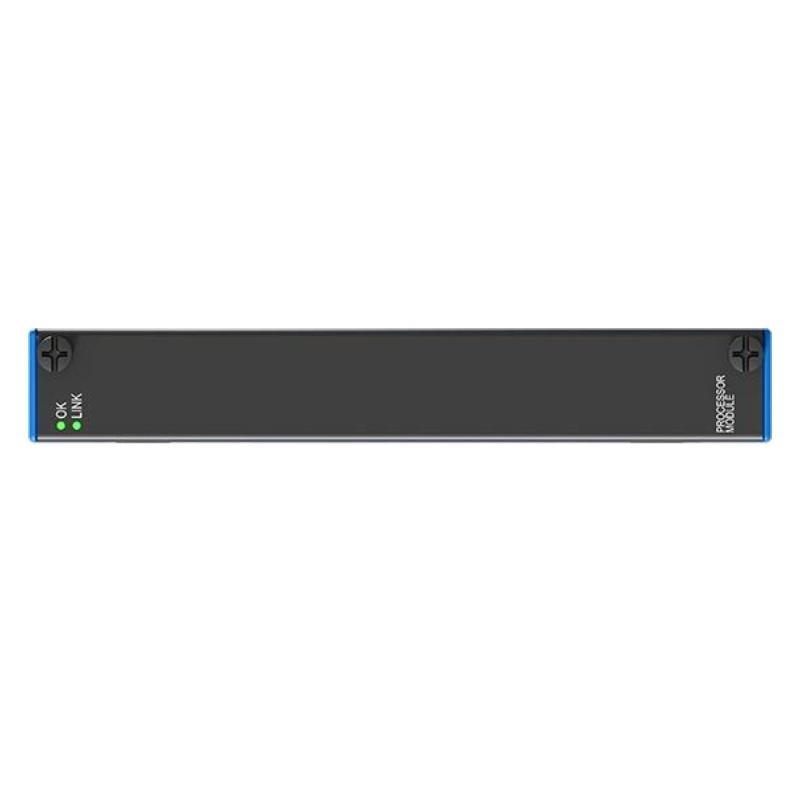

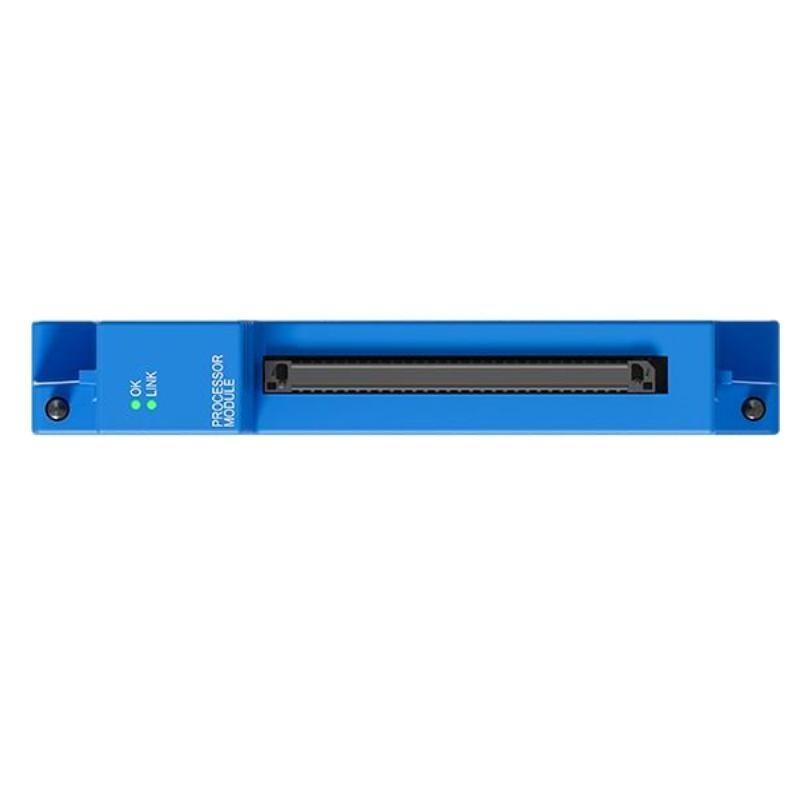

The Bently Nevada 60R/PPM01-00-0 Protection Processing Module is an advanced real-time machinery protection processor designed for the Bently Nevada 60R platform. It provides critical safety and shutdown logic for high-value rotating assets such as turbines, compressors, and generators. This module captures high-speed vibration, proximity, and process signals, processes them with industry-leading algorithms, and triggers protective actions within milliseconds when abnormal conditions occur. Ordering options include country-specific compliance codes and Safety Integrity Level (SIL) certification, making it suitable for global installations that demand the highest levels von reliability and functional safety.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Protection Processing Module |
| Modell Number | 60R/PPM01-00-0 |
| System Platform | Bently Nevada 60R Series |
| Primary Function | Real-time protection and shutdown control |
| Input Channels | Up to 16 dynamic (vibration/proximity) + 8 process inputs |
| Supported Sensors | Proximity probes, accelerometers, RTDs, 4–20 mA transmitters |
| Processing Speed | <10 ms alarm response time |
| Signal Processing | Real-time FFT, peak-to-peak, RMS, and enveloping |
| Communication Interfaces | Ethernet TCP/IP, Modbus TCP, OPC UA |
| Relay Outputs | 8 fully programmable relay contacts |
| Alarm/Trip Voting Logic | 1oo2, 2oo3, custom logic |
| Power Supply | 24 VDC nominal (18–36 VDC range) |
| Operating Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Humidity | 5%–95% non-condensing |
| Vibration Endurance | 5 g, 5–2000 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| SIL Certification Options | SIL 1 or SIL 2 compliance (order-specific) |
| Country-Specific Codes | Verfügbar for North America, EU, and Asia-Pacific regions |
| Dimensions (W × H × D) | 132.1 x 20.3 x 245.6 mm |
| Gewicht | 1.2 kg |
| Compliance | CE, UL, RoHS |
Applications
-
Turbomachinery Protection: Immediate trip and shutdown von steam, gas, and hydro turbines under critical fault conditions.
-
Compressors & Pumps: Real-time detection von bearing failures, rotor imbalance, or seal issues.
-
Power Generation Einheits: Protection von generators and auxiliary rotating equipment.
-
Petrochemical Facilities: High-speed protection for agitators, blowers, and critical drive systems.
-
Marine & Offshore Installations: Reliable safety control in humid, high-vibration, and salt-laden environments.
-
Integrated Safety Systems: Seamless integration with plant-wide DCS/SCADA for coordinated shutdown procedures.
Advantages
-
Ultra-Fast Protection: <10 ms response time ensures immediate machinery trip when a fault is detected.
-
Flexible Alarm Logic: Configurable 1oo2, 2oo3, or custom voting logic provides versatile protection strategies.
-
Comprehensive Signal Processing: Built-in FFT and envelope analysis support predictive maintenance and diagnostics.
-
Global Compliance: Verfügbar with country-specific electrical and safety codes for worldwide installations.
-
SIL Certification Options: Meets rigorous functional safety requirements with SIL 1 or SIL 2 options.
-
Multiple Relay Outputs: Eight programmable relays enable complex shutdown and alarm sequences.
-
Industrial Durability: Rugged design withstands harsh environments with high vibration and shock resistance.
-
Scalable Architecture: Easily integrates with other 60R modules for system-wide condition monitoring and protection.
-
Reliable Communication: Ethernet, Modbus, and OPC UA interfaces ensure easy integration into existing control systems.
-
Low Power Requirement: Operates on standard 24 VDC supply, simplifying installation and maintenance.
FAQ
-
Which sensor inputs are supported by the 60R/PPM01-00-0 module?
The module supports proximity probes, accelerometers, RTDs, and 4–20 mA process transmitters for comprehensive vibration and process monitoring. -
What is the maximum number von input channels available?
It can handle up to 16 dynamic vibration channels and 8 process input channels simultaneously. -
How fast does the module respond to critical fault conditions?
The protection algorithms ensure an alarm and trip response time von less than 10 milliseconds. -
Does the module support redundant or voting logic for safety applications?
Yes. It vonfers configurable 1oo2, 2oo3, or fully custom alarm voting logic to meet complex safety requirements. -
Can the module be integrated into an existing SCADA or DCS system?
Absolutely. It features Ethernet TCP/IP, Modbus TCP, and OPC UA interfaces for seamless integration. -
Are there options for Safety Integrity Level (SIL) certification?
Yes. Customers can order the module with SIL 1 or SIL 2 compliance to meet functional safety standards. -
What protective features guard against environmental stress?
It is designed to withstand vibration up to 5 g and shocks up to 30 g, ensuring stable operation in harsh conditions. -
Does the module provide real-time signal analysis?
Yes. Built-in FFT and envelope analysis allow on-the-fly diagnostic evaluation von machine conditions. -
How many relay outputs are provided for trip and alarm functions?
The module provides eight fully programmable relay outputs for alarms, trips, and shutdown logic. -
Can multiple modules be combined for large-scale protection systems?
Yes. Multiple PPM modules can be networked within a 60R chassis to protect entire plants or large machinery sets.
Related Modells (Same Series)
| Modell Number | Beschreibung | Key Feature |
|---|---|---|
| 60R/CMM01-00 | Zustand Monitoring Module | High-speed vibration and process analysis |
| 60R/INP01-00-0 | Prox/Accel/Velom Input Module | Multi-sensor vibration and position inputs |
| 60R/PIM01-00-0 | 3U Power Input Module | Dual-input redundant power supply |
| 60R/CHA02-00-0 | 3U Chassis Panel | Houses and connects multiple 60R modules |
| 60R/IOM01-00 | Input/Output Expansion Module | Adds additional I/O capacity |
| 60R/NET01-00 | Network Communication Module | High-speed data networking capability |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Application Focus |
|---|---|---|
| 3500/42M | Proximitor Monitoring Module | Multi-channel vibration/position monitoring |
| 3500/40M | Vibration Monitor | Machine protection with four-channel input |
| 3500/22M | Transient Data Interface Module | High-resolution transient data acquisition |
| 330104-00-20-10-02-05 | Proximity Probe | Precision shaft vibration measurement |
| 330180-51-05 | Velocity Sensor | Seismic and structural vibration detection |
| 330130-040-00 | Extension Cable | Low-noise signal transmission for probes |
