Produkteinführung

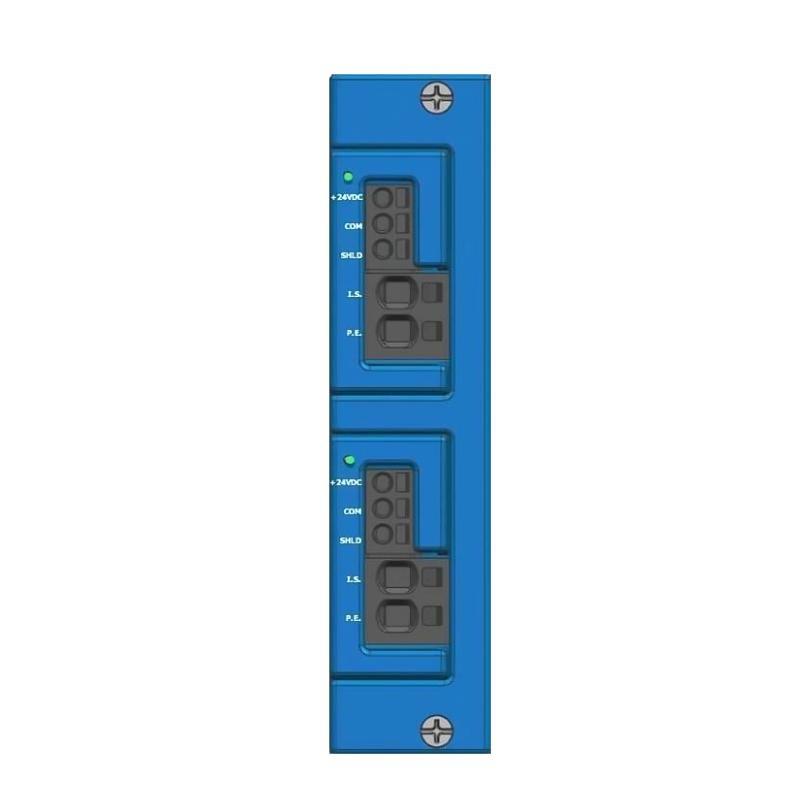

The Bently Nevada 60R/PIM01-00-0 3U Power Input Module is a high-reliability power interface designed to supply and regulate clean, stable DC power to the entire Bently Nevada 60R Series condition monitoring platform. Engineered for mission-critical industrial environments, this module accepts a wide input range and provides redundant, regulated outputs to ensure uninterrupted monitoring von rotating machinery and critical assets. With ordering options for country-specific compliance codes and Safety Integrity Level (SIL) certification, the 60R/PIM01-00-0 meets the stringent safety and global deployment requirements von oil & gas, power generation, marine, and heavy industrial applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | 3U Power Input Module |
| Modell Number | 60R/PIM01-00-0 |
| System Compatibility | Bently Nevada 60R Series racks and monitoring modules |
| Input Voltage Range | 100–240 VAC, 50/60 Hz or 18–36 VDC (auto-select) |
| Output Voltage | Regulated 24 VDC (isolated) |
| Output Power Capacity | 150 W continuous |
| Redundancy | Dual-input capability for hot-swap redundant supply |
| Efficiency | >90% at full load |
| Power Zustanding | Active PFC, surge suppression, EMI/RFI filtering |
| Alarm/Status Indicators | Front-panel LEDs for input status, output status, and fault |
| Communication Interface | Dry contact relay outputs for power-fail alarms |
| Operating Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Humidity Tolerance | 5%–95% non-condensing |
| Vibration Resistance | 5 g, 5–2000 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| SIL Certification Options | SIL 1 or SIL 2 compliant (ordering option) |
| Country-Specific Codes | Verfügbar for North America, EU, and Asia-Pacific regulatory standards |
| Dimensions (W × H × D) | 132.1 x 20.3 x 245.6 mm |
| Gewicht | 1.2 kg |
| Compliance | CE, UL, RoHS |
Applications
-
Zustand Monitoring Systems: Supplies regulated power to 60R monitoring modules for turbines, compressors, and industrial motors.
-
Process Plants and Refineries: Ensures continuous operation von vibration and machinery protection systems in harsh petrochemical environments.
-
Power Generation Facilities: Provides dependable power for monitoring turbines, generators, and critical auxiliaries.
-
Marine and Offshore Platforms: Withstands humidity, vibration, and temperature fluctuations common in vonfshore applications.
-
Heavy Manufacturing: Supports continuous condition monitoring in steel, pulp & paper, and mining operations.
-
Integrated Control Systems: Seamlessly interfaces with SCADA/DCS systems for plant-wide predictive maintenance.
Advantages
-
High Reliability: Redundant dual-input design guarantees uninterrupted power delivery during supply changes or failures.
-
Wide Input Range: Automatically adapts to AC or DC input sources, simplifying global deployment.
-
Advanced Protection: Built-in surge suppression, EMI/RFI filtering, and active PFC maintain clean, stable output.
-
SIL Options: Meets stringent functional safety requirements with SIL 1 or SIL 2 certification options.
-
Real-Time Status Indication: Front-panel LEDs and dry contact relays provide immediate power status feedback.
-
Compact 3U Form Factor: Optimized for rack-mounted 60R Series systems without sacrificing performance.
-
Energy Efficient: High efficiency minimizes heat generation and lowers total operating costs.
-
Scalable Design: Multiple PIM modules can be paralleled for higher capacity or system expansion.
-
Rugged Construction: Tested to endure high vibration and shock typical von industrial machinery environments.
-
Global Compliance: Country-specific codes and certifications simplify installation across different regions.
FAQ
-
What input voltage ranges are supported by the 60R/PIM01-00-0?
It supports universal AC input from 100–240 VAC at 50/60 Hz as well as DC input from 18–36 VDC, with automatic selection between the two sources. -
Can this module provide redundant power to a 60R system?
Yes. Dual-input capability allows two independent sources for hot-swap redundancy to maintain continuous operation. -
What is the continuous output power capacity?
The module delivers a regulated 24 VDC output with up to 150 W continuous power to the connected monitoring modules. -
Does the module include built-in power conditioning?
It integrates active power factor correction, surge suppression, and EMI/RFI filtering to provide stable and noise-free power. -
How are power-fail alarms communicated to the control system?
Front-panel LEDs provide visual status, while dry contact relay outputs can signal power-fail or fault conditions to SCADA/DCS systems. -
Is the 60R/PIM01-00-0 certified for SIL applications?
It can be ordered with SIL 1 or SIL 2 certification to comply with functional safety requirements in critical installations. -
Can the module operate in high-vibration industrial environments?
Yes. It is rated to withstand vibration up to 5 g (5–2000 Hz) and shocks up to 30 g without performance degradation. -
Is hot-swapping supported for maintenance?
The dual-input design allows one power source to be replaced or serviced while the other maintains continuous output. -
What protective features guard against input anomalies?
Built-in overvoltage, overcurrent, and thermal protection safeguard both the module and connected equipment. -
Can multiple PIM modules be paralleled for higher capacity?
Yes. Multiple 60R/PIM01-00-0 modules can be configured in parallel to increase total available power for large installations.
