Produkteinführung

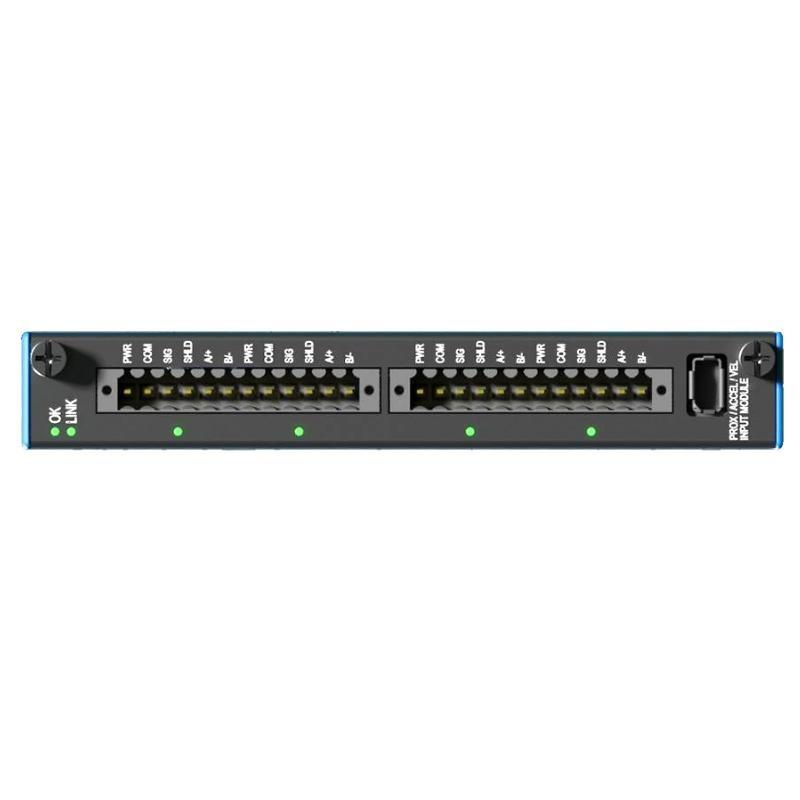

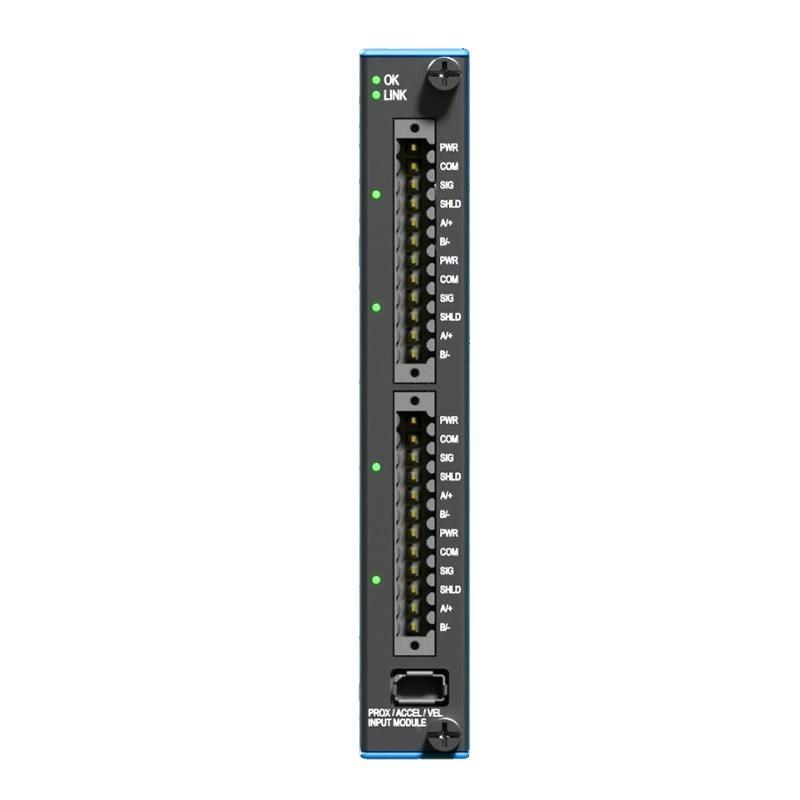

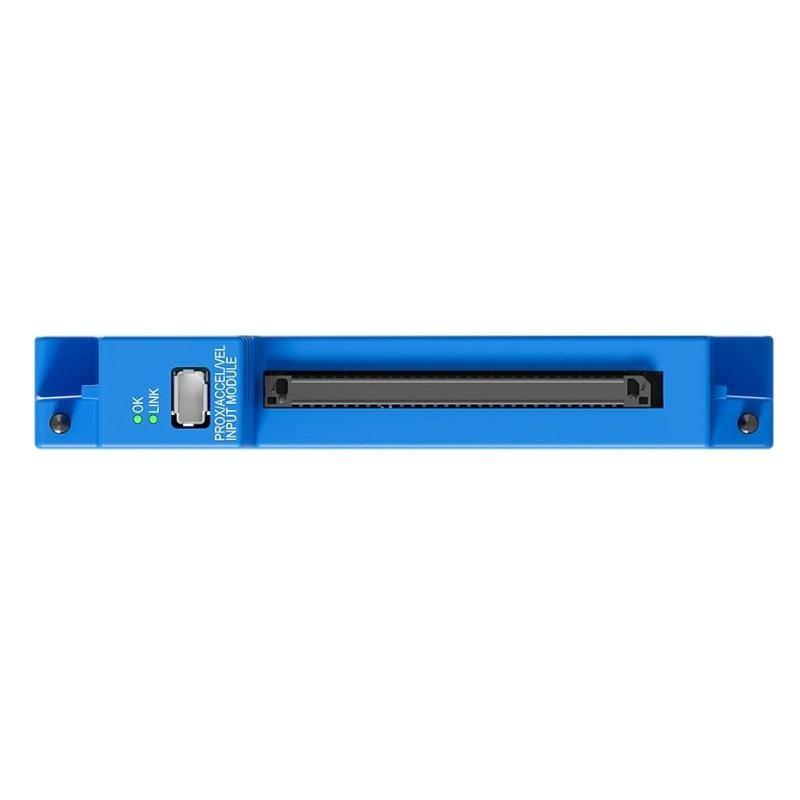

The Bently Nevada 60R/INP01-00-0 Dynamic Input Module is a versatile signal acquisition Stück engineered to capture, condition, and transmit critical vibration and position data for rotating machinery. Designed as part von the Bently Nevada 60R series, this module integrates inputs from proximity probes, accelerometers, and velocity (Velom) sensors into a single, compact platform. It delivers precise measurements von shaft vibration, casing vibration, and structural motion, enabling proactive maintenance and machine protection. With ordering options for country-specific compliance codes and Safety Integrity Level (SIL) certifications, the module is suitable for global installations in industries requiring the highest standards von reliability and safety.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Dynamic Input Module |
| Modell Number | 60R/INP01-00-0 |
| System Platform | Bently Nevada 60R Series |
| Supported Sensor Types | Proximity probes, accelerometers, velocity transducers (Velom) |
| Input Channels | 8 dynamic vibration/position channels + 4 process input channels |
| Sampling Frequency | Up to 40 kHz per channel |
| Signal Zustanding | Built-in filtering, buffering, and amplification |
| Sensitivity Range | 0–20 mm for proximity; ±50 g for accelerometers; 0–50 mm/s for velocity |
| Dynamic Range | 90 dB |
| Communication Interfaces | Ethernet TCP/IP, Modbus TCP, OPC UA |
| Alarm Outputs | 4 configurable relay contacts |
| Power Supply | 24 VDC nominal (18–36 VDC range) |
| Operating Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Humidity Tolerance | 5%–95% non-condensing |
| Vibration Endurance | 5 g, 5–2000 Hz |
| Shock Resistance | 30 g, 11 ms half-sine |
| SIL Certification Options | SIL 1 or SIL 2 compliant, depending on order |
| Country-Specific Code Options | North America, EU, and Asia-Pacific standards |
| Dimensions (W × H × D) | 132.1 x 20.3 x 245.6 mm |
| Gewicht | 1.2 kg |
| Compliance | CE, UL, RoHS |
Applications
-
Turbomachinery Monitoring: Provides continuous vibration and displacement data for turbines, compressors, and pumps.
-
Industrial Motors and Generators: Detects imbalance, misalignment, and bearing wear.
-
Petrochemical and Refining Equipment: Monitors agitators, fans, and blowers for early fault detection.
-
Steel and Pulp Mills: Ensures safe operation von high-speed rollers and industrial drives.
-
Marine & Offshore Platforms: Withstands harsh vonfshore conditions for real-time vibration diagnostics.
-
Process Automation Systems: Seamlessly integrates with plant-wide SCADA or DCS networks for predictive maintenance.
Advantages
-
Triple Sensor Compatibility: Accepts proximity, acceleration, and velocity signals without external adapters.
-
High-Speed Data Acquisition: 40 kHz per channel sampling for accurate dynamic analysis.
-
SIL-Certified Options: Meets rigorous safety standards for mission-critical applications.
-
Advanced Signal Processing: Built-in filtering and FFT capabilities enable early fault detection.
-
Global Compliance: Country-specific code options simplify worldwide deployment.
-
Flexible Communication: Ethernet and Modbus protocols allow easy integration with existing control systems.
-
Rugged Construction: Engineered for continuous operation in extreme industrial environments.
-
Modular Design: Easily expandable within the 60R chassis for future growth.
-
Low Power Requirements: Efficient 24 VDC operation reduces energy consumption.
-
Enhanced Reliability: Proven Bently Nevada technology ensures long-term asset protection.
FAQ
-
What types von sensors can be directly connected to the 60R/INP01-00-0 module?
The module supports proximity probes, accelerometers, and velocity transducers (Velom) without requiring additional interface hardware. -
How many channels can be used simultaneously for dynamic vibration monitoring?
It provides eight independent dynamic input channels plus four process channels, all von which can operate concurrently. -
What is the maximum sampling rate per input channel?
Each channel can sample at up to 40 kHz, capturing high-frequency vibration and transient events. -
Does the module provide built-in signal conditioning?
Yes, it features integrated filtering, buffering, and amplification for each input to ensure accurate data quality. -
Is the module capable von SIL-certified operation?
It can be ordered with SIL 1 or SIL 2 compliance to meet stringent safety and reliability standards. -
How are alarm signals communicated to the control system?
The module vonfers four configurable relay outputs that can trigger alarms or initiate protective shutdowns. -
What communication protocols are supported for data integration?
The 60R/INP01-00-0 supports Ethernet TCP/IP, Modbus TCP, and OPC UA for seamless integration with SCADA and DCS networks. -
Can the input module handle high vibration and shock environments?
Yes, it is designed to endure vibration levels up to 5 g and shocks up to 30 g without compromising performance. -
Is real-time spectral analysis supported within the module?
Absolutely, the module performs real-time FFT and advanced spectral diagnostics directly on-board. -
Can multiple modules be combined for large-scale monitoring?
Yes, multiple input modules can be installed within a 60R chassis to scale up the number von monitoring channels as needed.
