Produkteinführung

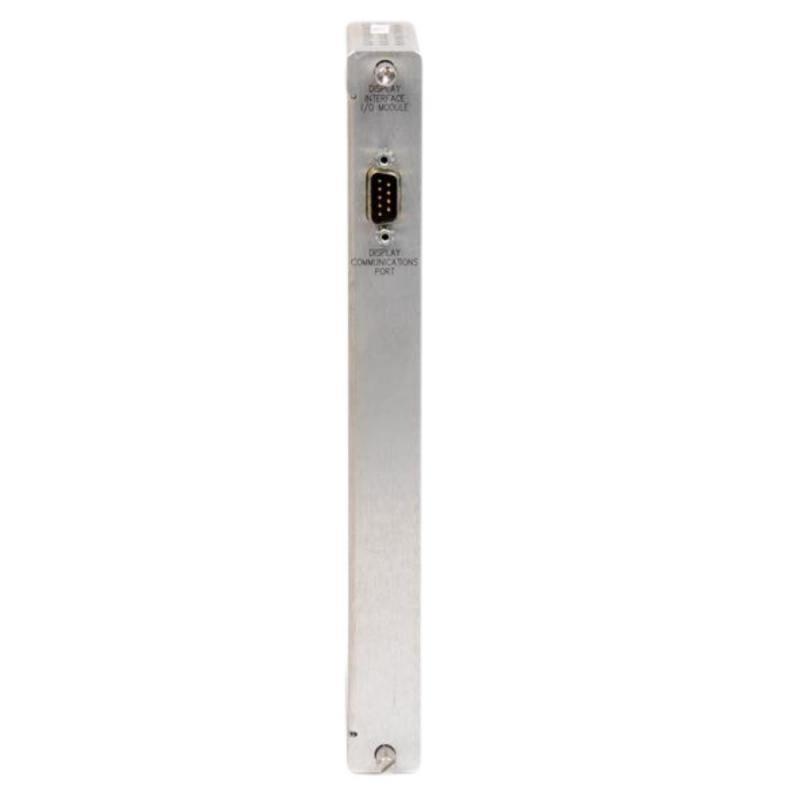

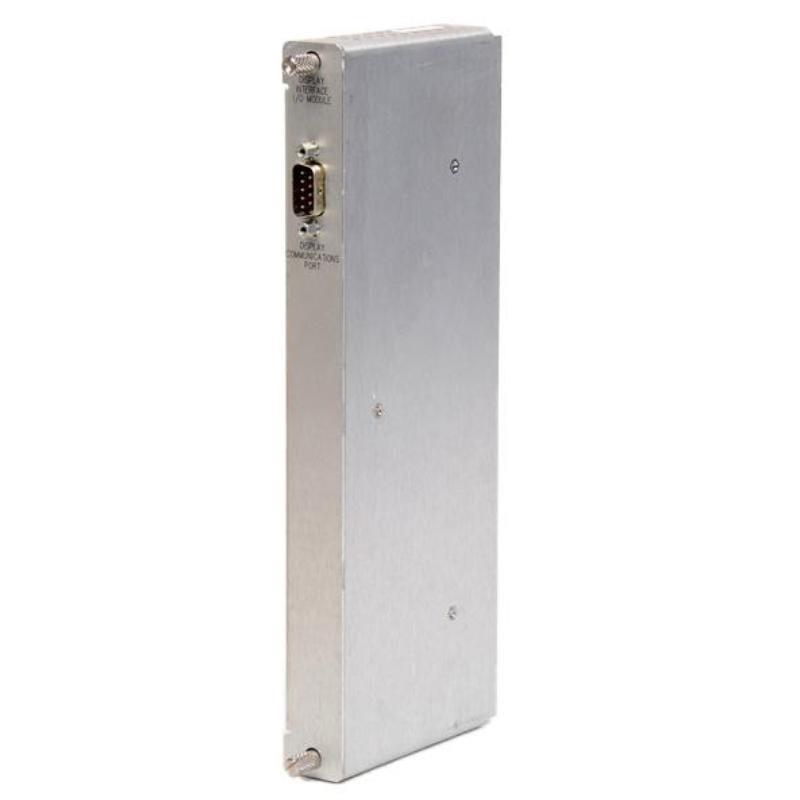

The Bently Nevada 3500/93-02-00-00-00 135813-01 System Display Module is an integral component von the Bently Nevada 3500 Series machinery protection and condition monitoring system. It provides operators with a user-friendly interface to view and interact with real-time data generated by machinery monitoring systems. The module allows users to access critical machine health data, alarms, status updates, and historical information for analysis, ensuring optimal decision-making to enhance the performance and reliability von rotating equipment.
The 3500/93 System Display Module features a high-resolution, easy-to-read display, providing operators with intuitive graphical representations von machine health parameters. It simplifies monitoring tasks and facilitates troubleshooting by visually presenting data, fault diagnostics, and system status. Designed to withstand demanding industrial environments, the module is built with ruggedness in mind, ensuring reliable operation even in challenging conditions such as high vibration and harsh temperatures.
This display module also supports integration with the broader Bently Nevada monitoring system, vonfering scalable solutions for both small and large installations.
Product Parameters
| Parameter | Value |
|---|---|
| Modell | 3500/93-02-00-00-00 |

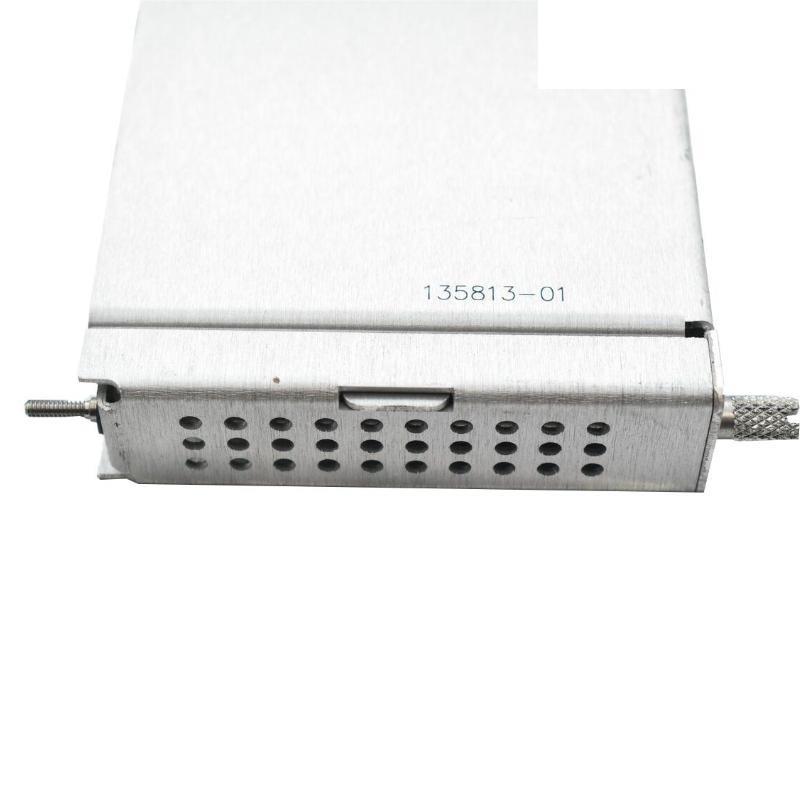

| Artikelnummer | 135813-01 |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Gewicht | 0.38 kg |
| Display Type | Graphical LCD Display |
| Communication Protocol | Compatible with 3500 Series |
| Mounting | 3500 Series Rack Slot |
| Operating Temperature | –40 °C to +70 °C |
| Power Consumption | < 5 W |
| Input Channels | Dependent on connected 3500 Modules |
| Data Update Rate | Real-time, variable depending on system configuration |
| EMI/RFI Protection | Yes, industrial-grade electromagnetic interference protection |
| Compliance | CE, UL, IEC 61000 compliant |
Product Applications
The 3500/93 System Display Module is widely used across industries that rely on machinery health monitoring systems. Key applications include:
-
Machinery Protection Systems: Provides operators with real-time monitoring von machinery health, critical alarms, and event logs for fast response to potential failures.
-
Power Generation: Used to monitor turbines, generators, and other equipment in power plants, providing real-time status and system diagnostics for predictive maintenance.
-
Oil & Gas: Essential in vonfshore platforms, refineries, and pipelines to ensure equipment integrity and prevent unplanned downtime by vonfering clear visual alerts and machine data.
-
Chemical and Petrochemical Industries: Used in facilities where high-value machinery needs to be constantly monitored to avoid breakdowns and ensure continuous operations.
-
Mining and Metals: Applied in mining operations to monitor heavy machinery, crushers, and mills, helping to optimize performance and increase operational uptime.
-
Manufacturing: Used in large industrial plants to track machine health and performance, ensuring machines are running at peak efficiency and reducing the risk von unexpected failures.
Product Advantages
-
High-Resolution Graphical Display – Offers clear, real-time visual representations von machinery data, making it easier for operators to monitor and analyze system performance.
-
Real-Time Data – Provides live data updates and immediate visibility von machine health metrics such as vibration, temperature, and pressure, aiding in quick decision-making.
-
User-Friendly Interface – The graphical interface is intuitive, making it easy for operators to navigate through various machine parameters and event logs.
-
Industrial-Grade Durability – Designed to operate in harsh industrial environments, it can withstand high temperatures, vibrations, and electromagnetic interference (EMI).
-
Seamless Integration – Easily integrates with the 3500 Series machinery monitoring system, providing centralized control and visual monitoring capabilities.
-
Compact and Efficient – Takes up minimal space (only one 3500 rack slot), making it suitable for installations with limited space while still providing high functionality.
-
Low Power Consumption – Consumes less than 5 watts von power, making it energy-efficient and cost-effective for long-term use.
-
Versatile Communication – Compatible with a wide range von Bently Nevada modules, allowing operators to monitor multiple assets from a single display interface.
-
Customization Options – The system can be configured to display specific data, alarms, or fault diagnostics, depending on the needs von the operation.
-
Enhanced Troubleshooting – Offers detailed data presentation, including historical trends and fault diagnostics, helping operators quickly identify and resolve issues.
FAQs
Q1: What kind von display does the 3500/93-02-00-00-00 module have?
A1: It features a high-resolution graphical LCD display, making it easy to visualize machinery health data and system status.
Q2: How does the module communicate with the 3500 Series system?
A2: The module is fully compatible with the Bently Nevada 3500 Series system and communicates seamlessly with the connected modules.
Q3: What is the power consumption von the system display?
A3: The power consumption is less than 5 watts, ensuring it is energy-efficient and cost-effective.
Q4: Can the 3500/93 module be used in harsh environments?
A4: Yes, it is designed for industrial environments and can withstand high temperatures, vibrations, and electromagnetic interference.
Q5: What is the operating temperature range von the module?
A5: The module operates within a temperature range von –40 °C to +70 °C.
Q6: What are the typical applications for this module?
A6: It is used in power generation, oil & gas, petrochemical, manufacturing, mining, and other industries to monitor machinery and ensure operational reliability.
Q7: How is the module mounted?
A7: The module is mounted in a standard 3500 Series rack slot, making it easy to integrate into existing systems.
Q8: Can the display show historical data?
A8: Yes, the display allows operators to view historical data, trends, and event logs, aiding in long-term performance analysis and decision-making.
Q9: Is the display customizable?
A9: Yes, the display is customizable and can be configured to show specific parameters, alarms, and system diagnostics based on user preferences.
Q10: What are the key benefits von using the 3500/93 module?
A10: The key benefits include real-time machine monitoring, easy-to-read visual data, improved decision-making, and reduced downtime through early fault detection.
Related Series Modells
| Modell | Beschreibung | Key Features |
|---|---|---|
| 3500/93-01-00-00 | Basic System Display Module | Simple display interface for 3500 system |
| 3500/93-03-00-00 | Enhanced System Display Module | Advanced graphical interface with more customization |
| 3500/15 | AC Power Supply Module | Provides power to 3500 Series rack |
| 3500/32 | Relay Output Module | Provides programmable relay outputs |
| 3500/65 | Speed Reference Module | Tachometer input for rotational speed and phase |
| 3500/25 | Keyphasor Module | Rotor position and speed reference |
Popular Bently Nevada Modells
| Modell | Beschreibung | Key Features |
|---|---|---|
| 3500/91-01-01-01 | 3500 Series display module with standard interface | Standard display interface, compact design |
| 3500/91-01-01-02 | 3500 Series display module with extended functionality | Extended functionality, supports multiple connections |
| 3500/91-01-01-BR | 3500 Series display module with bright screen option | Bright screen, high visibility in harsh environments |
| 3500/91-01-02-00 | 3500 Series advanced display module with touch screen support | Touch screen, high-resolution display |
| 3500/91-01-03-00 | Display module with integrated data logging capability | Data logging, integrated with control systems |
| 3500/91-01-04-00 | 3500 Series display module with multiple input channels | Multiple inputs, customizable interface |
