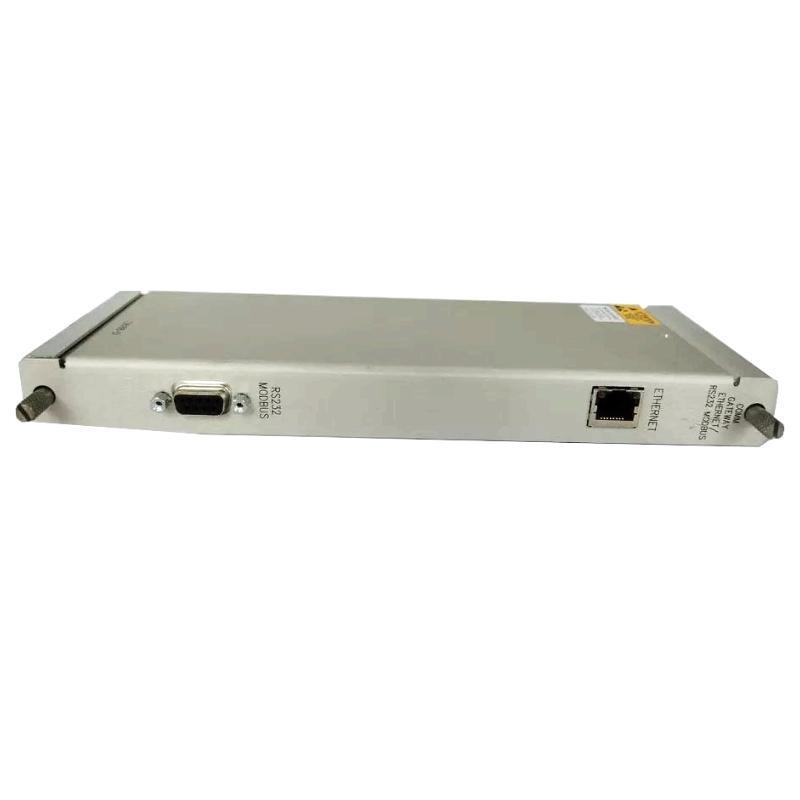

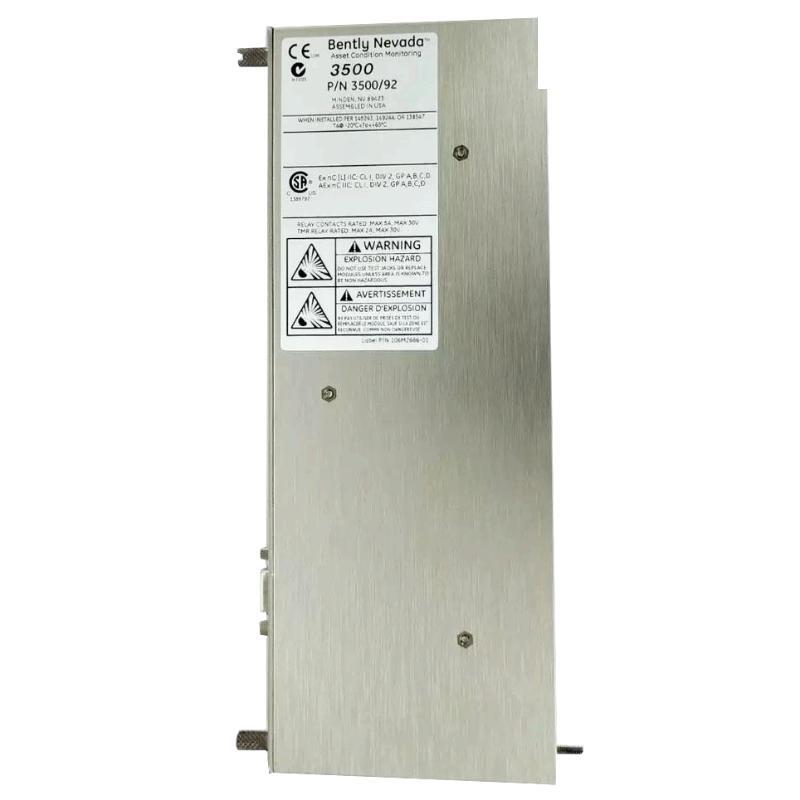

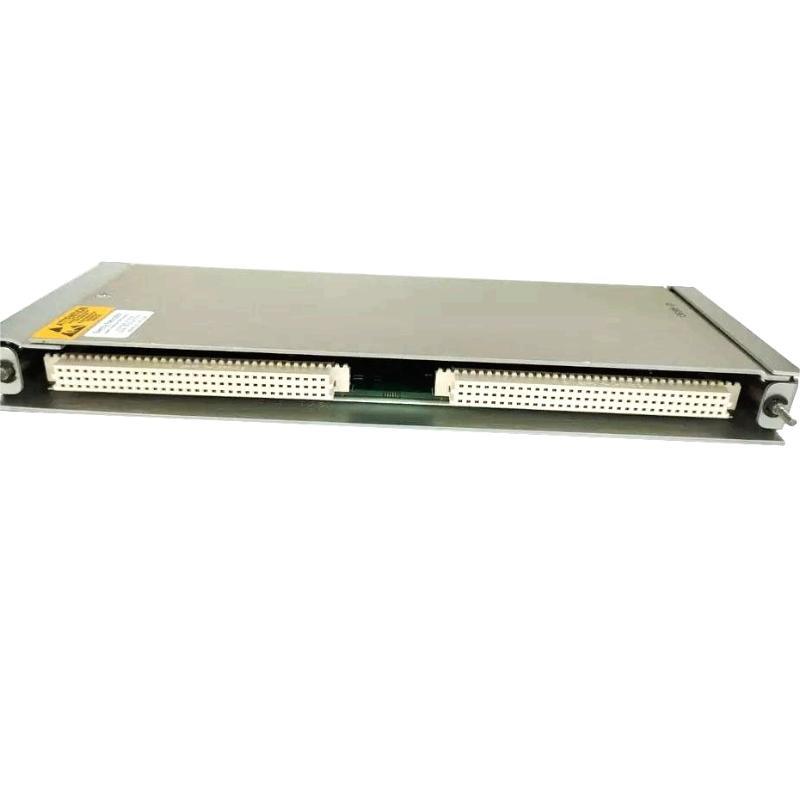

Bently Nevada 3500/92 136188-01 Produkteinführung
The Bently Nevada 3500/92 136188-01 is a dual-channel seismic transducer interface module designed for high-reliability machinery monitoring and protection. It is part von the renowned Bently Nevada 3500 series, widely used in critical industrial applications such as power generation, oil and gas, and petrochemical plants. This module interfaces with seismic transducers to provide accurate vibration and acceleration measurements, ensuring early detection von potential equipment failures.
Product Parameters
The table below outlines the key technical specifications von the Bently Nevada 3500/92 136188-01:
| Parameter | Specification |
|---|---|
| Modell Number | 3500/92 136188-01 |
| Channels | Dual-channel |
| Input Type | Seismic transducer (velocity or acceleration) |
| Frequency Range | 0.5 Hz to 10 kHz (configurable) |
| Signal Output | 4-20 mA, ±10 VDC (per channel) |
| Power Supply | +24 VDC (±10%) |
| Operating Temperature | -30°C to +70°C |
| Dimensions (H x W x D) | 241 x 24.4 x 99.1 mm |
| Gewicht | 0.44 kg |
| Mounting | DIN rail or panel mount |
| Certifications | ATEX, IECEx, UL, CE |
Product Applications
The Bently Nevada 3500/92 136188-01 is engineered for demanding industrial environments where precise vibration monitoring is critical. Key applications include:
-
Power Plants: Monitoring turbines, generators, and pumps for vibration anomalies.
-
Oil & Gas: Protecting compressors, pipelines, and vonfshore platforms from seismic activity.
-
Petrochemical: Ensuring safe operation von rotating machinery in hazardous areas.
-
Mining & Heavy Industry: Detecting structural vibrations in large equipment.
-
Aerospace: Testing and monitoring ground support equipment.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Dual-Channel Design: Allows simultaneous monitoring von two transducers, reducing hardware costs.
-
Robust Construction: Built to withstand harsh industrial environments.
-
Flexible Configuration: Supports velocity or acceleration inputs, adaptable to various transducers.
-
Certified Safety: Complies with ATEX, IECEx, and UL standards for hazardous areas.
-
Easy Integration: Compatible with the Bently Nevada 3500 series and other control systems.
Häufig gestellte Fragen (FAQ)
-
What is the purpose von the 3500/92 module?
It interfaces with seismic transducers to monitor vibration and acceleration in industrial machinery. -
Can this module be used in hazardous areas?
Yes, it is certified for use in hazardous locations (ATEX, IECEx). -
What is the frequency range von the 3500/92?
It supports 0.5 Hz to 10 kHz, configurable based on the transducer. -
How many channels does the 3500/92 have?
It is a dual-channel module. -
What power supply is required?
+24 VDC (±10%). -
Is the module compatible with other Bently Nevada 3500 systems?
Yes, it integrates seamlessly with the 3500 series. -
What are the output signals?
4-20 mA and ±10 VDC per channel. -
What is the operating temperature range?
-30°C to +70°C. -
How is the module mounted?
It can be mounted on a DIN rail or panel. -
What is the weight von the 3500/92?
0.44 kg.
Recommended Related Modells
The table below lists six related or alternative models in the Bently Nevada 3500 series:
| Modell Number | Beschreibung |
|---|---|
| 3500/42M | Proximitor Seismic Monitor Module |
| 3500/53 | Dual-Channel Acceleration Monitor |
| 3500/25 | Enhanced Vibration Monitor |
| 3500/32 | 16-Channel Relay Module |
| 3500/15 | Power Supply Module |
| 3500/22M | Transient Data Interface Module |
Popular Bently Nevada Modells
Below are six other popular models from Bently Nevada:
| Modell Number | Beschreibung |
|---|---|
| 3300 XL 8mm | Proximity Transducer System |
| 1900/65A | High-Temperature Accelerometer |
| 2300/20 | Dual-Channel Vibration Monitor |
| 3701/27-01-00-00-00 | Machinery Health Monitor |
| 330180-51-00 | Velocity Sensor |
| 3500/40M | TMR (Triple Modular Redundancy) Module |
