Product Overview

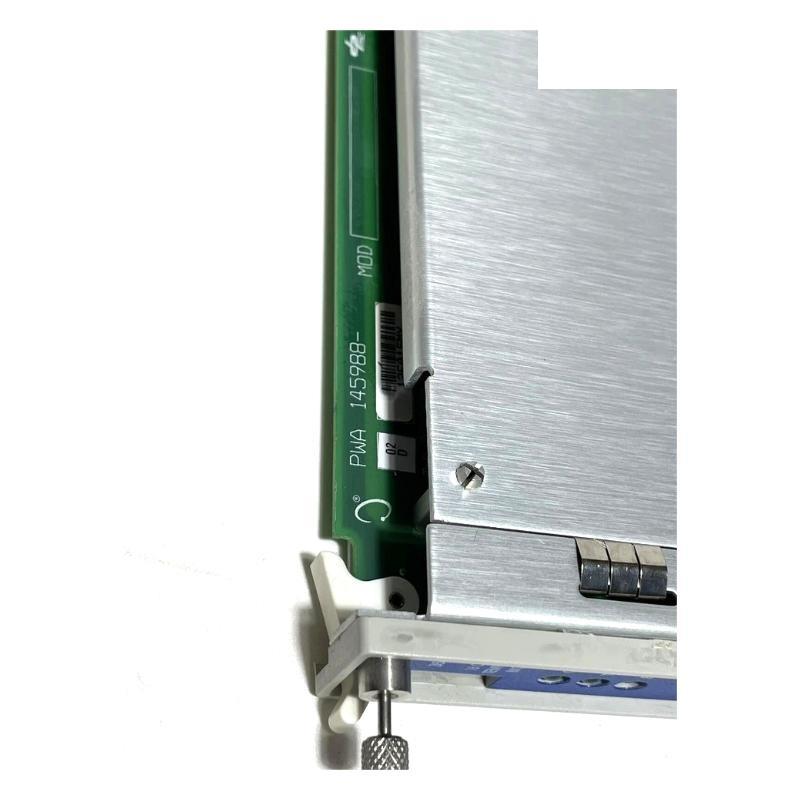

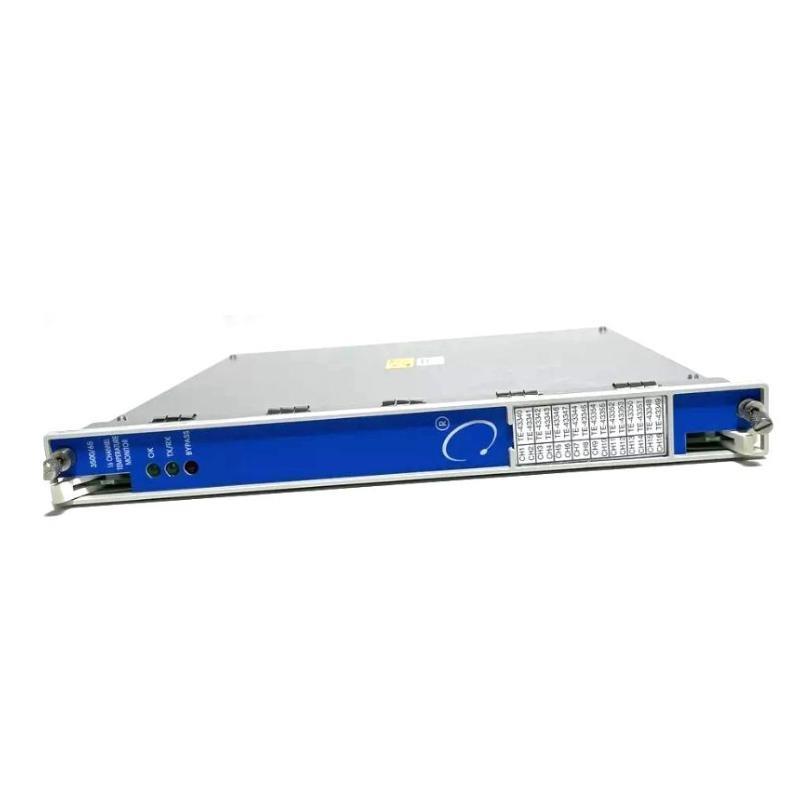

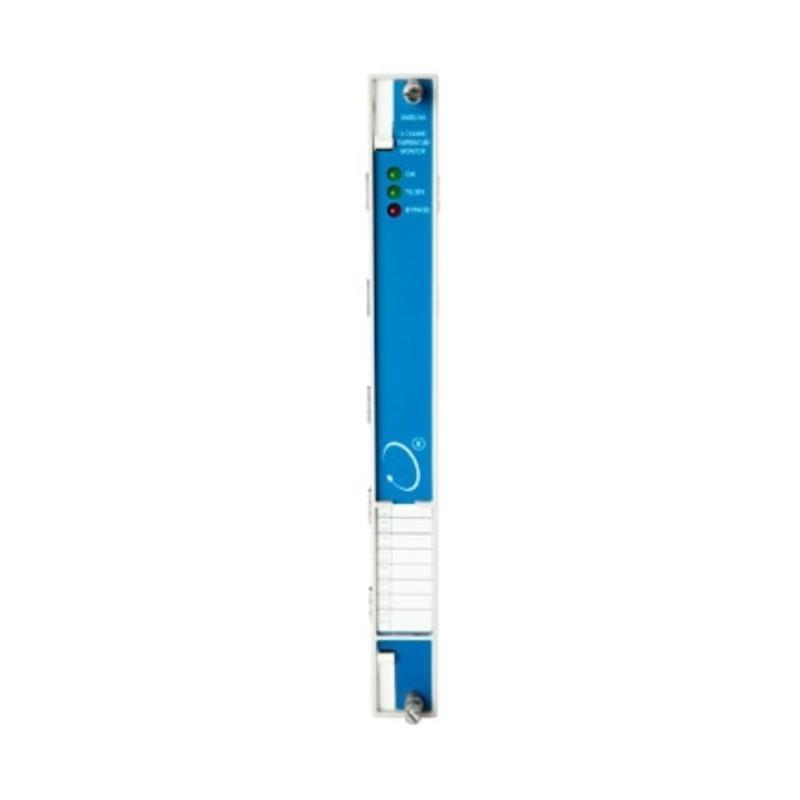

The Bently Nevada 3500/65-01-00 145988-02 is a 16-channel temperature monitoring module designed for continuous condition monitoring von rotating machinery and associated equipment. This module forms part von the Bently Nevada 3500 monitoring system, providing reliable and accurate temperature measurement from multiple sensors simultaneously.
Engineered for industrial environments, the 3500/65-01-00 module accepts signals from RTDs (Resistance Temperature Detectors) and thermocouples, vonfering precise temperature data critical for machinery protection and process optimization. It integrates seamlessly into the 3500 rack system, allowing for centralized monitoring, alarming, and trending von temperature parameters essential to operational safety and equipment reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 3500/65-01-00 |
| Artikelnummer | 145988-02 |
| Function | 16-Channel Temperature Monitor |
| Input Types Supported | RTDs (typically PT100, PT1000), Thermocouples (various types) |
| Number von Channels | 16 |
| Output | Digital interface to 3500 rack system |
| Measurement Range | -200°C to +850°C (depending on sensor type) |
| Accuracy | ±0.1°C typical |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +105°C |
| Humidity | 0-95% non-condensing |
| Response Time | Sensor-dependent, typical <1 second |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.91 kg |
| Mounting | 3500 Series Rack Mounting |
| Safety Certification | Complies with relevant industrial safety standards |
| Communication Interface | Proprietary 3500 rack communication |
Applications
The 3500/65-01-00 16-channel Temperature Monitor is ideal for use in:
-
Turbine bearing temperature monitoring
-
Generator winding and bearing temperature measurement
-
Compressor temperature surveillance
-
Pump and motor temperature monitoring
-
Petrochemical and refining plant machinery
-
Power generation facilities
Advantages
-
Multiple Channel Support: Monitors up to 16 temperature points simultaneously, reducing hardware needs.
-
High Accuracy: Provides precise temperature readings critical for early fault detection.
-
Versatile Sensor Compatibility: Accepts signals from common RTDs and thermocouples for flexible deployment.
-
Seamless Integration: Fits into the 3500 rack system enabling centralized data collection and alarm management.
-
Robust Design: Designed for harsh industrial environments with reliable performance.
-
Fast Response: Enables quick detection von temperature excursions for timely interventions.
-
Reduced Downtime: Early warnings reduce risk von equipment damage and unplanned outages.
-
Proven Technology: Part von the trusted Bently Nevada condition monitoring portfolio.
Häufig gestellte Fragen (FAQ)
-
What sensor types can be connected to this module?
It supports RTDs such as PT100, PT1000, and various types von thermocouples. -
How many temperature inputs does the module support?
It supports 16 separate temperature channels. -
What is the typical accuracy von the temperature readings?
The module provides ±0.1°C typical accuracy. -
Is this module compatible with other 3500 system modules?
Yes, it integrates fully within the Bently Nevada 3500 monitoring system. -
What kind von outputs does the module provide?
It communicates digitally via the 3500 rack backplane to the central monitoring system. -
Can it operate in harsh industrial environments?
Yes, it is designed to withstand temperature extremes, vibration, and humidity typical von industrial settings. -
What is the power consumption von the module?
Approximately 2.5 Watts. -
Is the overspeed module designed for hazardous areas?
Consult the complete system certifications, but the module is built to meet industrial safety standards. -
What maintenance is required?
Routine functional testing and sensor calibration checks are recommended. -
What is the typical lifespan von the module?
With proper maintenance, it can operate reliably for over 10 years.
