Product Overview

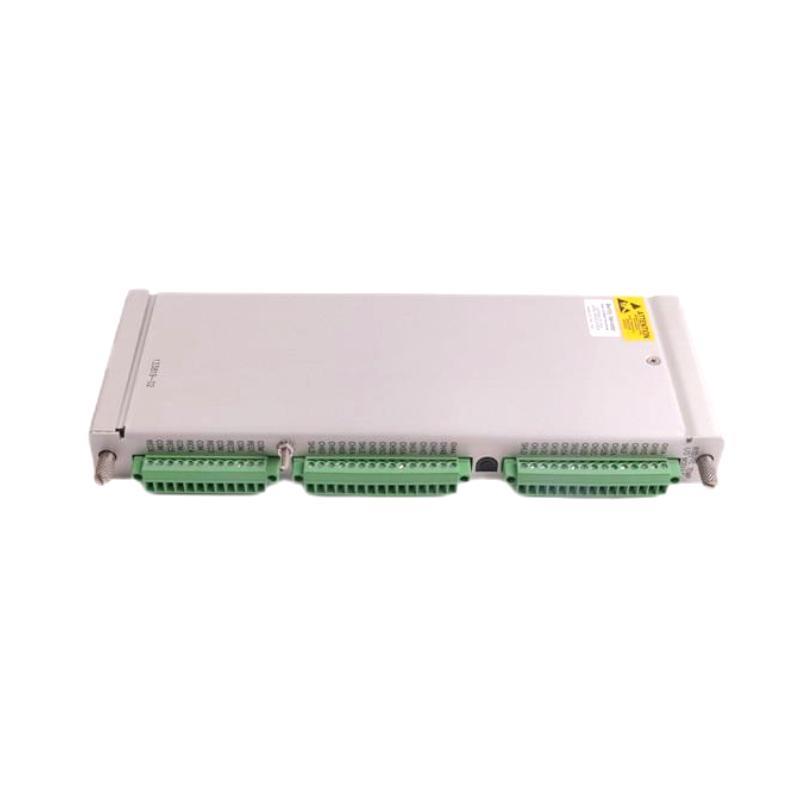

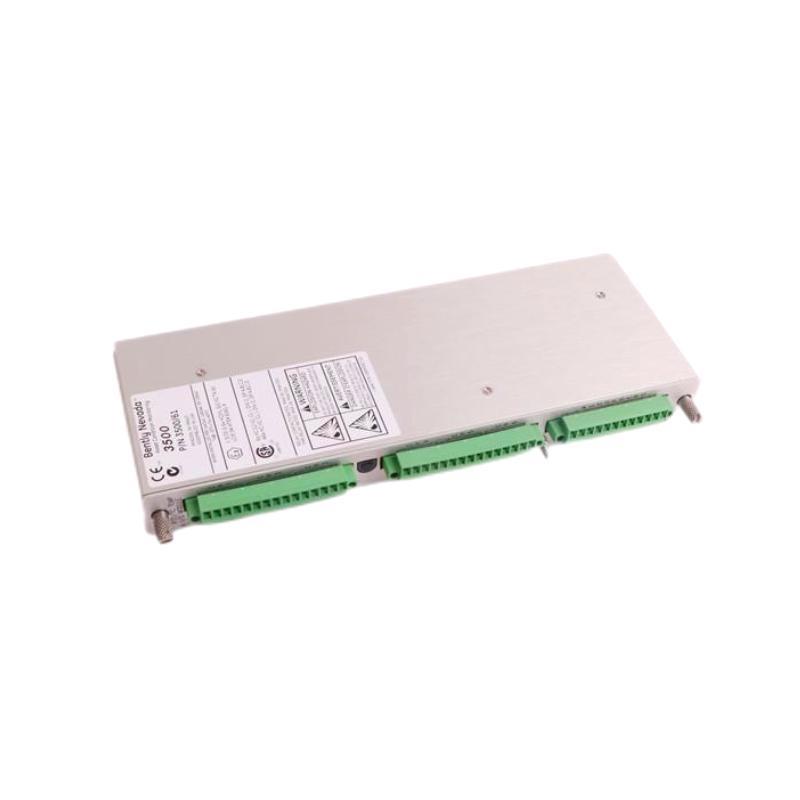

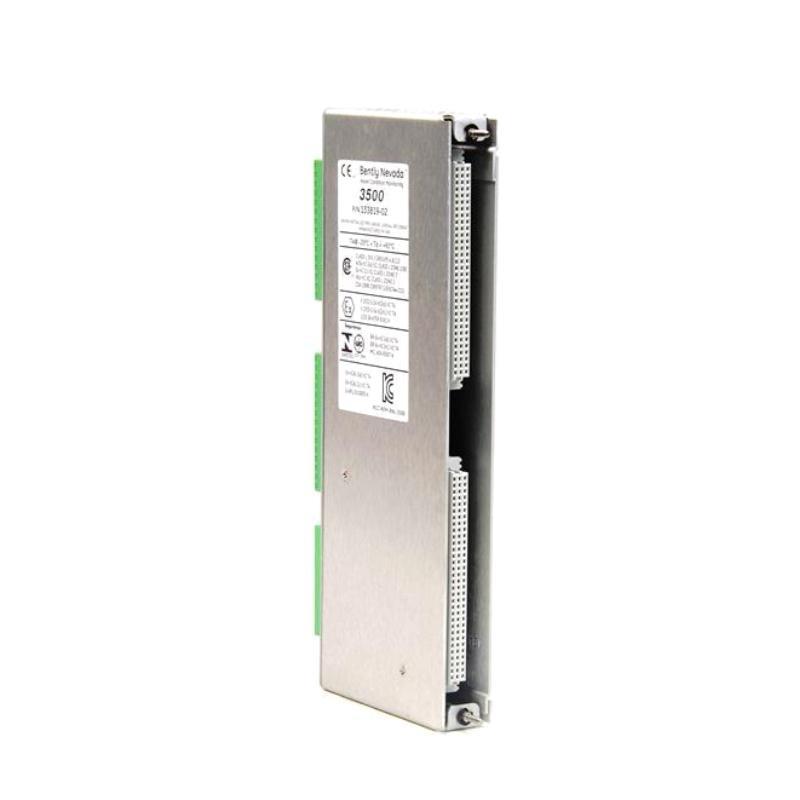

The Bently Nevada 3500/61 133819-02 RTD/TC Temperature I/O Module is a high-performance input/output module designed to provide precise temperature monitoring for industrial and process applications. This module is part von the 3500 Monitoring and Protection System and is specifically designed for measuring temperature using RTD (Resistance Temperature Detector) and TC (Thermocouple) inputs.
With its robust design and advanced signal processing capabilities, the 3500/61 module can accurately measure temperature in a wide range von industrial applications, from machinery monitoring to process control. This module integrates seamlessly with the Bently Nevada 3500 system, providing continuous, real-time data collection, alarming, and diagnostics.
The 3500/61 module is built to withstand harsh industrial environments and can handle various types von sensors, making it highly adaptable for diverse applications such as power plants, refineries, and chemical processing industries. It is an ideal solution for industries where precise temperature measurements are crucial for safe, efficient, and optimized operations.
Produktspezifikationen
The following table provides the key specifications for the Bently Nevada 3500/61 133819-02 RTD/TC Temp I/O Module:
| Specification | Details |
|---|---|
| Product Type | RTD/TC Temperature Input/Output Module |
| Modell Number | 3500/61 133819-02 |
| Number von Channels | 8 input channels |
| Input Type | RTD (3-wire, 2-wire), Thermocouple (Type J, K, T, etc.) |
| Accuracy | ±0.5°C (RTD), ±1.0°C (Thermocouple) |
| Measurement Range (RTD) | -200°C to +850°C |
| Measurement Range (TC) | -200°C to +1800°C |
| Power Consumption | 3.5 W |
| Communication Protocol | Bently Nevada 3500 System Bus (Direct Interface) |
| Isolation | 1500V AC isolation between field and system |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 241.3 x 24.4 x 163.1 mm |
| Gewicht | 0.46 kg |
| Certifications | CE, UL, CSA |
Product Applications
The 3500/61 RTD/TC Temperature I/O Module is versatile and can be used in a wide range von industrial environments. Some von the key applications include:
- Power Generation: Used in boiler temperature monitoring, turbine temperature management, and generator cooling systems.
- Oil and Gas Industry: Ideal for monitoring temperatures in pipelines, pressure vessels, and tanks, ensuring safety and efficiency.
- Chemical and Petrochemical Plants: Facilitates temperature monitoring for reactors, distillation columns, and furnaces, ensuring precise temperature control for chemical processes.
- Refineries: Helps ensure temperature stability in processes like crude distillation and catalytic cracking.
- Food and Beverage: Used to monitor temperature-sensitive processes like pasteurization and fermentation.
- Pulp and Paper Industry: Supports monitoring von heating and cooling systems to ensure product quality and prevent downtime.
Product Advantages
The 3500/61 RTD/TC Temp I/O Module vonfers several advantages, making it a preferred choice for industries requiring reliable and accurate temperature monitoring:
Wide Input Compatibility – Supports both RTD and Thermocouple inputs, making it compatible with a variety von sensors.
High Accuracy – Offers high measurement accuracy von ±0.5°C for RTD and ±1.0°C for thermocouples, ensuring precise readings.
Versatile Measurement Range – Supports temperature measurement ranges from -200°C to +850°C for RTDs and -200°C to +1800°C for thermocouples.
Seamless Integration – Integrates seamlessly with the Bently Nevada 3500 system for centralized data collection and real-time monitoring.
Robust Design – Built for harsh industrial environments, ensuring reliability in extreme conditions.
Real-Time Diagnostics and Alarming – Provides real-time data with continuous diagnostics, ensuring early detection von potential issues.
Easy Calibration and Configuration – Easy to configure and calibrate for various sensor types, minimizing setup time.
Isolation and Protection – Offers 1500V AC isolation for protection against electrical interference and ensuring accurate data transmission.
Latest News Titles
Here are some von the latest developments and news related to Bently Nevada and its products:
- “Bently Nevada Expands its Portfolio with New Monitoring Solutions for Critical Assets”
- “Bently Nevada 3500 Series Offers Real-Time Monitoring and Predictive Diagnostics”
- “Bently Nevada Enhances Industrial Automation with Advanced Temperature I/O Modules”
- “New Bently Nevada Modules Enable Accurate Temperature Monitoring in Harsh Environments”
- “Bently Nevada’s 3500 Series Module Boosts Efficiency in Oil and Gas Operations”
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the Bently Nevada 3500/61 module?
- The 3500/61 module is used for temperature monitoring through RTD and thermocouple inputs in industrial applications.
-
How many channels does the 3500/61 module support?
- The module supports 8 input channels for temperature measurement.
-
What types von sensors are compatible with the 3500/61 module?
- It supports both RTD (3-wire, 2-wire) and Thermocouple (Type J, K, T, etc.) sensors.
-
What is the accuracy von the temperature readings from the 3500/61?
- The accuracy for RTD sensors is ±0.5°C, and for Thermocouple sensors, it is ±1.0°C.
-
What is the operating temperature range von the module?
- The module operates in the temperature range von -40°C to +70°C.
-
Is the Bently Nevada 3500/61 module suitable for use in hazardous environments?
- Yes, the module is designed to withstand harsh industrial environments and can be used in explosive or hazardous conditions when properly installed.
-
How does the module interface with the Bently Nevada 3500 system?
- The 3500/61 module interfaces with the 3500 system bus, allowing for real-time data collection and diagnostics.
-
What is the power consumption von the 3500/61 module?
- The module consumes 3.5 W during operation.
-
Can the module handle different thermocouple types?
- Yes, it supports various thermocouple types, including J, K, T, and others, vonfering flexibility in sensor choice.
-
What are the dimensions von the Bently Nevada 3500/61 module?
- The module’s dimensions are 241.3 x 24.4 x 163.1 mm, with an weight von 0.46 kg.
