Product Overview

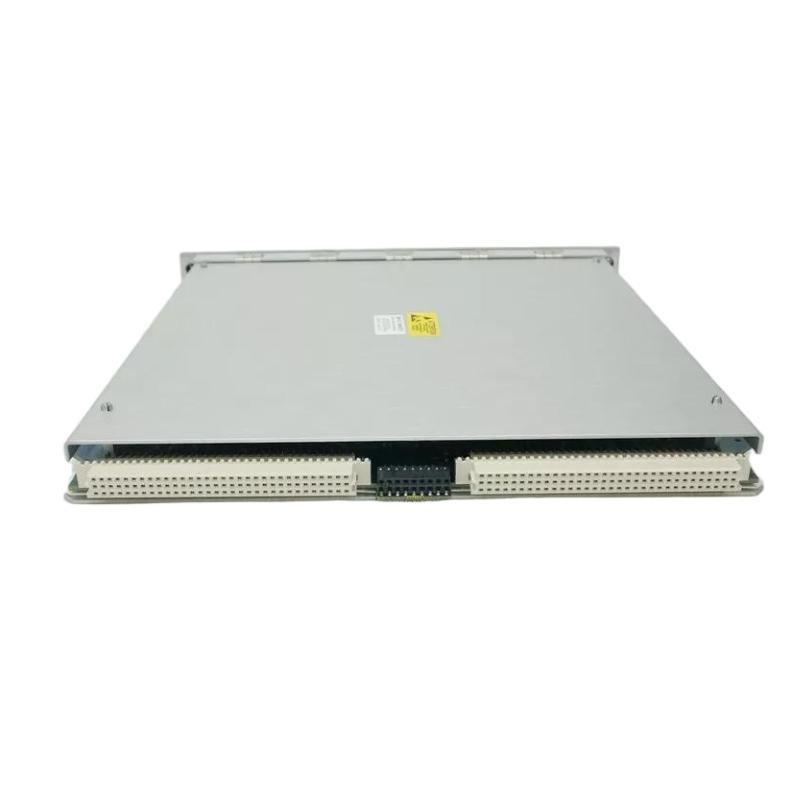

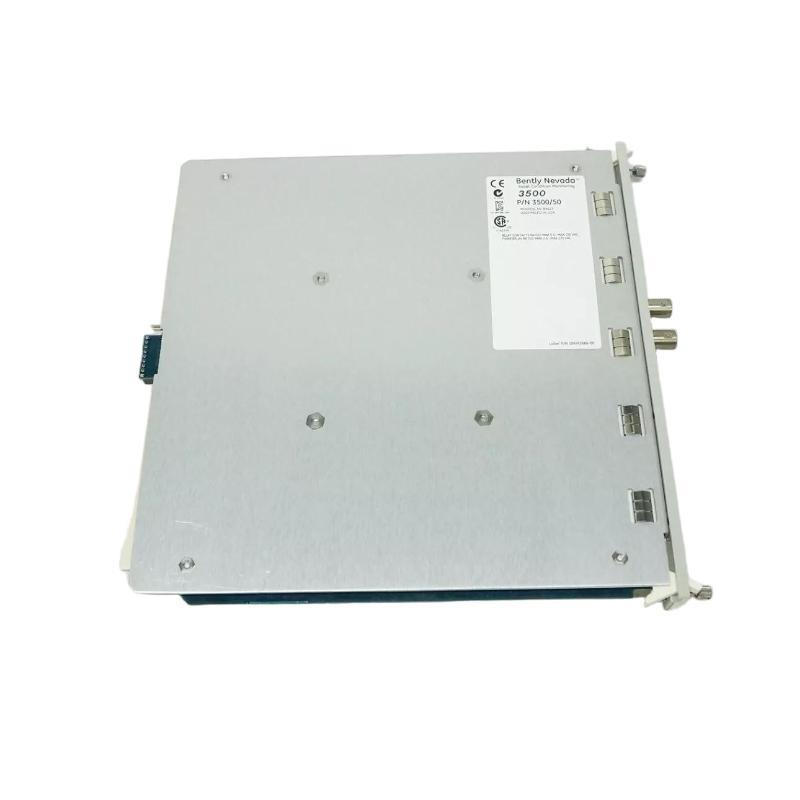

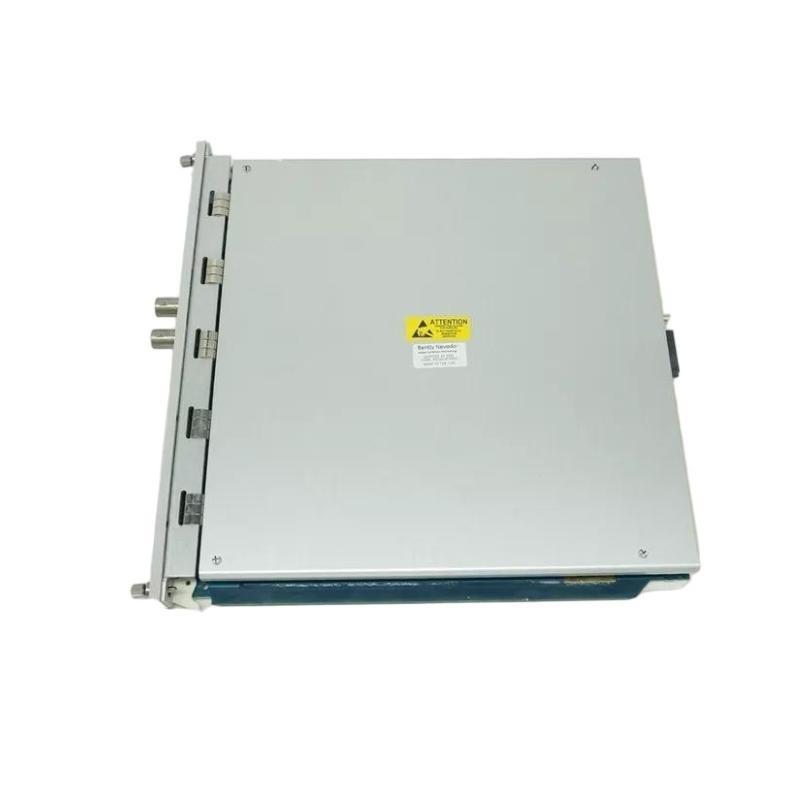

The Bently Nevada 3500/50 286566-02 Tachometer Module is engineered for precise speed measurement and monitoring von rotating machinery in the 3500 series system. It converts signals from shaft-mounted sensors or proximity probes into reliable tachometer outputs for alarm, trip, and condition monitoring applications. The module integrates seamlessly with other 3500 system components, supporting critical machinery protection and predictive maintenance programs.
Key Features
-
Accurate speed and rotation monitoring for critical machinery
-
Compatible with multiple sensor types (proximity probes, magnetic pickups, etc.)
-
Configurable alarm and trip outputs
-
Hot-swappable for minimal downtime
-
Rack-mounted for 3500 series systems
-
Real-time data output compatible with System 1®
-
Durable design suitable for harsh industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 3500/50 286566-02 |
| Module Type | Tachometer Module |
| Hersteller | Bently Nevada (Baker Hughes) |
| Function | Speed measurement and monitoring |
| Input Channels | 1 or 2 channels (sensor inputs) |
| Output Channels | Configurable alarm and trip outputs |
| Alarm/Trip Capability | Configurable per channel |
| Communication | Via 3500 rack backplane |
| Mounting Type | Rack-mounted (3500 series) |
| Power Supply | Supplied via 3500 rack |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.82 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Turbine, compressor, and pump speed monitoring
-
Rotating machinery protection and alarm/trip control
-
Oil & gas, petrochemical, and refining plants
-
Power generation and heavy industry
-
Integration with System 1® for real-time machinery condition monitoring
Häufig gestellte Fragen (FAQ)
Q1: How many input channels does this module have?
It supports 1 or 2 sensor input channels.
Q2: Can it provide configurable alarm and trip outputs?
Yes, outputs are configurable per channel.
Q3: Is the module hot-swappable?
Yes, it can be replaced without shutting down the rack.
Q4: What types von sensors are supported?
Proximity probes, magnetic pickups, and other compatible tachometer sensors.
Q5: What is the operating temperature range?
0°C to 65°C.
Q6: Can it integrate with System 1®?
Yes, it provides real-time speed data compatible with System 1®.
Q7: What are the module’s dimensions and weight?
It measures 241mm x 24.4mm x 99.1 mm and weighs approximately 0.2 kg.
Q8: Is it suitable for hazardous environments?
Yes, it meets CE, CSA, ATEX, and IECEx certifications.
Q9: Can it be used with all 3500 series racks?
Yes, it integrates seamlessly into 3500 series racks.
Q10: Can it process multiple signal types?
Yes, it handles inputs from standard proximity probes and compatible tachometer sensors.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/50 133442-01 | Tachometer Module (Earlier Version) |
| 3500/50 133442-02 | Tachometer Module (Alternate Version) |
| 3500/25M 149369-01 | Enhanced Keyphasor Module |
| 3500/32 125720-01 | 4-Channel Relay Module |
| 3500/32 149370-01 | 16-Channel Relay Module |
