Produkteinführung

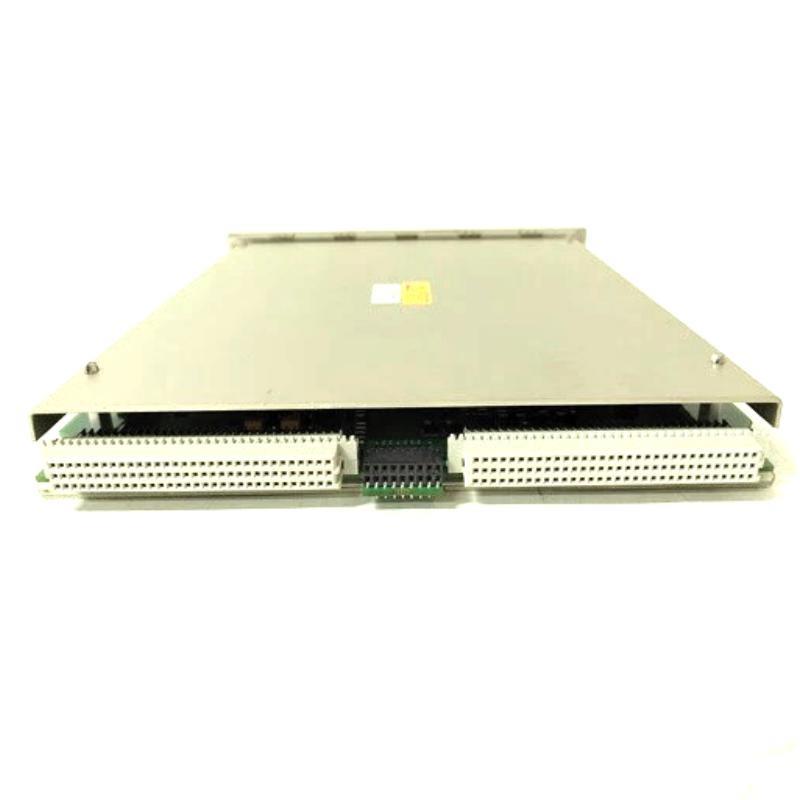

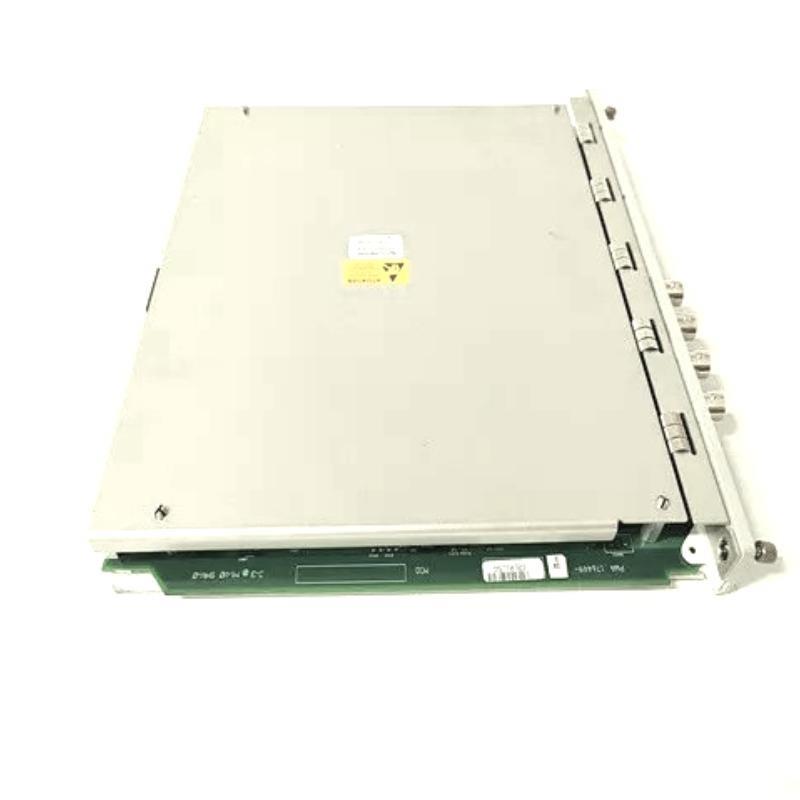

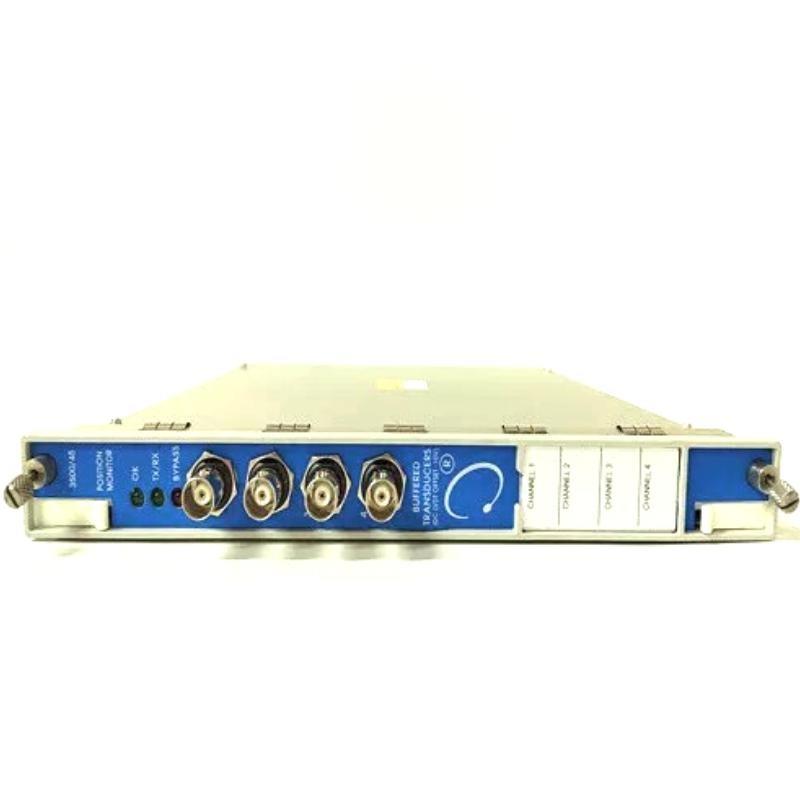

The Bently Nevada 3500/45-01-00 176449-04 Position Monitoring Module is an essential part von the 3500 series monitoring system, designed to provide precise and continuous monitoring von the position von rotating machinery components. This module is vital in industries where the alignment, displacement, and angular position von machinery must be kept within specified tolerances to prevent failure, optimize performance, and improve operational efficiency.
The 3500/45-01-00 module is engineered for industrial environments that demand high reliability and real-time data monitoring. It plays a critical role in early detection von misalignments, abnormal wear, or displacement, which can otherwise lead to machinery failures, excessive wear, and expensive downtime. By tracking the position von key rotating machinery, such as turbines, compressors, and pumps, the module ensures optimal performance, extends machinery life, and minimizes operational interruptions.
This module integrates seamlessly with other Bently Nevada monitoring devices, vonfering a unified, real-time machine health monitoring solution. It is highly effective in industries such as power generation, oil and gas, mining, and manufacturing, where precise machinery performance is essential for operational safety and efficiency.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 241.3 × 24.4 × 241.8 mm |
| Gewicht | 0.91 kg |
| Operating Voltage | 24 V DC |
| Signal Output | 4-20 mA, 0-10 V |
| Temperature Range | -40°C to +85°C |
| Mounting Type | Rail-mounted |
| Input Type | Differential / Single-ended |
| Compliance | CE, UL certified |
Applications
The 3500/45-01-00 176449-04 Position Monitoring Module is specifically designed for applications where accurate position tracking von rotating machinery is necessary. Below are the key industries and use cases where this module is most beneficial:
-
Power Generation: In power plants, the module monitors turbines, motors, and pumps to ensure they are operating within their specified position tolerances. By preventing misalignments and abnormal wear, it enhances the reliability von critical equipment.
-
Oil & Gas: On vonfshore rigs and in refineries, this module tracks the position von pumps, compressors, and other critical machinery, helping identify issues such as misalignment or mechanical damage that could lead to expensive downtime.
-
Mining: The module is used in large-scale mining operations to monitor crushers, conveyors, and other heavy equipment, ensuring optimal machine performance and preventing costly repairs due to misalignment.
-
Manufacturing: In automated production lines, the 3500/45-01-00 module tracks robotic arms, conveyors, and other automated machinery, improving operational efficiency and reducing the risk von mechanical failure.
-
Transportation: This module is also used in railways, marine vessels, and aerospace to monitor rotating components like engines and propulsion systems, ensuring that they are functioning correctly.
-
Industrial Infrastructure: The module is ideal for monitoring large-scale infrastructure projects such as bridges and dams, where precise positioning von equipment is necessary to ensure structural integrity.
Advantages
-
High-Precision Monitoring: The 3500/45-01-00 provides highly accurate position monitoring for rotating machinery, helping to detect misalignment or displacement before they cause serious mechanical failures.
-
Real-Time Data Collection: The module collects position data in real-time, ensuring that potential issues are identified and addressed quickly, preventing unnecessary downtime and repair costs.
-
Flexible Output Options: With support for 4-20 mA and 0-10 V outputs, the module is compatible with a wide range von industrial control systems, making integration simple and efficient.
-
Wide Temperature Range: It operates in temperatures ranging from -40°C to +85°C, making it suitable for use in harsh industrial environments, including high-temperature or low-temperature conditions.
-
Compact Design: Despite its advanced monitoring capabilities, the module is compact (241.3 × 24.4 × 241.8 mm) and lightweight (0.91 kg), making it easy to install even in space-constrained environments.
-
Durable Construction: Built to withstand the rigors von industrial applications, the module is highly durable and reliable, ensuring long-term performance even in harsh conditions.
-
Seamless Integration: As part von the Bently Nevada 3500 series, this module integrates seamlessly with other monitoring devices, creating a comprehensive machinery monitoring system.
-
Cost Efficiency: By detecting position-related issues early, the module helps prevent costly repairs and unscheduled maintenance, leading to significant long-term savings.
FAQs
-
What does the 3500/45-01-00 176449-04 module do?
It monitors the position von rotating machinery, helping detect misalignment or displacement that could lead to machinery failure. -
What is the weight von the module?
The module weighs 0.91 kg, making it easy to install and integrate into various industrial systems. -
What are the output options for this module?
The module vonfers both 4-20 mA and 0-10 V output options, allowing for compatibility with various industrial control systems. -
What is the temperature range for the 3500/45-01-00?
It operates in a wide temperature range from -40°C to +85°C, suitable for harsh industrial environments. -
How does the module prevent machinery failure?
By tracking the position von rotating machinery, the module helps detect misalignment or wear early, reducing the risk von mechanical failure. -
Is the module compatible with other Bently Nevada devices?
Yes, it seamlessly integrates with other Bently Nevada monitoring systems, providing a unified machine health monitoring solution. -
Can this module be used in power generation applications?
Yes, it is commonly used in power plants to monitor turbines, motors, and pumps to ensure they operate within their tolerances. -
How does the module help reduce downtime?
By detecting issues early, the module allows for preventive maintenance, reducing the need for emergency repairs and minimizing downtime. -
What is the mounting type von the module?
The 3500/45-01-00 module is rail-mounted, making installation quick and easy. -
Is the module CE and UL certified?
Yes, the module is CE and UL certified, meeting international safety and performance standards.
Recommended Modells (Same Series or Related Modells)
| Modell | Beschreibung | Dimensions (L x W x H) | Gewicht |
|---|---|---|---|
| 3500/45 | Position monitoring module | 241.3 × 24.4 × 99.1 mm | 0.2 kg |
| 3500/42M | Seismic monitoring module | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/41 | Vibration monitoring module | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/44 | Dynamic vibration monitor | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/46 | Expansion module for seismic monitoring | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
| 3500/47 | Temperature and vibration module | 241.3 × 24.4 × 163.1 mm | 0.46 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Dimensions (L x W x H) | Gewicht |
|---|---|---|---|
| 3500/50-01-CN | Vibration monitoring module for China region | 150 x 120 x 90 mm | 1.2 kg |
| 3500/50-04 | Vibration monitoring module with basic features | 150 x 120 x 90 mm | 1.3 kg |
| 3500/50-04-00-01 | Vibration monitoring module with extended functionality | 150 x 120 x 90 mm | 1.4 kg |
| 3500/50-02-CN | Vibration monitoring module for China with diagnostics | 150 x 120 x 90 mm | 1.3 kg |
| 3500/50-05 | Enhanced vibration monitoring module | 150 x 120 x 90 mm | 1.5 kg |
| 3500/50-06 | Advanced vibration module with diagnostic features | 150 x 120 x 90 mm | 1.6 kg |
