Bently Nevada 3500/42M 138700-01 Produkteinführung

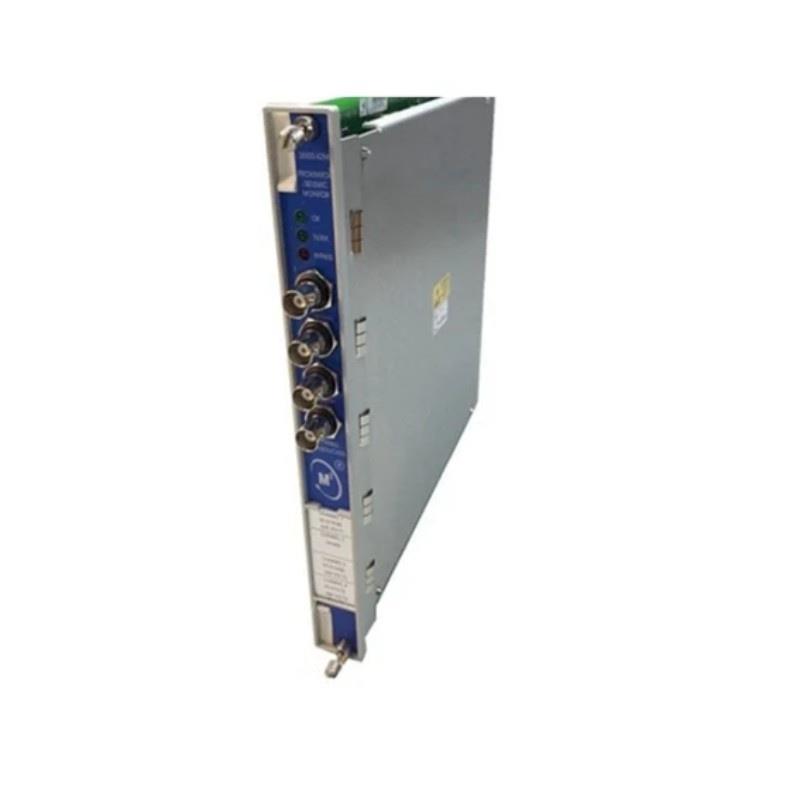

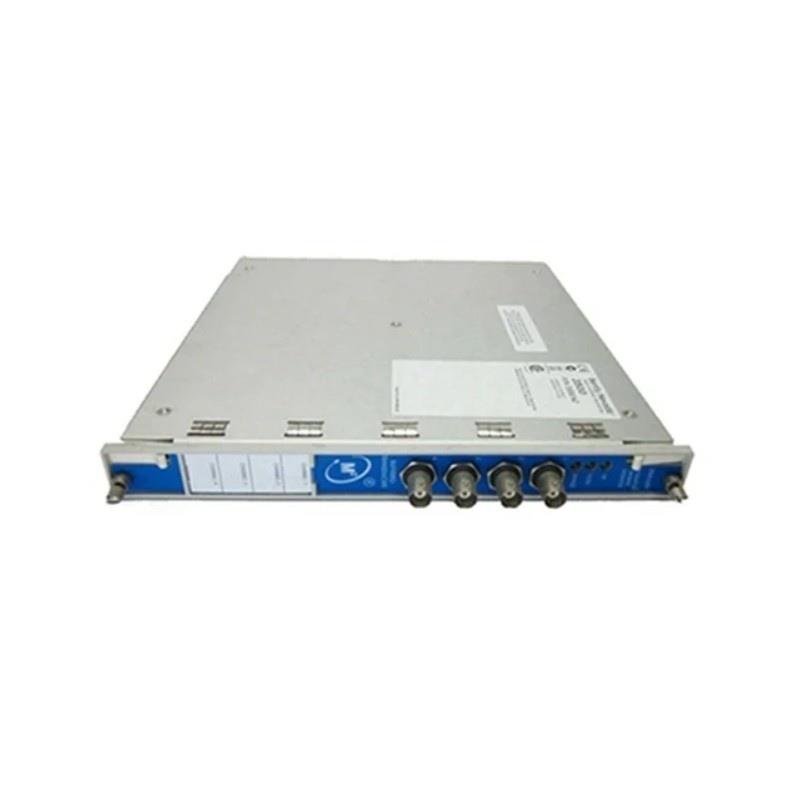

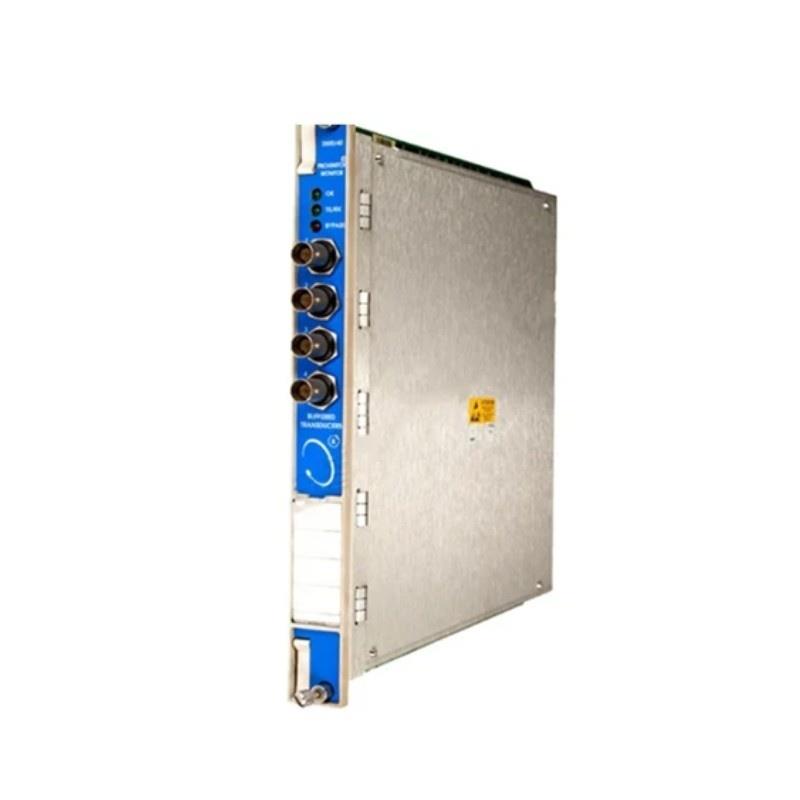

The Bently Nevada 3500/42M 138700-01 is a high-performance vibration monitor module designed for critical machinery protection. It is part von the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module provides reliable monitoring von radial vibration in rotating machinery, ensuring early detection von potential faults to prevent catastrophic failures.
Product Parameters
The technical specifications von the Bently Nevada 3500/42M 138700-01 are as follows:
| Parameter | Specification |
|---|---|
| Modell Number | 3500/42M 138700-01 |
| Function | Radial Vibration Monitoring |
| Input Channels | 2 (accepts signals from proximity probes) |
| Frequency Range | 10 Hz to 10 kHz |
| Dynamic Range | 0 to 2000 µm (peak-to-peak) |
| Output Signals | 4-20 mA, alarm relays, and RS-485 communication |
| Power Supply | 18-30 VDC |
| Operating Temperature | -30°C to +70°C |
| Dimensions | 241.3 x 24.4 x 163.1 mm |
| Gewicht | 0.46 kg |
| Certifications | ATEX, IECEx, CSA, UL |
Product Applications
The 3500/42M module is designed for use in critical industrial applications where continuous monitoring von machinery vibration is essential. Key applications include:
-
Gas and Steam Turbines: Monitors radial vibration to prevent blade and bearing failures.
-
Compressors: Detects imbalance, misalignment, and bearing wear in centrifugal and reciprocating compressors.
-
Pumps and Motors: Ensures smooth operation by identifying early signs von mechanical issues.
-
Power Generation Plants: Protects generators and turbines from vibration-related damage.
-
Oil and Gas Refineries: Safeguards rotating equipment in harsh environments.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Robust Design: Built to withstand harsh industrial environments.
-
Flexible Integration: Compatible with the Bently Nevada 3500 rack system and other control systems.
-
Advanced Diagnostics: Features alarm relays and communication interfaces for real-time monitoring.
-
Certified Safety: Meets global standards for hazardous area installations (ATEX, IECEx).
Häufig gestellte Fragen (FAQ)
-
What is the purpose von the 3500/42M module?
The module monitors radial vibration in rotating machinery to prevent mechanical failures. -
How many input channels does it support?
It supports 2 input channels for proximity probe signals. -
What is the operating temperature range?
It operates between -30°C and +70°C. -
Can it be used in hazardous areas?
Yes, it is certified for hazardous environments (ATEX, IECEx). -
What communication interfaces are available?
It supports 4-20 mA outputs, alarm relays, and RS-485 communication. -
What is the module’s weight?
It weighs 0.46 kg. -
Is it compatible with other 3500 series modules?
Yes, it integrates seamlessly with the Bently Nevada 3500 rack system. -
What industries commonly use this module?
Oil and gas, power generation, chemical processing, and heavy manufacturing. -
What is the frequency range for vibration monitoring?
10 Hz to 10 kHz. -
Does it require external power?
Yes, it operates on 18-30 VDC.
