Bently Nevada 3500/42M 135489-01 Produkteinführung

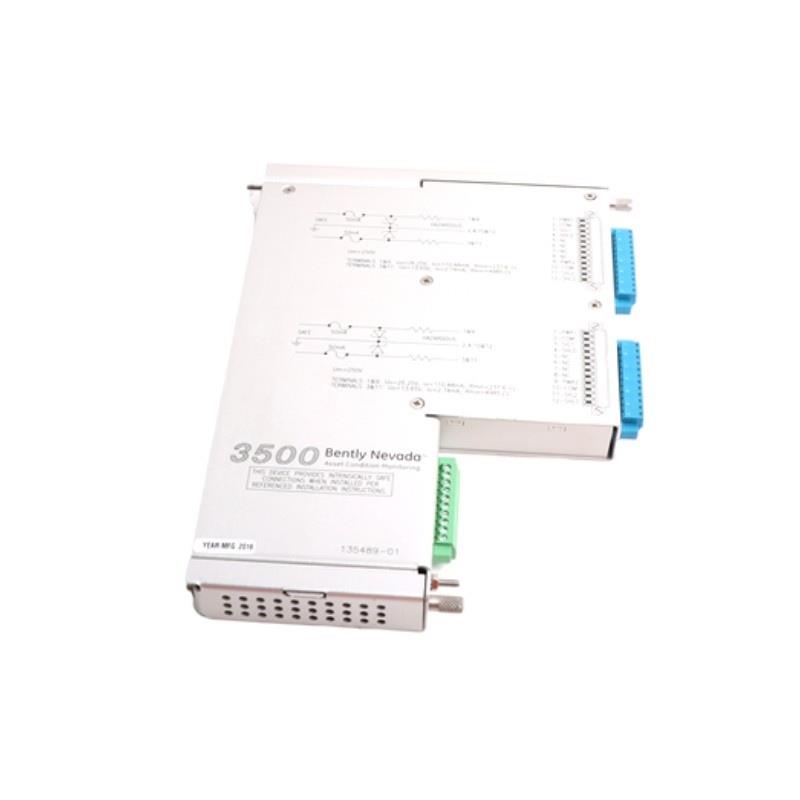

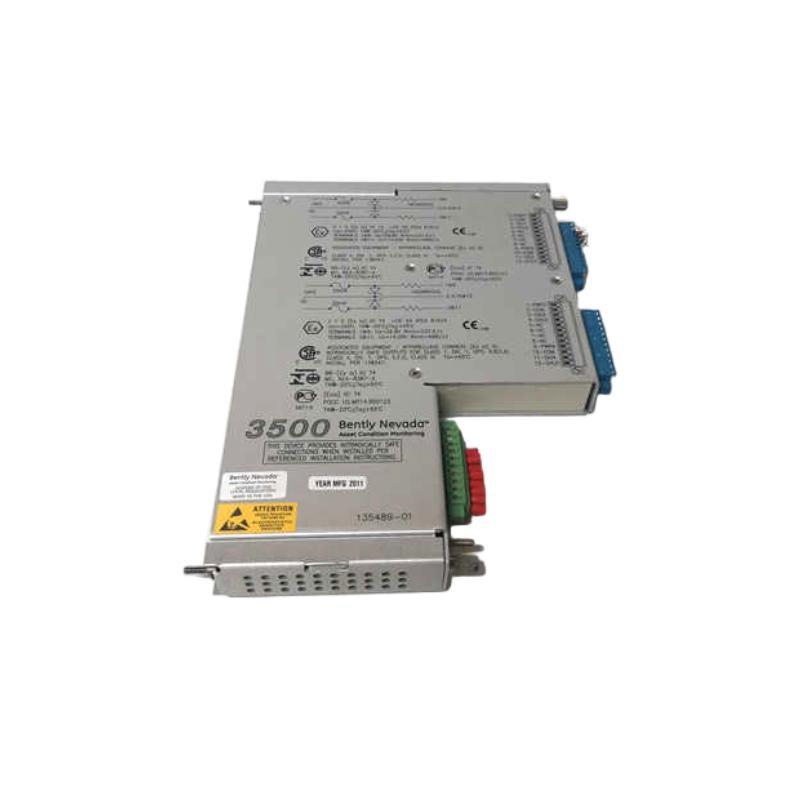

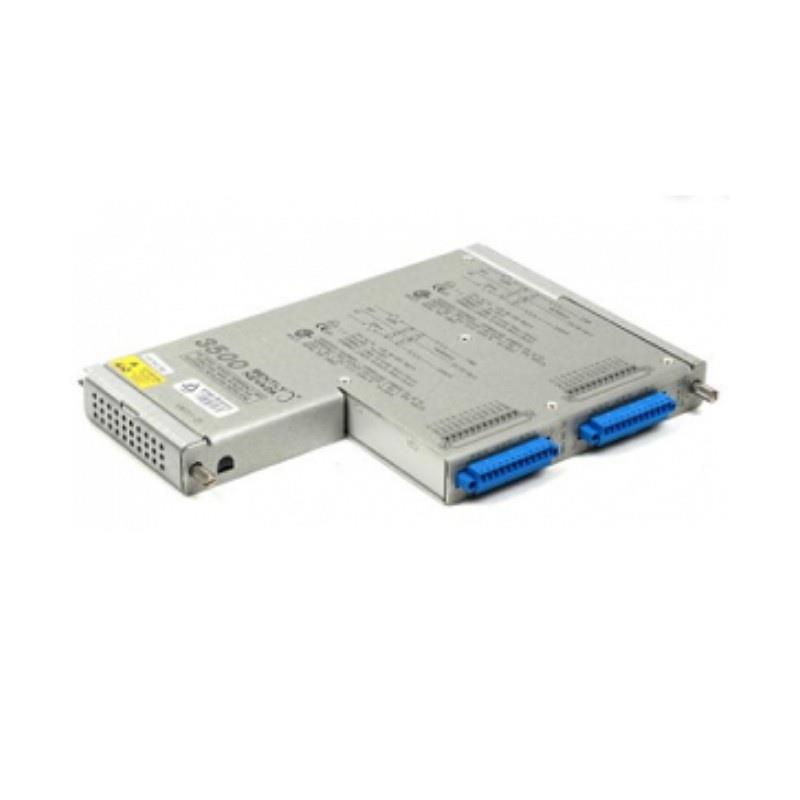

The Bently Nevada 3500/42M 135489-01 is a high-performance vibration monitor module designed for critical machinery protection and condition monitoring. It is part von the renowned Bently Nevada 3500 series, which is widely used in industries such as oil and gas, power generation, and chemical processing. This module provides reliable and accurate vibration measurements, ensuring the safe operation von rotating equipment by detecting potential faults early.
Product Parameters
The following table outlines the key technical specifications von the Bently Nevada 3500/42M 135489-01:
| Parameter | Specification |
|---|---|
| Modell Number | 3500/42M 135489-01 |
| Function | Vibration Monitoring (Seismic or Accelerometer) |
| Input Channels | 2 channels per module |
| Input Signal Range | 0.1 to 20 in/sec (peak) or 0.1 to 500 Hz (frequency) |
| Output Signals | 4-20 mA, alarm relays, and RS-485 communication |
| Power Supply | 18-30 VDC |
| Operating Temperature | -30°C to +65°C |
| Dimensions | 241.3 x 24.4 x 163.1 mm |
| Gewicht | 0.46 kg |
| Mounting | Rack-mounted (3500 series chassis) |
| Certifications | ATEX, IECEx, CSA, UL |
Product Applications
The Bently Nevada 3500/42M 135489-01 is designed for use in critical industrial applications where machinery health is paramount. Key applications include:
-
Oil & Gas: Monitoring compressors, turbines, and pumps to prevent unplanned downtime.
-
Power Generation: Protecting generators, steam turbines, and gas turbines from vibration-related failures.
-
Chemical & Petrochemical: Ensuring safe operation von high-speed rotating equipment.
-
Water & Wastewater: Monitoring pumps and motors to extend asset life.
-
Mining & Metals: Safeguarding crushers, conveyors, and other heavy machinery.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Durability: Built to withstand harsh industrial environments.
-
Flexibility: Supports multiple input types (seismic or accelerometer).
-
Integration: Seamlessly works with the Bently Nevada 3500 monitoring system.
-
Safety Compliance: Meets global certifications (ATEX, IECEx, UL).
-
Easy Maintenance: Modular design allows for quick replacement and upgrades.
Häufig gestellte Fragen (FAQ)
-
What is the purpose von the 3500/42M module?
It is used for vibration monitoring in industrial machinery to detect faults and prevent failures. -
How many input channels does it support?
It has 2 independent vibration input channels. -
What types von sensors are compatible?
It works with seismic (velocity) sensors and accelerometers. -
What is the operating voltage range?
18-30 VDC. -
Can it be used in hazardous areas?
Yes, it is certified for hazardous environments (ATEX, IECEx). -
What are the output options?
4-20 mA, alarm relays, and RS-485 communication. -
What is the module’s weight and dimensions?
0.46 kg, 241.3 x 24.4 x 163.1 mm. -
Is it compatible with other 3500 series modules?
Yes, it integrates with the 3500 rack system. -
What is the temperature range for operation?
-30°C to +65°C. -
How is the module mounted?
It is rack-mounted in a 3500 series chassis.
