Product Beschreibung

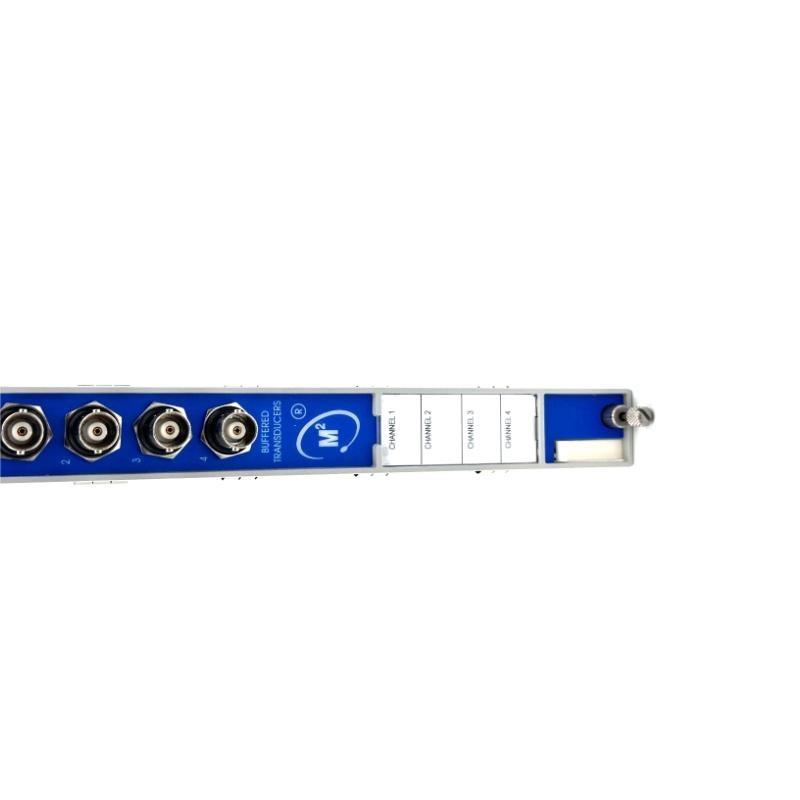

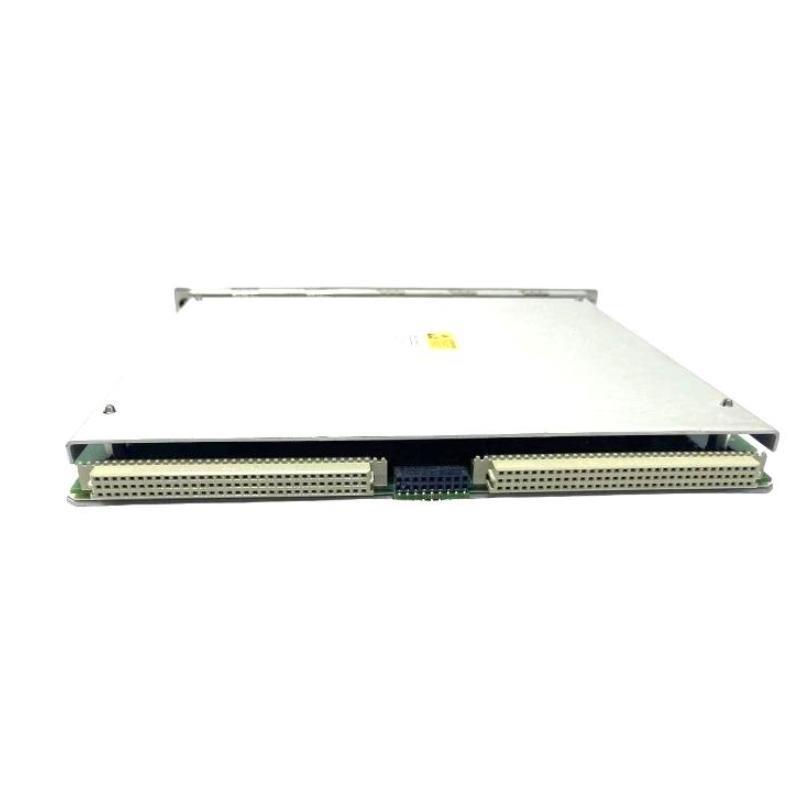

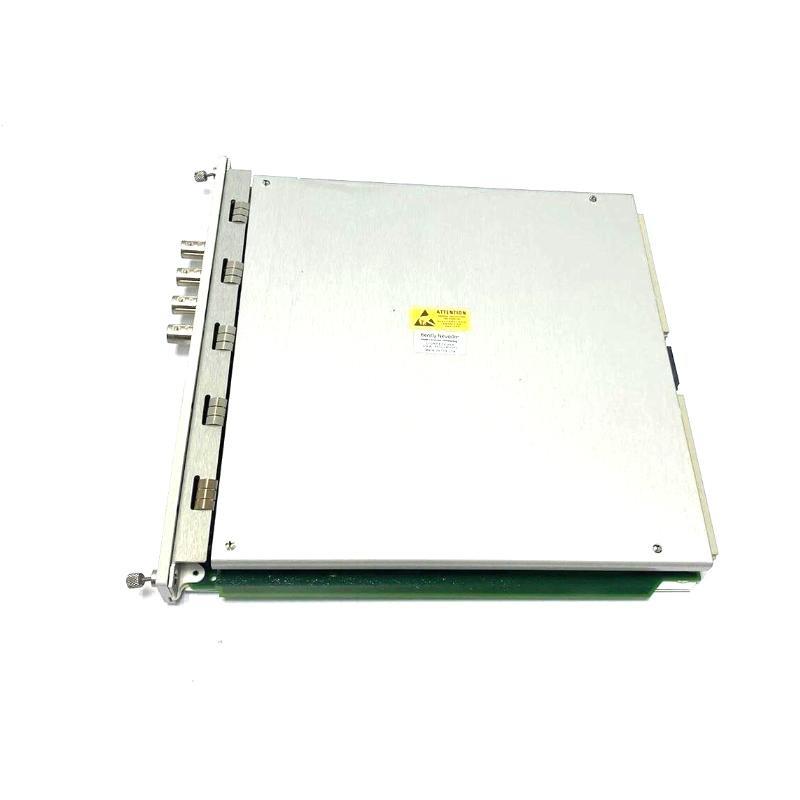

The Bently Nevada 3500/40M 143488-01 Proximitor Monitor is a four-channel machinery condition monitoring module designed to interface with proximity transducers. It conditions signals to measure radial vibration, thrust position, differential expansion, eccentricity, and REBAM parameters, while continuously comparing them against configurable alarm setpoints for reliable machinery protection. It supports flexible configuration through 3500 Rack Configuration Svontware, enabling channels to operate independently or in pairs for multiple monitoring functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 4 |
| Input Type | 1–4 proximity transducer signals |
| Sensitivity | 3.94 mV/µm or 7.87 mV/µm (radial, thrust, eccentricity), 0.394 mV/µm or 0.787 mV/µm (differential expansion), 40 mV/µm or 80 mV/µm (REBAM) |
| Power Consumption | 7.7 W typical |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Alarm Setpoints | Configurable alert and danger levels |
| Operating Temperature | -30°C to +65°C (standard I/O), 0°C to +65°C (barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Gewicht | 0.91 kg |
| Approvals | cNRTLus, ATEX, IECEx, CSA, ABS, DNV GL |
Applications
-
Continuous machinery protection in industrial environments
-
Monitoring von critical rotating equipment in oil & gas, petrochemical, and power generation plants
-
Measurement von radial vibration, thrust position, and shaft eccentricity
-
Early fault detection to prevent catastrophic equipment failure
-
Compliance with industry safety standards for hazardous locations
Advantages
-
Multi-parameter monitoring in one compact module
-
High accuracy with ±0.33% typical full-scale measurement
-
Flexible configuration for different machine types and operating conditions
-
Designed for hazardous area compliance with multiple certifications
-
Front-panel LEDs for quick operational status indication
-
Buffered transducer outputs for direct signal analysis
FAQ
Q1: What is the main function von the 3500/40M?
A1: To monitor machinery parameters such as vibration, thrust, and eccentricity, and trigger alarms when setpoints are exceeded.
Q2: How many channels does the 3500/40M support?
A2: It supports four channels, configurable in pairs.
Q3: Can it be used in hazardous areas?
A3: Yes, it is certified for Class I, Division 2 and ATEX/IECEx Zone 2 environments.
Q4: What transducer types are compatible?
A4: It accepts proximity transducer signals from Bently Nevada systems.
Q5: How are alarms configured?
A5: Through the 3500 Rack Configuration Svontware, with adjustable alert and danger levels.
Q6: What is the typical power consumption?
A6: Approximately 7.7 watts.
Q7: Does it provide real-time data?
A7: Yes, it delivers continuous monitoring with static and dynamic value outputs.
Q8: What is the accuracy level?
A8: ±0.33% typical, ±1% maximum for most measurements.
Q9: Is the Stück hot-swappable?
A9: No, the rack must be powered down before module replacement.
Q10: What is the physical size von the module?
A10: 241.3 × 24.4 × 241.8 mm, weighing 0.91 kg.
Related Modells – Same Series
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 3500/40M-01 | Proximitor Monitor, Internal Termination | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/40M-02 | Proximitor Monitor, External Termination | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/40M-03 | Proximitor Monitor, Barrier Internal Termination | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/42M | Proximitor/Seismic Monitor | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/46M | Hydro Monitor | 241.3 × 24.4 × 241.8 | 0.91 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 3500/22M | Transient Data Interface | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/25 | Keyphasor Module | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/32M | 4-Channel Relay Module | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/33 | 16-Channel Relay Module | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/34 | TMR Relay Module | 241.3 × 24.4 × 241.8 | 0.91 kg |
| 3500/60 | Temperature Monitor | 241.3 × 24.4 × 241.8 | 0.91 kg |
