Produkteinführung

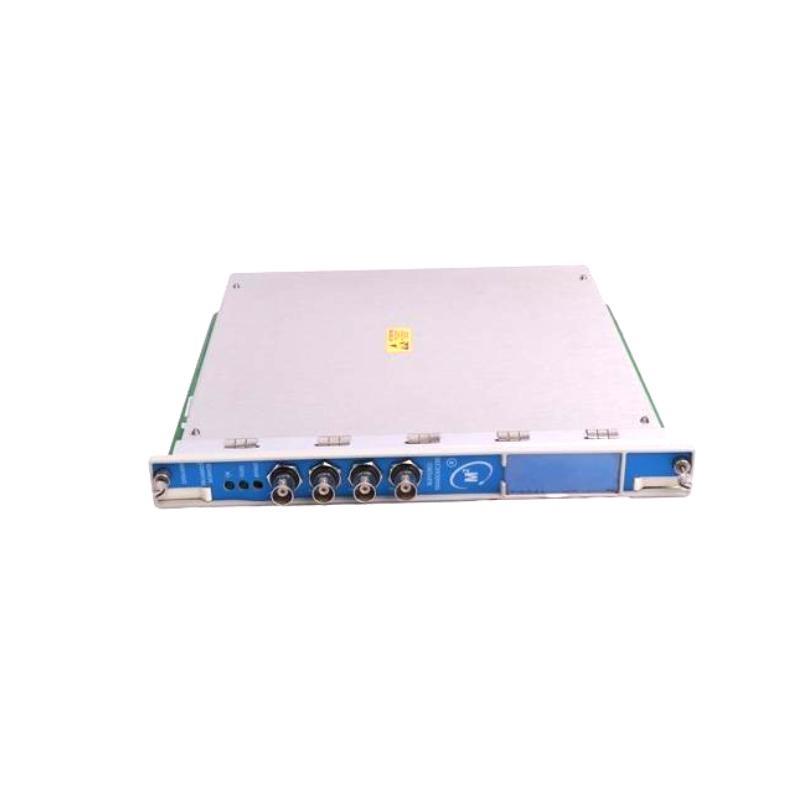

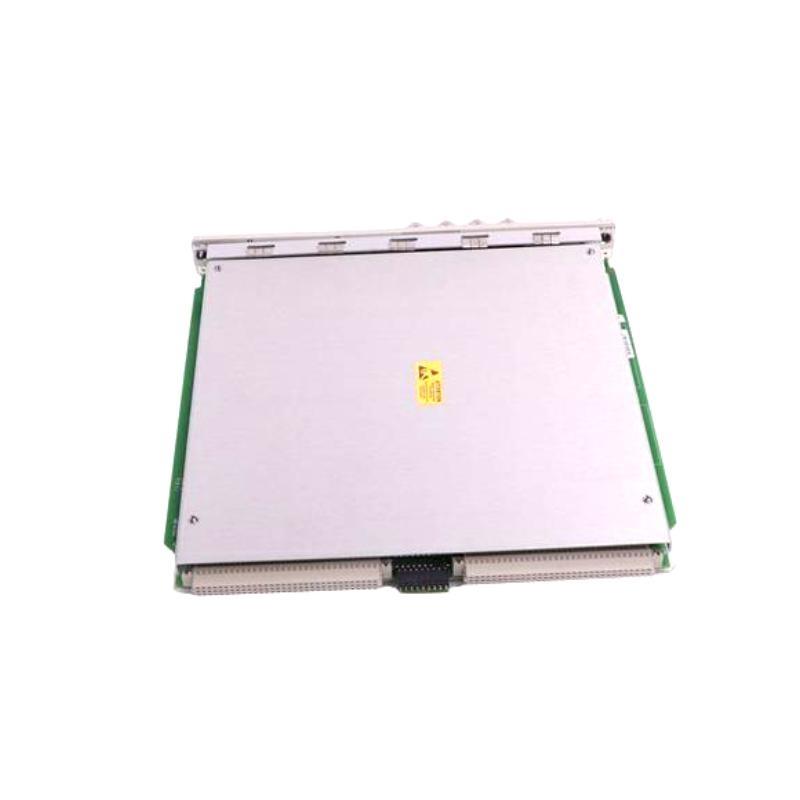

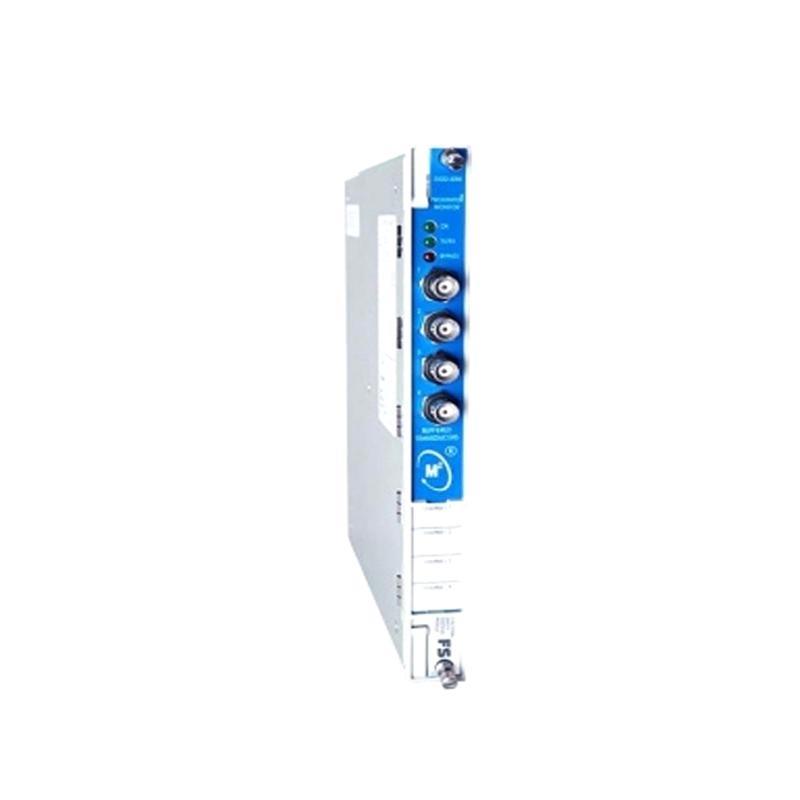

The Bently Nevada 3500/40-01-00 Proximitor Monitor is a four-channel module designed to interface with Bently Nevada proximity transducers. It conditions input signals to provide various vibration and position measurements, comparing them with user-defined alarms. Each channel can be configured for functions such as radial vibration, thrust position, differential expansion, and eccentricity, making it a versatile component in machinery protection systems.
Produktspezifikationen
| Parameter | Details |
| Modell Number | 3500/40-01-00 (3500/40M) |
| Channels | 4 independent channels |
| Input Type | Bently Nevada proximity transducers |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Alarm Setpoints | User-programmable for each channel |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 0% to 95% non-condensing |
| Certifications | CE, CSA, ATEX, IECEx, GOST |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.91 kg |
Product Applications
-
Machinery Protection Systems: Monitors critical parameters in turbines, compressors, and pumps.
-
Process Control Integration: Interfaces with DCS and PLC systems for comprehensive process monitoring.
-
Safety Systems: Implements voting logic for critical safety applications requiring high reliability.
-
Industrial Automation: Used in various industries including oil and gas, power generation, and manufacturing for equipment protection.
Product Advantages
-
Flexible Configuration: Each channel can be independently programmed for specific monitoring functions.
-
High Reliability: Designed for long operational life with robust construction.
-
Seamless Integration: Easily integrates into existing 3500 rack systems without additional hardware.
-
Global Certifications: Meets international standards for use in hazardous environments.
Häufig gestellte Fragen (FAQ)
-
What is the function von the 3500/40M module?
-
It provides four channels for monitoring vibration and position parameters in machinery protection systems.
-
-
Can each channel be configured independently?
-
Yes, each channel can be programmed separately for specific monitoring functions.
-
-
What types von measurements can the module perform?
-
It can measure radial vibration, thrust position, differential expansion, and eccentricity.
-
-
Is the module compatible with hazardous environments?
-
Yes, it has certifications including ATEX, CSA, IECEx, and GOST for use in hazardous areas.
-
-
Where is the module installed in the 3500 rack?
-
It occupies one full-height front slot and requires a corresponding I/O module in the rear slot.
-
-
What is the power supply requirement for the transducers?
-
The module provides a -24 VDC power supply for the transducers.
-
-
What is the output impedance von the module?
-
The output impedance is 550 Ω.
-
-
What is the operational temperature range?
-
The module operates between -30°C and +65°C (-22°F to +150°F).
-
-
Can the module be used in redundant configurations?
-
Yes, multiple modules can be used to provide redundancy in critical applications.
-
-
Is the module compatible with all 3500 series systems?
-
Yes, it is designed to integrate seamlessly with the entire 3500 series.
-
Related Modells from the Same Series (Bently Nevada 3500 Series)
| Modell Number | Beschreibung | Main Function |
| 3500/42M | Proximitor/Seismic Monitor | Monitors radial vibration, thrust, and seismic signals. |
| 3500/44M | Aeroderivative GT Vibration Monitor | Specialized for aeroderivative gas turbines; supports proximity and velocity sensors. |
| 3500/50 | Tachometer Module | Measures shaft speed and calculates zero speed and reverse rotation. |
| 3500/60 | Temperature Monitor | Interfaces with RTDs and thermocouples for temperature measurements. |
| 3500/64M | Dynamic Pressure Monitor | Measures dynamic pressure in combustion chambers, bearings, etc. |
| 3500/22M | Transient Data Interface (TDI) | Collects dynamic waveform and trend data, enabling condition monitoring. |
Popular Bently Nevada Modells (Across Different Systems)
| Modell Number | Beschreibung | Main Function |
| 3300 XL | Proximity Transducer System | Measures shaft position, vibration; used for rotating equipment monitoring. |
| 1900/65A | General Purpose Vibration Monitor | Compact two-channel vibration monitor for simple machinery monitoring. |
| 2300/20 | Balance-von-Plant Equipment Monitor | Low-cost protection for pumps, motors, fans, and other auxiliary equipment. |
| 3701/40 | Machinery Protection System | Compact system for critical equipment; high-performance condition monitoring. |
| 3500/25 | Keyphasor Module | Provides timing reference (phase) for vibration and speed analysis. |
| 3500/33 | 16-Channel Relay Module | Offers relay output capability for alarms and shutdown logic. |
