Product Overview

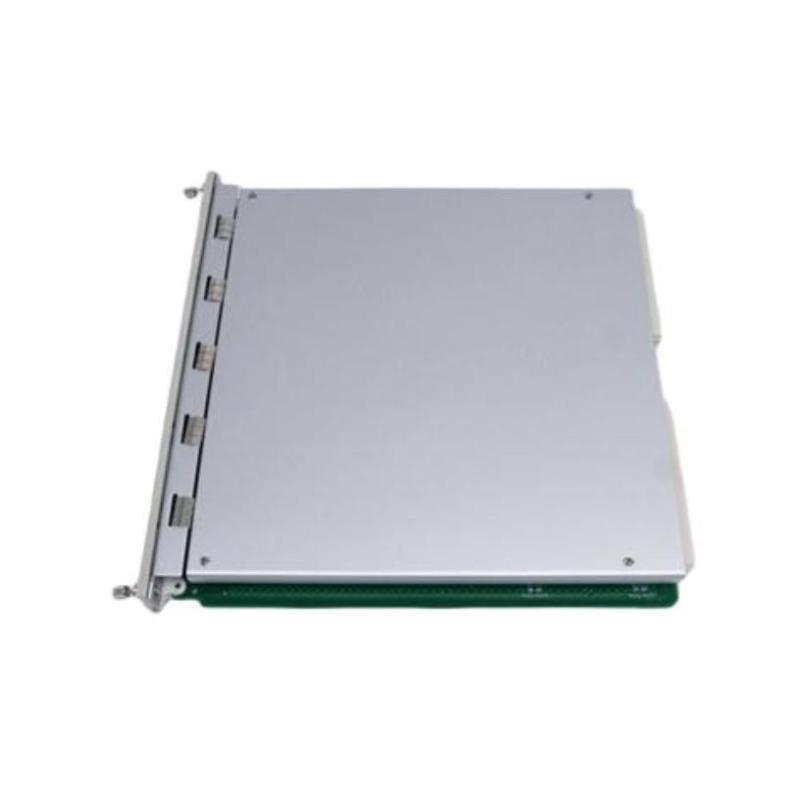

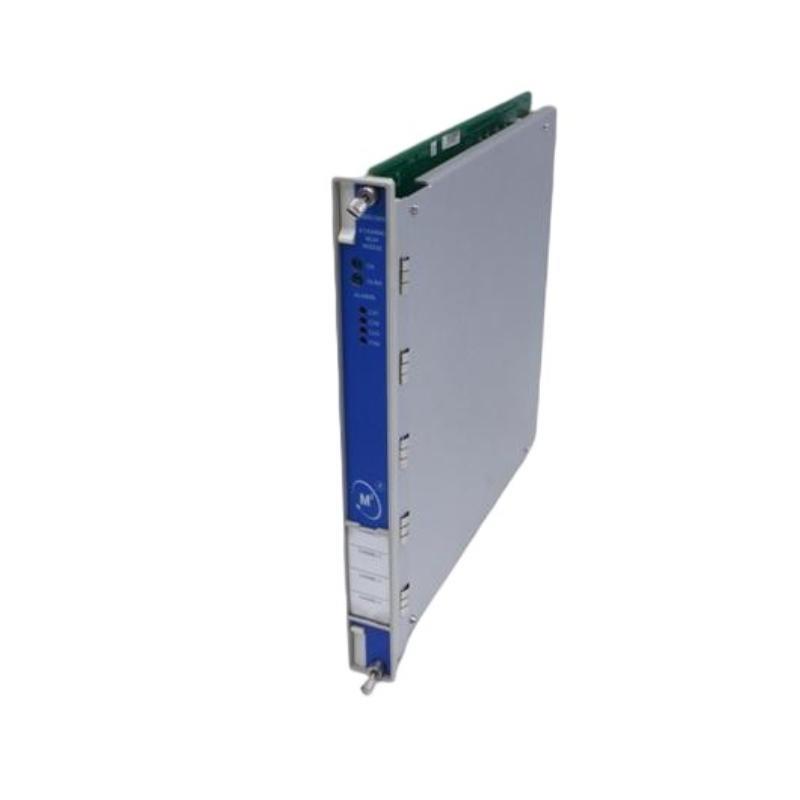

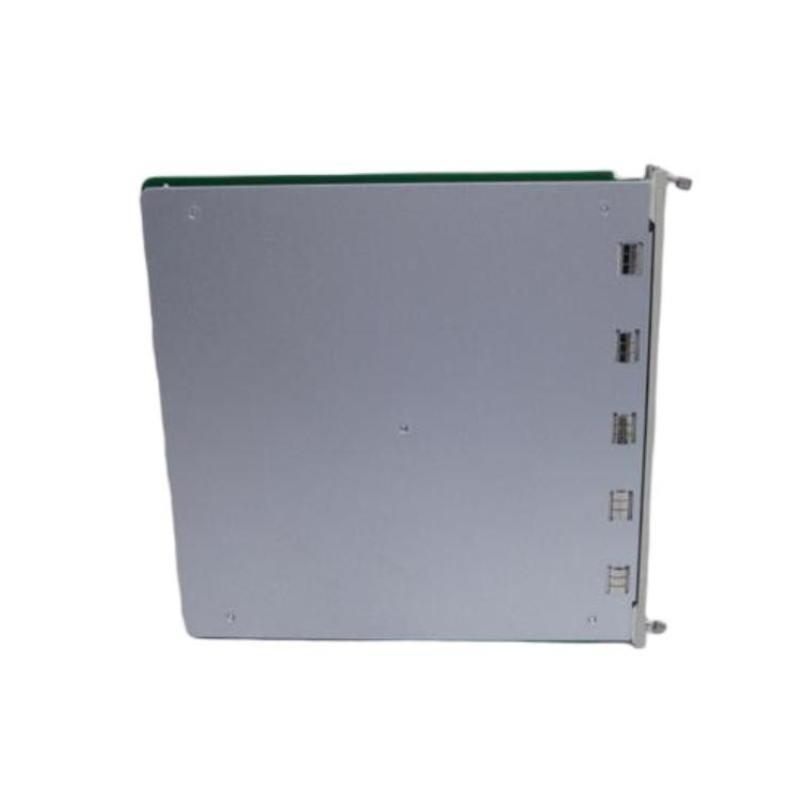

The Bently Nevada 3500/33-01-CN 16-channel Relay Module is part von the 3500 Series Machinery Protection System, providing extensive relay outputs for alarms and trips. It enables operators to interface with multiple external devices simultaneously, supporting critical machinery monitoring and protection.
Key Features
-
16 independent relay channels for alarm and trip signals
-
Part von the Bently Nevada 3500 Series Machinery Protection System
-
Configurable for different relay functions
-
High reliability in harsh industrial environments
-
LED indicators for channel status and diagnostics
-
Compact, rack-mounted design for integration
-
Supports interface with multiple external devices simultaneously
Technical Specifications
| Specification | Details |
|---|---|
| Modell | 3500/33-01-CN |
| Type | 16-channel Relay Module |
| Compatible System | Bently Nevada 3500 Series Machinery Protection System |
| Number von Channels | 16 |
| Relay Kontakt Type | SPDT (Single Pole Double Throw) |
| Maximum Switching Voltage | 250 VAC / 30 VDC |
| Maximum Switching Current | 5 A |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Channel status LEDs |
| Mounting | 3500 series rack |
| Dimensions | 241 x 24.4 x 242 mm |
| Gewicht | 0.7 kg |
Häufig gestellte Fragen (FAQ)
1. What is the main function von the 3500/33-01-CN module?
It provides 16 independent relay channels for alarm and trip outputs.
2. How many channels does it support?
It supports 16 independent relay channels.
3. What type von relay contacts does it use?
It uses SPDT (Single Pole Double Throw) relay contacts.
4. What is the maximum switching voltage and current?
The relays can handle up to 250 VAC or 30 VDC at 5 A.
5. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
6. Does the module have indicators?
Yes, it includes channel status LEDs for diagnostics.
7. Can this module be integrated with other 3500 series modules?
Yes, it integrates fully with other 3500 series monitoring modules.
8. What applications is this module suitable for?
It is suitable for controlling multiple external devices and alarms in machinery protection systems.
