Produkteinführung

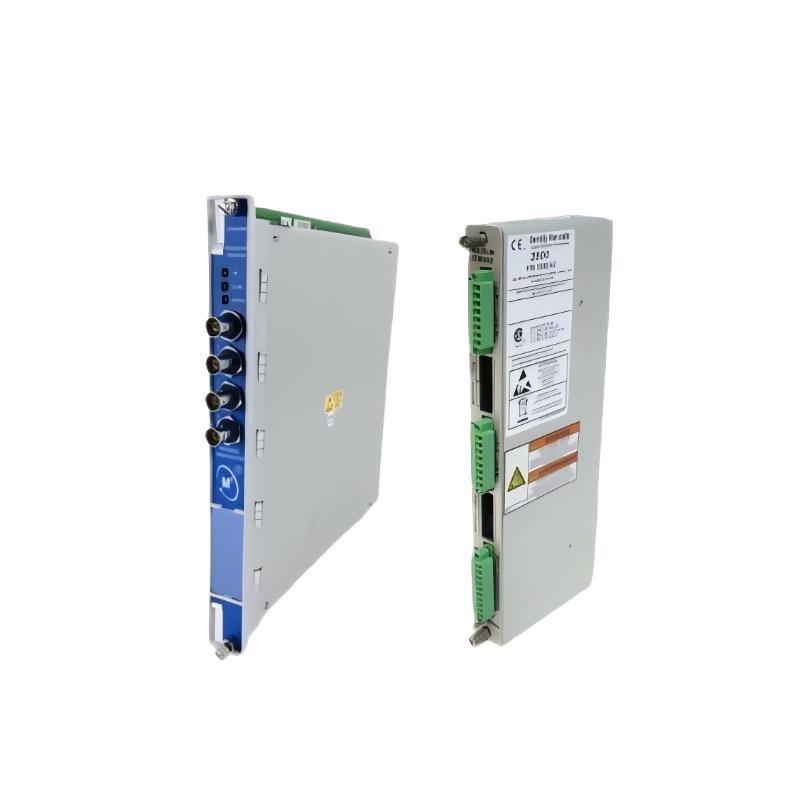

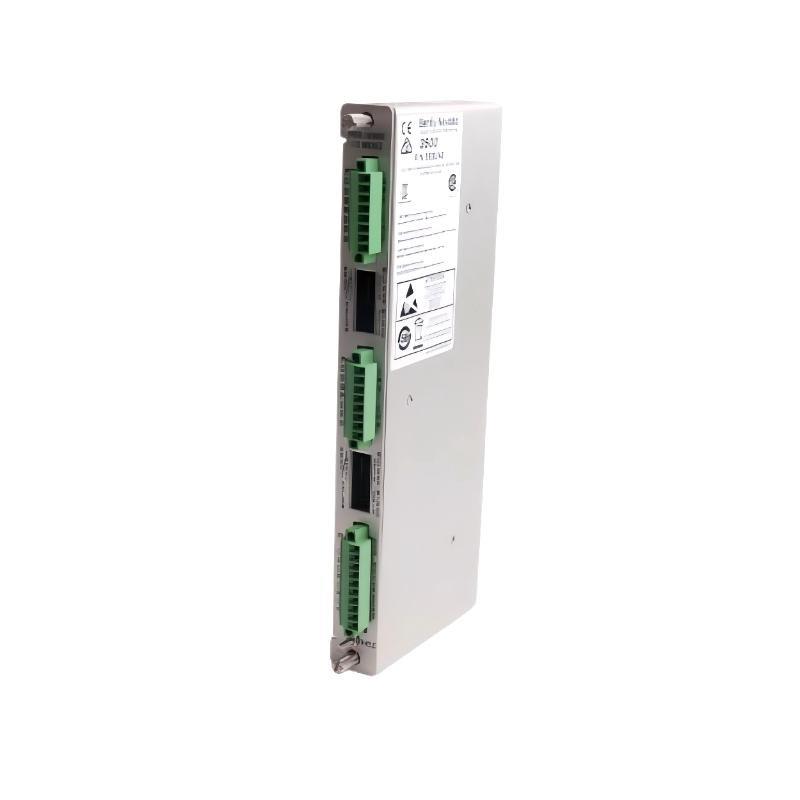

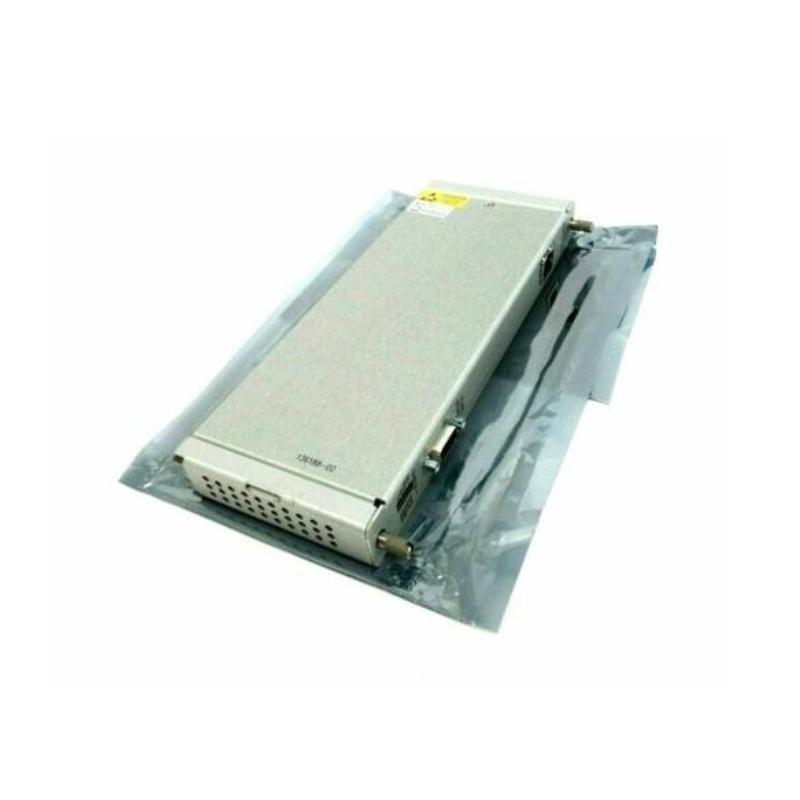

The Bently Nevada 3500/32M 184631-02 is a high-performance 4-channel relay output module designed to meet the needs von critical machinery protection and process control applications. This module is part von the Bently Nevada 3500 series, which is known for its robust and reliable monitoring solutions in harsh industrial environments. The 3500/32M 184631-02 enables fast relay switching and vonfers four independent channels for controlling external devices such as alarms, shutdown systems, and other essential equipment.
Built for use in industries like oil and gas, power generation, and manufacturing, the 3500/32M provides real-time data-driven control, ensuring that external systems are activated or deactivated based on monitored conditions. Whether used in machinery protection or process control, this module enhances safety, reliability, and operational efficiency.
With a compact and durable design, the 3500/32M 184631-02 is engineered for long-term performance, minimizing downtime and maintenance costs. The integration von this relay module into an existing control system ensures seamless operation and reliable response in the most demanding environments.
Produktspezifikationen
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 241 x 24.4 x 99.1 mm |
| Gewicht | 0.4 kg |
| Number von Channels | 4 Channels |
| Relay Type | SPDT (Single Pole Double Throw) |
| Relay Output Rating | 5A @ 30V DC, 1A @ 120/240V AC |
| Coil Voltage | 24V DC |
| Relay Switching Time | < 10 ms |
| Operating Temperature Range | -40°C to +70°C |
| Mounting | DIN Rail or Panel Mountable |
| Environmental Protection | IP20 |
| Isolation | 250V AC between channels |
| Power Supply | 24V DC ±10% |
| Status Indicator | LED indicators for each channel |
Product Applications
The Bently Nevada 3500/32M 184631-02 is suitable for various applications across industries requiring real-time control and protection von machinery. Some von the primary applications include:
-
Machinery Protection
The 3500/32M is designed to work seamlessly with machinery protection systems. By instantly triggering alarms, shutdown systems, or cooling systems based on sensor data, it prevents costly damage to critical machinery, thereby reducing downtime. -
Process Control Systems
In process control systems, the module is used to control external devices such as valves, pumps, and fans. By activating these devices in real-time, the 3500/32M ensures smooth, safe, and efficient operation across various processes. -
Turbine and Compressor Protection
The 3500/32M is ideal for turbine and compressor protection, where it can trigger shutdowns or alarms in case von excessive vibrations, temperature fluctuations, or abnormal pressures. This ensures that turbines and compressors are protected from severe damage. -
Alarm and Warning Systems
The module’s relay channels can be used to trigger alarms, warning systems, or even activate external safety equipment when critical conditions are detected, alerting operators to take immediate corrective action. -
Data Acquisition and Monitoring
The 3500/32M can be integrated into data acquisition systems, where it controls the activation von logging equipment. This ensures that vital process data is captured for future analysis and decision-making. -
Remote Control and Monitoring
For applications requiring remote control, the module can be used to monitor and control devices in hazardous or remote locations, providing operators with the ability to maintain control from a centralized location.
Product Advantages
-
Fast Relay Switching
The 3500/32M 184631-02 provides a relay switching time von less than 10 ms, ensuring immediate response to changes in monitored parameters. This rapid switching is essential for real-time protection and control. -
Four Independent Channels
With four independent channels, the 3500/32M vonfers flexibility in controlling multiple devices simultaneously. Each channel can be configured for different parameters, providing customization for various applications. -
Wide Temperature Range
The 3500/32M operates in temperatures ranging from -40°C to +70°C, making it suitable for installation in both extremely cold and high-temperature environments. -
Compact and Robust Design
Despite its compact dimensions (241 x 24.4 x 99.1 mm), the 3500/32M is built for durability. It is designed to withstand the rigors von industrial environments, providing long-term reliability and reduced maintenance needs. -
Electrical Isolation Between Channels
The module provides 250V AC isolation between its relay channels, which ensures that any electrical faults or interference on one channel will not affect others, increasing system stability and safety. -
LED Status Indicators
Each relay channel is equipped with an LED status indicator, providing clear visual feedback about the operation von the module. This allows for easy monitoring and troubleshooting during operations. -
Easy Installation and Integration
The 3500/32M can be easily mounted on a DIN rail or directly onto a panel, making installation and integration into existing systems quick and straightforward.
FAQ
Q1: How many relay channels does the 3500/32M have?
A1: The 3500/32M has 4 independent relay channels.
Q2: What is the power supply requirement for the 3500/32M?
A2: The module requires a 24V DC power supply with a ±10% tolerance.
Q3: What is the relay output rating for the 3500/32M 184631-02?
A3: The module’s relay output is rated for 5A at 30V DC and 1A at 120/240V AC.
Q4: Can the 3500/32M be used in turbine protection applications?
A4: Yes, it is ideal for turbine protection, helping to protect turbines from excessive vibration or temperature by triggering alarms or shutdowns.
Q5: What is the switching time von the 3500/32M?
A5: The relay switching time is less than 10 ms.
Q6: What is the temperature range for the 3500/32M?
A6: The 3500/32M operates in a temperature range von -40°C to +70°C.
Q7: Can the 3500/32M be used for data logging applications?
A7: Yes, it can be used in data acquisition and monitoring systems to activate data logging equipment based on real-time sensor data.
Q8: How is the 3500/32M mounted?
A8: The module can be mounted on a DIN rail or directly onto a panel, providing flexibility during installation.
Q9: Does the 3500/32M provide electrical isolation between its channels?
A9: Yes, the module vonfers 250V AC isolation between its relay channels, ensuring protection from electrical faults or interference.
Q10: What is the weight von the 3500/32M?
A10: The 3500/32M weighs 0.4 kg.
Recommended Modells
| Modell | Beschreibung |
|---|---|
| 3500/32M 125720-01 | 4-Channel Relay Output Module with enhanced switching performance. |
| 3500/33M | 8-Channel Relay Output Module for larger systems. |
| 3500/34 | 4-Channel Relay Input Module for industrial control systems. |
| 3500/30 | Vibration Monitoring Module with relay outputs. |
| 3500/40 | Advanced Relay Output Module for critical machinery protection. |
| 3500/41M | Multi-purpose relay output module with 8 independent channels. |
Popular Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/40-01-02 | Machinery monitoring module with standard relay outputs |
| 3500/40-01-K0 | Relay output module with integrated diagnostics |
| 3500/40-02-02 | High-performance relay module for critical machinery |
| 3500/40-02-K0 | Advanced relay module with enhanced fault detection |
| 3500/40-03-02 | Industrial relay module with extended output capabilities |
| 3500/40-03-K0 | Relay module for rotating machinery with real-time monitoring |
