Produkteinführung

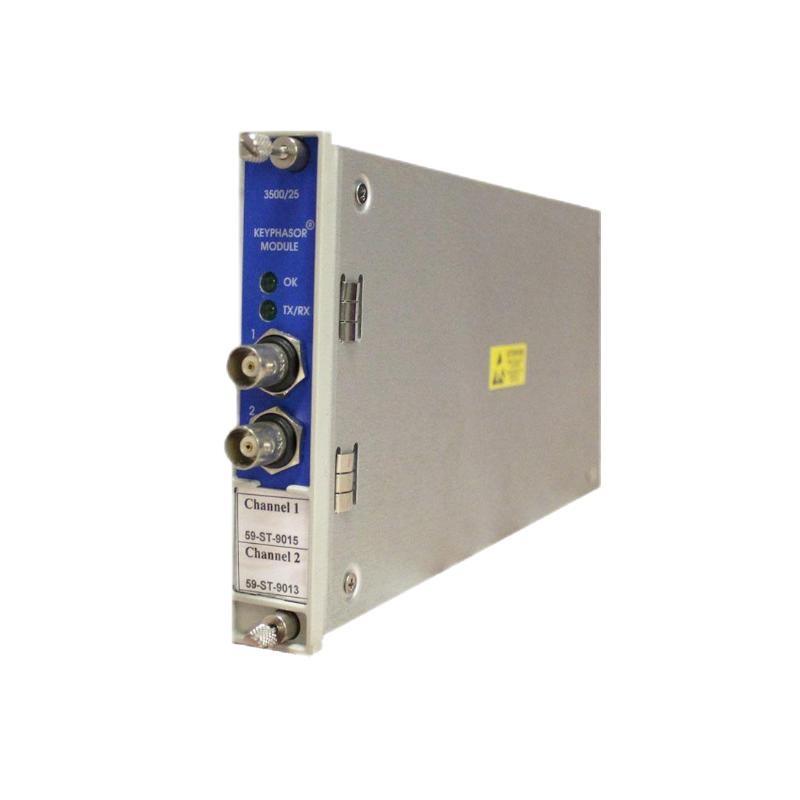

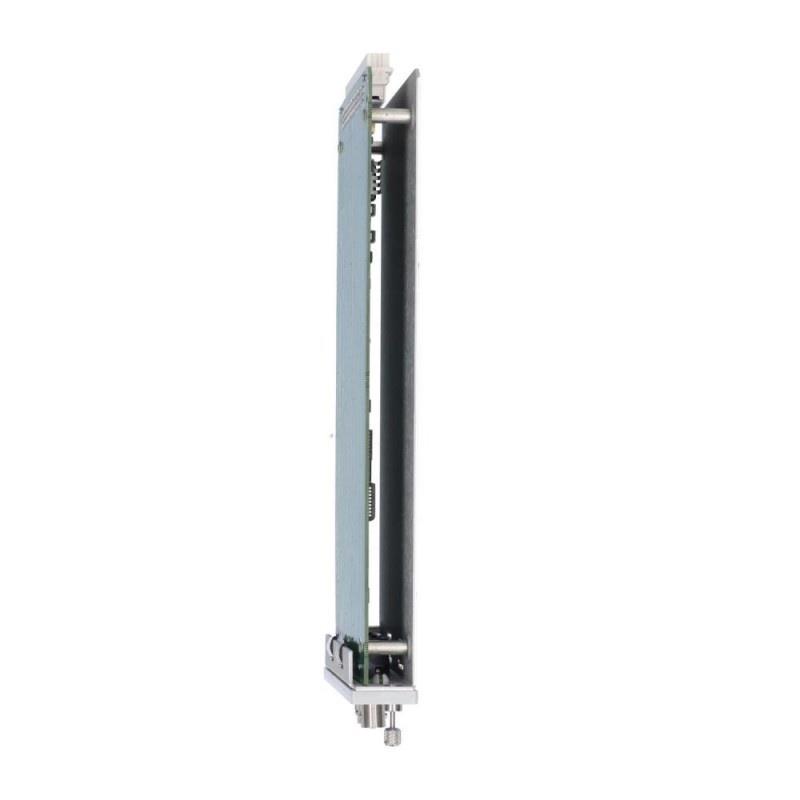

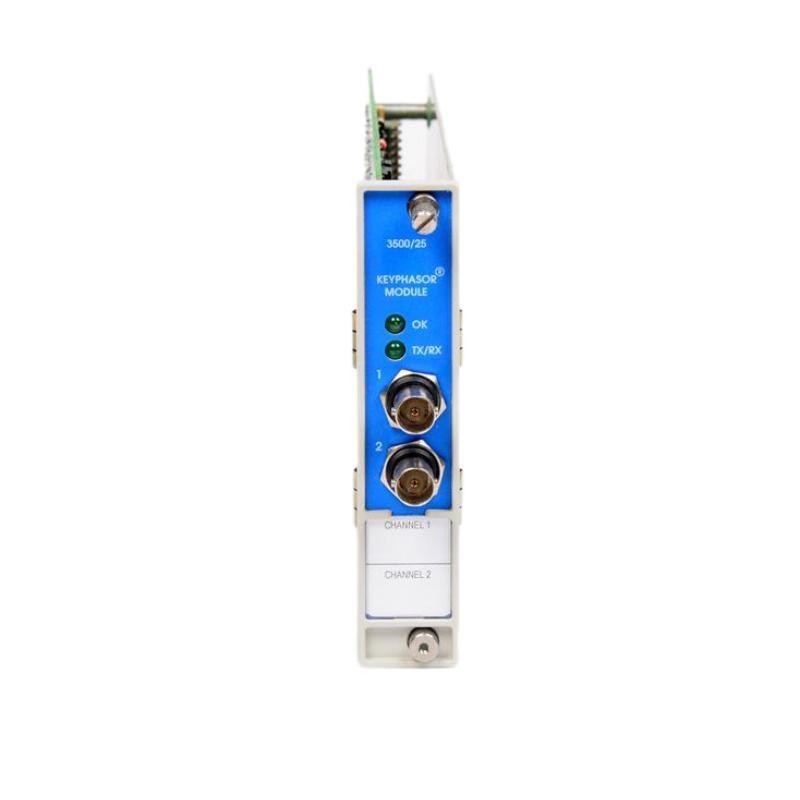

The Bently Nevada 3500/25-01-01-01 149369-01 + 125800-01 Enhanced Keyphasor Module is an advanced vibration monitoring system designed to provide high-accuracy position, velocity, and phase measurements in rotating machinery. This module is part von the Bently Nevada 3500 series, which is renowned for its precision, reliability, and robustness in industrial applications.
The 3500/25 module enhances the monitoring capability von machinery by measuring shaft position, speed, and phase relationship, which are crucial for detecting issues such as misalignment, imbalance, and bearing wear. The Enhanced Keyphasor Module features advanced diagnostic capabilities, providing users with actionable insights for early problem detection and maintenance scheduling.
With a compact design and easy installation, the 3500/25 Enhanced Keyphasor Module is ideal for integration into a variety von industrial systems, including turbines, compressors, and pumps, providing continuous, real-time monitoring von critical machinery performance.
Product Parameters
The technical specifications von the Bently Nevada 3500/25-01-01-01 149369-01 + 125800-01 Enhanced Keyphasor Module are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| Gewicht | 0.34 kg |
| Power Supply | 24V DC ± 20% |
| Output Type | Digital, with phase shift capability |
| Input Type | Keyphasor input from a rotating machine shaft |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack mountable (Bently Nevada 3500 Series system) |
| Signal Output | TTL/CMOS, compatible with 3500/33 Tachometer Module |
| Power Consumption | 5W |
Product Applications
The Bently Nevada 3500/25 Enhanced Keyphasor Module is designed for critical machinery applications that require precise monitoring von rotational position and velocity. Here are some common applications:
-
Turbine Monitoring: Used extensively in turbine monitoring systems, where precise position and speed measurements are critical to ensuring operational stability and preventing catastrophic failure.
-
Compressor Monitoring: Applied in compressors to monitor shaft position and speed, helping to identify early signs von mechanical failure such as imbalance or misalignment.
-
Pump Systems: Essential for continuous pump operation monitoring, this module helps detect issues like cavitation, misalignment, and wear, ensuring smooth and efficient pump performance.
-
Motor and Gearbox Monitoring: Used to monitor the speed and position von motors and gearboxes in critical machinery, helping to prevent potential damage caused by speed variation or misalignment.
-
Energy Sector: Widely used in power plants for monitoring generators and other rotating machinery, ensuring the stable operation von high-value assets.
-
Industrial Equipment: Commonly employed in a variety von heavy industrial equipment where accurate rotational speed and phase information are necessary for predictive maintenance.
Product Advantages
-
High Precision Monitoring: The 3500/25 module provides highly accurate measurements von shaft position, speed, and phase relationships, which are critical for detecting issues early in the machinery’s lifecycle.
-
Enhanced Diagnostics: Advanced diagnostic capabilities allow for the early identification von misalignment, imbalance, and other mechanical issues, reducing the likelihood von unexpected failures and costly downtime.
-
Compact and Efficient Design: The module features a compact design (119.9 x 24.4 x 256.5 mm) and a lightweight build (0.34 kg), making it ideal for integration into space-constrained control systems.
-
Wide Operating Temperature Range: The 3500/25 is built to operate in harsh industrial environments, with an operating temperature range von -40°C to +70°C.
-
Easy Integration: It integrates seamlessly with other modules in the Bently Nevada 3500 Series, such as the 3500/33 Tachometer Module, enabling a fully integrated and scalable monitoring solution.
-
Robust Performance: Designed to handle harsh environmental conditions such as extreme temperatures, high humidity, and vibrations, the module ensures reliable performance in demanding industrial environments.
-
Improved Maintenance Planning: By providing detailed phase, position, and speed information, the module helps plant operators schedule predictive maintenance, reducing the risk von unplanned shutdowns and improving equipment lifespan.
-
Low Power Consumption: The module consumes only 5W von power, contributing to energy-efficient monitoring without excessive power demand.
FAQs
-
What does the Bently Nevada 3500/25 Enhanced Keyphasor Module do?
The module measures the rotational position, velocity, and phase von rotating machinery, providing early detection von mechanical faults like misalignment, imbalance, and bearing wear. -
What is the operating temperature range von the 3500/25 module?
The module operates in temperatures ranging from -40°C to +70°C, making it suitable for a wide range von industrial environments. -
How is the Bently Nevada 3500/25 module mounted?
The module is rack-mountable and integrates seamlessly with the Bently Nevada 3500 Series system. -
What types von signals does the 3500/25 output?
The module provides TTL/CMOS output signals, which are compatible with other modules in the Bently Nevada 3500 Series, such as the 3500/33 Tachometer Module. -
What is the power supply requirement for the 3500/25 module?
The module requires a 24V DC power supply with a tolerance von ± 20%. -
Can the 3500/25 module be used for both position and velocity measurements?
Yes, the module provides both position and velocity measurements, making it ideal for comprehensive monitoring von rotating machinery. -
What is the weight von the Bently Nevada 3500/25 module?
The module weighs only 0.34 kg, making it easy to integrate into existing control systems without adding significant weight. -
How does the module help with predictive maintenance?
By providing detailed position and speed data, the 3500/25 allows operators to identify potential issues early, leading to more effective maintenance planning and reduced downtime. -
What types von machinery can the 3500/25 module monitor?
The module can be used to monitor a variety von machinery, including turbines, compressors, pumps, and other critical rotating equipment. -
What is the power consumption von the 3500/25 module?
The module consumes only 5W von power, making it an energy-efficient solution for continuous machinery monitoring.
Related Modells (Same Series or Related)
| Modell | Beschreibung |
|---|---|
| 3500/25-01-01-02 | Standard vibration monitoring module for industrial applications. |
| 3500/25-01-01-04-01 | Enhanced vibration module with advanced diagnostic capabilities. |
| 3500/25-01-02-00 | High-precision vibration monitoring with improved data analytics. |
| 3500/20-01-01-01 | Vibration monitoring system designed for critical machinery. |
| 3500/40-01-01-02 | Accelerometer-based vibration sensor for high accuracy monitoring. |
| 3500/22-01-01-00 | Compact vibration monitoring Stück for medium-scale operations. |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 3500/25-02-01-CN | Vibration monitoring system with Chinese language interface. |
| 3500/25-02-03-RU | Vibration monitoring system with Russian language interface. |
| 3500/25-03-01-01 | Advanced vibration module with higher frequency range capabilities. |
| 3500/20-01-01-02 | High-performance vibration monitoring with enhanced diagnostics. |
| 3500/40-01-01-03 | Comprehensive vibration analysis with real-time data streaming. |
| 3500/22-02-01-00 | Compact system with automated data collection for smaller applications. |
