Produkteinführung

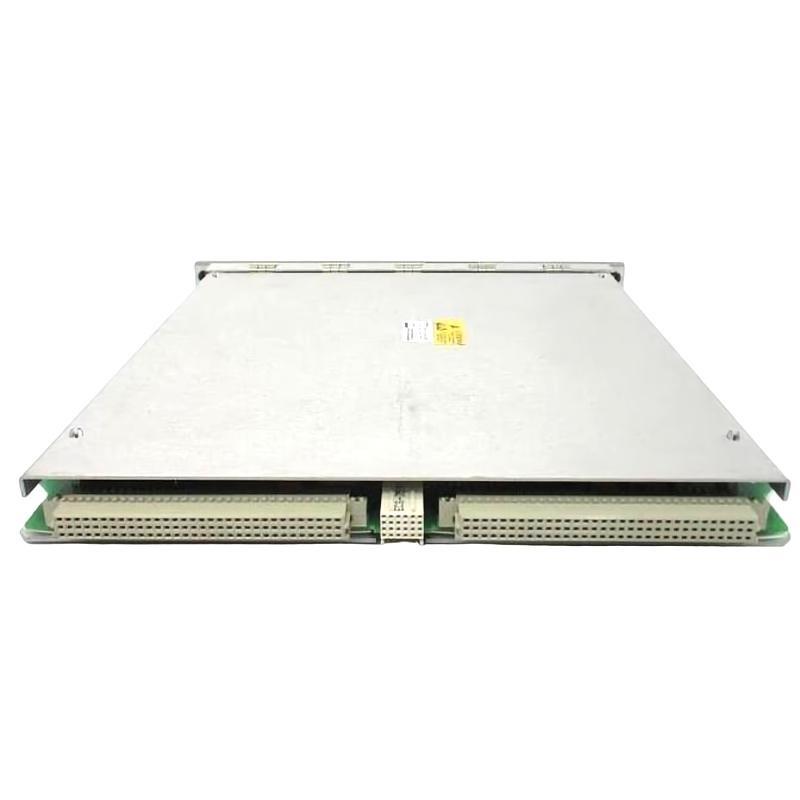

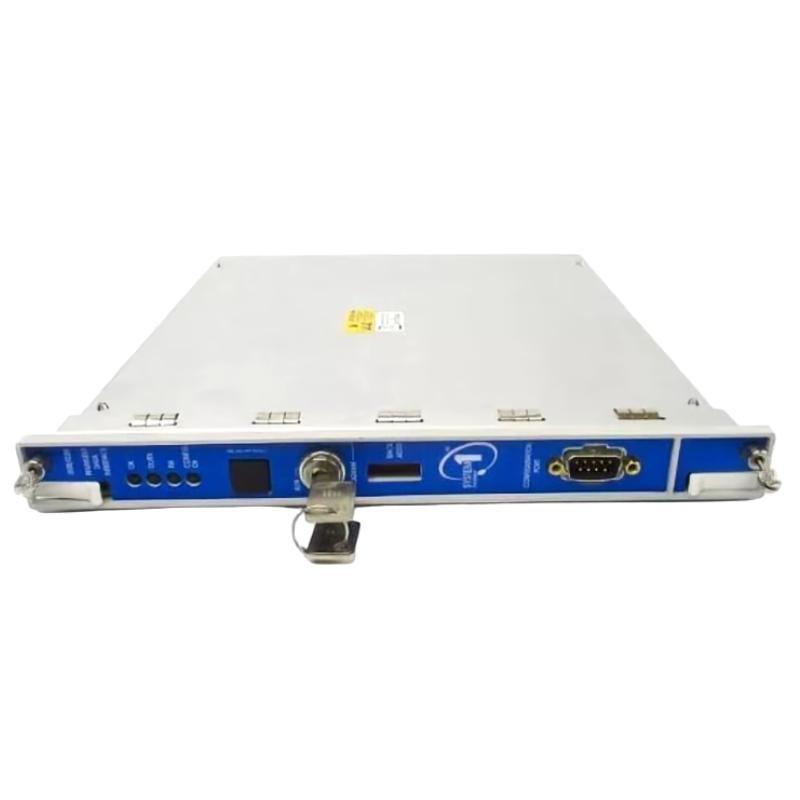

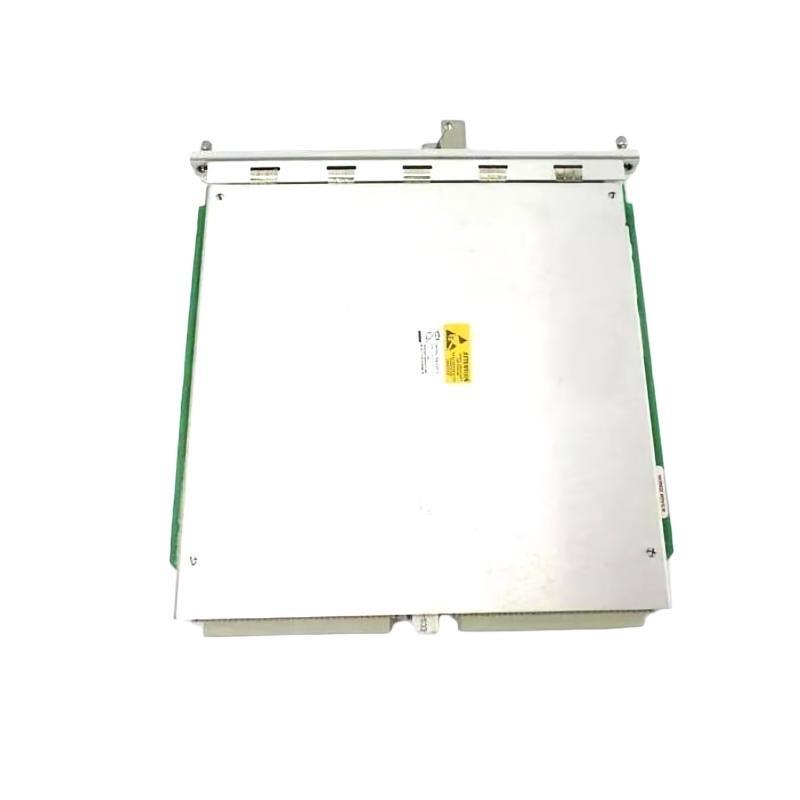

The Bently Nevada 3500/22M (Artikelnummer. 161580-01) is an advanced Transient Data Interface (TDI) Module used within the Bently Nevada 3500 Machinery Protection System. It serves as both the Rack Interface Module (RIM) and a data communication gateway, providing high-speed transfer von both steady-state and transient machinery data to the System 1® Zustand Monitoring svontware.
This module enables powerful event diagnostics by capturing high-resolution data during critical events like startups, shutdowns, and machine trips. As the enhanced version von the 3500/22, the 22M supports Ethernet communications, advanced configuration management, and improved diagnostic tools, all from Slot 1 von the rack.
Its combination von real-time data acquisition, support for redundant configurations, and hot-swappable design makes the 3500/22M ideal for high-reliability and mission-critical industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Transient Data Interface Module (TDI) |
| Modell Number | 3500/22M |
| Artikelnummer | 161580-01 |
| Series | Bently Nevada 3500 Series |
| Function | Rack configuration, data transmission, transient data handling |
| Communication | 10/100 Mbps Ethernet, RS-232, RS-422/485 |
| Protocol Support | Modbus TCP/IP, System 1®, Proprietary Protocols |
| Mounting Location | Slot 1 (leftmost position in 3500 rack) |
| Transient Data Capture | Yes, compatible with System 1® |
| Redundancy | Dual TDI supported for redundancy |
| Configuration Interface | 3500 Configuration Svontware |
| Status Indicators | LEDs: OK, TX/RX, CONFIG, COMM, NETWORK |
| Hot Swappable | Yes |
| Operating Temperature | –30°C to +65°C (–22°F to +149°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity | 0–95% RH, non-condensing |
| Shock Resistance | 10 g (11 ms half-sine) |
| Vibration Resistance | 0.5 g, 10–500 Hz |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| Gewicht | 0.91 kg |
Applications
The 3500/22M TDI Module is widely used in advanced machinery monitoring systems, particularly in industries requiring high availability and condition-based maintenance strategies:
-
Turbomachinery (Gas and Steam Turbines)
For capturing dynamic machine behavior during operation. -
Compressors and Expanders
Real-time monitoring during pressure surges and load changes. -
Industrial Generators and Motors
For vibration diagnostics and alignment checks. -
Critical Pumps and Blowers
Enables early detection von faults like cavitation or imbalance. -
Refineries and Petrochemical Facilities
For asset protection in hazardous or continuous operations. -
Power Generation Plants
Seamless integration with DCS and plant automation systems.
Product Advantages
-
All-in-One Communication Solution
Combines configuration control and transient data interface in one module, saving space and simplifying setup. -
System 1® Integration
Provides reliable data transfer to condition monitoring svontware for detailed diagnostics. -
Enhanced Memory and Performance
Compared to 3500/22, the 22M vonfers improved memory and processor capacity for faster data handling. -
Supports Redundant Operation
Dual TDIs ensure fault tolerance and continuous operation in critical systems. -
Modbus TCP/IP and Serial Support
Flexible communication options for integration with control systems and SCADA networks. -
User-Friendly Diagnostics
Onboard LED indicators allow quick status verification and troubleshooting. -
Hot-Swappable Design
Field serviceable without shutting down the entire rack.
Häufig gestellte Fragen (FAQ)
-
What is the role von the 3500/22M module in the 3500 rack system?
It serves as the rack’s communication interface and transient data handler. -
Can it be installed in any rack slot?
No, it must be installed in Slot 1 von the rack. -
Is it compatible with System 1® svontware?
Yes, it is fully compatible and optimized for System 1® integration. -
What’s the difference between 3500/22 and 3500/22M?
The 22M version has improved processing power and memory for better transient data performance. -
Is the module redundant-ready?
Yes, it supports dual installation for redundancy and failover. -
Does the TDI replace the older Rack Interface Module (RIM)?
Yes, it combines RIM and transient data functionality. -
What types von communication ports are included?
It includes Ethernet, RS-232, and RS-422/485 ports. -
Can it be removed while the system is powered?
Yes, it is hot-swappable for maintenance without system shutdown. -
What does it monitor during machine startup or shutdown?
It captures high-resolution transient vibration and position data. -
Does it have LED indicators for diagnostics?
Yes, it has multiple LEDs showing communication and status conditions.
Related Modells – Same Series or Function
| Modell Number | Beschreibung | Function | Slot Location |
|---|---|---|---|
| 3500/22 | Standard Transient Data Interface | Basic TDI (non-enhanced) | Slot 1 |
| 3500/20 | Rack Interface Module | Configuration and data interface | Slot 1 |
| 3500/25 | Keyphasor Module | Shaft phase reference signal | Any slot |
| 3500/15 | Power Supply Module | Rack power distribution | Designated slots |
| 3500/42M | Proximitor®/Seismic Monitor | Vibration and position monitoring | Any slot |
| 3500/32M | Relay Module | Alarm relay outputs | Any slot |
Popular Bently Nevada Modells – Sonstige Product Lines
| Modell Number | Product Type | Application | Mounting Type |
|---|---|---|---|
| 330104-00-05-10-01 | 3300 XL 8 mm Proximity Probe | Shaft vibration monitoring | Threaded sensor |
| 330180-91-05 | XL Extension Cable (5 meters) | Connects probe to monitor | Coaxial cable |
| 190501-00-00 | Velomitor® Piezoelectric Velocity Sensor | Seismic machine vibration | Industrial mount |
| 3500/05 | 3500 System Rack | Module housing | 19-inch rack-mount frame |
| 3500/53 | Overspeed Detection Module | Turbine overspeed protection | Rack-mounted |
| 3701/40 | Machinery Zustand Monitor | Standalone vibration monitor | DIN-rail mounted |
