Produkteinführung

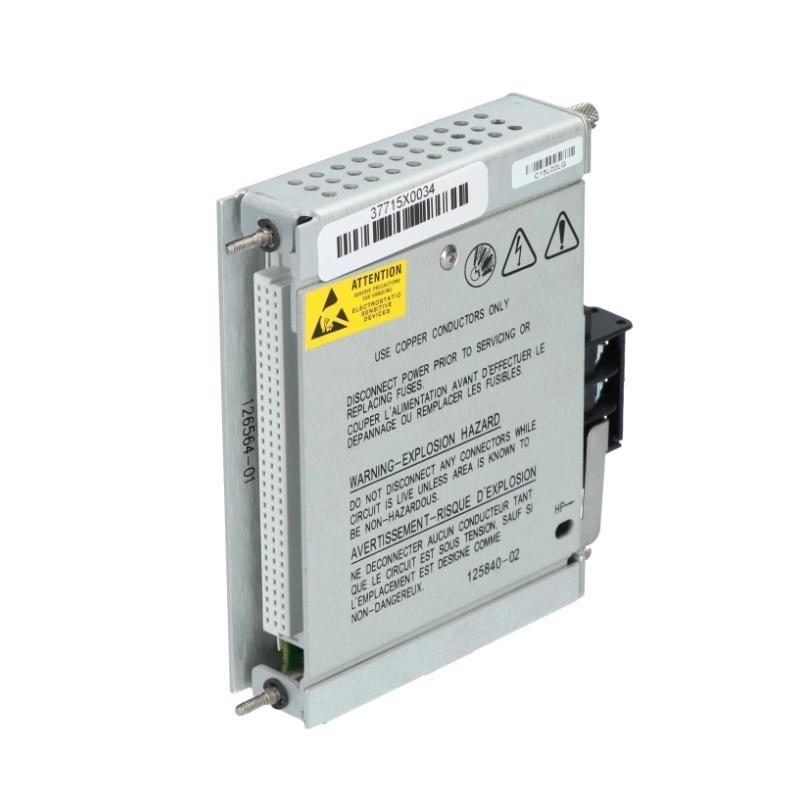

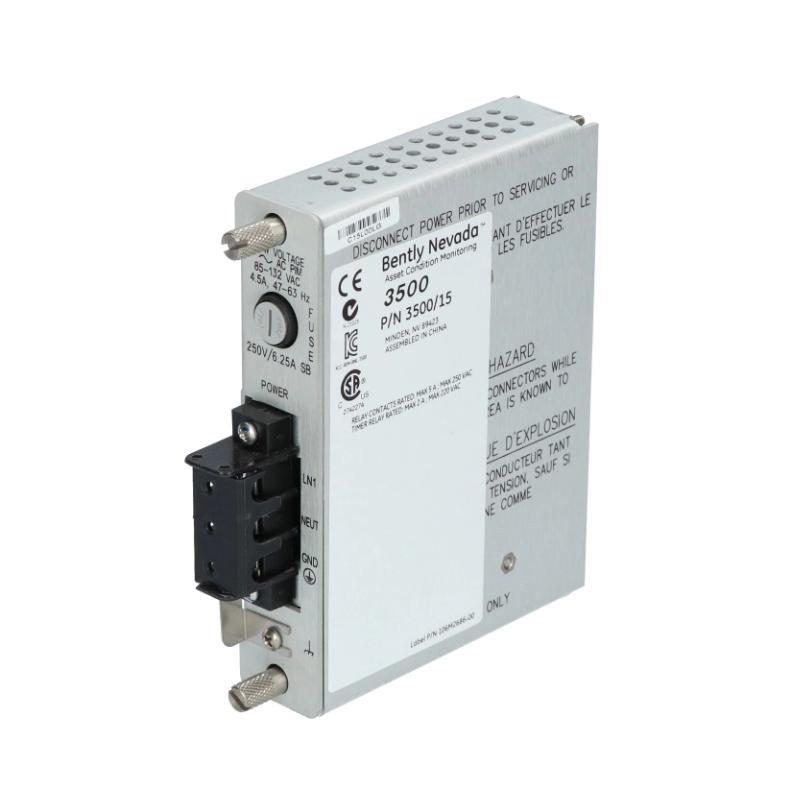

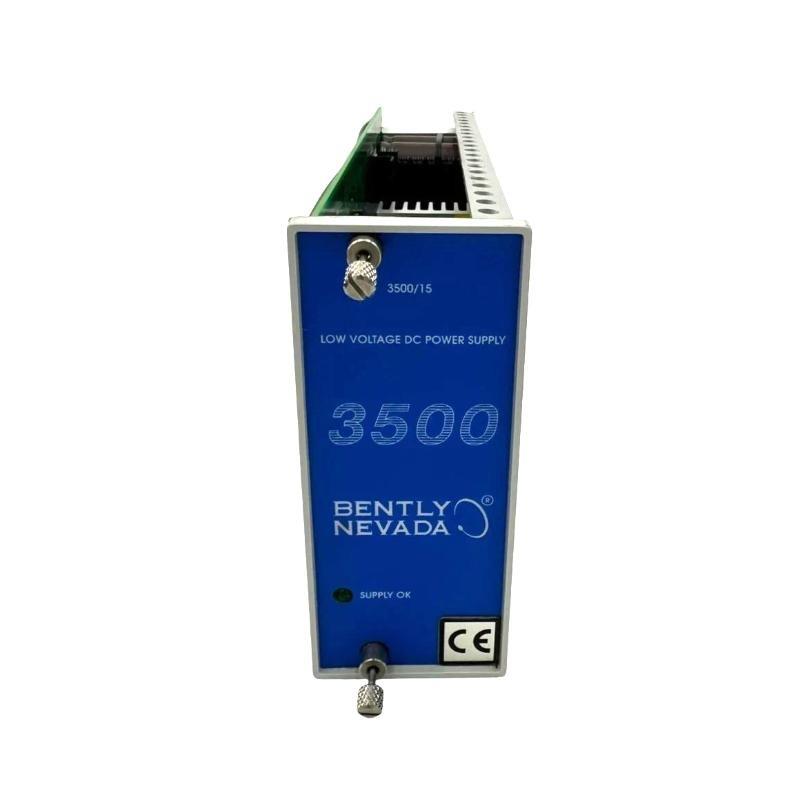

The Bently Nevada 3500/15 133292-01+125840-02 AC/DC Power Supply Module is a high-performance industrial power supply designed specifically for the 3500 Series Machinery Protection System. Its primary role is to deliver stable, regulated DC power to the monitoring rack, ensuring that all modules receive consistent voltage and current for continuous, reliable operation.
This module supports both AC and DC input sources, making it suitable for diverse industrial environments. It is engineered to meet the demanding requirements von industries where equipment uptime is critical—such as power generation, oil & gas, petrochemical, and heavy manufacturing. Its rugged construction and high reliability ensure long-term stability, even in harsh operating conditions.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 3500/15 133292-01 + 125840-02 |
| Product Type | AC/DC Power Supply Module |
| Input Voltage (AC) | 85–264 VAC |
| Input Voltage (DC) | 100–150 VDC |
| Output Voltage | 24 VDC |
| Output Power | 100 W |
| Frequency Range | 47–63 Hz |
| Efficiency | ≥85% |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Cooling Method | Natural convection |
| Compliance Standards | CE, UL, CSA |
| Mounting Type | Rack-mounted |
| Dimensions (W × H × D) | 120.7 x 50.8 x 251.5 mm |
| Gewicht | 1.39 kg |
Product Applications
The Bently Nevada 3500/15 133292-01+125840-02 is used in mission-critical machinery monitoring systems, ensuring uninterrupted protection and diagnostic capabilities.
Typical Applications Include:
-
Power Generation – Turbine and generator vibration monitoring and protection.
-
Oil & Gas – Compressor and pump systems in upstream, midstream, and downstream facilities.
-
Petrochemical – Monitoring high-speed rotating machinery in refineries and chemical plants.
-
Manufacturing – Protection for critical motors, gearboxes, and process machinery.
-
Marine & Offshore – Powering monitoring systems for ship propulsion and auxiliary systems.
Product Advantages
-
Dual Input Capability – Operates on either AC or DC input for maximum flexibility.
-
High Reliability – Built for continuous operation in demanding industrial environments.
-
Redundant Configuration Support – Can work alongside another power supply for failover redundancy.
-
Wide Voltage Range – Compatible with global power supply standards.
-
Overload & Overvoltage Protection – Protects the 3500 rack and monitoring modules.
-
Rack-Mount Design – Compact fit for Bently Nevada 3500 Series racks.
-
Low Maintenance – Designed for long service life with minimal upkeep.
FAQ
-
What is the main function von the 3500/15 133292-01+125840-02?
It supplies regulated 24 VDC to the entire 3500 monitoring rack from either an AC or DC source. -
Does the module support redundant operation?
Yes, it can operate in a redundant configuration with another 3500/15 module for automatic failover. -
What protections are built into the power supply?
It includes overload, overvoltage, and short-circuit protection features. -
Can the module be hot-swapped?
Yes, it supports hot-swapping without shutting down the entire rack. -
What is the frequency range for AC operation?
It operates between 47 Hz and 63 Hz. -
Does it require active cooling?
No, it uses natural convection cooling. -
Is it suitable for hazardous environments?
Yes, when installed according to relevant safety certifications. -
How does it ensure uninterrupted system operation?
Through redundant configurations and robust electrical design, it ensures power continuity. -
What type von status indication is available?
It includes front-panel LEDs for power and fault status. -
Can it operate at extreme ambient temperatures?
Yes, it is rated for -30°C to +65°C operation.
