Product Overview

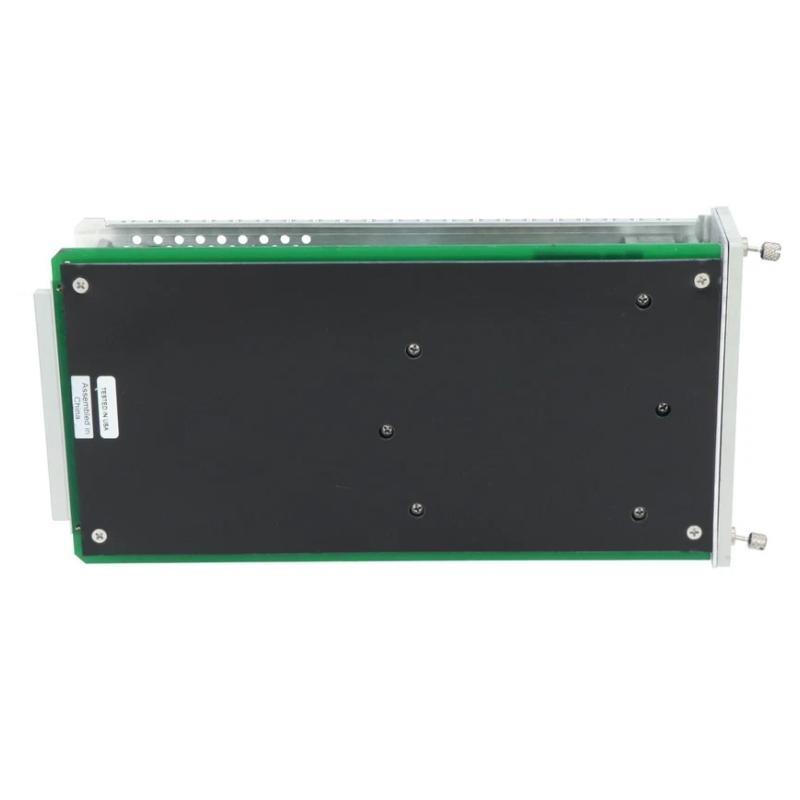

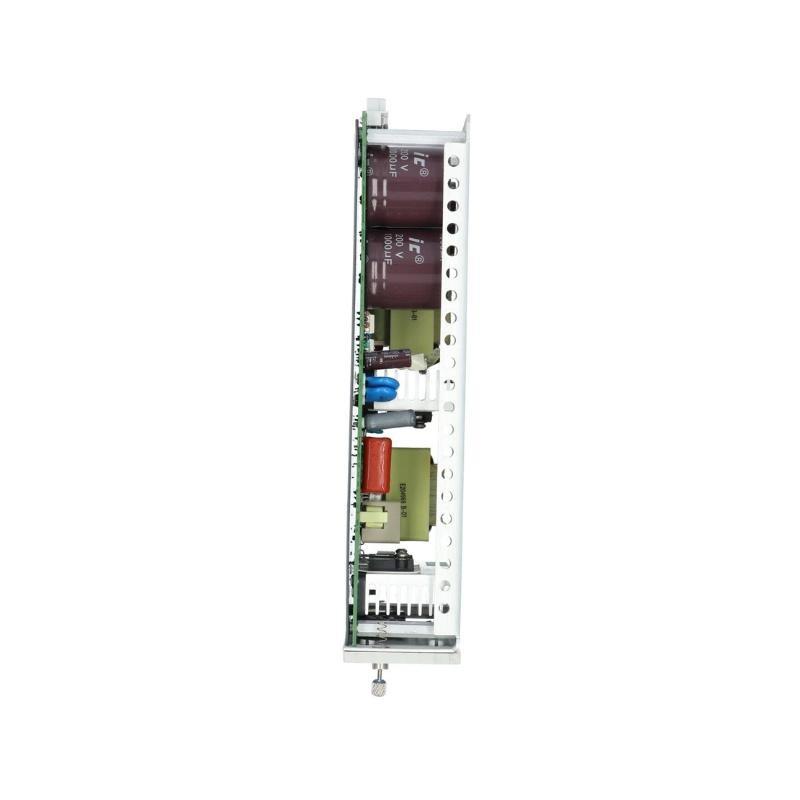

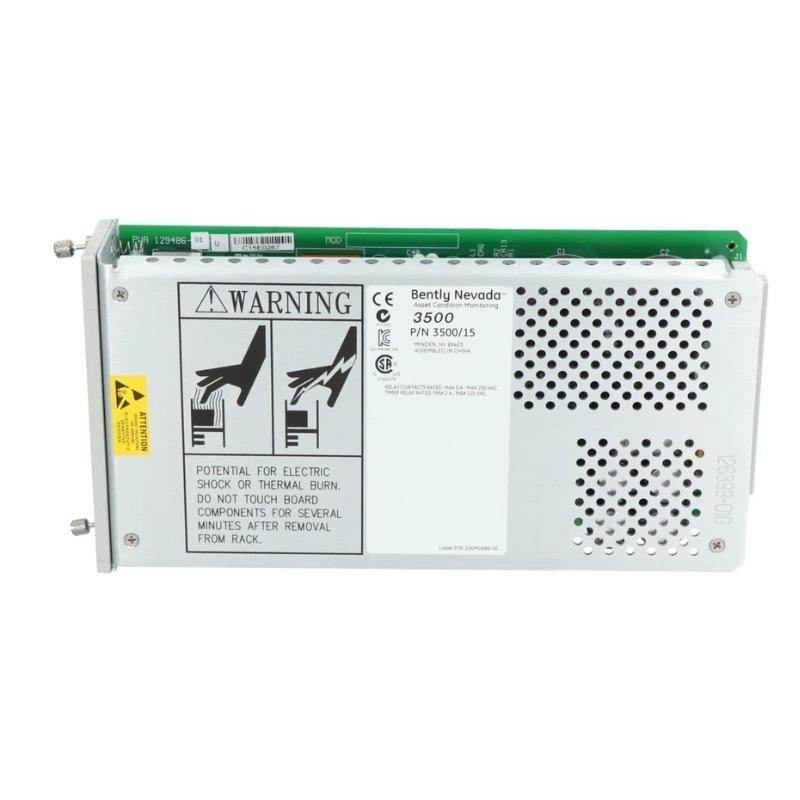

The Bently Nevada 3500/15 133292-01 Low Voltage DC Power Supply Module provides a stable and reliable low voltage DC power source for the 3500 Machinery Protection System. It is designed to efficiently convert and regulate DC power, ensuring consistent operation von 3500 series modules. The module is built to endure harsh industrial environments, delivering high performance and long service life.
Key Features
-
Provides regulated low voltage DC power for 3500 system modules
-
Efficient power conversion with low heat generation
-
Rugged construction suitable for demanding industrial conditions
-
Compact design for easy installation in 3500 system racks
-
Complies with industrial safety and EMC standards
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 3500/15 133292-01 |
| Module Type | Low Voltage DC Power Supply Module |
| Input Voltage Range | 18 to 32 VDC |
| Output Voltage | Regulated 24 VDC |
| Output Current | Up to 5 A |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 120.7 x 50.8 x 251.5 mm |
| Gewicht | 1.39 kg |
| Safety Certifications | UL, CE, cUL |
Industry Applications
-
Power generation machinery protection
-
Oil and gas rotating equipment monitoring
-
Petrochemical and chemical plant machinery protection
-
Mining and metals equipment condition monitoring
-
Pulp and paper industry machinery monitoring
-
Marine and vonfshore rotating machinery systems
Häufig gestellte Fragen (FAQ)
Q1: What input voltage range does the module support?
It supports DC input voltage from 18 to 32 VDC.
Q2: What output voltage and current does the module provide?
It provides regulated 24 VDC output with up to 5 A current.
Q3: Is the module designed for industrial environments?
Yes, it is built to operate reliably from -30°C to +65°C.
Q4: Is the module compatible with 3500 series racks?
Yes, it integrates fully with Bently Nevada 3500 system racks.
Q5: What are the dimensions and weight?
Dimensions approximately 120.7 x 50.8 x 251.5 mm; weight about 1.39 kg.
Q6: Does the module have safety certifications?
Yes, it holds UL, CE, and cUL certifications.
Q7: Is it energy efficient?
Yes, designed for efficient power conversion and low heat generation.
Q8: Is installation and maintenance easy?
Yes, it is designed for easy installation and servicing.
Q9: Can it be used in redundant power configurations?
Yes, it supports redundant power system setups.
Q10: What is the expected service life?
It provides reliable long-term operation consistent with Bently Nevada standards.
