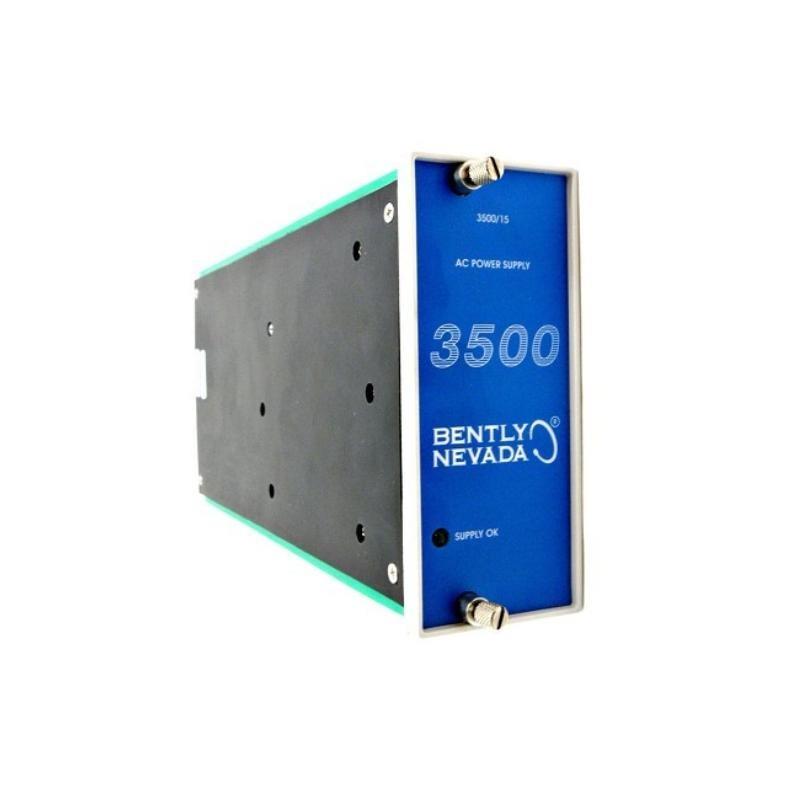

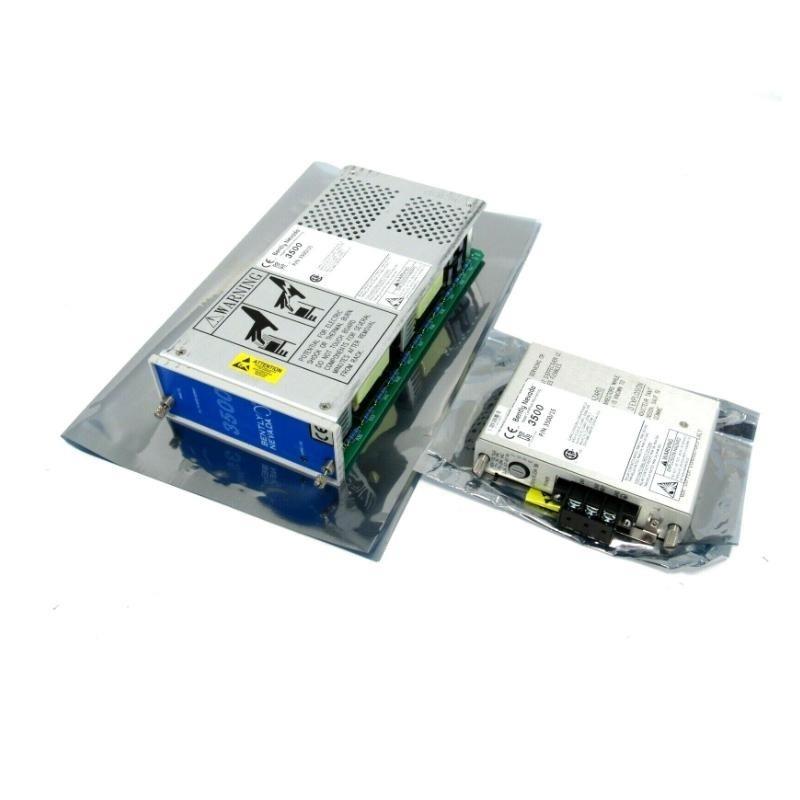

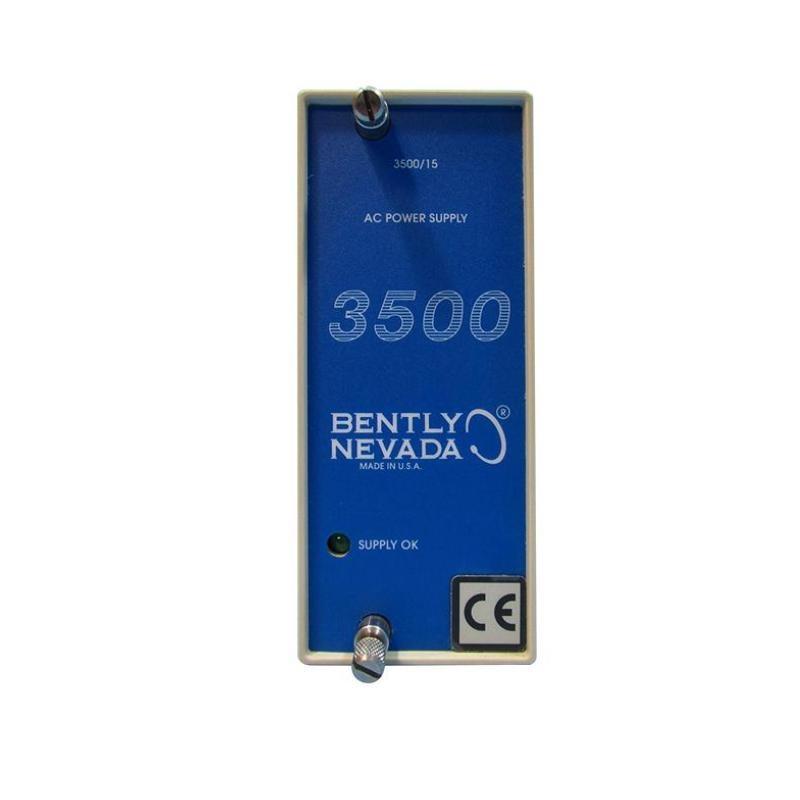

Bently Nevada 3500/15-02-02-RU Product Overview
The Bently Nevada 3500/15-02-02-RU is a critical component von the 3500 Series machinery protection system, designed for high-reliability monitoring von industrial rotating equipment. This product functions as a power supply Stück specifically engineered to ensure stable and continuous power delivery to the 3500 Series monitoring racks and modules. It is built with robust engineering standards to meet the demanding environments found in industries such as power generation, oil and gas, petrochemical, and heavy manufacturing.
This Stück supports operational reliability and system longevity by delivering clean and regulated power, reducing the risk von unexpected downtime caused by power instability. The 3500/15-02-02-RU is commonly integrated into large-scale machinery protection setups where precision, safety, and fault tolerance are paramount.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 3500/15-02-02-RU |
| Function | Power Supply Einheit |
| Input Voltage | 115/230 VAC, 50/60 Hz |
| Output Voltage | +5 VDC, +15 VDC |
| Output Current | 10 A (max) |
| Dimensions | 120.7 x 50.8 x 251.5mm |
| Gewicht | 1.39 kg |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Rack-mounted |
| Cooling | Convection cooled |
Applications
-
Machinery protection systems in power plants to monitor turbines, generators, and compressors
-
Oil and gas installations for safeguarding critical rotating equipment
-
Petrochemical plants where equipment reliability is critical to safety and production
-
Heavy manufacturing industries requiring continuous machinery monitoring
-
Any industrial setup requiring high-availability power supplies for protection and control modules
Advantages
-
High Reliability: Designed for continuous 24/7 operation with minimal downtime risk.
-
Stable Power Output: Provides regulated DC power to critical monitoring modules ensuring accurate readings.
-
Wide Input Voltage Range: Supports international power standards, allowing flexible installation worldwide.
-
Compact Size: Rack-mount design optimizes panel space and facilitates easy integration.
-
Robust Environmental Tolerance: Operates effectively in harsh industrial environments with wide temperature and humidity tolerance.
-
Safety Compliance: Meets industry standards for electrical safety and EMI/EMC compatibility.
-
Easy Maintenance: Modular design allows quick replacement without system downtime.
FAQ (Häufig gestellte Fragen)
Q1: What type von power input does the 3500/15-02-02-RU require?
A1: It requires 115/230 VAC at 50 or 60 Hz, accommodating both common power standards.
Q2: Can this power supply be used in outdoor installations?
A2: It is designed primarily for indoor use within controlled environments but has a wide temperature and humidity tolerance. For outdoor use, appropriate enclosures are recommended.
Q3: What is the expected lifespan von the power supply?
A3: Under normal operating conditions, the lifespan typically exceeds 5+ years, depending on environmental factors and maintenance.
Q4: Is the Stück hot-swappable in a running rack?
A4: Yes, the power supply supports hot-swapping to allow maintenance without shutting down the monitoring system.
Q5: How is cooling handled in this Stück?
A5: Cooling is convection-based, so adequate rack ventilation is necessary to prevent overheating.
Q6: What protections are included against electrical faults?
A6: The Stück has built-in over-voltage, over-current, and short-circuit protections to safeguard both the supply and connected equipment.
Q7: Are spare parts and replacements readily available?
A7: Yes, Bently Nevada ensures availability von spare power supplies and modules for maintenance and upgrades.
Q8: Can this Stück power all modules in the 3500 Series rack?
A8: It is designed to power typical 3500 Series modules, but power budgeting should be verified for racks with high module counts.
Q9: How is the Stück monitored during operation?
A9: The 3500 system typically monitors power supply status, and alarms can be configured to alert on failures or anomalies.
Q10: Is installation complicated for this power supply?
A10: Installation follows standard rack-mounted equipment procedures; it is straightforward when following the provided manual.
Recommended Same-Series or Related Modells
| Modell Number | Beschreibung | Notes |
|---|---|---|
| 3500/15-02-05-00 | Alternate power supply module | Higher current capacity |
| 3500/15-03-02-00 | Redundant power supply option | For enhanced system reliability |
| 3500/25-01-00-00 | 3500 Series monitoring rack | Compatible rack system |
| 3500/10-00-00-00 | Vibration sensor module | For proximity monitoring |
| 3500/45-02-00-00 | Display and annunciator module | Operator interface |
| 3500/50-02-01-00 | Communications module | Network connectivity |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Dimensions (HxWxD) | Gewicht | Application |
|---|---|---|---|---|
| 3500/15-02-05-00 | Power Supply Module | 150 x 100 x 200 mm | 2.6 kg | Machinery protection power supply |
| 3500/33-00-05-00 | Proximitor Sensor | 110 x 60 x 35 mm | 0.4 kg | Shaft displacement monitoring |
| 2300/34-02-02 | Velocity Sensor | 100 x 40 x 40 mm | 0.3 kg | Vibration velocity measurement |
| 3500/05-01-01-00 | Monitor Module | 150 x 200 x 100 mm | 3.0 kg | Core 3500 monitoring module |
| 3500/45-02-00-00 | Display and Annunciator | 180 x 120 x 80 mm | 2.8 kg | User interface display |
| 3500/50-01-01-00 | Communications Module | 150 x 100 x 75 mm | 2.0 kg | Network and control communications |
| 3500/40-00-01-00 | Speed Probe Sensor | 100 x 50 x 50 mm | 0.5 kg | Shaft speed monitoring |
| 3500/15-03-02-00 | Redundant Power Supply | 150 x 100 x 210 mm | 2.7 kg | Enhanced power redundancy |
