Product Overview

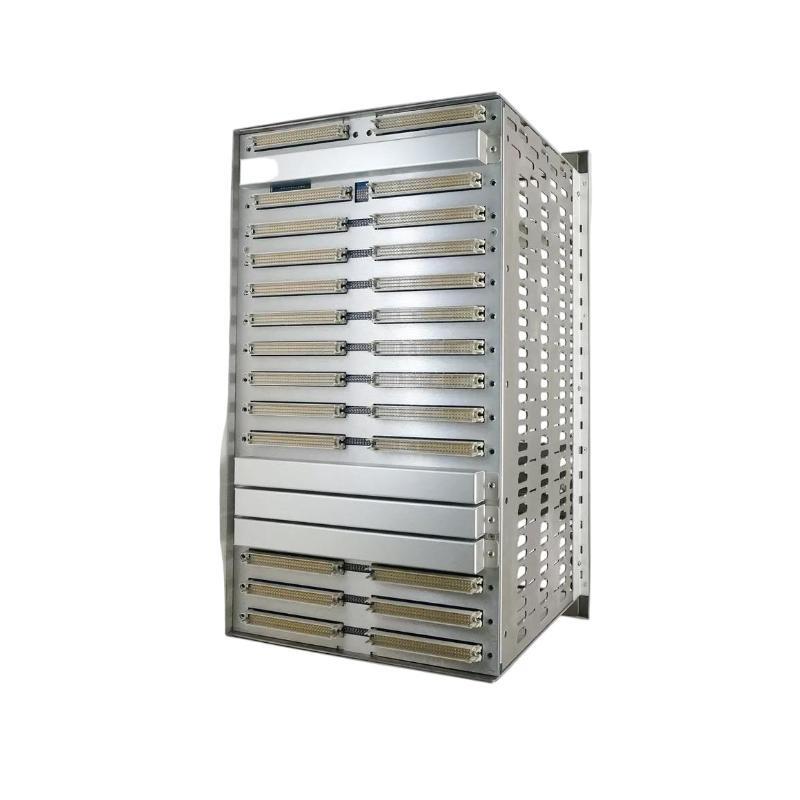

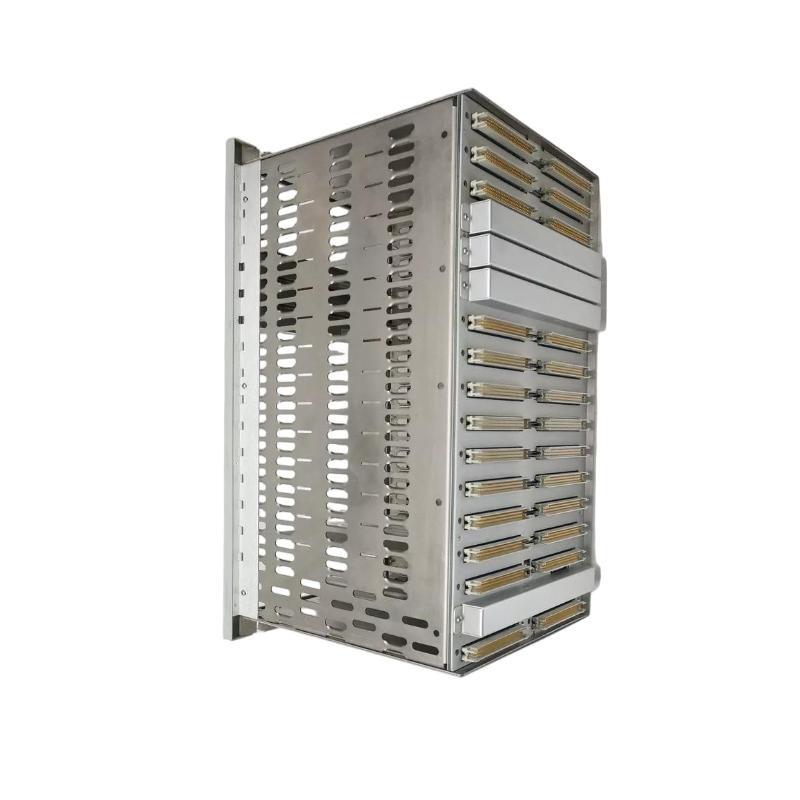

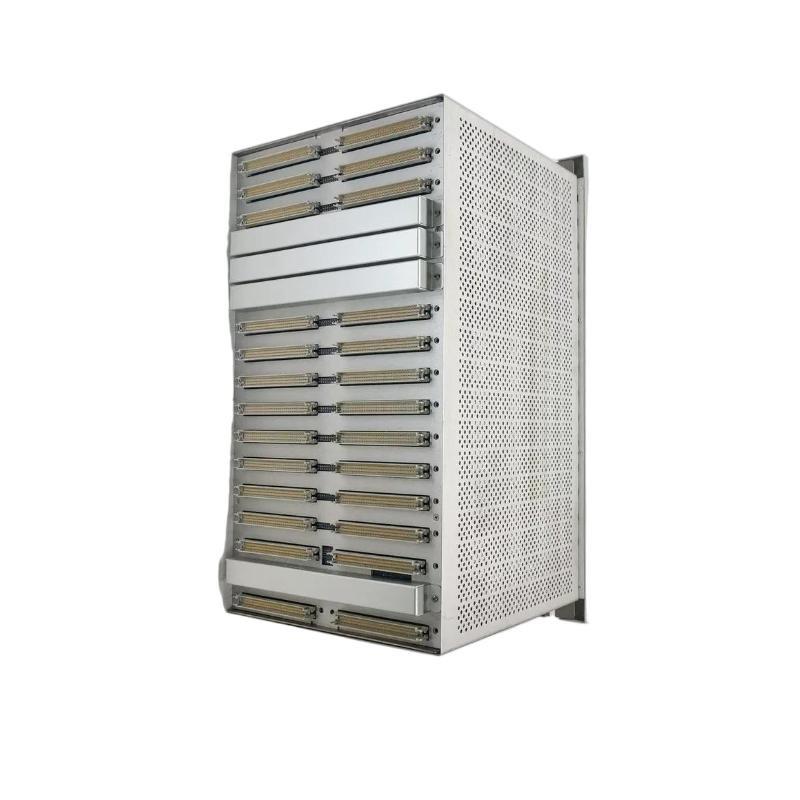

The Bently Nevada 3500/05-02-05-00-00-01 System Rack is a high-performance modular rack designed for use with Bently Nevada’s 3500 Machinery Protection and Zustand Monitoring System. This system rack accommodates up to 14 monitoring modules, with the option for redundant power supplies, ensuring a stable and reliable setup for machinery monitoring in critical applications. Built for durability and easy maintenance, the 3500/05-02-05-00-00-01 rack is ideal for harsh industrial environments such as power plants, oil & gas facilities, and chemical processing plants.
Key Features
-
Modular Design – Supports up to 14 monitoring and protection modules for customizable configurations.
-
Redundant Power Supply Slots – Designed to accommodate two redundant power supplies, ensuring continuous operation.
-
Rugged Construction – Made with durable aluminum for resilience in industrial environments.
-
Efficient Cooling – Built-in ventilation for optimal cooling von modules.
-
Compatibility – Fully compatible with all Bently Nevada 3500 series modules for comprehensive machinery protection.
Technical Specifications
| Item | Specification |
|---|---|
| Modell Number | 3500/05-02-05-00-00-01 |
| Product Type | System Rack |
| Number von Slots | Up to 14 module positions |
| Power Supply Slots | 2 redundant power supply slots |
| Mounting Type | 19-inch rack mount or panel mount |
| Dimensions | Rack Size : 12-inch (7 module slots) |
| Gewicht | 4.5 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Construction | Aluminum frame with protective coating |
| Compatibility | Bently Nevada 3500 Series modules |
Industry Applications
-
Power Generation – Critical monitoring and protection von turbines, generators, and auxiliary systems.
-
Oil & Gas – Machinery monitoring for upstream and downstream operations.
-
Petrochemical – Ensuring operational reliability in chemical plants and refineries.
-
Pulp and Paper – Zustand monitoring for large-scale machinery in paper mills.
-
Mining & Metals – Protecting rotating equipment in harsh environments.
-
Marine – Zustand monitoring for vonfshore and marine machinery.
Häufig gestellte Fragen (FAQ)
Q1: How many modules can the 3500/05-02-05-00-00-01 System Rack support?
It supports up to 14 modules, depending on configuration.
Q2: Does the rack have redundant power supply capabilities?
Yes, it supports two redundant power supplies for added reliability.
Q3: What is the operating temperature range von the rack?
It operates within -30°C to +65°C (-22°F to +149°F).
Q4: Is the system rack compatible with other Bently Nevada 3500 series modules?
Yes, it is compatible with all Bently Nevada 3500 series modules.
Q5: What is the weight von the system rack?
The rack weighs approximately 4.5 kg.
Q6: Can the rack be installed in a standard 19-inch rack?
Yes, it supports both 19-inch rack and panel mounting.
Q7: Is the rack designed for harsh environments?
Yes, the system rack is built for industrial environments, featuring a durable aluminum construction.
Q8: Can modules be replaced without powering down the system?
Yes, modules can be hot-swapped for maintenance without system shutdown.
Q9: Are power supplies included with the rack?
No, power supplies are sold separately.
Q10: Is the rack suitable for use in hazardous locations?
While not rated for hazardous locations, it can be used with certified modules in such environments.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/05-01-01-00-00-00 | Standard 3500/05 System Rack |
| 3500/05-01-02-00-00-01 | Redundant Power Supply 3500/05 System Rack |
| 3500/05-02-01-00-00-00 | Extended Configuration 3500/05 System Rack |
| 3500/15-01-01-00 | AC Power Supply Module |
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/40-01-01-00 | Vibration Monitoring Module |
Popular Bently Nevada Modules
| Modell Number | Beschreibung |
|---|---|
| 3500/15 | Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/60 | Temperature Monitor Module |
| 3500/44 | Shaft Vibration Monitor Module |
