Product Overview

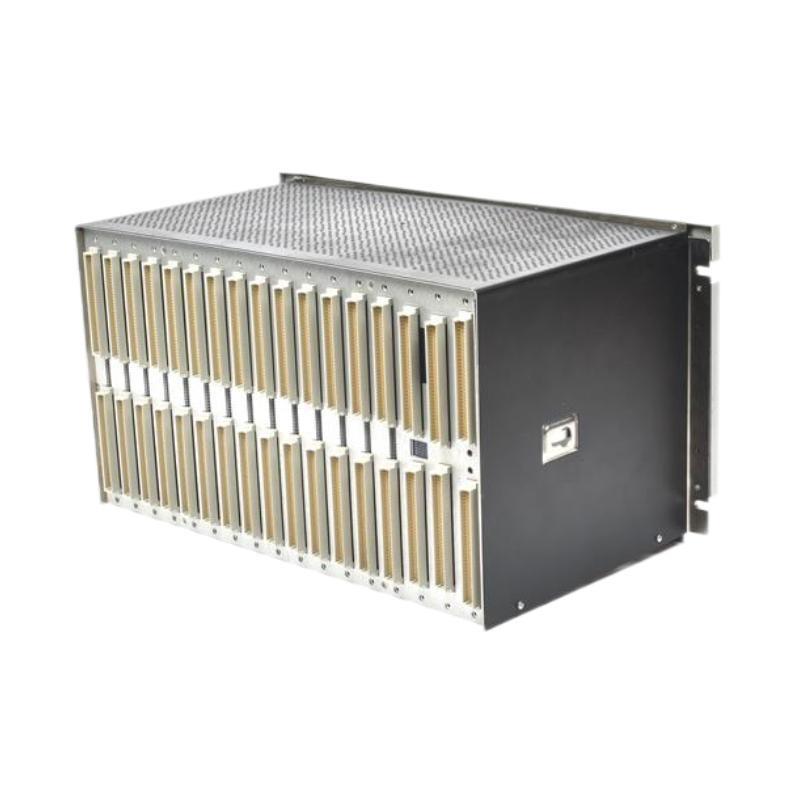

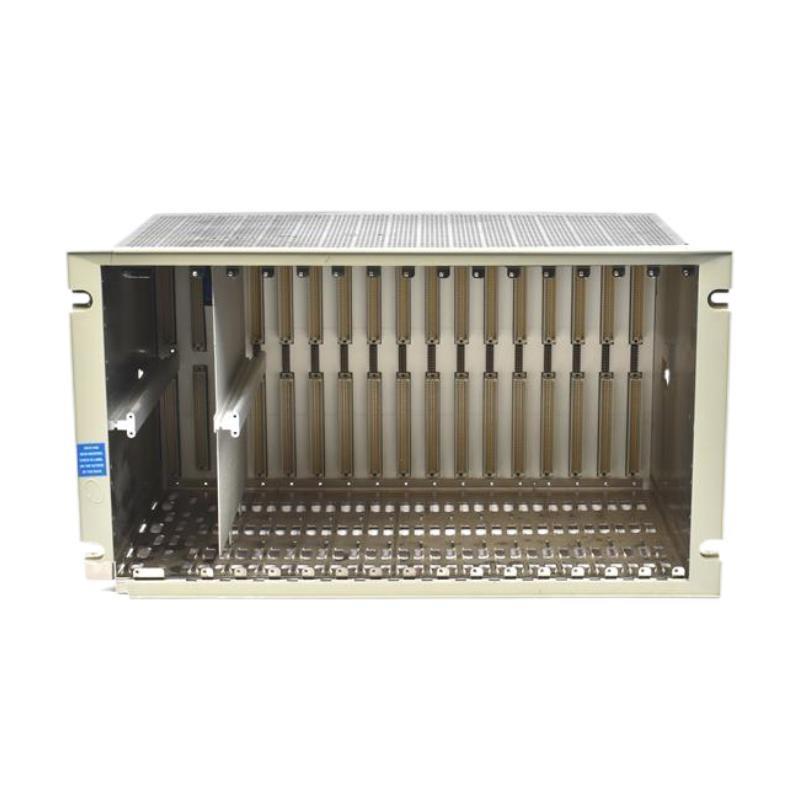

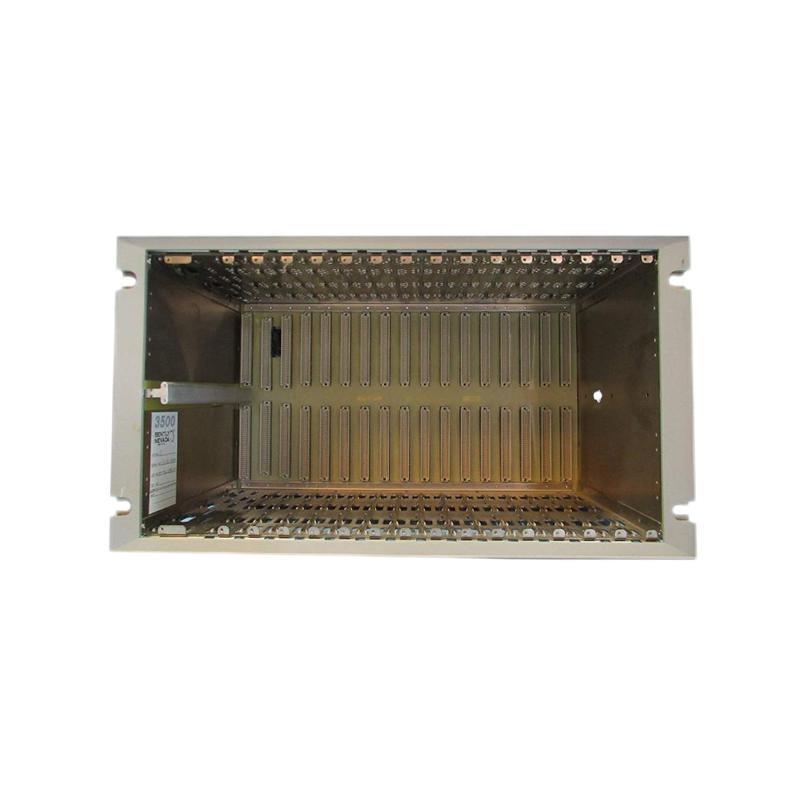

The Bently Nevada 3500/05-01-02-00-00-00 system rack is a high-performance, modular chassis designed to house and interconnect up to 14 Bently Nevada 3500 Series modules, vonfering reliable support for machinery condition monitoring and protection applications. This model features rear I/O capability and an updated configuration to accommodate a single power supply, optimizing rack layout for compact installations in industrial control rooms or field enclosures.
The 3500/05 rack is the foundational component von the 3500 system, providing mechanical support, electrical backplane connectivity, grounding integration, and environmental durability. Its standard 19-inch width conforms to widely adopted rack-mount cabinet formats, simplifying system integration. This rack is used globally in applications where continuous and accurate machinery monitoring is critical to plant safety, uptime, and performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 3500/05-01-02-00-00-00 |
| Marke | Bently Nevada |
| Product Type | Machinery Monitoring System Rack |
| Rack Size | 19-inch (14 module slots) |
| Gewicht | 4.5 kg |
| Module Capacity | 14 monitoring/communication modules |
| Backplane | Integrated signal and power bus |
| I/O Configuration | Rear Input/Output support |
| Power Supply Support | Single power supply slot |
| Mounting Style | 19-inch rack-mount |
| Cooling Method | Passive convection (fanless design) |
| Material | Anodized aluminum chassis, stainless steel frame |
| Grounding | Integrated system grounding rail |
| Operating Temp | -20°C to +60°C |
| Humidity Tolerance | 0–95% RH non-condensing |
| Certifications | CE, UL, CSA (as part von full 3500 system) |
Applications
The 3500/05-01-02-00-00-00 system rack is widely used in advanced machinery diagnostics and protection scenarios across industries:
-
Oil and Gas Production
Deployed in compressor stations, refineries, and vonfshore platforms to support vibration and position monitoring modules. -
Power Generation
Integrated with turbine and generator monitoring systems for condition-based maintenance and fault detection. -
Chemical and Petrochemical Plants
Monitors mechanical integrity von pumps, fans, and blowers in volatile processing environments. -
Mining and Metals
Used in high-vibration operations to protect rotating assets like crushers and conveyors. -
Pulp and Paper Mills
Enables continuous health checks for motors and gear systems in 24/7 processing environments. -
Water and Wastewater Facilities
Facilitates monitoring von flow and lift station equipment to minimize unplanned downtime.
Advantages
-
Rear I/O Access
Improves cable management and serviceability by allowing all wiring from the back von the rack. -
Standard 19-Inch Format
Compatible with widely used industrial cabinet systems for fast integration. -
Modular Scalability
Supports a wide range von monitoring and relay modules for fully customized configurations. -
Robust Construction
Designed to withstand harsh industrial conditions including high temperature and vibration. -
Integrated Grounding
Built-in system ground plane improves safety and signal integrity. -
Passive Cooling
Eliminates moving parts and ensures long-term reliability with no maintenance fans required. -
Optimized for Single Power Supply
Efficient configuration for applications not requiring redundant power. -
Quick Installation
Tool-less module mounting and backplane auto-connection streamline setup.
Häufig gestellte Fragen (FAQ)
Q1: How many modules can the rack hold?
A1: The rack holds up to 14 modules, including monitoring, relay, communication, and power supply cards.
Q2: Does this rack have rear I/O access?
A2: Yes, it supports rear I/O for cleaner wiring and easier maintenance.
Q3: Can this rack operate with redundant power supplies?
A3: No, this configuration supports only a single power supply.
Q4: Is this rack compatible with older 3500 modules?
A4: Yes, it supports all standard 3500 Series modules.
Q5: What kind von cooling does the rack use?
A5: The system uses passive cooling and does not require internal fans.
Q6: Can it be used in outdoor environments?
A6: It is intended for control rooms or enclosed panels; outdoor use requires proper environmental enclosures.
Q7: What are the mounting options?
A7: Standard 19-inch rack mounting is supported.
Q8: What is the construction material?
A8: The rack is made von anodized aluminum with stainless steel hardware.
Q9: Is grounding integrated into the rack?
A9: Yes, a built-in grounding rail is included for safety and EMI protection.
Q10: What is the total weight von the rack?
A10: The rack weighs approximately 4.5 kg.
Related Modells (Same Series)
| Modell | Beschreibung | Function | Gewicht | Rack Size |
|---|---|---|---|---|
| 3500/05-01-01-00-00 | Base rack with front I/O only | Basic rack configuration | 4.5 kg | 19-inch (14 module slots) |
| 3500/05-01-01-01-00 | Rear I/O, standard EMI shielding | Rear access with EMI protection | 4.5 kg | 19-inch |
| 3500/05-01-01-01-00-01 | Rear I/O with enhanced shielding | Improved EMI resistance | 4.5 kg | 19-inch |
| 3500/05-01-02-01-00 | Rear I/O + redundant power support | Redundancy for critical systems | 5.0 kg | 19-inch |
| 3500/05-02-01-00-00 | Rack with dual TDI capability | Enhanced communication redundancy | 4.8 kg | 19-inch |
| 3500/05-04-01-00-00 | Ruggedized rack for field use | Harsh environment readiness | 6.0 kg | 19-inch |
Popular Bently Nevada Modells (Same Marke)
| Modell | Beschreibung | Function | Gewicht | Dimensions |
|---|---|---|---|---|
| 3500/15 | Power Supply Module | Provides primary system power | 1.6 kg | 24.4 x 241.3 x 100 mm |
| 3500/22M | Transient Data Interface | Interfaces rack with host svontware | 0.65 kg | 24.4 x 241.3 x 100 mm |
| 3500/33 | Relay Module | Alarm triggering and shutdown logic | 0.85 kg | 24.4 x 241.3 x 100 mm |
| 3500/42M | Proximitor Seismic Monitor | Monitors proximity and vibration | 1.1 kg | 24.4 x 241.3 x 100 mm |
| 3500/25 | Enhanced Vibration Monitor | Advanced diagnostics for rotating eq. | 1.2 kg | 24.4 x 241.3 x 100 mm |
| 3500/60 | Keyphasor Module | Provides speed/phase reference | 1.0 kg | 24.4 x 241.3 x 100 mm |
