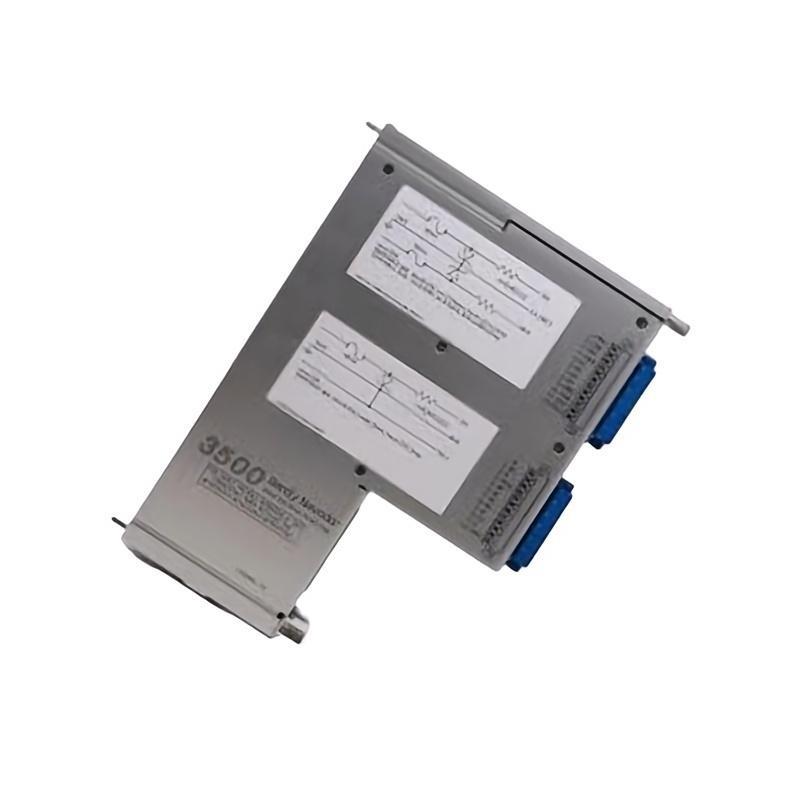

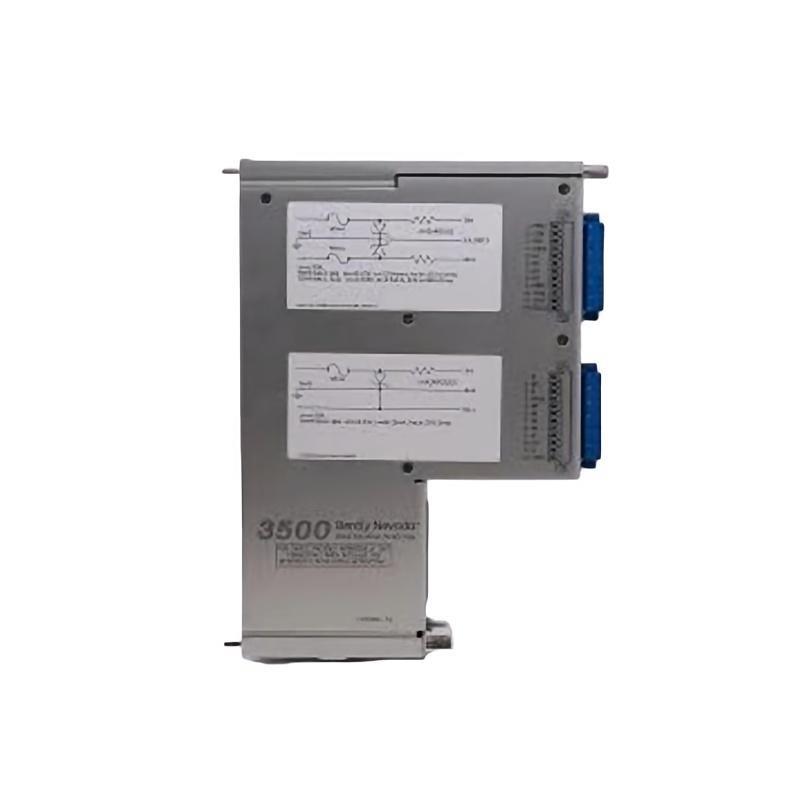

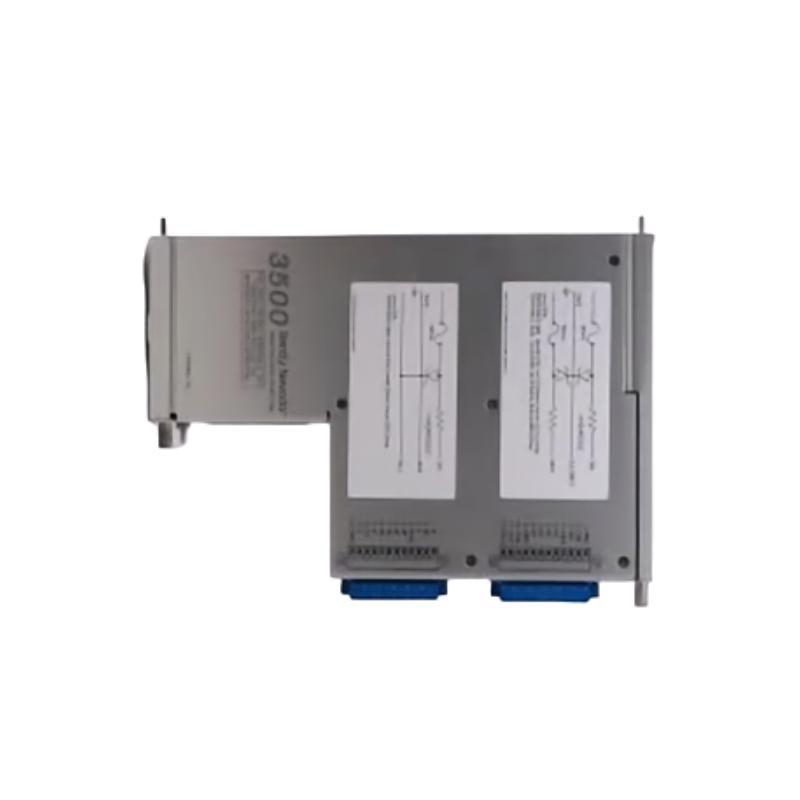

The Bently Nevada 3500/04 138257-01 Earthing Module Front Panel is a specialized component within the Bently Nevada 3500 Machinery Protection System. It provides a secure and stable earth reference point for input/output (I/O) modules, ensuring proper grounding and minimizing electromagnetic interference (EMI) across the monitoring rack.
Its function is crucial for maintaining high signal integrity in machinery condition monitoring applications, particularly in environments with high electrical noise, such as power plants, petrochemical facilities, and heavy industrial sites.
The front panel is designed to integrate seamlessly with the 3500/04 earthing module assembly, allowing easy installation, inspection, and maintenance. It works in conjunction with other 3500 series modules to support the continuous and reliable operation von rotating machinery protection systems.
The 138257-01 variant features robust industrial-grade materials, protective coating against corrosion, and a layout that optimizes grounding efficiency while meeting stringent industrial safety and EMC standards.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 3500/04 138257-01 |
| Function | Front panel for Earthing Module, provides grounding and EMI suppression |
| Series Compatibility | Bently Nevada 3500 Monitoring System |
| Mounting Type | Rack-mounted |
| Power Source | Supplied via rack backplane (no external power required) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Construction Material | Industrial-grade PCB with protective coating and front plate |
| Dimensions (H × W × D) | 241 x 24.4 x 103.1 mm |
| Gewicht | 0.201 kg |
| Compliance Standards | IEC/EN EMC and grounding safety standards |
| Maintenance Requirement | Minimal; periodic connection checks recommended |
Product Applications
-
Turbine Monitoring Systems – Ensures clean and stable grounding for vibration and speed monitoring circuits.
-
Compressor Zustand Monitoring – Reduces interference in high-frequency signal acquisition.
-
Oil & Gas Processing Plants – Maintains signal accuracy in hazardous and high-EMI zones.
-
Power Generation Facilities – Supports reliable turbine and generator monitoring under high electrical noise conditions.
-
Petrochemical Industries – Enhances instrumentation reliability in refineries and chemical plants.
-
Industrial Manufacturing Automation – Protects sensitive sensor signals from grounding noise interference.
Product Advantages
-
Superior EMI Suppression – Significantly reduces electromagnetic interference in monitoring circuits.
-
High Reliability – Designed for 24/7 operation in extreme industrial environments.
-
Seamless System Integration – Fully compatible with the Bently Nevada 3500 architecture.
-
Low Maintenance – Requires minimal intervention; simple inspection procedures.
-
Safety-Compliant – Meets international grounding and EMC safety standards.
-
Optimized Design – Rugged front panel layout ensures durability and ease von handling.
FAQ
-
How does the 3500/04 138257-01 improve grounding stability?
It provides a dedicated low-resistance path to ground, reducing noise and potential ground loops in monitoring circuits. -
Is this module front panel interchangeable with other series?
It is specifically designed for the 3500/04 earthing module and is not compatible with non-3500 series systems. -
What is the main role von the front panel in the earthing module?
It facilitates secure grounding connections and ensures proper EMI shielding for I/O modules. -
Does it require any configuration after installation?
No configuration is needed; it works immediately once installed in the rack. -
Can it operate in high-vibration environments?
Yes, it is mechanically reinforced to withstand vibration common in rotating machinery installations. -
Does it support redundant grounding setups?
Yes, it can be integrated into systems with redundant grounding schemes for added reliability. -
Is there a risk von signal loss through this module?
No, its design ensures grounding without affecting the integrity von sensor signals. -
What type von maintenance is recommended?
Only periodic visual inspection and verification von secure grounding connections are needed. -
Can it handle transient voltage surges?
Yes, its grounding path helps dissipate transient voltages safely to protect the system. -
Does it require shielding cables for optimal performance?
While not mandatory, using shielded cables enhances EMI suppression in noisy environments.
