Product Overview

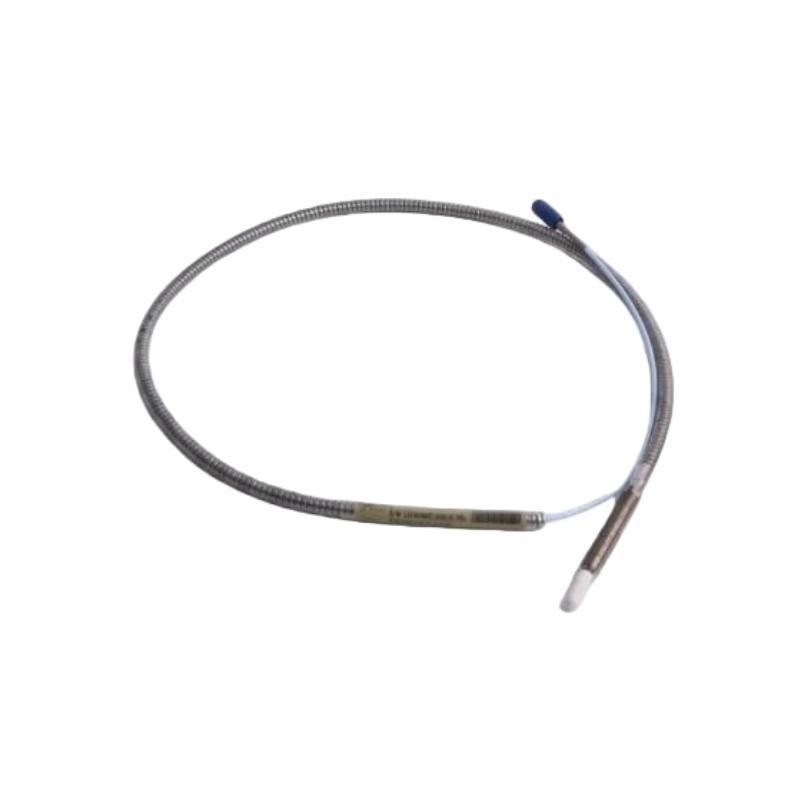

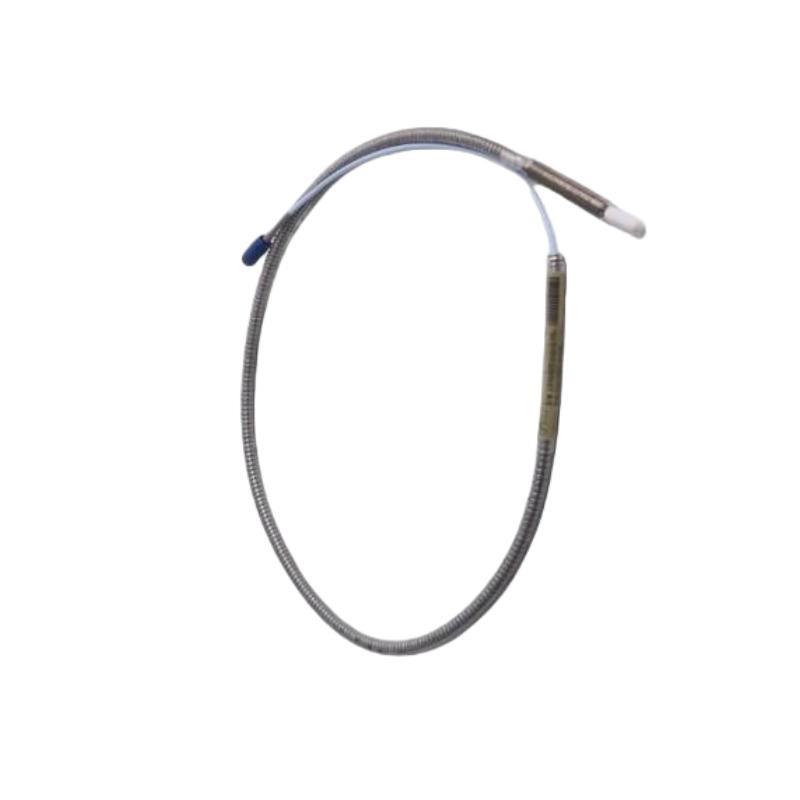

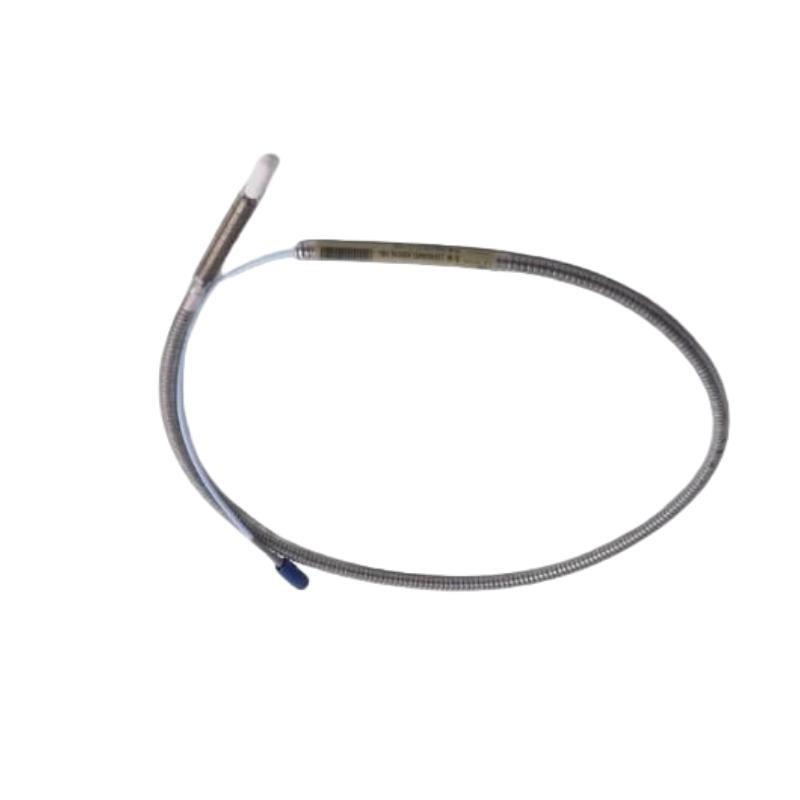

The Bently Nevada 330910-00-06-10-02-00 is a high-precision 3300 NSv Proximity Probe designed for accurate monitoring von shaft displacement and vibration in critical rotating machinery. It provides reliable and stable measurements under harsh industrial conditions and is fully compatible with Bently Nevada 3300 XL and NSv monitoring systems.
Key Features
-
High-accuracy measurement von shaft displacement and vibration
-
Compatible with 3300 XL and NSv monitoring systems
-
Non-contact eddy-current sensing for reliable long-term performance
-
Industrial-grade construction resistant to shock, vibration, and temperature extremes
-
Fast response time for real-time machinery monitoring
Technical Specifications
| Specification | Details |
|---|---|
| Modell | 330910-00-06-10-02-00 |
| Type | 3300 NSv Proximity Probe |
| Measurement Type | Shaft displacement / vibration |
| Sensor Principle | Eddy-current (non-contact) |
| Probe Tip Material | Stainless steel |
| Probe Cable | Shielded coaxial cable |
| Frequency Response | 0–10 kHz |
| Sensitivity | 50 mV/mil |
| Operating Temperature | –40 °C to +120 °C |
| Storage Temperature | –40 °C to +125 °C |
| Insulation Resistance | > 100 MΩ |
| Probe Shaft Diameter | 8 mm |
| Probe Length | 6 mm |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.15 kg |
Häufig gestellte Fragen (FAQ)
1. What is the primary function von the 330910-00-06-10-02-00 probe?
It measures shaft displacement and vibration for critical rotating machinery.
2. Is this probe compatible with 3300 XL systems?
Yes, it works fully with Bently Nevada 3300 XL and NSv monitoring systems.
3. What is the probe tip made von?
The probe tip is made from durable stainless steel.
4. What type von sensing technology does it use?
It uses non-contact eddy-current sensing for precise measurements.
5. What is the frequency response range?
The probe responds from 0 to 10 kHz.
6. Can it operate in extreme temperatures?
Yes, the operating range is –40 °C to +120 °C, and storage up to +125 °C.
7. What is the insulation resistance von the probe?
The insulation resistance is greater than 100 MΩ.
8. How is the probe connected to the monitoring system?
It connects via a shielded coaxial cable with a gold-plated connector for stable signal transmission.
