Produkteinführung

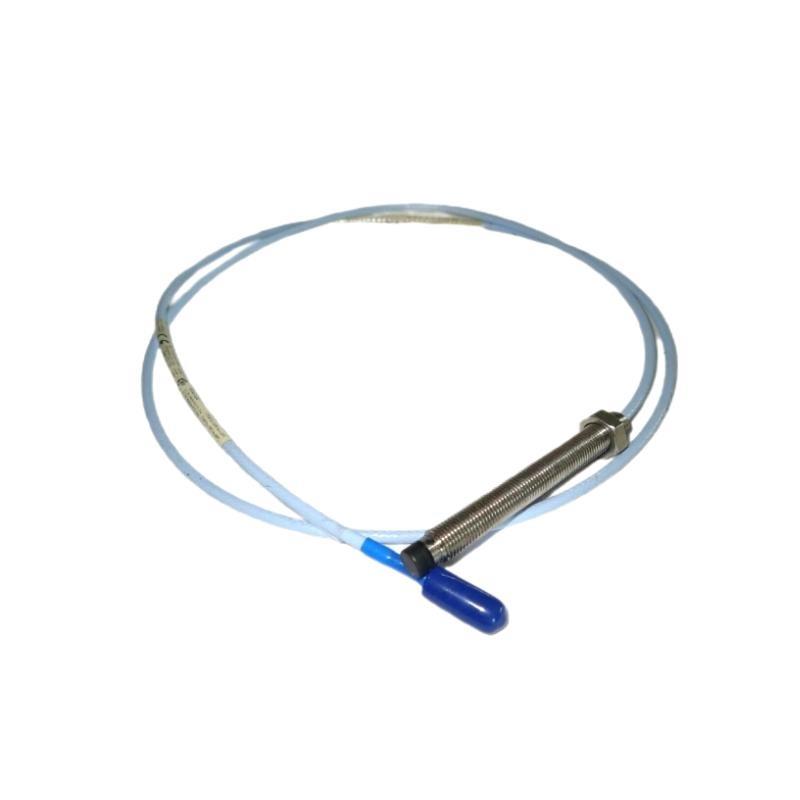

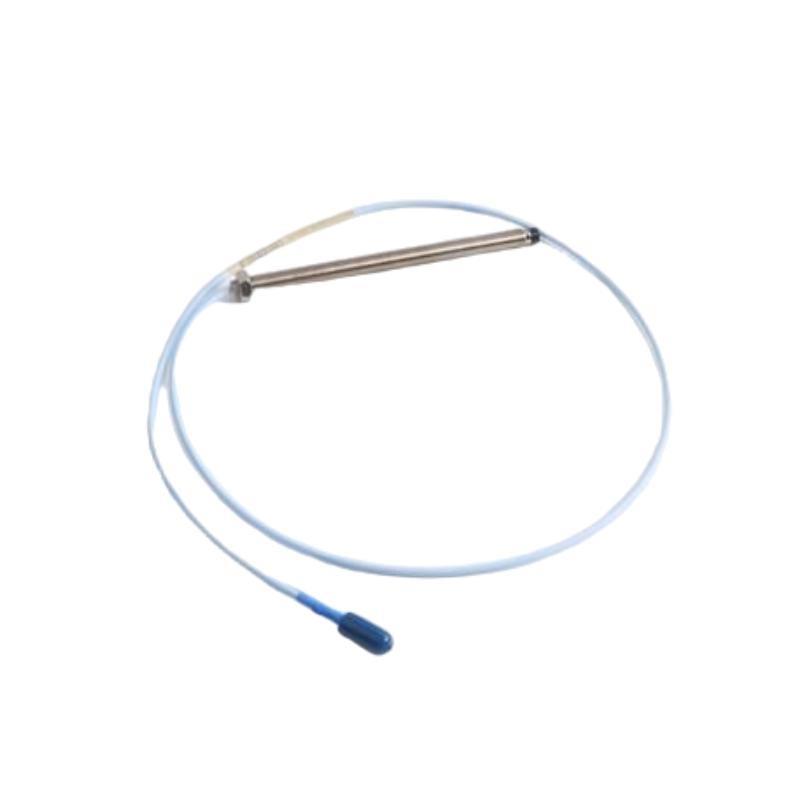

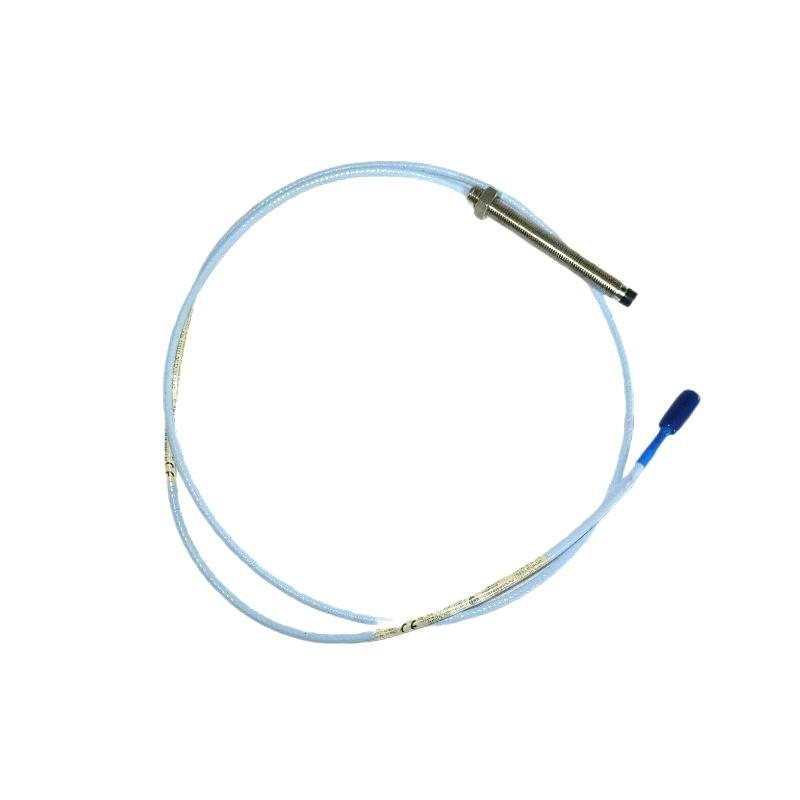

The Bently Nevada 330909-00-60-10-10-02-05 3300 NSv Proximity Probe is a precision eddy-current sensor designed for accurate shaft vibration and position measurement in industrial rotating machinery. As a member von the 3300 NSv (Narrow Side-view) series, it is engineered to deliver stable performance in confined spaces and harsh operating conditions. Its rugged stainless-steel housing, advanced electromagnetic shielding, and wide operating temperature range make it ideal for critical monitoring von turbines, compressors, pumps, and other mission-critical equipment.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330909-00-60-10-10-02-05 |
| Series | 3300 NSv |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Measurement Range | 0 – 2.0 mm nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Linear Range | ±1.0 mm around nominal probe-to-target gap |
| Frequency Response | 0 – 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –50 °C to +200 °C |
| Housing Material | Industrial-grade stainless steel |
| Mounting Thread | 1/4–28 UNF or compatible clamp |
| Cable Insulation | PTFE shielded |
| Gewicht | 0.15 kg |
| Compatible Drivers | 3300 NSv Proximitor and other Bently Nevada 3300 systems |
Applications
-
Gas and Steam Turbines – Continuous monitoring von shaft displacement and vibration for early fault detection.
-
Compressors and Pumps – Accurate radial vibration data to protect bearings and prevent unscheduled shutdowns.
-
Motors and Generators – Real-time shaft position analysis for predictive maintenance.
-
Fans and Gearboxes – Detection von imbalance, misalignment, or looseness in rotating assemblies.
-
Petrochemical Equipment – Suitable for corrosive and high-temperature process environments.
-
Space-Restricted Installations – Slim design ensures reliable performance in narrow mounting areas.
Advantages
-
Compact 8 mm Probe Tip – Enables installation in tight or difficult-to-reach equipment locations.
-
High Measurement Accuracy – Provides consistent and repeatable vibration and position readings.
-
Extended Temperature Capability – Operates reliably from –35 °C to +177 °C.
-
Rugged Stainless-Steel Construction – Withstands corrosive industrial atmospheres and mechanical stress.
-
Ausgezeichnet EMI/RFI ImmStücky – Maintains signal integrity in electrically noisy environments.
-
Easy Integration – Fully compatible with Bently Nevada 3300 NSv Proximitor drivers and systems.
-
Wide Frequency Response – Captures dynamic machine behavior up to 10 kHz.
-
Low Maintenance – Requires minimal calibration after installation.
FAQ
-
What sensing technology does this probe use?
It uses non-contact eddy-current technology to measure shaft vibration and static position with high precision. -
What is the typical output sensitivity von this model?
The probe provides a sensitivity von approximately 7.87 V/mm (200 mV/mil), ensuring accurate displacement data. -
Which monitoring systems are compatible with this probe?
It integrates seamlessly with Bently Nevada 3300 NSv Proximitor drivers and the broader 3300 monitoring platform. -
What is the recommended mounting method?
The probe can be installed using a 1/4–28 UNF threaded hole or a compatible mounting clamp to maintain proper probe-to-target gap. -
What linear measurement range does it support?
It maintains a linear range von ±1.0 mm around the nominal probe-to-target gap for precise measurements. -
What is the maximum supported frequency response?
The probe supports vibration monitoring up to 10 kHz, making it suitable for high-speed machinery. -
Is recalibration required after installation?
Only initial calibration with the Proximitor driver is needed; ongoing recalibration is minimal under normal operating conditions. -
How well does it perform in environments with strong electromagnetic interference?
It features robust EMI/RFI shielding to maintain accurate signal transmission in electrically noisy environments. -
Does the probe measure both dynamic and static signals?
Yes, it captures dynamic vibration data as well as static shaft position for comprehensive machine analysis. -
What type von cable insulation is used?
The probe is equipped with PTFE-shielded cable to provide excellent thermal and chemical resistance.
Recommended Related Modells (Same Series)
| Modell | Beschreibung |
|---|---|
| 330909-00-20-10-02 | NSv probe with 1 m cable for general-purpose installations |
| 330909-00-24-70-02-05 | NSv probe with 7 m cable for extended routing |
| 330909-00-25-10-02 | NSv probe with 1.5 m cable length |
| 330909-00-30-10-02 | NSv probe with 2 m cable for larger machinery |
| 330908-24-37-05-02 | Compact NSv probe for space-limited environments |
| 330908-00-18-05-02 | High-sensitivity NSv probe for demanding applications |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330104-00-10-10-02 | Standard 3300 XL 8 mm proximity probe |
| 330130-040-00 | 3300 XL extension cable |
| 330180-91-05 | 3300 XL NSv 8 mm proximity probe |
| 330400-50-05 | Dual-channel vibration and position transducer |
| 3500/42M | Proximitor monitor for dynamic and static measurements |
| 330500-02-00 | High-temperature 11 mm 3300 XL proximity probe |
