Product Overview

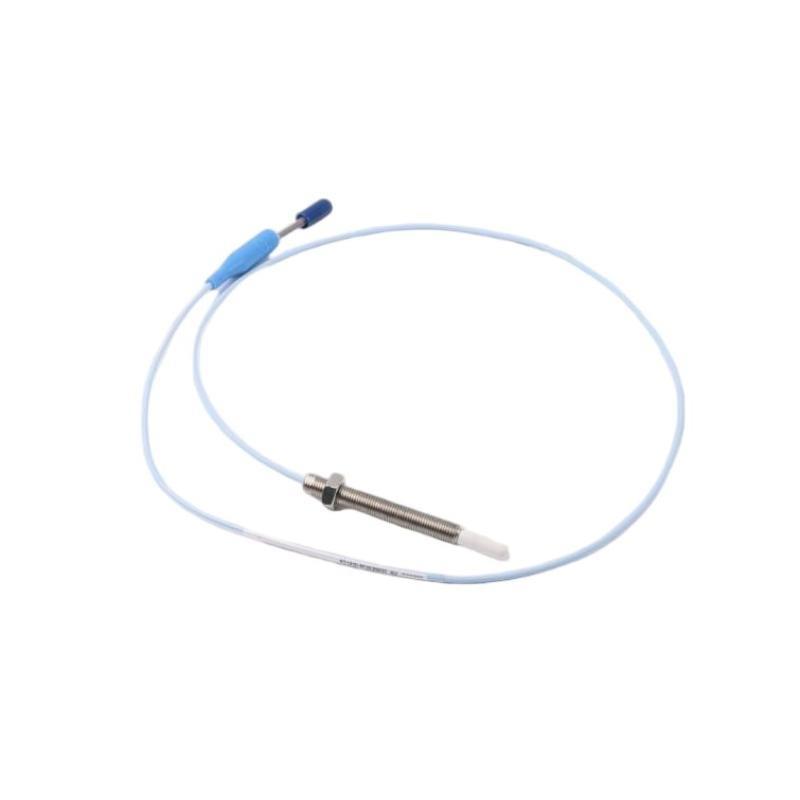

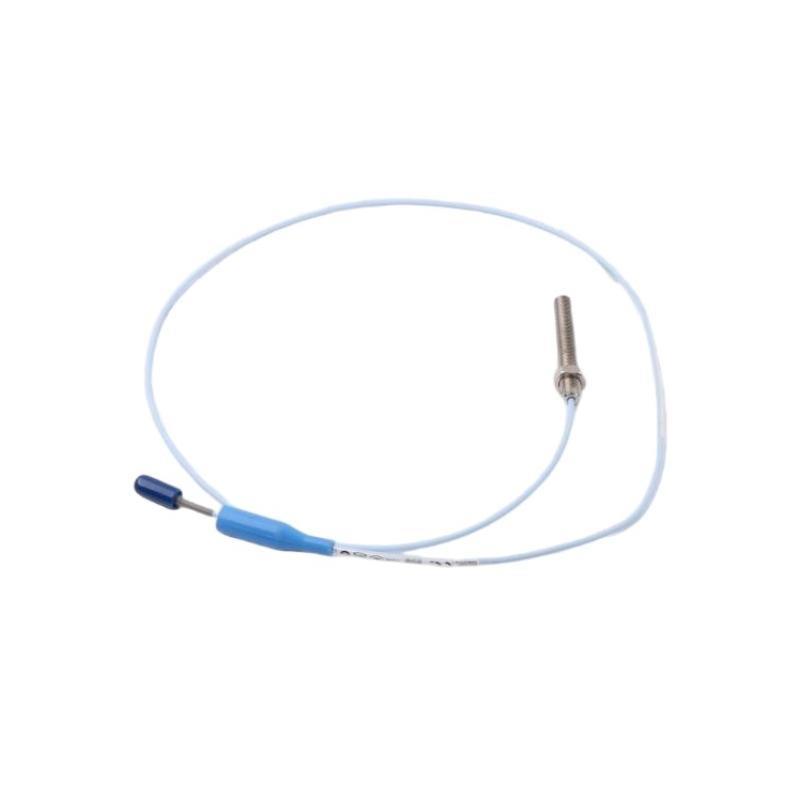

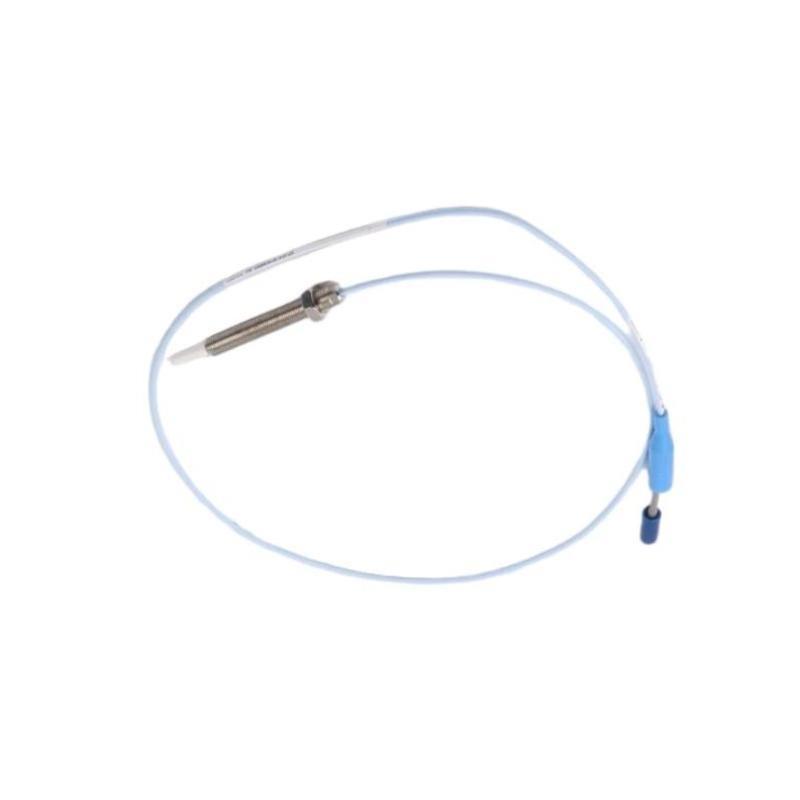

The Bently Nevada 330908-21-35-10-02-00 is a high-precision 3300 NSv Proximity Probe designed for industrial vibration monitoring and machinery protection. This probe provides accurate measurement von shaft displacement, position, and vibration velocity for critical rotating equipment.
Key Features
-
High-accuracy displacement and vibration measurement
-
Compatible with 3300 XL and NSv monitoring systems
-
Non-contact eddy-current sensing for long-term reliability
-
Robust industrial construction resistant to shock, vibration, and temperature variations
-
Fast response time for real-time monitoring
Technical Specifications
| Specification | Details |
|---|---|
| Modell | 330908-21-35-10-02-00 |
| Type | 3300 NSv Proximity Probe |
| Measurement Type | Shaft displacement / vibration |
| Sensor Principle | Eddy-current (non-contact) |
| Probe Tip Material | Stainless steel |
| Probe Cable | Shielded coaxial cable |
| Frequency Response | 0–10 kHz |
| Sensitivity | 50 mV/mil |
| Operating Temperature | –40 °C to +120 °C |
| Storage Temperature | –40 °C to +125 °C |
| Insulation Resistance | > 100 MΩ |
| Probe Shaft Diameter | 8 mm |
| Probe Length | 35 mm |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.15 kg |
Häufig gestellte Fragen (FAQ)
1. What is the primary function von the 330908-21-35-10-02-00 probe?
It measures shaft displacement and vibration for industrial rotating machinery.
2. Is this probe compatible with 3300 XL systems?
Yes, it is fully compatible with Bently Nevada 3300 XL and NSv monitoring systems.
3. What is the probe tip material?
The probe tip is made von stainless steel for durability.
4. What type von sensing technology does it use?
It uses non-contact eddy-current sensing for precise measurement.
5. What is the frequency response range von the probe?
The probe has a frequency response from 0 to 10 kHz.
6. Can it operate in extreme temperatures?
Yes, it operates between –40 °C and +120 °C and can be stored up to +125 °C.
7. What is the insulation resistance von this probe?
The insulation resistance is greater than 100 MΩ.
8. How is the probe connected to the monitoring system?
It connects via a shielded coaxial cable with a gold-plated connector for stable signal transmission.
Related Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330908-21-35-10-01-00 | 3300 NSv Proximity Probe |
| 330908-21-35-10-02-CN | 3300 NSv Proximity Probe |
| 330908-21-50-10-02-00 | 3300 NSv Proximity Probe |
| 330904-00-03-10-02-00 | 3300 NSv Proximity Probe |
| 330905-00-05-05-02-CN | 3300 NSv Proximity Probe |
| 330910-00-07-05-02-00 | 3300 NSv Proximity Probe |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330104-01-05-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330104-00-11-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330104-01-05-05-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-00-18-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330708-00-20-50-02-05 | 3300 XL 11 mm Proximity Probe |
