Produkteinführung

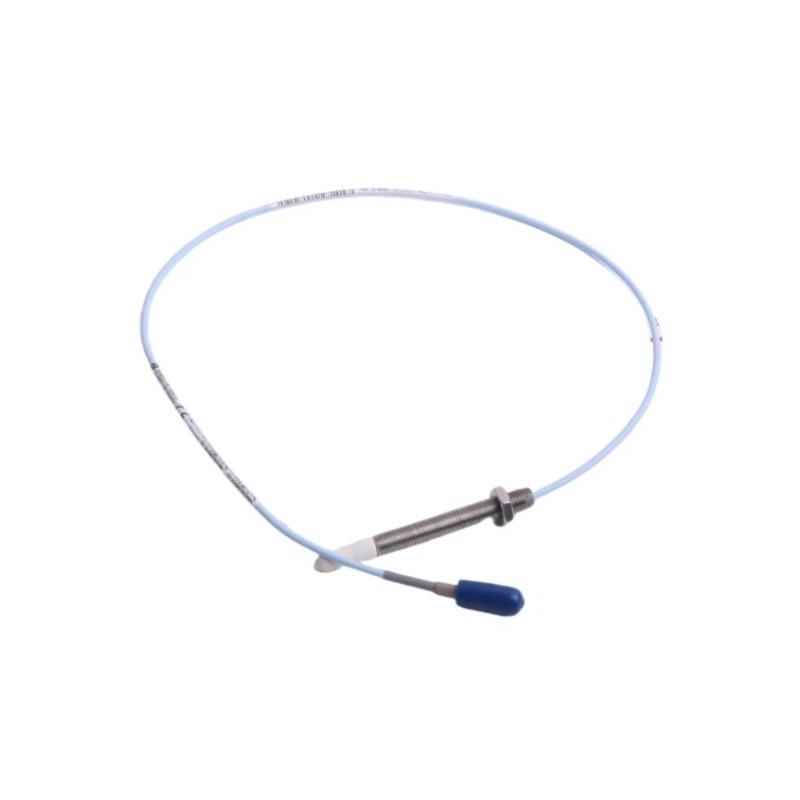

The Bently Nevada 330903-02-16-05-02-00 3300 NSv Proximity Probe is a high-precision, non-contact displacement measurement sensor designed for industrial rotating machinery monitoring. As part von the 3300 NSv series, it provides reliable measurement von shaft vibration and position, enabling early detection von mechanical issues and supporting predictive maintenance strategies. The probe is compatible with Bently Nevada monitoring systems, vonfering robust performance in harsh operating environments.
Product Advantages
-
High accuracy and repeatability for critical machinery monitoring.
-
Non-contact sensing reduces wear and eliminates mechanical interference.
-
Wide operating temperature range and resistance to harsh industrial conditions.
-
Fast response time enables real-time vibration and displacement monitoring.
-
Compatible with standard 3300 series monitoring systems for flexible integration.
-
Durable construction ensures long-term reliability in challenging environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 330903-02-16-05-02-00 |
| Probe Type | NSv Proximity Probe |
| Measurement Type | Non-contact displacement |
| Total Length | 0.5 m |
| Gewicht | 0.15 kg |
| Cable Type | Shielded, 2-conductor |
| Probe Tip Material | Stainless Steel |
| Operating Temperature | -40°C to +125°C |
| Vibration Frequency Response | Up to 25 kHz |
| Output Signal | AC Voltage, compatible with 3300 NSv system |
| Connector Type | Standard 3300 NSv probe connector |
| Mounting Method | Threaded or clamp mount |
Product Applications
-
Monitoring von rotating machinery in power plants, turbines, and compressors.
-
Shaft vibration analysis and displacement measurement for predictive maintenance.
-
Early detection von misalignment, imbalance, or mechanical looseness.
-
Integration with 3300 series monitoring systems for real-time machine health assessment.
-
Suitable for use in petrochemical, energy, and industrial processing environments.
FAQ
Q1: What is the recommended gap between the probe tip and the shaft?
-
The standard operating gap is typically 0.25 mm to 1.5 mm depending on system calibration.
Q2: Can this probe operate in high-vibration environments?
-
Yes, the probe is designed to handle high-vibration conditions up to its frequency response limit von 25 kHz.
Q3: What type von signal does the probe output?
-
The probe outputs an AC voltage signal compatible with 3300 NSv monitoring systems.
Q4: Is the probe compatible with other 3300 NSv transducer types?
-
Yes, it is fully compatible with other probes in the 3300 NSv series and standard 3300 monitoring channels.
Q5: Can this probe be used for non-metallic shafts?
-
No, the probe is designed for metallic targets as it relies on eddy current sensing principles.
Q6: What connector type does the probe use?
-
The probe uses the standard 3300 NSv connector, which ensures secure and reliable system integration.
Q7: How does temperature affect probe performance?
-
The probe operates effectively within the range von -40°C to +125°C, with minimal signal drift within this range.
Q8: Can the probe cable be extended beyond standard lengths?
-
Cable extensions are possible but should not exceed system-specified limits to avoid signal degradation.
Q9: How does the probe detect shaft displacement?
-
The probe measures the distance between its tip and the conductive shaft using eddy current technology, producing a proportional AC voltage signal.
Q10: What maintenance is required for the probe?
-
Minimal maintenance is needed; regular inspection von cable integrity and probe tip cleanliness is recommended.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330903-02-16-05-02-05 | Standard NSv Proximity Probe |
| 330903-00-06-10-02-05 | High-temperature NSv Probe |
| 330903-00-04-10-11-05 | Industrial NSv Probe |
| 330903-00-05-50-02-RU | NSv Probe with Russian connector |
| 330903-00-09-05-02-05 | Long-cable NSv Probe |
| 330903-00-04-10-11-CN | NSv Probe with Chinese connector |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3300 XL Proximity Probe | Extended performance probe |
| 3300 XL Vibration Sensor | Vibration monitoring probe |
| 3300 XL Displacement Sensor | Shaft displacement measurement |
| 3500 Series Monitor | Zustand monitoring system |
| 3500/22 Keyphasor Transducer | Tachometer signal probe |
| 3500/33 Transducer | Accelerometer for vibration |
