Product Overview

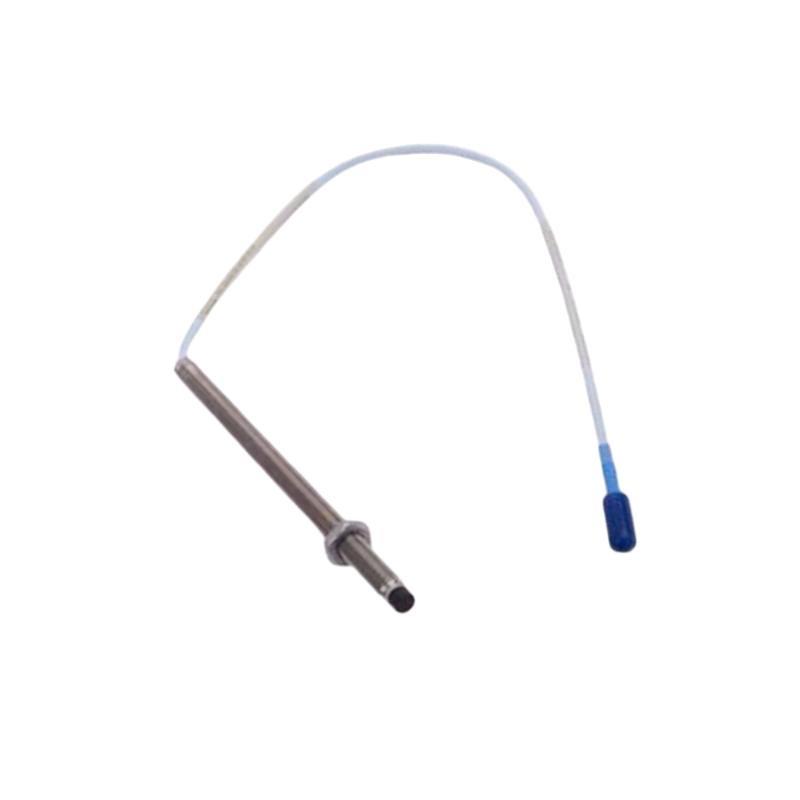

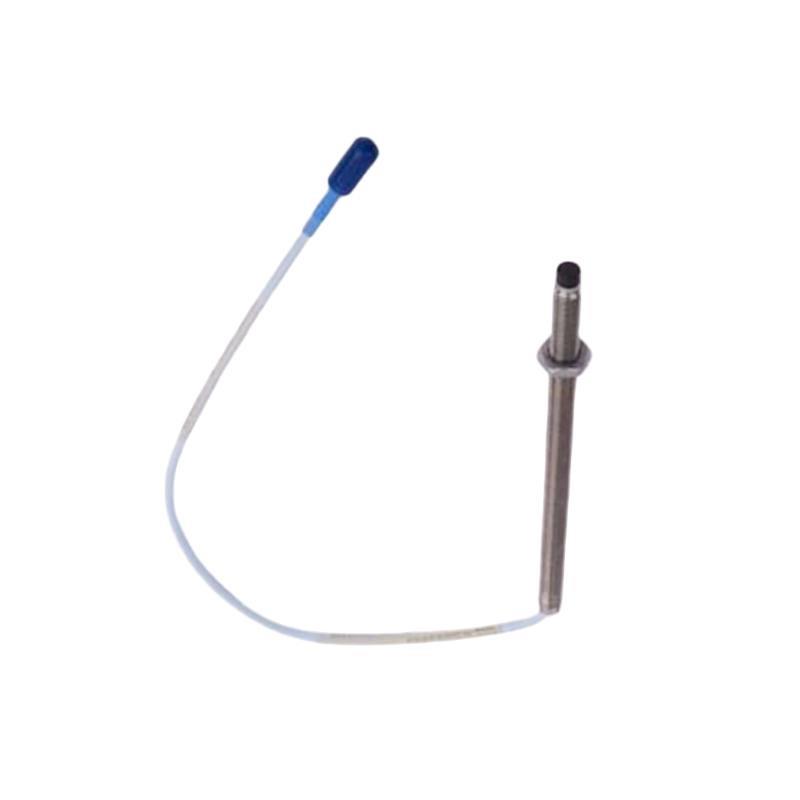

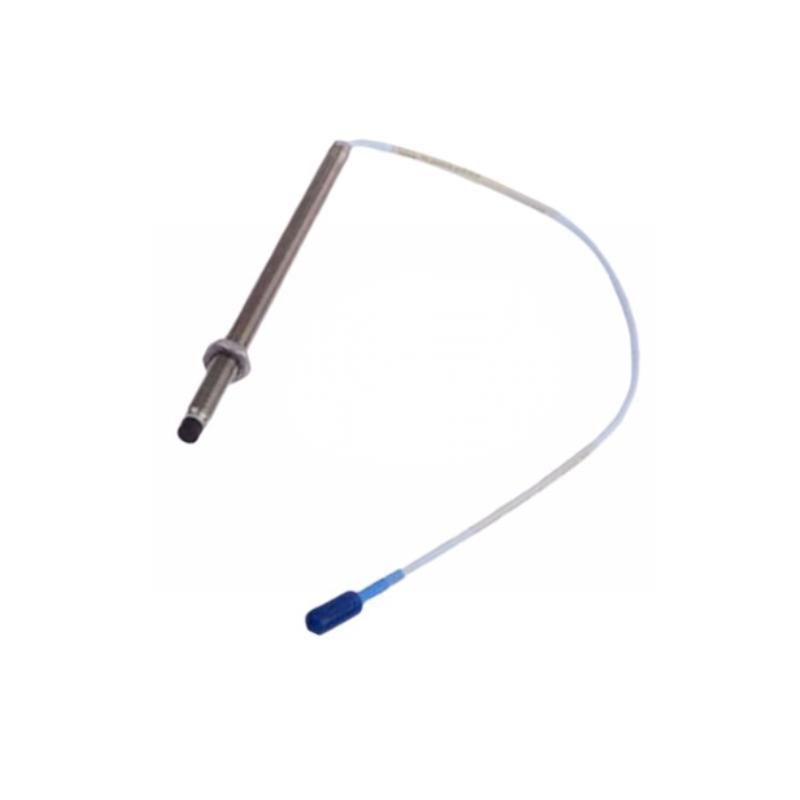

The Bently Nevada 330903-00-02-05-02-CN is an 8 mm eddy current proximity probe from the 3300 NSv series, designed for precise vibration and displacement monitoring von industrial machinery. This probe delivers high sensitivity and reliability, making it ideal for machinery protection and condition monitoring in critical applications. It features enhanced side-view characteristics for installation in constrained spaces and is fully compatible with previous 3300 RAM and NSv probes.
Key Features
-
High Sensitivity: Provides accurate displacement measurements over a 1.5 mm linear range
-
Enhanced Side View: Improved side-view characteristics for tight installation areas
-
Interchangeability: Mechanically and electrically compatible with previous 3300 RAM proximity probes
-
Eddy Current Sensing: High-sensitivity eddy-current sensing system for precise vibration and displacement detection
-
ClickLoc Connector: Miniature coaxial connector ensures secure and reliable connections
Technical Specifications
| Specification | Details |
|---|---|
| Modell | 330903-00-02-05-02-CN |
| Series | 3300 NSv |
| Thread Size | M8x1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Cable Length | 2.5 meters |
| Connector Type | ClickLoc miniature coaxial |
| Linear Range | 1.5 mm |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Frequency Response | 0–10 kHz |
| Resistance | 4.0Ω ±0.5Ω |
| Dimensions | Total Length : 0.5 meter |
| Gewicht | 0.15 kg |
Häufig gestellte Fragen (FAQ)
1. What is the purpose von the 330903-00-02-05-02-CN proximity probe?
The probe is designed for precise vibration and displacement measurements, enabling effective condition monitoring and machinery protection.
2. What is the linear range von this proximity probe?
The probe provides a linear range von 1.5 mm for accurate displacement readings.
3. What is the scale factor von the probe?
The scale factor is 7.87 V/mm (200 mV/mil).
4. What is the temperature range von the probe?
The probe operates between -52°C and +177°C (-62°F to +351°F).
5. What type von connector does the probe use?
It uses a ClickLoc miniature coaxial connector for reliable connections.
6. Is the probe interchangeable with previous models?
Yes, it is mechanically and electrically compatible with previous 3300 RAM and NSv probes.
7. What are the dimensions von the probe?
Total Length : 0.5 meter.
8. What is the weight von the probe?
The probe weighs approximately 0.15 kg.
Related Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330903-00-02-05-02-00 | 8 mm NSv proximity probe |
| 330903-00-03-05-02-00 | 8 mm NSv proximity probe |
| 330904-00-02-10-01-05 | 8 mm NSv proximity probe |
| 330904-00-18-10-01-05 | 8 mm NSv proximity probe |
| 330904-00-25-10-01-00 | 8 mm NSv proximity probe |
| 330904-00-03-10-02-00 | 8 mm NSv proximity probe |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330104-01-08-50-01-CN | 8 mm XL proximity probe |
| 330104-00-12-10-02-05 | 8 mm XL proximity probe |
| 330104-01-05-05-02-05 | 8 mm XL proximity probe |
| 330130-045-01-05 | XL standard extension cord |
| 330708-00-20-50-02-05 | 11 mm XL proximity probe |
| 21000-16-05-00-065-04-02 | Proximity probe housing assembly |
