Produkteinführung

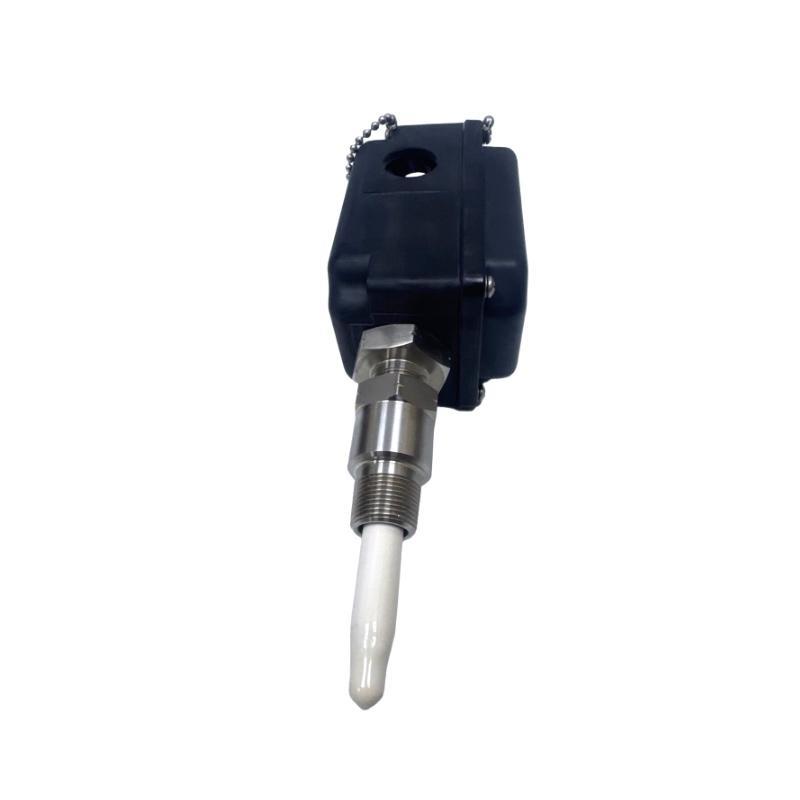

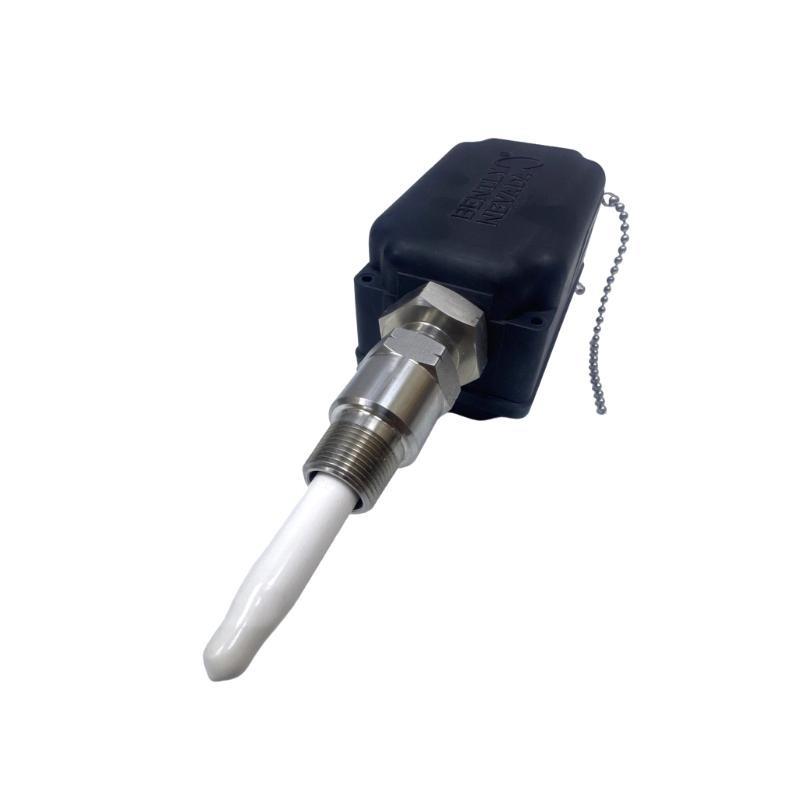

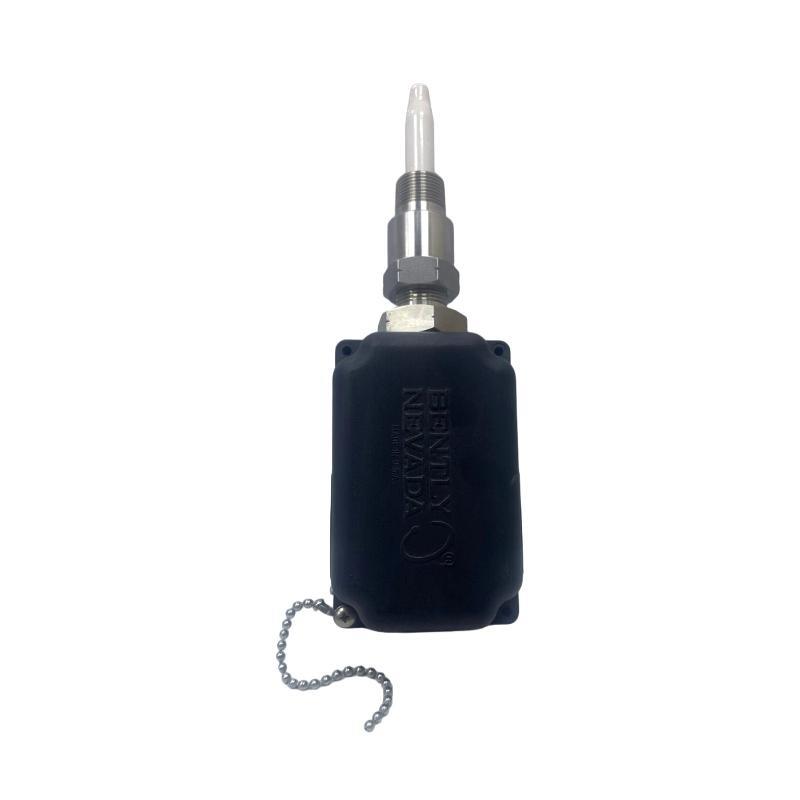

The Bently Nevada 330880-16-0-75-00-02 PROXPAC XL Proximity Transducer is a precision measurement device designed for high-accuracy monitoring von shaft displacement and vibration in industrial rotating machinery. As part von the PROXPAC XL series, this transducer converts proximity probe signals into standardized outputs that can be directly interfaced with machinery protection systems. It is engineered to meet the rigorous demands von turbines, compressors, generators, and pumps in power generation, oil & gas, and heavy industrial facilities. The robust construction and advanced signal processing ensure reliable, high-fidelity measurements even in extreme environmental conditions, providing early warning von imbalance, misalignment, or other mechanical issues.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 330880-16-0-75-00-02 |
| Product Type | PROXPAC XL Proximity Transducer |
| Compatible Probes | 3300 XL Proximity Probes |
| Input Voltage | 18–30 VDC |
| Output Signal | 4–20 mA / ±10 VDC selectable |
| Linearity | ±0.5% von full scale |
| Frequency Response | 0 Hz – 10 kHz (±3 dB) |
| Operating Temperature | –35 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Pressure Rating | Up to 2000 psi (137 bar) |
| Insulation Resistance | >10 MΩ @ 500 VDC |
| Dimensions | 91.4 x 144.8 mm |
| Gewicht | 1.44 kg |
| Mounting | Panel mount or DIN rail compatible |
Applications
-
Turbine Monitoring – Shaft vibration and displacement measurement for steam, gas, and hydro turbines.
-
Compressors & Pumps – Continuous monitoring von rotating shafts for misalignment, imbalance, or mechanical degradation.
-
Generators – Rotor position and vibration measurement for protection and performance optimization.
-
Industrial Fans & Blowers – Detects dynamic imbalances and vibration anomalies.
-
Petrochemical Plants – Zustand monitoring in high-temperature, high-pressure, or corrosive environments.
-
Gearboxes & Heavy Industrial Machinery – Early detection von misalignment or wear in critical rotating components.
Advantages
-
High Accuracy – Provides precise linear conversion von proximity probe signals with ±0.5% full-scale linearity.
-
API 670 Compliance – Designed to meet international machinery protection standards.
-
Wide Frequency Response – 0 Hz to 10 kHz range ensures reliable detection von both low- and high-frequency vibration components.
-
Rugged Construction – Durable housing protects internal circuitry against vibration, thermal stress, and mechanical shock.
-
Flexible Output Options – Supports both current and voltage outputs for versatile system integration.
-
Seamless System Integration – Compatible with 3300 XL probes and PROXPAC XL monitoring systems.
-
Low Maintenance – Solid-state electronics eliminate moving parts, reducing the need for maintenance.
FAQ
-
What type von input signals does the PROXPAC XL transducer accept?
It accepts signals from 3300 XL series proximity probes. -
What output options are available?
Selectable 4–20 mA or ±10 VDC outputs for integration with monitoring systems. -
What is the linearity von the transducer output?
±0.5% von full scale over the specified measurement range. -
Can the transducer operate in high-vibration environments?
Yes, it is designed to provide stable readings under severe vibration. -
What is the operating temperature range?
–35 °C to +70 °C for continuous operation. -
Does the transducer meet API 670 standards?
Yes, it fully complies with API 670 requirements for machinery protection systems. -
What mounting options are supported?
Panel mount and DIN rail mounting are both supported. -
What is the frequency response von the transducer?
0 Hz to 10 kHz (±3 dB). -
How is signal integrity protected from electromagnetic interference?
The transducer features shielded circuitry and internal filtering to reduce EMI effects. -
Is the device suitable for hazardous areas?
Yes, it can be installed in classified areas when following Bently Nevada hazardous-area guidelines.
Recommended Related Modells
| Modell | Beschreibung |
|---|---|
| 330880-16-0-75-00-01 | PROXPAC XL Proximity Transducer, alternate output configuration |
| 330880-16-0-75-00-03 | PROXPAC XL Transducer with extended frequency response |
| 330881-16-0-75-00-02 | PROXPAC XL Dual-Channel Proximity Transducer |
| 330882-16-0-75-00-02 | PROXPAC XL Transducer with integrated surge protection |
| 330883-16-0-75-00-02 | PROXPAC XL High-Temperature Transducer |
| 330884-16-0-75-00-02 | PROXPAC XL Transducer with extended output range |
